This is the new fuse panel i am making. It was out of a 1985 silverado truck.

This is the new fuse panel mount. I made it out of MDF and painted it black.

here is the panel with the new term strips in place.

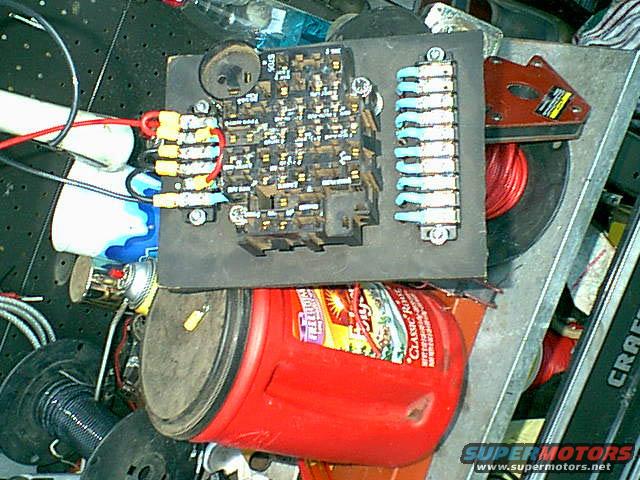

here it is done. i needed one more term connection but it was for the elect choke so i just use a bulet connector.

another front view

here is the back side-not too bad

Here is the next step in the swap.i made two power connections at the top. one is battery power (always hot) and the black is acc hot.. i then jumpered the other circuits as needed.

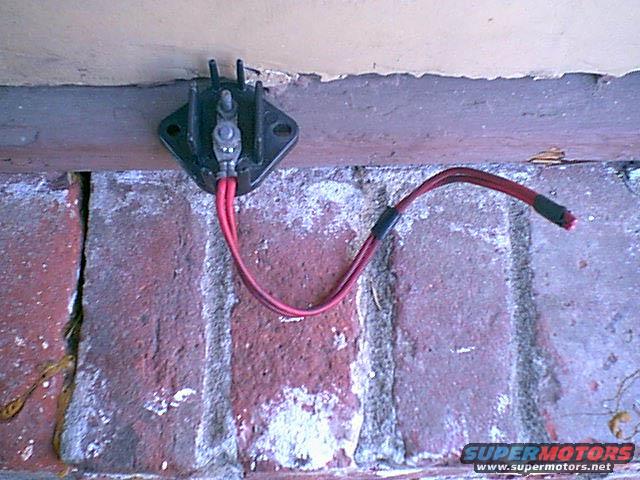

To make wiring more easy i got a single point power take off. this was off a Blazer.

here is another view.

i trimed the 2 16 guage wires and soldered in a new 10 guage wire that will goto the battery. all other aux power will be pulled from here.
