camberbushing.jpg | Hits: 792 | Size: 93.57 KB | Posted on: 10/27/06 | Link to this image


Here are the stock camber bushings. If you change anyting on the front suspension you will need to get an alignment and these will need to be replaced. These are stock bushings out of Jezebel. you can see the hole is off center it realigns the top ball joint to set the camber / caster.

Share This
Url
Tag
Thumb

camberbushing2.jpg | Hits: 730 | Size: 105.1 KB | Posted on: 10/27/06 | Link to this image


Here is a top view of the stock camber bushing.

Share This
Url
Tag
Thumb

camber bushing7.jpg | Hits: 692 | Size: 77.14 KB | Posted on: 12/28/06 | Link to this image


This was the big box a set of 2 bushings came in.

Share This
Url
Tag
Thumb

camber bushing6.jpg | Hits: 672 | Size: 63.41 KB | Posted on: 12/28/06 | Link to this image


inside the big box was 2 smaller boxes.

Share This
Url
Tag
Thumb

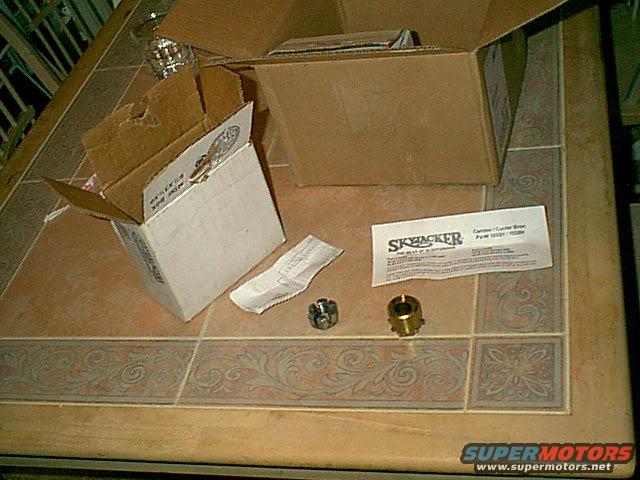

camber bushing5.jpg | Hits: 689 | Size: 76.29 KB | Posted on: 12/28/06 | Link to this image


here is one kit open
1 kit = 1 nut and 1 adjustable camber bushing

Share This
Url
Tag
Thumb

camber bushing 4.jpg | Hits: 761 | Size: 74.02 KB | Posted on: 12/28/06 | Link to this image


here is the kit without the box

Share This
Url
Tag
Thumb

camber bushing.jpg | Hits: 974 | Size: 62.14 KB | Posted on: 12/28/06 | Link to this image


I decided i like to have adjustable camber bushings so i ordered a set from chris at Custom4x4.com. these are from Skyjacker.

Share This
Url
Tag
Thumb

camber bushing2.jpg | Hits: 772 | Size: 55.27 KB | Posted on: 12/28/06 | Link to this image


you can see the off camber adjustments you can make with these.

Share This
Url
Tag
Thumb

camber bushing3.jpg | Hits: 1062 | Size: 63.5 KB | Posted on: 12/28/06 | Link to this image


here is a side view of the bushings

Share This
Url
Tag
Thumb

passsidebushing.jpg | Hits: 819 | Size: 69.66 KB | Posted on: 12/28/06 | Link to this image


here is the stock alignment bushings. here is the pass side.

Share This
Url
Tag
Thumb

weldeddriverbushing.jpg | Hits: 738 | Size: 76.73 KB | Posted on: 12/28/06 | Link to this image


Here is the drivers side. this was an issue i was not ready for the last owner did an alignment and instead of getting the correct bushing they welded the stock one in the closest alignment. the shop would not remove this welded bushing.

Share This
Url
Tag
Thumb

weldeddriverbushing2.jpg | Hits: 831 | Size: 90.36 KB | Posted on: 12/28/06 | Link to this image


Here is a better shot of the welded stock bushing.

Share This
Url
Tag
Thumb

newdriverbushing.jpg | Hits: 826 | Size: 51.63 KB | Posted on: 12/28/06 | Link to this image


here is the new driver bushing installed.

Share This
Url
Tag
Thumb

driverbushing2.jpg | Hits: 833 | Size: 101.41 KB | Posted on: 12/28/06 | Link to this image


Here is the new bushing after the front alignment. what a difference.

Share This
Url
Tag
Thumb

newpass side bushing2.jpg | Hits: 782 | Size: 50.31 KB | Posted on: 12/28/06 | Link to this image


hereis the pass side bushing after install

Share This
Url
Tag
Thumb

passnewbushing.jpg | Hits: 768 | Size: 98.69 KB | Posted on: 12/28/06 | Link to this image


Here is the pass side after the front end alignment
