Horn.JPG | Hits: 441 | Size: 30.93 KB | Posted on: 8/9/08 | Link to this image


I got a standard push button switch for the horn. i drilled a 1/2" hole for the switch and installed the switch.

Url
Tag
Thumb

horn 09.JPG | Hits: 456 | Size: 66.92 KB | Posted on: 8/9/08 | Link to this image


I ran a power from the fuse block to the push button switch (10 amp fuse)

Url
Tag
Thumb

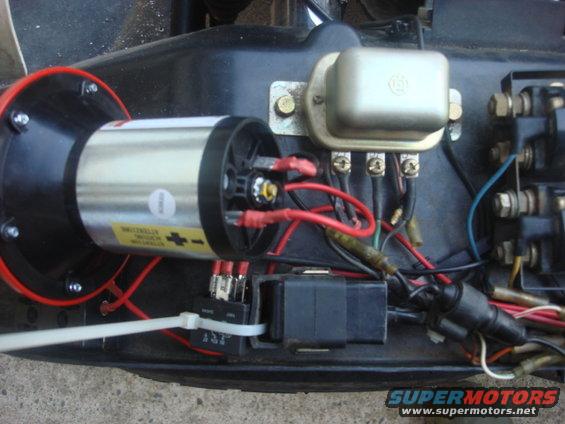

horn 02.JPG | Hits: 481 | Size: 56.98 KB | Posted on: 8/9/08 | Link to this image


I drilled a hole in the rear fender and mounted the Harbor Frieght horn. you can see all the wiring in place here.

Url
Tag
Thumb

horn 06.JPG | Hits: 481 | Size: 34.68 KB | Posted on: 8/9/08 | Link to this image


Here is the relay i used for the horn. it is a common relay.

Url
Tag
Thumb

horn 05.JPG | Hits: 484 | Size: 34.77 KB | Posted on: 8/9/08 | Link to this image


here is the side and wiring diagram for the relay

Url
Tag
Thumb

horn 04.JPG | Hits: 449 | Size: 32.66 KB | Posted on: 8/9/08 | Link to this image


here is the bottom of the relay.

Url
Tag
Thumb

horn 02.JPG | Hits: 756 | Size: 56.98 KB | Posted on: 8/9/08 | Link to this image


i ran a power from a new fuse to the relay and then to the horn and a ground.

Url
Tag
Thumb

horn 03.JPG | Hits: 388 | Size: 58 KB | Posted on: 8/9/08 | Link to this image


i zip tied the relay to the coil pack so it will not bounce around. this worked great.
