I planned to shoot some 'before' pics, but I forgot. Now it's too late.
Hits: 648
Size: 30.14 KB
Posted: 3/26/06
I planned to shoot some 'before' pics, but I forgot. Now it's too late.		These are just resting in place so I can see what I'm heading for.
Hits: 570
Size: 45.78 KB
Posted: 3/26/06
These are just resting in place so I can see what I'm heading for.		The room is too small to get a full shot - I'm standing on a ladder here.
Hits: 623
Size: 55.33 KB
Posted: 3/26/06
The room is too small to get a full shot - I'm standing on a ladder here.		Some scrap angle iron from my construction days makes the perfect mounting ledge. It's lag-screwed ...
Hits: 610
Size: 37.83 KB
Posted: 3/26/06
Some scrap angle iron from my construction days makes the perfect mounting ledge. It's lag-screwed ...		I'm just test-fitting the desktop right now. I used my laser level to cut the tops of the 2 support...
Hits: 661
Size: 40.08 KB
Posted: 3/26/06
I'm just test-fitting the desktop right now. I used my laser level to cut the tops of the 2 support...
This is my g/f's side. She needs a lot of room for scrapbooking.
Hits: 587
Size: 27.71 KB
Posted: 3/26/06
This is my g/f's side. She needs a lot of room for scrapbooking.		This is the rest of her side.
Hits: 625
Size: 22.07 KB
Posted: 3/26/06
This is the rest of her side.		This is my side. I'll replace that track shelving with built-ins after I finish the desk.
Hits: 553
Size: 44.5 KB
Posted: 3/26/06
This is my side. I'll replace that track shelving with built-ins after I finish the desk.		We ironed on all the edge tape & stained everything but the TOP of the desktops. I'll do that all a...
Hits: 843
Size: 63.34 KB
Posted: 3/26/06
We ironed on all the edge tape & stained everything but the TOP of the desktops. I'll do that all a...		A freak snowstorm blew through, and I didn't want moisture or kerosene (from the heater) affecting t...
Hits: 989
Size: 43.17 KB
Posted: 3/26/06
A freak snowstorm blew through, and I didn't want moisture or kerosene (from the heater) affecting t...
Yes, it smells. That's my collection of Mikasa Opus Black china & Vogue Black stemware in the bac...
Hits: 702
Size: 41.46 KB
Posted: 3/26/06
Yes, it smells. That's my collection of Mikasa Opus Black china & Vogue Black stemware in the bac...		The angles are painted, and I'm beginning permanent assembly.
Hits: 568
Size: 33.01 KB
Posted: 3/26/06
The angles are painted, and I'm beginning permanent assembly.		Even 3/4" oak-veneer plywood (Chinese...) warps, so these braces will keep it flat.
Hits: 632
Size: 43.69 KB
Posted: 3/26/06
Even 3/4" oak-veneer plywood (Chinese...) warps, so these braces will keep it flat.		The 2 corner desktop pieces are only there to hold the window section in place. It's fully glued to...
Hits: 538
Size: 43.75 KB
Posted: 3/26/06
The 2 corner desktop pieces are only there to hold the window section in place. It's fully glued to...		Her puter goes on that side shelf. I considered adding those corner scraps as footrests, but it wou...
Hits: 599
Size: 42.71 KB
Posted: 3/26/06
Her puter goes on that side shelf. I considered adding those corner scraps as footrests, but it wou...
This veneer is paper-thin, and very easy to peel off when cutting, but the stain hides the flaws fai...
Hits: 573
Size: 54.58 KB
Posted: 3/26/06
This veneer is paper-thin, and very easy to peel off when cutting, but the stain hides the flaws fai...		The 2 planks at the bottom were screwed & glued, then stained, and the verticals were screwed & glue...
Hits: 708
Size: 47.42 KB
Posted: 3/26/06
The 2 planks at the bottom were screwed & glued, then stained, and the verticals were screwed & glue...		The small shelf formed by the bottom of the support is for cables & peripherals, like a UPS, hub, ro...
Hits: 652
Size: 29.22 KB
Posted: 3/26/06
The small shelf formed by the bottom of the support is for cables & peripherals, like a UPS, hub, ro...		Just testing here. I'm using silver aluminum tile edge along the wall to hide the sloppy back edge ...
Hits: 662
Size: 38.95 KB
Posted: 3/26/06
Just testing here. I'm using silver aluminum tile edge along the wall to hide the sloppy back edge ...		It's coming together...
Hits: 723
Size: 33.96 KB
Posted: 3/26/06
It's coming together...
The smaller holes at the bottoms of the verticals are for power cords to run along the wall on the l...
Hits: 713
Size: 43.31 KB
Posted: 3/26/06
The smaller holes at the bottoms of the verticals are for power cords to run along the wall on the l...		The plywood was warped, and my cuts weren't as tight as I wanted, so I used a LOT of weight & some r...
Hits: 636
Size: 57.35 KB
Posted: 3/26/06
The plywood was warped, and my cuts weren't as tight as I wanted, so I used a LOT of weight & some r...		I used PLENTY of screws along the back edges to hold the desktop in place & flat, and a bunch of she...
Hits: 637
Size: 52.82 KB
Posted: 3/26/06
I used PLENTY of screws along the back edges to hold the desktop in place & flat, and a bunch of she...		This shows how many screws & clips I used, and the large fish plates at the desktop joints. It wasn...
Hits: 564
Size: 45.94 KB
Posted: 3/26/06
This shows how many screws & clips I used, and the large fish plates at the desktop joints. It wasn...		The desktop is fully glued down now, and the aluminum edge is in place. There's a tiny gap between ...
Hits: 618
Size: 43.79 KB
Posted: 3/26/06
The desktop is fully glued down now, and the aluminum edge is in place. There's a tiny gap between ...
The desktop grommets are for monitor, keyboard, & printer cables. There's a tiny lip at the back of...
Hits: 697
Size: 41.77 KB
Posted: 3/26/06
The desktop grommets are for monitor, keyboard, & printer cables. There's a tiny lip at the back of...		It's now ready for the final edge on the desk. I have to rout a slot for biscuits into the plywood,...
Hits: 664
Size: 22.34 KB
Posted: 3/26/06
It's now ready for the final edge on the desk. I have to rout a slot for biscuits into the plywood,...		The holes for the wires to come up are convenient for the straps to hold the edge on while the glue ...
Hits: 554
Size: 54.9 KB
Posted: 4/9/06
The holes for the wires to come up are convenient for the straps to hold the edge on while the glue ...		The holes for the wires to come up are convenient for the straps to hold the edge on while the glue ...
Hits: 623
Size: 61.99 KB
Posted: 4/9/06
The holes for the wires to come up are convenient for the straps to hold the edge on while the glue ...		Now I have to figure out how to cut this. I think I can afford to make one mistake & still have eno...
Hits: 636
Size: 40.77 KB
Posted: 4/9/06
Now I have to figure out how to cut this. I think I can afford to make one mistake & still have eno...
I had to build this jig & swinging router arm to hold the board so I could cut the arc. I had to cu...
Hits: 800
Size: 42.36 KB
Posted: 4/9/06
I had to build this jig & swinging router arm to hold the board so I could cut the arc. I had to cu...		It looks pretty good.
Hits: 617
Size: 43.39 KB
Posted: 4/9/06
It looks pretty good.		It still needs to be cut for length, rounded, & slotted.
Hits: 614
Size: 36.1 KB
Posted: 4/9/06
It still needs to be cut for length, rounded, & slotted.		Clamping this one wasn't as easy as the others.
Hits: 620
Size: 42.54 KB
Posted: 4/9/06
Clamping this one wasn't as easy as the others.		Out of that bottle, I ended up with 6 extra biscuits.
Hits: 623
Size: 41.42 KB
Posted: 4/9/06
Out of that bottle, I ended up with 6 extra biscuits.

Hits: 645
Size: 51.41 KB
Posted: 4/9/06

Hits: 684
Size: 56.34 KB
Posted: 4/9/06
All of the edges are glued on, routed, & sanded. It's all vacuumed & tacked, so it's ready for stai...
Hits: 610
Size: 46.26 KB
Posted: 4/17/06
All of the edges are glued on, routed, & sanded. It's all vacuumed & tacked, so it's ready for stai...		All of the edges are glued on, routed, & sanded. It's all vacuumed & tacked, so it's ready for stai...
Hits: 570
Size: 31.19 KB
Posted: 4/17/06
All of the edges are glued on, routed, & sanded. It's all vacuumed & tacked, so it's ready for stai...		This offset came out better that I expected.
Hits: 609
Size: 41.93 KB
Posted: 4/17/06
This offset came out better that I expected.
These corners are OK, but I wish I had done them better.
Hits: 556
Size: 42.48 KB
Posted: 4/17/06
These corners are OK, but I wish I had done them better.		These corners are OK, but I wish I had done them better.
Hits: 638
Size: 41.36 KB
Posted: 4/17/06
These corners are OK, but I wish I had done them better.
Hits: 579
Size: 34.83 KB
Posted: 4/17/06
The first coat is going on pretty well.
Hits: 568
Size: 47.58 KB
Posted: 4/17/06
The first coat is going on pretty well.		The first coat is going on pretty well.
Hits: 509
Size: 51.22 KB
Posted: 4/17/06
The first coat is going on pretty well.
The first coat went on pretty well, even though this angle doesn't show it.
Hits: 557
Size: 35.91 KB
Posted: 4/17/06
The first coat went on pretty well, even though this angle doesn't show it.		The first coat is dry, scuffed, & tacked - ready for the 2nd coat.
Hits: 569
Size: 47.27 KB
Posted: 4/17/06
The first coat is dry, scuffed, & tacked - ready for the 2nd coat.		The first coat is dry, scuffed, & tacked - ready for the 2nd coat.
Hits: 590
Size: 50.42 KB
Posted: 4/17/06
The first coat is dry, scuffed, & tacked - ready for the 2nd coat.		The first coat is dry, scuffed, & tacked - ready for the 2nd coat.
Hits: 573
Size: 39.77 KB
Posted: 4/17/06
The first coat is dry, scuffed, & tacked - ready for the 2nd coat.		I can stand, run, and even jump on it, and it doesn't creak or sag.
Hits: 638
Size: 39.41 KB
Posted: 4/17/06
I can stand, run, and even jump on it, and it doesn't creak or sag.
2nd coat is going down.
Hits: 641
Size: 53.82 KB
Posted: 4/17/06
2nd coat is going down.		2nd coat is going down. I got creative with the camera angle to hide a big mistake in the middle.
Hits: 594
Size: 54.64 KB
Posted: 4/17/06
2nd coat is going down. I got creative with the camera angle to hide a big mistake in the middle.		2nd coat is going down.
Hits: 645
Size: 33.88 KB
Posted: 4/17/06
2nd coat is going down.		I made a few little spots that will probably stay.
Hits: 584
Size: 58.13 KB
Posted: 4/17/06
I made a few little spots that will probably stay.		This is the worst one, and I'll have to sand it out.
Hits: 553
Size: 57.73 KB
Posted: 4/17/06
This is the worst one, and I'll have to sand it out.

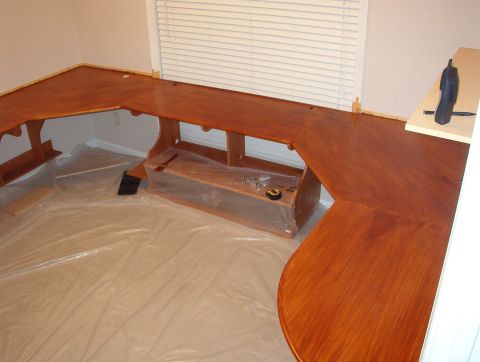

It's not hidden now.
Hits: 579
Size: 41.66 KB
Posted: 4/17/06
It's not hidden now.		It's not hidden now.
Hits: 582
Size: 44.89 KB
Posted: 4/17/06
It's not hidden now.		This side looks pretty good, though.
Hits: 598
Size: 32.63 KB
Posted: 4/17/06

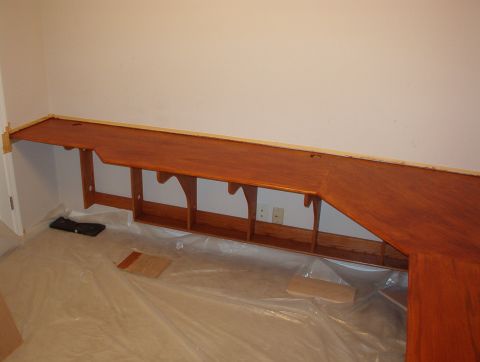

This side looks pretty good, though.		I sanded this area bare & put 2 coats feathered back in. This is just after the 2nd.
Hits: 676
Size: 33.98 KB
Posted: 4/17/06

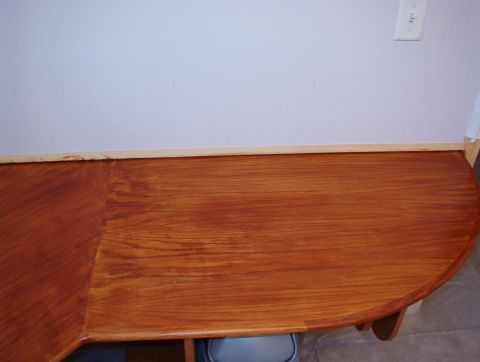

I sanded this area bare & put 2 coats feathered back in. This is just after the 2nd.		This is after the final coat of clear gloss poly.
Hits: 557
Size: 35.38 KB
Posted: 4/30/06

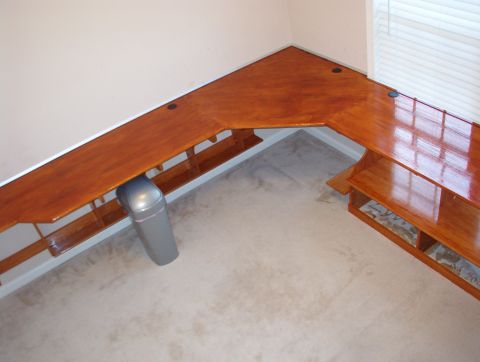

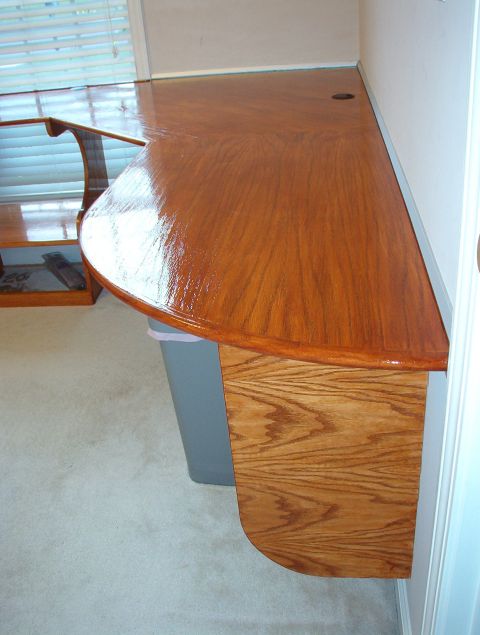

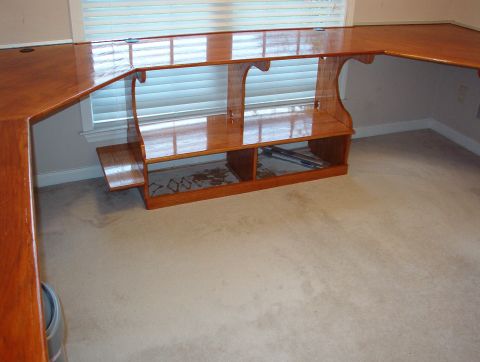

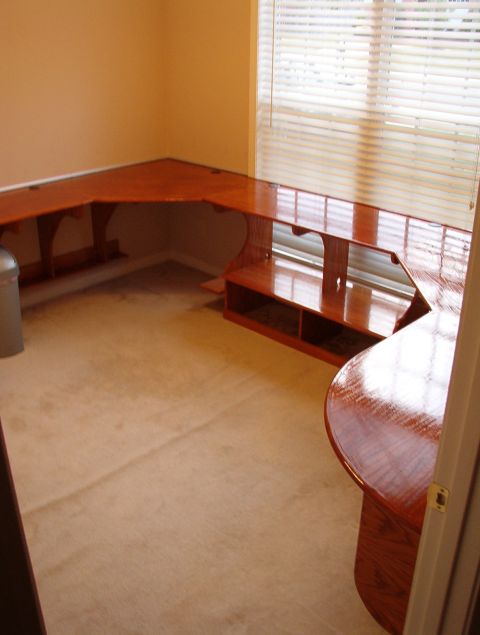

This is after the final coat of clear gloss poly.
This is after the final coat of clear gloss poly.
Hits: 591
Size: 41.64 KB
Posted: 4/30/06
This is after the final coat of clear gloss poly.		This is after the final coat of clear gloss poly.
Hits: 682
Size: 48.82 KB
Posted: 4/30/06
This is after the final coat of clear gloss poly.		This is after the final coat of clear gloss poly.
Hits: 624
Size: 42.78 KB
Posted: 4/30/06
This is after the final coat of clear gloss poly.		Because of a consideration on her side, I'm putting the shelf support rail ABOVE the upper shelf on ...
Hits: 749
Size: 57.34 KB
Posted: 4/30/06

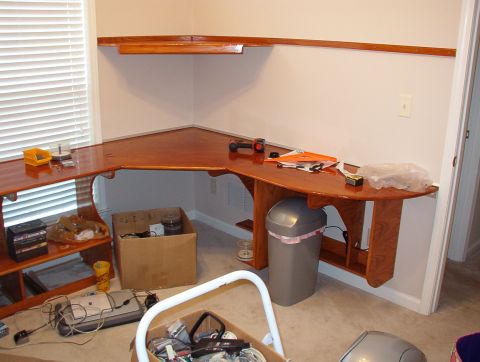

Because of a consideration on her side, I'm putting the shelf support rail ABOVE the upper shelf on ...		She's getting anxious to move back in (because we had to take her computer & old desk down for the n...
Hits: 709
Size: 36.95 KB
Posted: 4/30/06

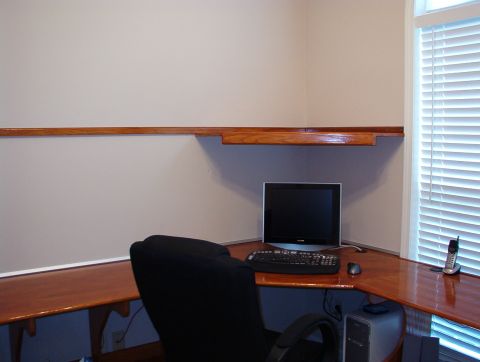

She's getting anxious to move back in (because we had to take her computer & old desk down for the n...

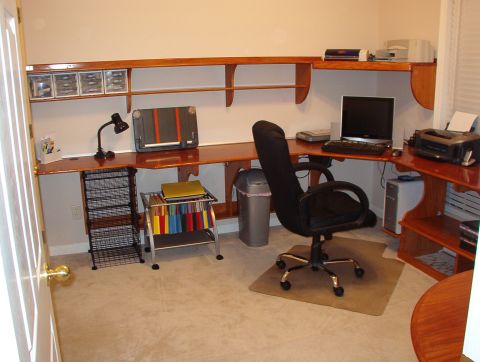

I made a few little mistakes, but I was able to hide them.
Hits: 750
Size: 57.38 KB
Posted: 4/30/06
I made a few little mistakes, but I was able to hide them.		This area is actually much bigger than this photo makes it look.
Hits: 640
Size: 41.53 KB
Posted: 4/30/06

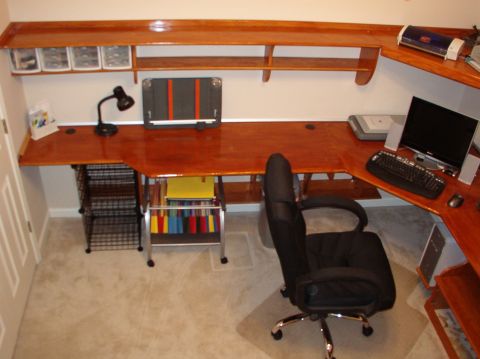

This area is actually much bigger than this photo makes it look.		Low angle
Hits: 675
Size: 51.68 KB
Posted: 4/30/06

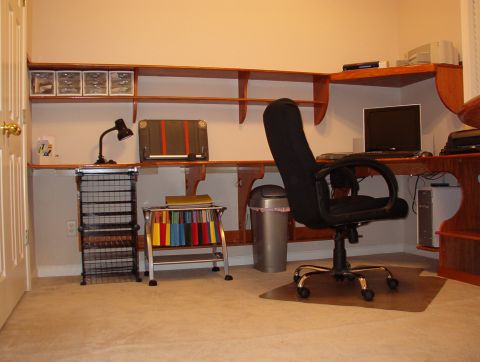

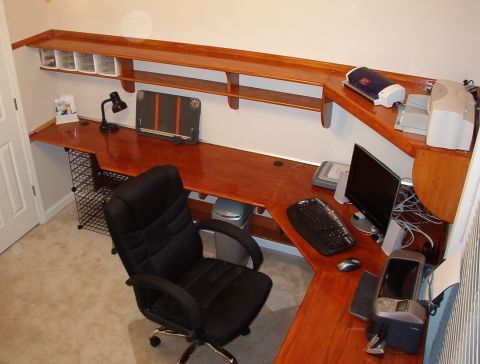

Low angle		It's ready for her to move back in.
Hits: 719
Size: 47.4 KB
Posted: 4/30/06
It's ready for her to move back in.
Hits: 629
Size: 48.76 KB
Posted: 5/4/06

Hits: 625
Size: 52.3 KB
Posted: 5/4/06

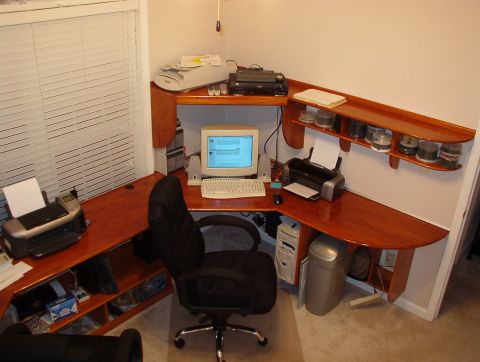

Mine's done.
Hits: 721
Size: 56.36 KB
Posted: 5/4/06
Mine's done.		She's finished moving her stuff back, but it's not nearly as cluttered as it used to be.
Hits: 637
Size: 37.51 KB
Posted: 5/4/06

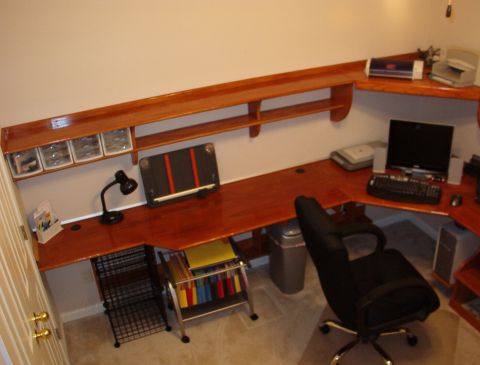

She's finished moving her stuff back, but it's not nearly as cluttered as it used to be.		I have the low drawer fronts finished, but I still have to build & hang the drawers. I might also b...
Hits: 673
Size: 57.98 KB
Posted: 5/4/06

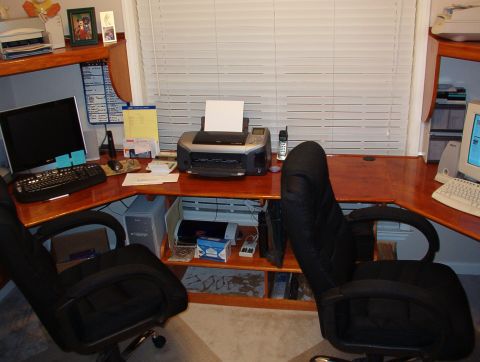

I have the low drawer fronts finished, but I still have to build & hang the drawers. I might also b...		I'm pretty much moved in, but when I find a flat-panel monitor I like, I'll move the scanner down be...
Hits: 794
Size: 54.08 KB
Posted: 5/4/06

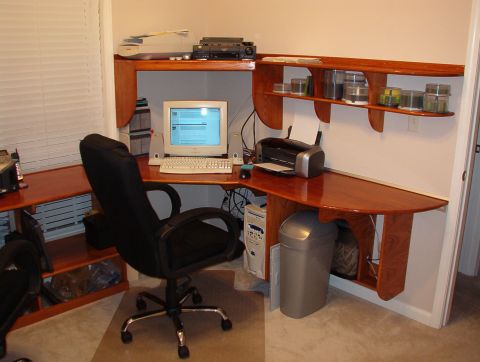

I'm pretty much moved in, but when I find a flat-panel monitor I like, I'll move the scanner down be...

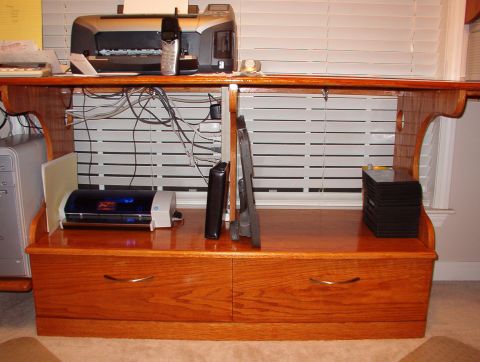

Got the drawers cut, stained & varnished last week, and I built & installed them tonight.
Hits: 597
Size: 66.19 KB
Posted: 5/6/06
Got the drawers cut, stained & varnished last week, and I built & installed them tonight.		I used 100 lb 16" full-opening slides, which turned out to be necessary. Each drawer weighs 17 lbs ...
Hits: 779
Size: 66.2 KB
Posted: 5/6/06

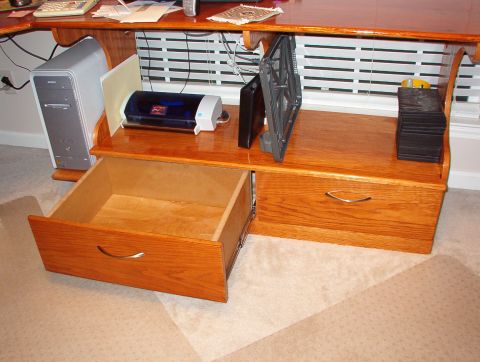

I used 100 lb 16" full-opening slides, which turned out to be necessary. Each drawer weighs 17 lbs ...		FINISHED!!! :-D The only problem is that now I realize that I REALLY want high drawers, just und...
Hits: 658
Size: 68.21 KB
Posted: 5/6/06

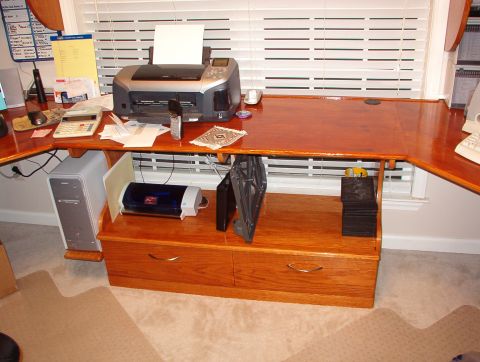

FINISHED!!! :-D The only problem is that now I realize that I REALLY want high drawers, just und...
