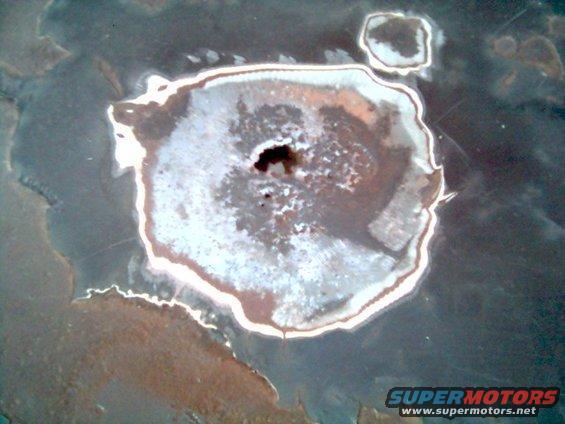

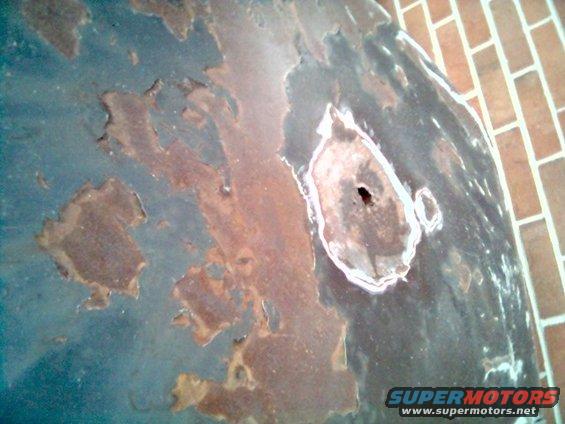

a bondo'd over hole started leaking water inside
|
|
|
maybe it was for a CB antenna
Rubber Duck ya got yer ears on?
Bandit? Snowman?
|
|
|

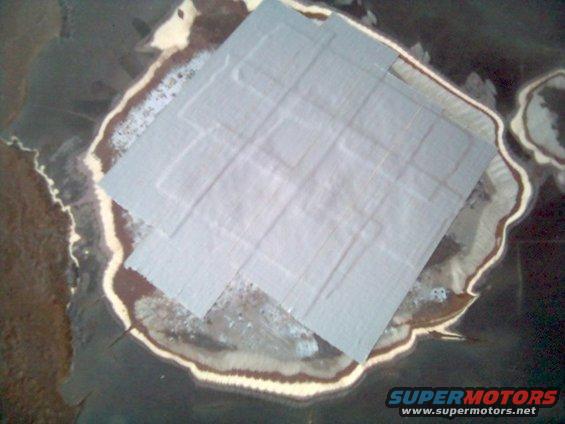

duck tape patch kept the water out for a while
|
|
|
or so I thought, it kept getting wet inside
|
|
|
maybe i shoulda put a bigger patch on it?
|
|
|
saving the edges is gonna be hard enough
|
|
|

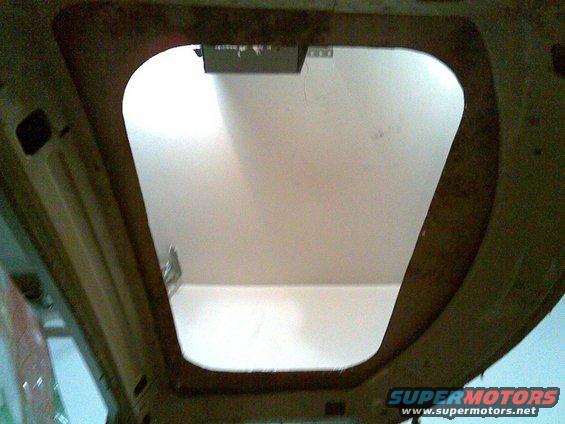

so lets just get rid of the middle part
|
|
|
the cut-off wheel doesn't turn so good
|
|
|

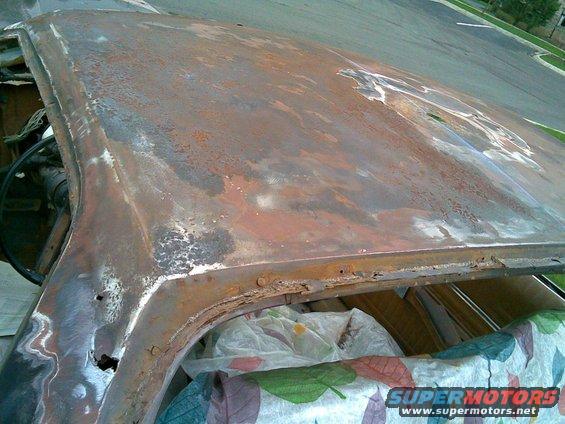

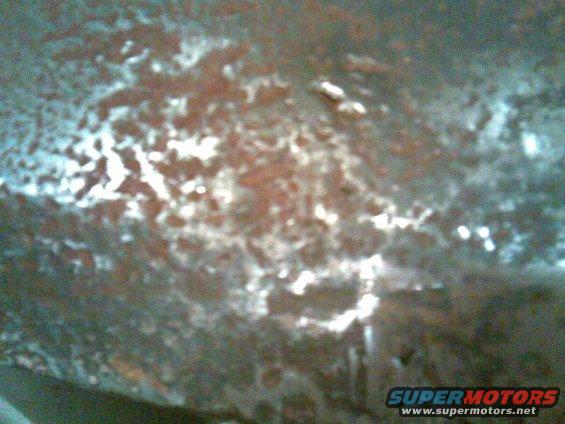

after grinding some, the pitted areas started crumbling through

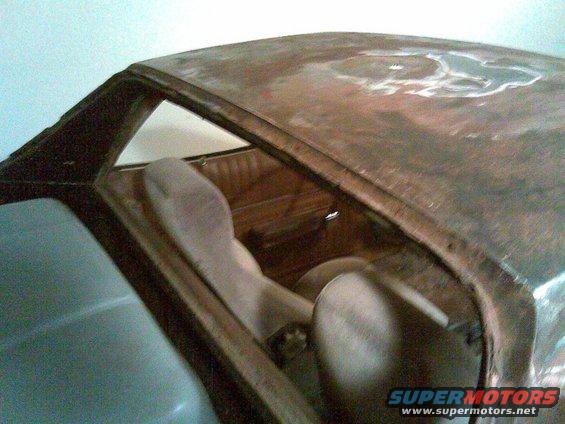

lets not kid ourselves, there's only enough metal left to make a strainer
|
|
|
so i decided to cut the skin off

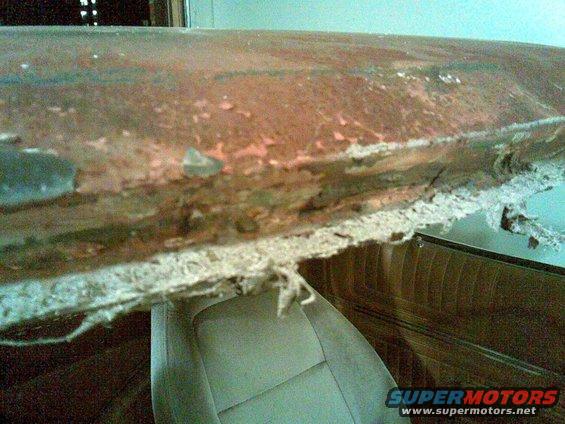

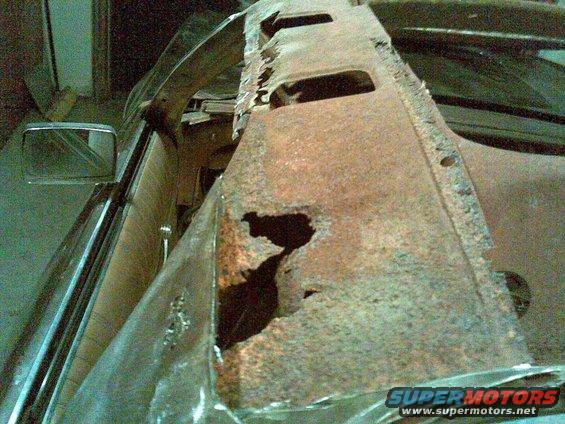

ugly is to the bone
|
|
|

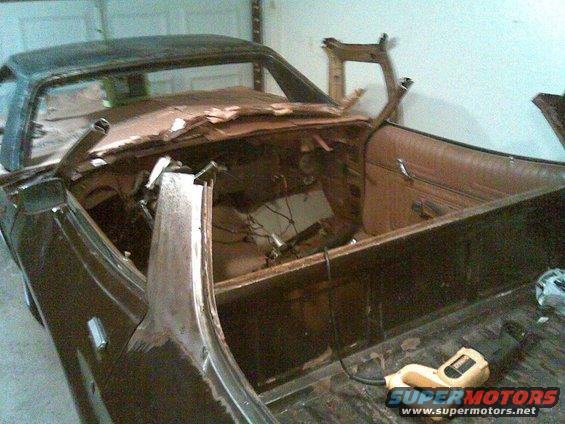

this thing's gonna be a convertible pretty soon
|
|
|

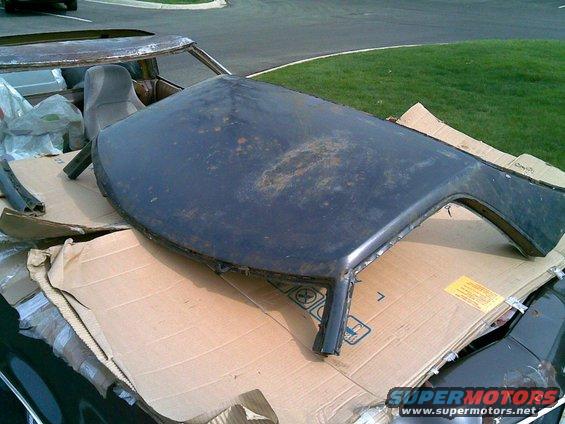

this must be what the old roof looked like 20 years ago, looks like the same exact spots
|
|
|

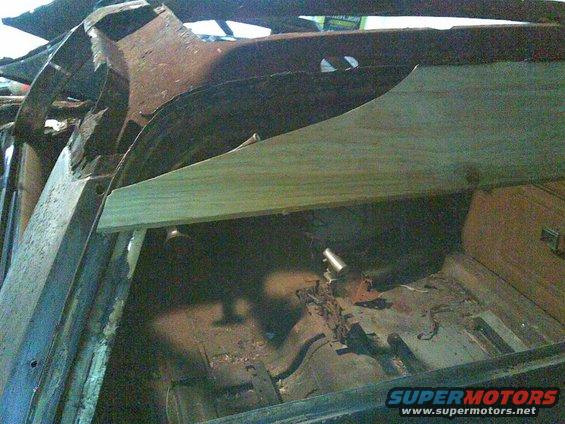

i made a template to locate the same points on both roofs. i started with the widest opening at the bed rails, then trimmed it down to fit in the window opening, then the side window.
|
|
|
pretty committed at this point
|
|
|

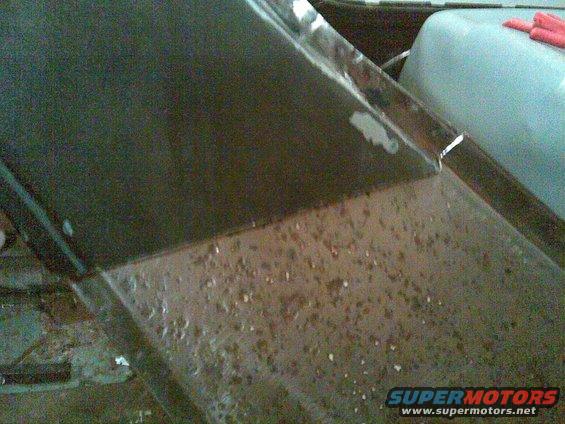

i left some allowance metal to form another factory style lap joint below the one on the new roof because the allowances on the old quarters are rusted off
|
|
|
 ApillarXsection.jpg | Hits: 429 | Size: 62.47 KB | Posted on: 4/25/10 | Link to this image
cross section of the A pillar and hose clamp cutting guide
|
|
|

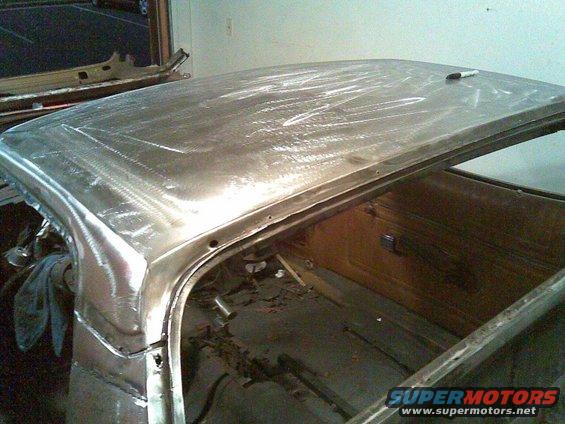

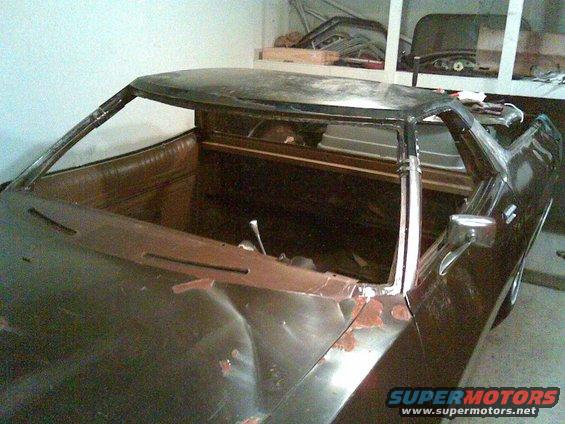

first test fit of the new roof, not too bad at all
|
|
|
drivers side A pillar, hose clamps are holding a piece of plastic tubing for safety
|
|
|

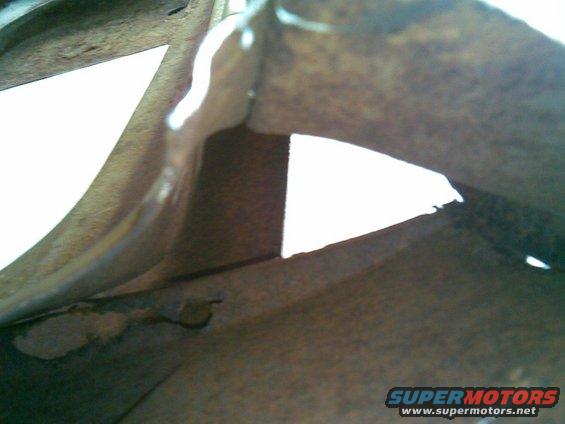

the 72 didn't get the same shoulder belt mount that later years did, in the rear corner of the roof
|
|
|
 ShldrBeltStructure.jpg | Hits: 293 | Size: 38.89 KB | Posted on: 5/14/10 | Link to this image
i wonder if i dodged a bullet by not trying to rebuild the inner structure, these reinforcements might not be the only changes?
|
|
|
there's nothing there in the 72 roof
|
|
|

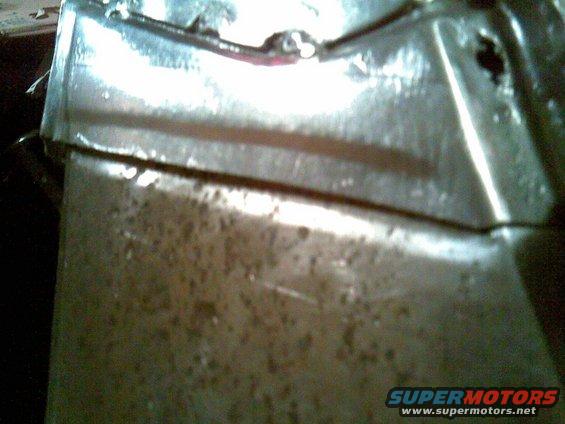

offsetting both edges created a new recessed seam to weld in and mud over
|
the roof
