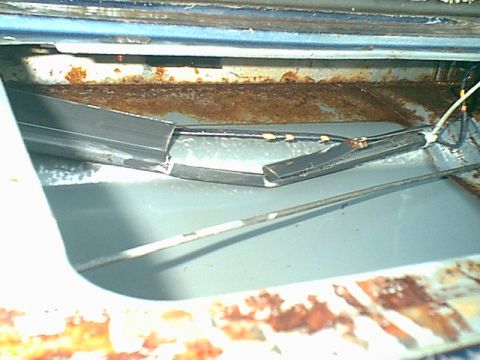

when i got this bronco the rear window did not work. there was cardboard blocking the back cover. i ...
new tailgate harnes.jpg
904 hits | 88.38 KB | Posted: 10/17/06

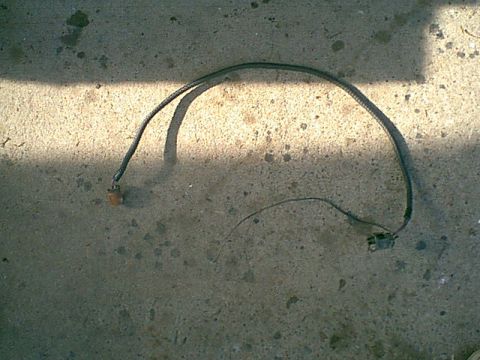

i found the wire harness was bad in spots so i made a new one.
1053 hits | 109.4 KB | Posted: 10/17/06

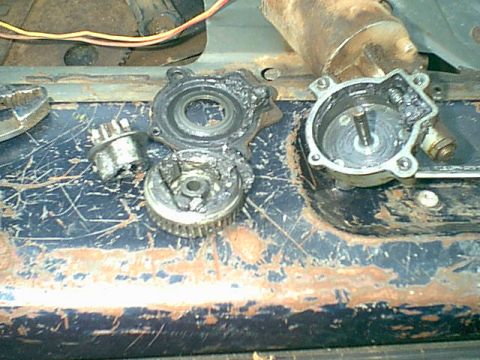

after you remove the glass and window regulator and the motor i opened the final drive gear. i found...
1476 hits | 79.41 KB | Posted: 10/17/06

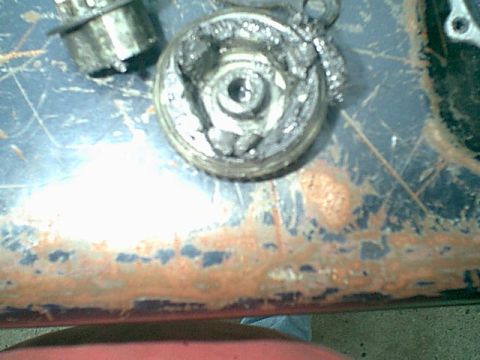

Here is a closeup of the bad parts. in the points of the triangle there should be 3 round pins. this...
890 hits | 87.31 KB | Posted: 10/17/06

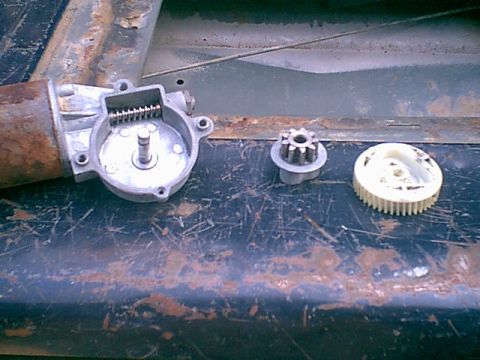

I cleaned all the old grease out of the motor and the final drive. my final drive was fine so i was ...
944 hits | 90.19 KB | Posted: 10/17/06

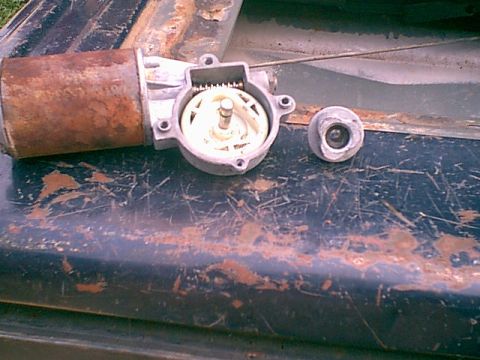

here is how it goes together.
1713 hits | 89.05 KB | Posted: 10/17/06

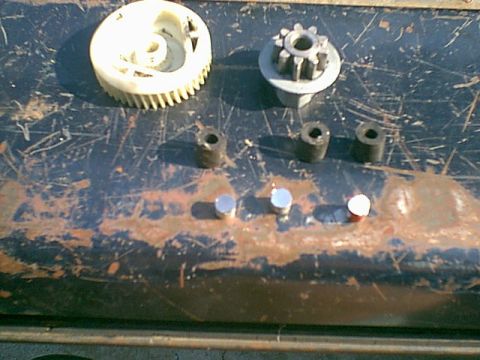

To rebuild for almost free here is all you need. some fuel line and some steel rod or round spacer (...
957 hits | 83.22 KB | Posted: 10/17/06

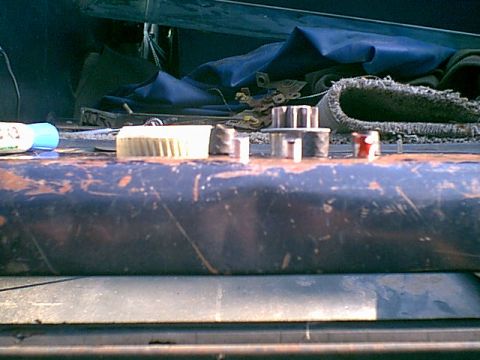

this is a side shot of the fix parts.
886 hits | 90.42 KB | Posted: 10/17/06

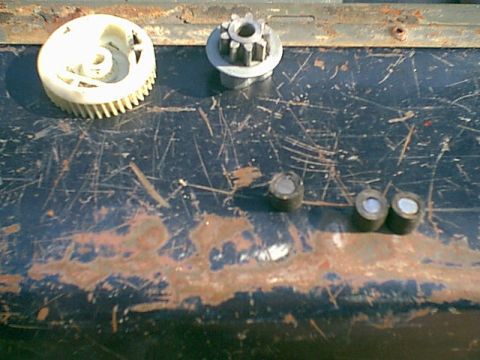

the steel spacers go inside of the rubber fuel line.
rear motor3.jpg
1377 hits | 88.46 KB | Posted: 10/17/06

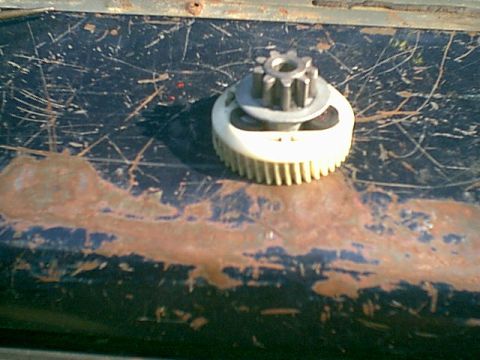

then the rubber fuel line and steel spacers go in the final drive gear.this was a tight fit but not ...
rear motor2.jpg
1209 hits | 106.48 KB | Posted: 10/17/06

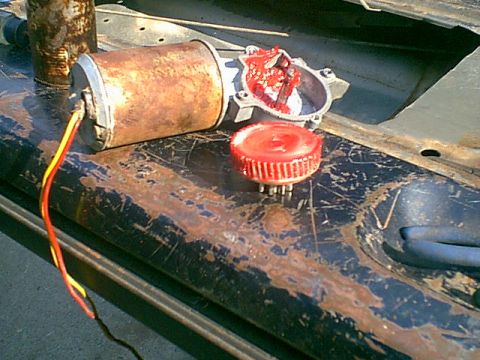

i added new grease to the final drivegear and motor spline.
rear motor.jpg
1212 hits | 99.72 KB | Posted: 10/17/06

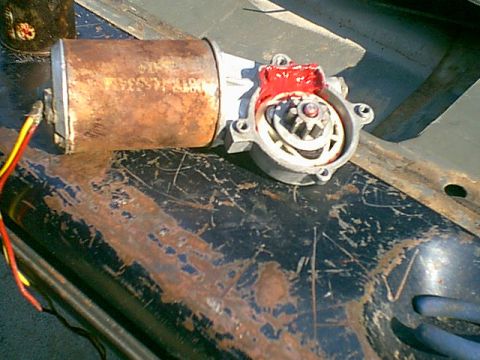

here it is ready to get the cover and reinstall in the window regulator. this was 20 min to clean, m...
926 hits | 79.38 KB | Posted: 10/17/06

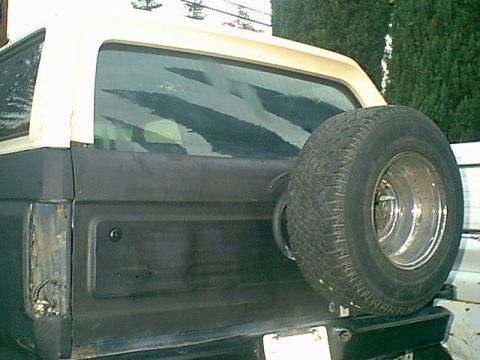

it works. it goes up and down very easy fromthe switch or the key. so much better.
