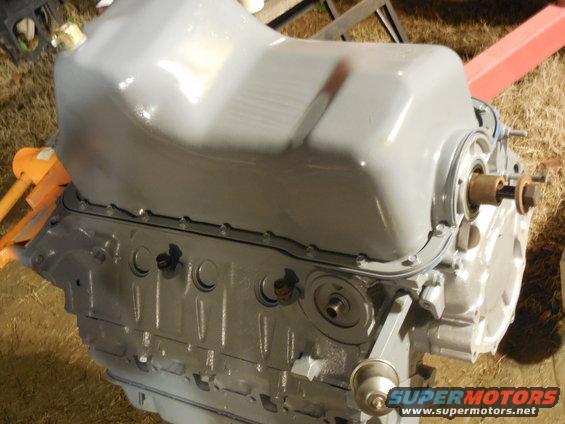

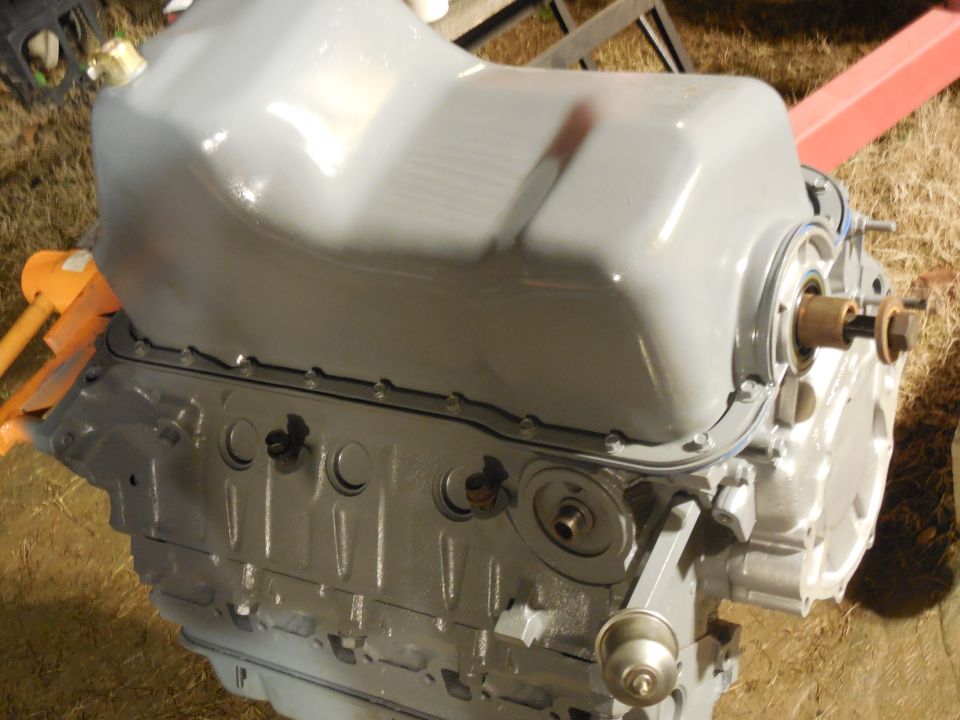

05gray14.jpg After thoroughly cleaning the block - particularly all the gasket surfaces - and getting the timing cover & intake manifold surfaced, I bolted them on.  I reused the valve cover gaskets since they were already steel-reinforced nitrile.  The new matching pan gasket got some Hylomar on the 4 points, and some E6000 at the timing cover joint, but the rest went on dry.  All the bolted-on parts were prepainted (Duplicolor Engine New Ford Gray DE1611 for the steel parts; Duplicolor Engine Aluminum Cast Coat DE1650 for the Aluminum).  I washed the block with carb & brake cleaners while wire-brushing the grime off, then heated it with a torch before applying gray paint to it & all the bolt heads (which had been wire-wheeled previously).

[url=https://www.supermotors.net/registry/media/724829][img]https://www.supermotors.net/getfile/724829/thumbnail/tsb9568oilpan50l.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/1052212][img]https://www.supermotors.net/getfile/1052212/thumbnail/felproos34506r.jpg[/img][/url]

The oil pressure sender & its extension are just there so their paint can dry.  I'll remove & threadlock them back on later.
05gray14.jpg | Hits: 2753 | Posted on: 3/23/15 | View original size (3.81 MB)

After thoroughly cleaning the block - particularly all the gasket surfaces - and getting the timing cover & intake manifold surfaced, I bolted them on. I reused the valve cover gaskets since they were already steel-reinforced nitrile. The new matching pan gasket got some Hylomar on the 4 points, and some E6000 at the timing cover joint, but the rest went on dry. All the bolted-on parts were prepainted (Duplicolor Engine New Ford Gray DE1611 for the steel parts; Duplicolor Engine Aluminum Cast Coat DE1650 for the Aluminum). I washed the block with carb & brake cleaners while wire-brushing the grime off, then heated it with a torch before applying gray paint to it & all the bolt heads (which had been wire-wheeled previously).

.

The oil pressure sender & its extension are just there so their paint can dry. I'll remove & threadlock them back on later.
