brakepadsfloating.jpg | Hits: 10882 | Posted on: 1/13/06 | View original size (45.43 KB)

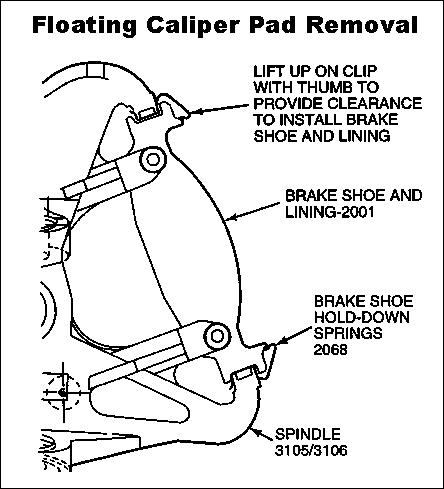

Floating Caliper Pad Removal for '94-up
MotorCraft Pad Set BR-46 does not include hold-down springs
MotorCraft Pad Set BRF-1390 includes springs
MotorCraft Pad Set BRSD-632 is super-duty pad set
Wagner Semi-Metallic Pad Set MX52 [MX728A]


'94-96 caliper slide bolts Motorcraft BRCK5066 (no boots)
'94-96 front pads Motorcraft BR46
'94-96 Front Brake RotorMotorcraft BRR56 (BRR207?)



____________________________________________

If you're reading this whole album for your 2WD truck, you can skip to this caption:


____________________________________________________
TSB 98-5A-38 BRAKES - CALIPERS - FRONT CALIPER PISTON BOOTS DAMAGED

Publication Date: MARCH 18, 1998

LIGHT TRUCK: 1986-91 E-250, E-350
1986-94 F-250, F-350

ISSUE: Some vehicles may have experienced deterioration of the front brake caliper piston boots resulting from exposure to high operating temperatures during severe service.

ACTION: Replace the caliper piston boots with a new, more robust service caliper piston boot. The new silicone rubber boot can withstand higher operating temperatures without damage. The new boot is completely interchangeable with the prior design and will become the only service boot available.

The heat damaged boots should be replaced with the new Boot (E7TZ-2207-A). Refer to the appropriate Service Manual for removal and installation procedures.

PART NUMBER PART NAME
E7TZ-2207-A Caliper Piston Boot

OTHER APPLICABLE ARTICLES:

SUPERSEDES: 94-24-11

WARRANTY STATUS: Eligible Under The Provisions Of Bumper To Bumper Warranty Coverage For 1992-94 Model Year Vehicles, Basic Warranty Coverage For All Other Model Years

OPERATION DESCRIPTION TIME
9805A38AT Overhaul Front Calipers - Both 1.5 Hrs.
9805A38A Overhaul Front Caliper - One 1.2 Hrs.
---------------------------------------------------------------------------
TSB 98-5A-13 NEW SPECIFICATION - Silicone Brake Caliper Grease and Dielectric Compound to be used for Disc Brake Caliper Slides

Publication Date: MARCH 18, 1998

FORD:
1984-1994 TEMPO
1984-1996 MUSTANG, THUNDERBIRD
1985-1996 CROWN VICTORIA, ESCORT
1986-1996 TAURUS
1989-1996 PROBE
1994-1996 ASPIRE
1995-1996 CONTOUR

LINCOLN-MERCURY:
1982-1996 CONTINENTAL
1984-1994 TOPAZ
1984-1996 COUGAR
1985-1996 GRAND MARQUIS
1986-1996 SABLE, TOWN CAR
1987-1989 TRACER
1991-1994 CAPRI
1991-1996 TRACER
1993-1996 MARK VIII
1995-1996 MYSTIQUE

LIGHT TRUCK:
1983-1996 RANGER
1986-1996 AEROSTAR
1990-1996 BRONCO, ECONOLINE, F SUPER DUTY, F-150-350 SERIES
1991-1996 EXPLORER
1993-1996 VILLAGER
1995-1996 WINDSTAR
MEDIUM/HEAVY TRUCK: 1990-1991 C SERIES
1990-1996 F & B SERIES

ISSUE: The use of petroleum-based grease as a lubricant in servicing disc brakes is no longer acceptable because it may be incompatible with the rubber material used in the disc brake system. If petroleum-based grease is used to lubricate any part of the disc brake system, it could cause rubber parts to swell if lubricant contacts the rubber material.

ACTION: Refer to the following Servicing Procedures for details.

DISC BRAKE SERVICING
CAUTION: DO NOT USE PETROLEUM-BASED SERVICE GREASE (SUCH AS FORD DISC BRAKE CALIPER SLIDE GREASE D7AZ-19590-A) TO LUBRICATE DISC BRAKE CALIPER SLIDE PINS OR RUBBER DUST BOOTS. PETROLEUM-BASED GREASE MAY CAUSE EPDM RUBBER TO SWELL.

When servicing any disc brakes, lubricate necessary components by applying Silicone Brake Caliper Grease and Dielectric Compound (D7AZ-19A331-A (Motorcraft WA-10)) or an equivalent silicone compound meeting Ford Specification ESE-M1C171-A. Refer to the appropriate Service Manual for specific service details.

NOTE: DISC BRAKE CALIPER SLIDE GREASE D7AZ-19590-A SHOULD NO LONGER BE USED FOR DISC BRAKE CALIPER SLIDE LUBRICATION.

DRUM BRAKE SERVICING
When servicing drum brakes, apply Silicone Brake Caliper Grease and Dielectric Compound (D7AZ-19A331-A (Motorcraft WA-10)) or an equivalent silicone compound meeting Ford Specification ESE-M1C171-A to the contact points between the brake shoes and the drum backing plates for lubrication.

OTHER SERVICE APPLICATIONS
Existing inventory of D7AZ-19590-A may be used for all other Service Manual procedures. Once material is exhausted, all vehicle procedures specifying Disc Brake Caliper Slide Grease (D7AZ-19590-A) should use Silicone Brake Caliper Grease and Dielectric Compound (D7AZ-19A331-A).

PART NUMBER : PART NAME
D7AZ-19A331-A : Silicone Brake Caliper Grease And Dielectric Compound



OTHER APPLICABLE ARTICLES: NONE
SUPERSEDES: 95-21-2
