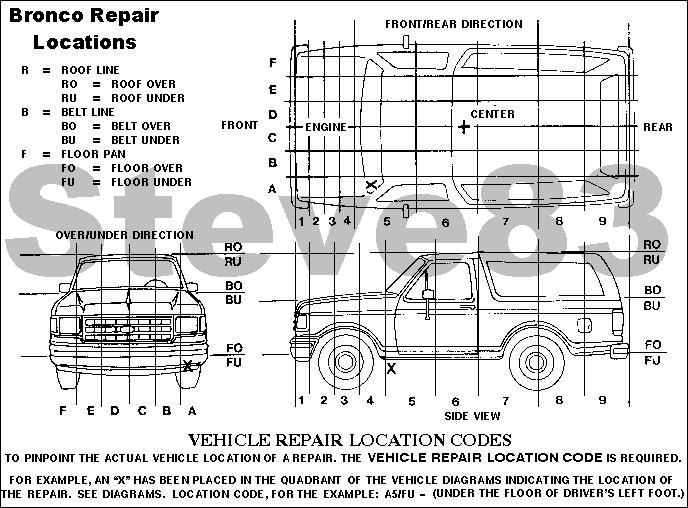

repairlocationsbronco.jpg '80-96 Bronco Repair Locations Grid & Coding
IF THE IMAGE IS TOO SMALL, click it.

More examples:

The transmission MLPS is at C5/FU.
The rear diff cover is at CD8/FU.
The air filter on EFI trucks is at A3/BU.
The passenger window motor is at F5/FO.
The '92-96 wiper control module is at E5/BU.
The dome light is at CD6/RU.
The dome light harness connector is at A7/FO.
The 4.9L coolant temperature sender (for the gauge) is at D4/BU.
The overhead temperature sender (for the '94-96 overhead console) is at B1/FO.
The CHMSL is at CD9/RO.

[url=https://www.supermotors.net/registry/media/1144559][img]https://www.supermotors.net/getfile/1144559/thumbnail/line8086.jpg[/img][/url]

For early Bronco, see:
[url=http://www.supermotors.net/registry/media/865564][img]http://www.supermotors.net/getfile/865564/thumbnail/ebrepairgrid.jpg[/img][/url]
repairlocationsbronco.jpg | Hits: 16591 | Posted on: 1/13/07 | View original size (98.77 KB)

'80-96 Bronco Repair Locations Grid & Coding
IF THE IMAGE IS TOO SMALL, click it.

More examples:

The transmission MLPS is at C5/FU.
The rear diff cover is at CD8/FU.
The air filter on EFI trucks is at A3/BU.
The passenger window motor is at F5/FO.
The '92-96 wiper control module is at E5/BU.
The dome light is at CD6/RU.
The dome light harness connector is at A7/FO.
The 4.9L coolant temperature sender (for the gauge) is at D4/BU.
The overhead temperature sender (for the '94-96 overhead console) is at B1/FO.
The CHMSL is at CD9/RO.



For early Bronco, see:
