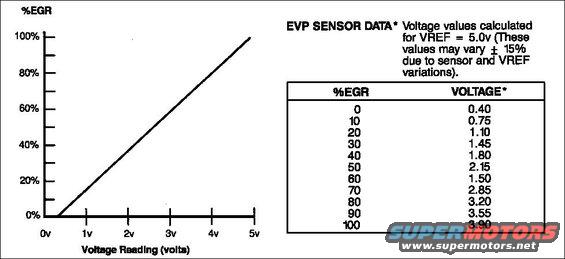

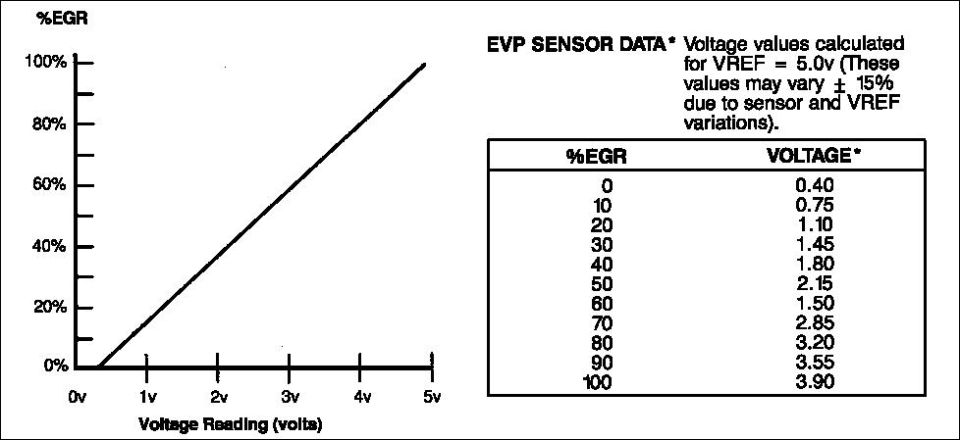

EVP Output Graph
Voltage is measured from the Br/LG wire (EVP) to Gy/R (SigRet) with the key in RUN and the sensor connected normally. Check Br/Wh (VRef) to Gy/R for 5VDC. Use a handheld vacuum pump (e.g. MityVac) to operate the EGR valve.
