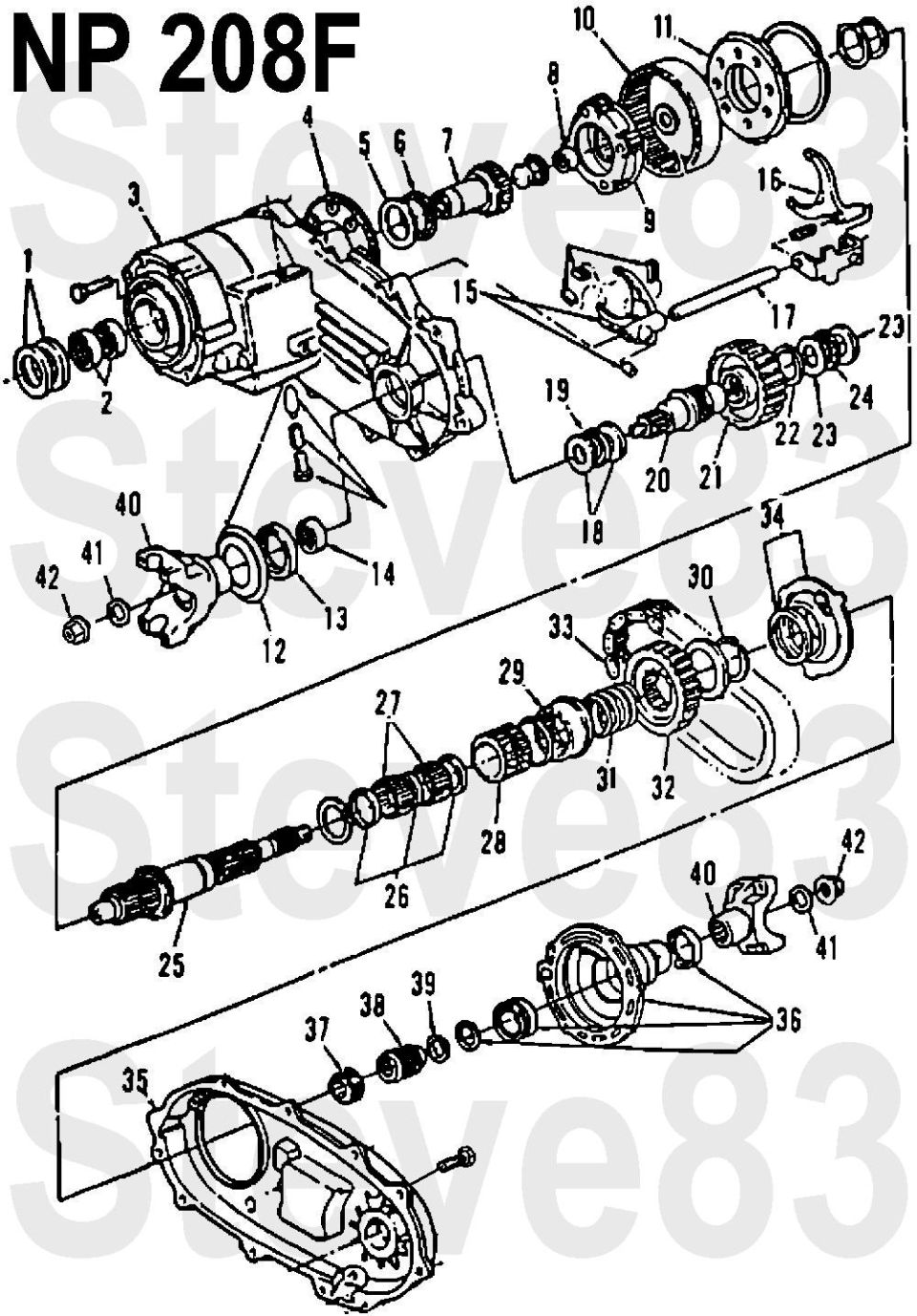

New Process 208-F Transfer Case (E4TA-7A195-GA) Exploded

1 - Input Seal
2 - Input Bearing
3 - Front Case Half
4 - Range Cog
5 - Spacer
6 - Thrust Bearing
7 - Sun Gear
8 - Planet Gear
9 - Planetary Case
10 - Annulus Gear
11 - Splash Shield
12 - Front Slinger
13 - Front Output Seal
14 - Front Output Bearing
15 - Range Fork & Pin
16 - Drive Shift Fork
17 - Shift Rod
18 - Washers
19 - Front Shaft Front Bearing
20 - Front Output Shaft
21 - Front Driven Gear
22 - Spacer
23 - Washers
24 - Front Shaft Rear Bearing
25 - Rear Output Shaft
26 - Spacers
27 - Needle Bearings
28 - Drive Cog
29 - Clutch Carrier
30 - Snap Ring
31 - Clutches
32 - Chain Drive Gear
33 - Chain
34 - Splash Shield
35 - Rear Case Half
36 - Rear Output Housing
37 - Spacer
38 - Speedometer Drive Gear
39 - Snap Ring
40 - Output Yoke
41 - Seal Washer
42 - Yoke Nut
