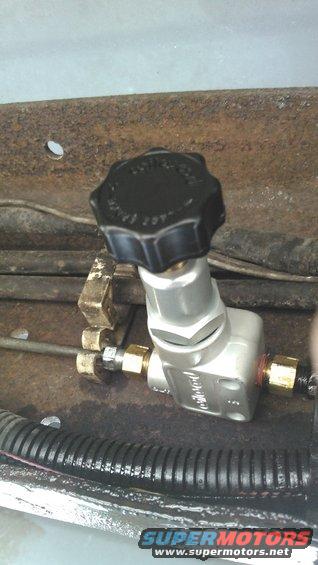

kimg0090.jpg i added a Wilwood 260-8419 brake proportioning valve. along the frame on the brake line. this is used to adjust the brake pressure on the rear brakes.

screwed in gives more pressure, screwed out gives less pressure.  ideally the front should do about 70% of the braking and the rear 30%.

how i adjusted it is by doing a hard stop and seeing how easily the brakes lock up. i reduced the pressure till the rear brakes would no longer lock up
kimg0090.jpg | Hits: 68 | Posted on: 10/1/17 | View original size (1.74 MB)

i added a Wilwood 260-8419 brake proportioning valve. along the frame on the brake line. this is used to adjust the brake pressure on the rear brakes.

screwed in gives more pressure, screwed out gives less pressure. ideally the front should do about 70% of the braking and the rear 30%.

how i adjusted it is by doing a hard stop and seeing how easily the brakes lock up. i reduced the pressure till the rear brakes would no longer lock up
