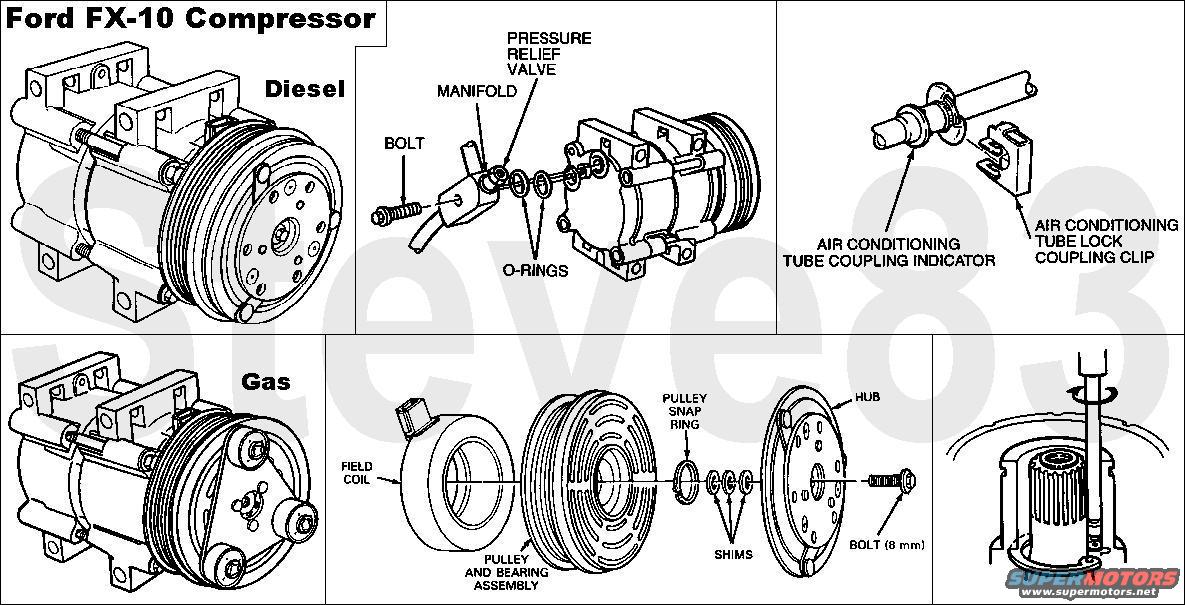

FX-10 Compressor

Type: swashplate with 5 double-acting axial pistons
Displacement: 10.4 CI (170cc)
Bore: 29mm
Stroke: 25.7mm
Rotation: CW
Rational Torque (no load): 13 Nm (9.6 ft-lb)
Oil (for R-134a Refrigerant): YN-12b (F2AZ-19577-AC)
System Capacity: 7 oz (207ml) standard
Clutch Air Gap: 0.14-0.33" (0.35-0.85mm)
Use Clutch Shim Kit Motorcraft YF1800A
Clutch Current Draw: 4.36A @ 12VDC
Runout (either): 0.02"
Hose Manifold-to-Compressor Bolt: 17 lb-ft
Clutch Hub Bolt: 11-13 lb-ft



This shows a disassembled compressor:
http://www.p71interceptor.com/accompressor/disassembled/part2/PICT7615-vi.jpg
