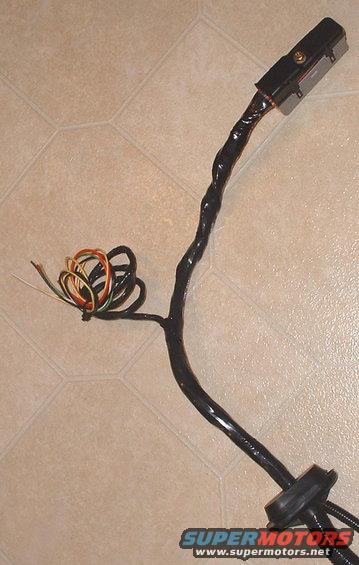

rick-shirk-harness-04.jpg Computer 60-pin plug RED = temp gauge WHITE = oil psi gauge GREEN = tach ORANGE = igintion switch "run" YELLOW/BLACK (paired wires) = check engine light
