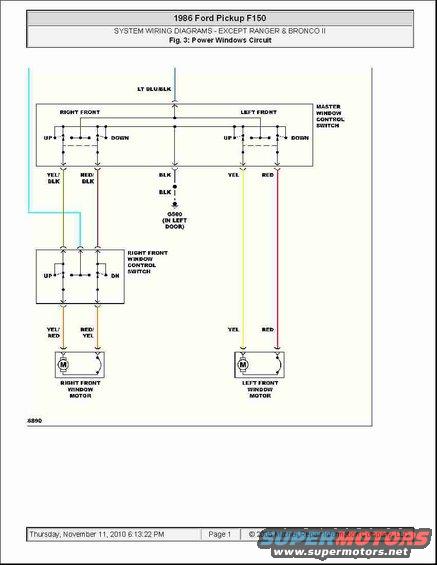

Wiring disgram for the passenger side switch.
|
|
|
Power is supplied through the yel/blk and red/blk wires.
Blue is ground.
Yellow/Red & Red/Yellow go to motor wiring harness.
Put yel/blk & red/blk together to a power source. Wire Blue to a solid ground point.
|
|
|

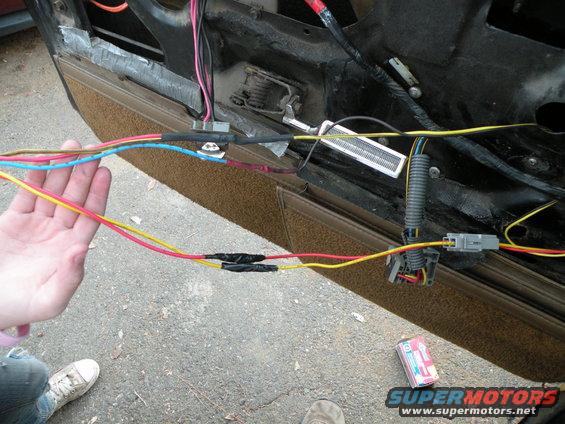

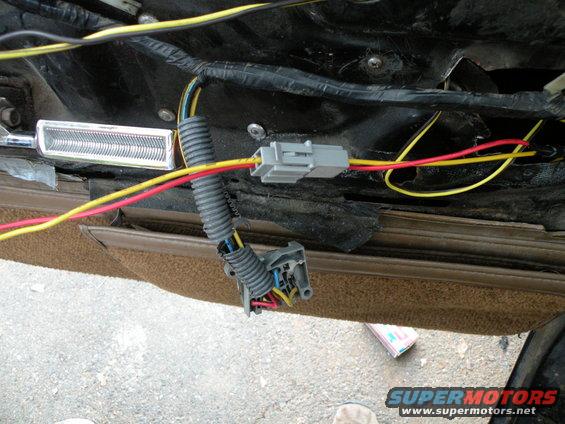

Switch I had from when I replaced the window motor. It came with 4 different harness connectors. I utilized one for a stock switch disconnector. It is just down stream of switch
|

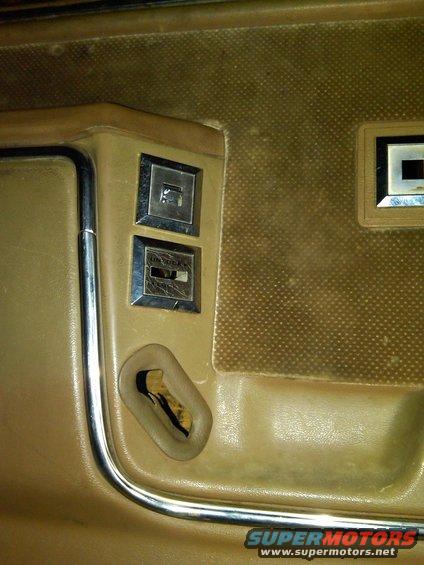

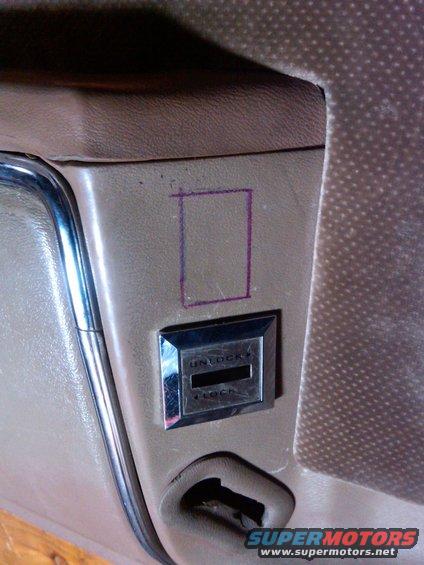

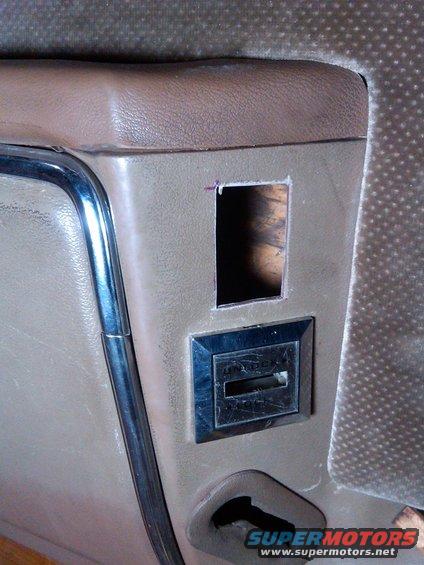

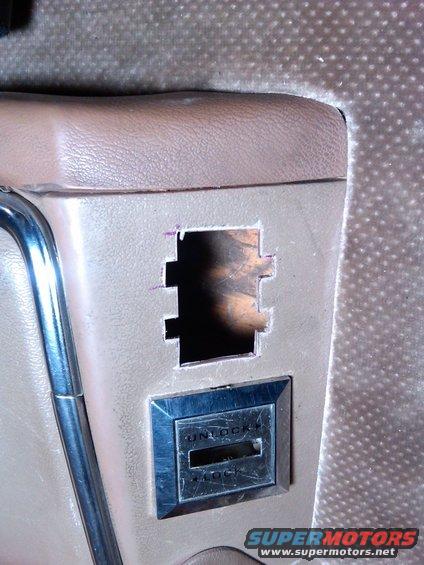

Rear WIndow Switch
