DSC_0501.JPG | Hits: 428 | Size: 109.5 KB | Posted on: 7/7/10 | Link to this image


Auxillary filter mounting location.

Share This
Url
Tag
Thumb

DSC_0504.JPG | Hits: 437 | Size: 102.87 KB | Posted on: 7/7/10 | Link to this image

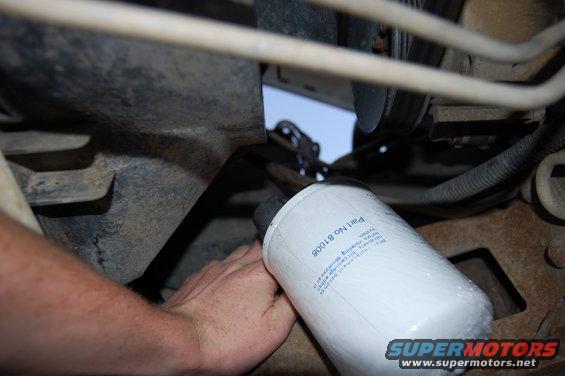

Sizing up the mounting location.

Share This
Url
Tag
Thumb

DSC_0505.JPG | Hits: 402 | Size: 99.56 KB | Posted on: 7/7/10 | Link to this image



Share This
Url
Tag
Thumb

DSC_0513.JPG | Hits: 370 | Size: 127.2 KB | Posted on: 7/8/10 | Link to this image


Radiator fan and shroud removed for better access. First hole started.

Share This
Url
Tag
Thumb

DSC_0514.JPG | Hits: 407 | Size: 106.02 KB | Posted on: 7/8/10 | Link to this image


First mounting hole started.

Share This
Url
Tag
Thumb

DSC_0526.JPG | Hits: 397 | Size: 109.88 KB | Posted on: 7/9/10 | Link to this image


Drill bit and tap set I used.

Share This
Url
Tag
Thumb

DSC_0520.JPG | Hits: 544 | Size: 105.69 KB | Posted on: 7/9/10 | Link to this image

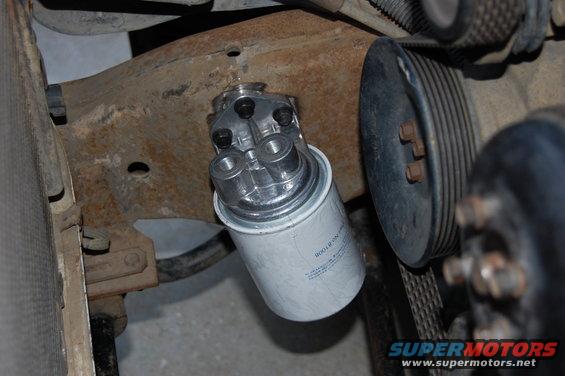

Auxillary Filter mounted.

Share This
Url
Tag
Thumb

DSC_0521.JPG | Hits: 337 | Size: 104.89 KB | Posted on: 7/9/10 | Link to this image


Another View.

Share This
Url
Tag
Thumb

DSC_0522.JPG | Hits: 371 | Size: 100.32 KB | Posted on: 7/9/10 | Link to this image

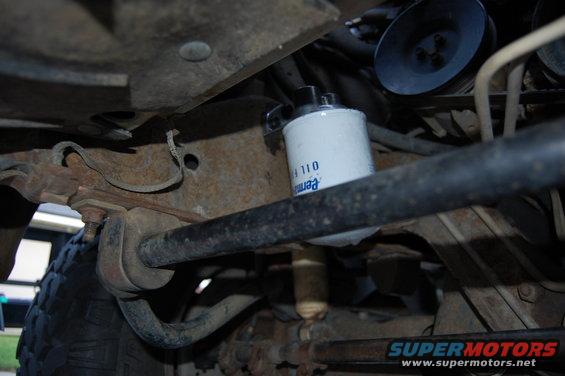

And another.

Share This
Url
Tag
Thumb

DSC_0525.JPG | Hits: 528 | Size: 103.23 KB | Posted on: 7/9/10 | Link to this image


A quick shot of paint to prevent rust.

Share This
Url
Tag
Thumb

DSC_05232.jpg | Hits: 368 | Size: 65.08 KB | Posted on: 7/9/10 | Link to this image


Hose routing.

Share This
Url
Tag
Thumb

DSC_0528.JPG | Hits: 371 | Size: 100.9 KB | Posted on: 7/11/10 | Link to this image


Wires tapped for Transmission Temperature Gauge.

RD/WHT - Coolant temperature signal
BLK - Instrument cluster ground
BLU/RD - Instrument panel illumination

Share This
Url
Tag
Thumb

DSC_0534.JPG | Hits: 336 | Size: 83.33 KB | Posted on: 7/11/10 | Link to this image


Gauge test.

Share This
Url
Tag
Thumb

DSC_0536.JPG | Hits: 349 | Size: 87.32 KB | Posted on: 7/11/10 | Link to this image

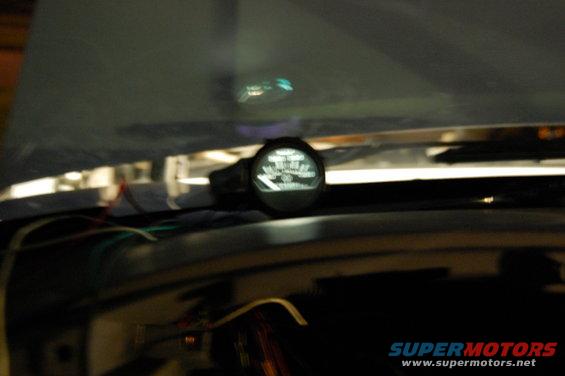

Gauge illuminated.

Share This
Url
Tag
Thumb

DSC_0546.JPG | Hits: 398 | Size: 97.9 KB | Posted on: 7/16/10 | Link to this image


Trans temperature sender connection.

Share This
Url
Tag
Thumb

DSC_0543.JPG | Hits: 328 | Size: 101.39 KB | Posted on: 7/16/10 | Link to this image


Trans temperature signal wire entering cab through a grommet I added in the firewall.

Share This
Url
Tag
Thumb

DSC_0548.JPG | Hits: 363 | Size: 94.43 KB | Posted on: 7/16/10 | Link to this image


Trans temp signal wire entering cab.

Share This
Url
Tag
Thumb

DSC_0550.JPG | Hits: 349 | Size: 95.01 KB | Posted on: 7/16/10 | Link to this image


Intrument panel harness wrapped up.
gauge wires:
RD - hot in run
BLK - ground
BLU - trans temp signal
WHT - coolant temp signal
PRP - illumination

Share This
Url
Tag
Thumb

DSC_0552.JPG | Hits: 413 | Size: 103.38 KB | Posted on: 7/16/10 | Link to this image


Buttoning up the instrument panel.

Share This
Url
Tag
Thumb

DSC_0564.JPG | Hits: 386 | Size: 89.03 KB | Posted on: 7/17/10 | Link to this image

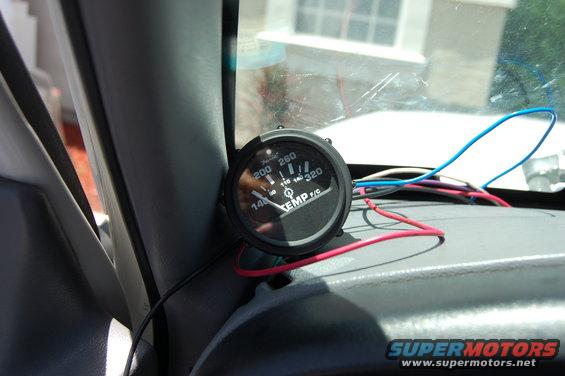

Gauge temporarily set up.

Share This
Url
Tag
Thumb

DSC_0566.JPG | Hits: 347 | Size: 101.52 KB | Posted on: 7/18/10 | Link to this image


After a short run with an empty trailer.

Share This
Url
Tag
Thumb

DSC_0568.JPG | Hits: 341 | Size: 107.59 KB | Posted on: 7/19/10 | Link to this image



Share This
Url
Tag
Thumb

DSC_0570.JPG | Hits: 376 | Size: 104.56 KB | Posted on: 7/19/10 | Link to this image



Share This
Url
Tag
Thumb

DSC_0571.JPG | Hits: 365 | Size: 111.43 KB | Posted on: 7/19/10 | Link to this image


5 amp gauge power fuse installed in unused slot. Slot already contained a terminal that was hot in run.

Share This
Url
Tag
Thumb

DSC_0923.JPG | Hits: 370 | Size: 84.53 KB | Posted on: 8/26/10 | Link to this image

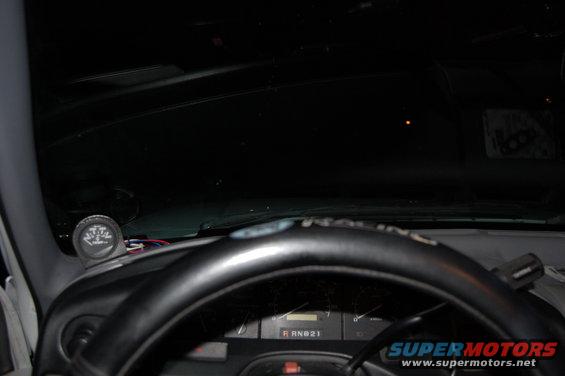

Gauge wired up and mounted in modified flange (included with gauge).

Share This
Url
Tag
Thumb

DSC_0924.JPG | Hits: 368 | Size: 89.99 KB | Posted on: 8/26/10 | Link to this image



Share This
Url
Tag
Thumb

DSC_0926.JPG | Hits: 368 | Size: 96.91 KB | Posted on: 8/26/10 | Link to this image

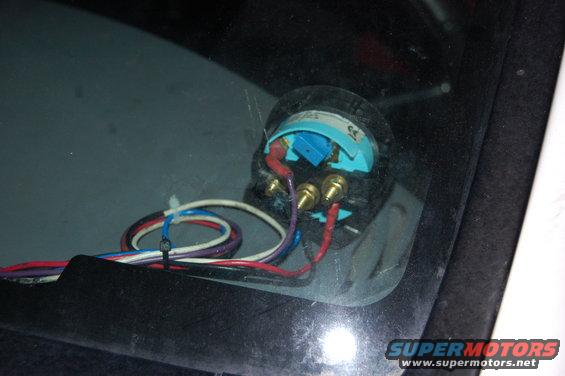

Gauge wiring. All terminals soldered, dielectric grease, and heat shrinked.

gauge wires:
RD - hot in run
BLK - ground
BLU - trans temp signal
WHT - coolant temp signal
PRP - illumination

Share This
Url
Tag
Thumb

DSC_0554.JPG | Hits: 335 | Size: 103.08 KB | Posted on: 7/17/10 | Link to this image

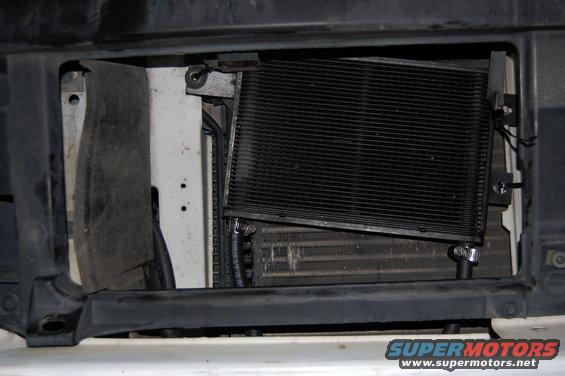

Explorer stacked plate cooler temporarily installed.

Share This
Url
Tag
Thumb

DSC_0556.JPG | Hits: 378 | Size: 99.5 KB | Posted on: 7/17/10 | Link to this image

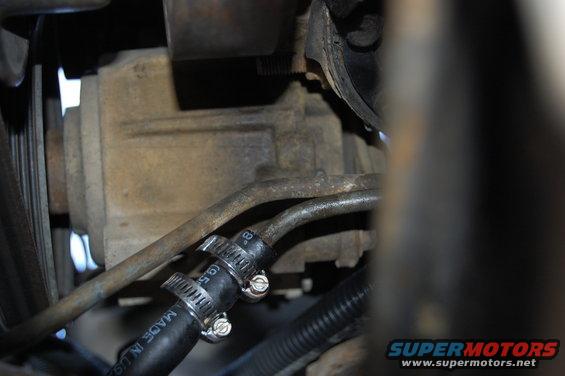

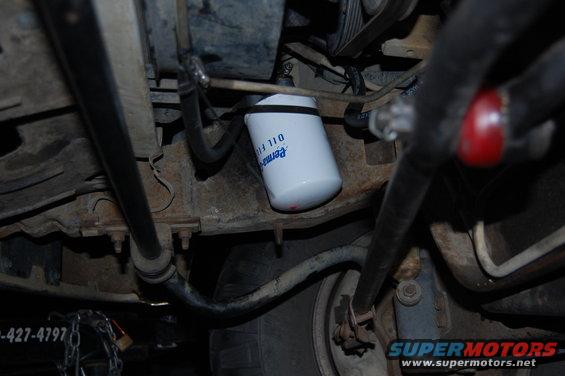

Filter plumbing.

Share This
Url
Tag
Thumb

DSC_0558.JPG | Hits: 415 | Size: 99.17 KB | Posted on: 7/17/10 | Link to this image


Filter plumbing.

Share This
Url
Tag
Thumb

DSC_0573.JPG | Hits: 353 | Size: 123.18 KB | Posted on: 7/21/10 | Link to this image


Radiator core support modified for Explorer cooler.

Share This
Url
Tag
Thumb

DSC_0575.JPG | Hits: 350 | Size: 94.79 KB | Posted on: 7/22/10 | Link to this image



Share This
Url
Tag
Thumb

DSC_0597.JPG | Hits: 395 | Size: 107.89 KB | Posted on: 7/24/10 | Link to this image


Eplorer cooler mounted.

Share This
Url
Tag
Thumb

DSC_0598.JPG | Hits: 357 | Size: 103.16 KB | Posted on: 7/24/10 | Link to this image



Share This
Url
Tag
Thumb

DSC_0599.JPG | Hits: 337 | Size: 104.87 KB | Posted on: 7/24/10 | Link to this image


Cooler hoses run through holes drilled in the rubber air dam and an existing hole in the core support. Hoses are wrapped in wire loom to prevent chafing.

Share This
Url
Tag
Thumb

DSC_0600.JPG | Hits: 305 | Size: 102.29 KB | Posted on: 7/24/10 | Link to this image

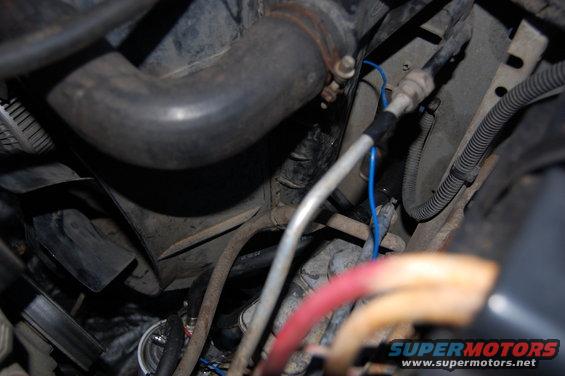

Hoses entering engine bay through existing hole in core support. Trans temp signal wire also visible. (temporary routing)

Share This
Url
Tag
Thumb

DSC_0696.JPG | Hits: 376 | Size: 103.75 KB | Posted on: 8/10/10 | Link to this image

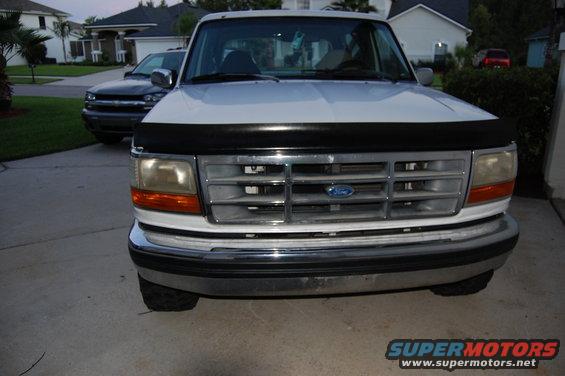

Grill reinstalled. Cooler visible.

Share This
Url
Tag
Thumb

DSC_0397.JPG | Hits: 112 | Size: 109.76 KB | Posted on: 3/4/14 | Link to this image



Share This
Url
Tag
Thumb

DSC_0398.JPG | Hits: 105 | Size: 110.8 KB | Posted on: 3/4/14 | Link to this image



Share This
Url
Tag
Thumb

DSC_0400.JPG | Hits: 107 | Size: 118.62 KB | Posted on: 3/4/14 | Link to this image



Share This
Url
Tag
Thumb

DSC_0403.JPG | Hits: 112 | Size: 110.97 KB | Posted on: 3/4/14 | Link to this image



Share This
Url
Tag
Thumb

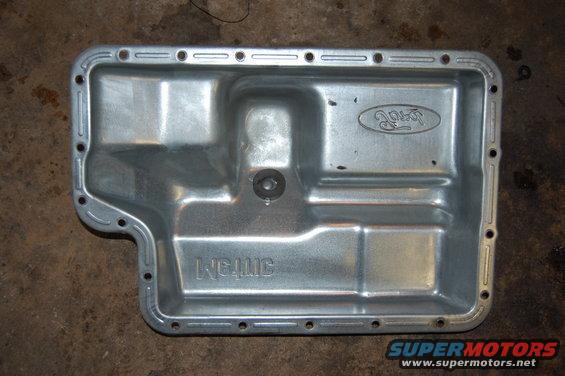

DSC_0404.JPG | Hits: 122 | Size: 107.96 KB | Posted on: 3/4/14 | Link to this image
