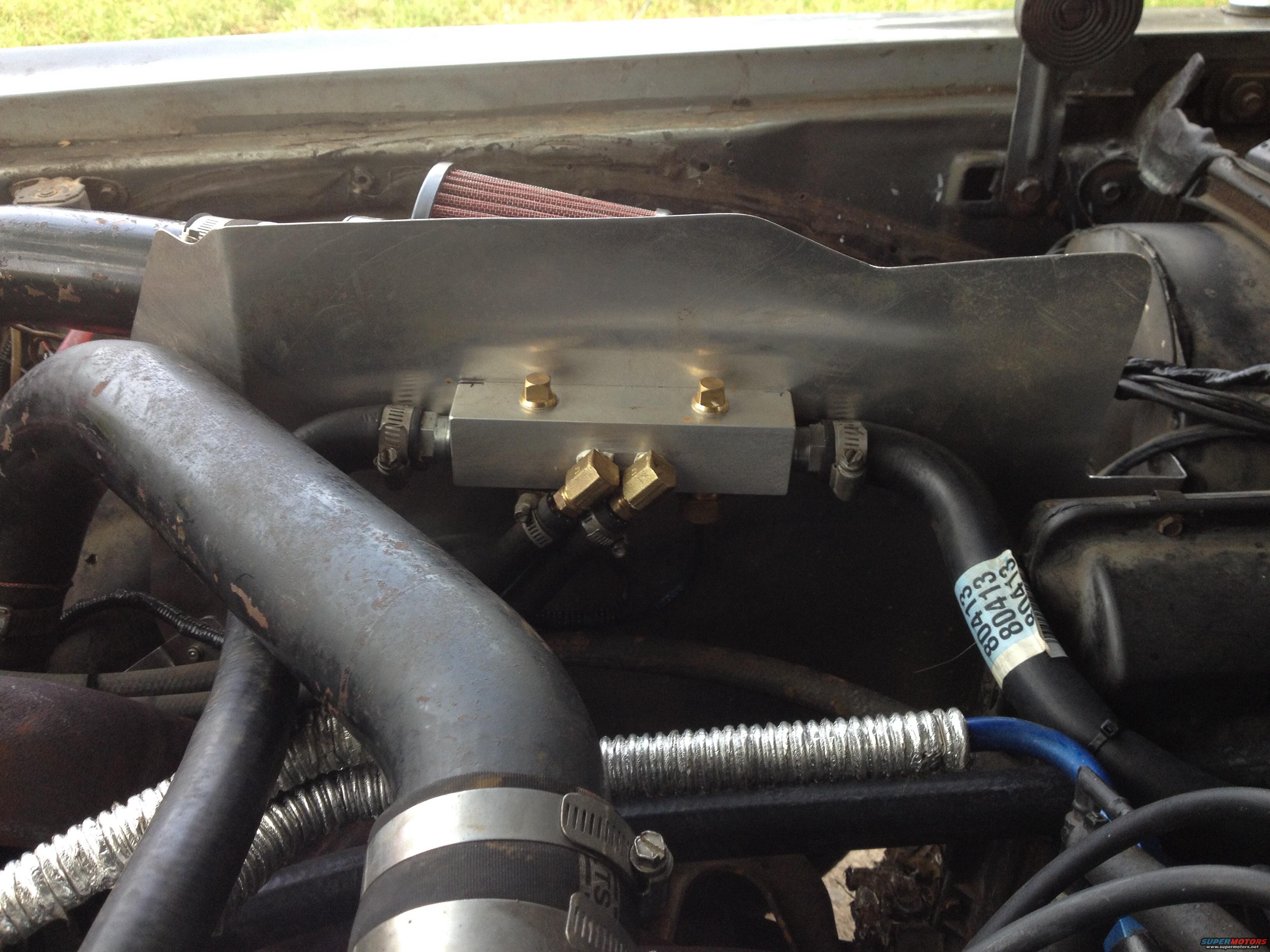

Another shot of the manifold. You can see the hose routing better here. The fan sensors are on the bottom. I spray painted the wires: blue for low temp; red for high temp.
