Strike Bolt Position
IF THE IMAGE IS TOO SMALL, click it.

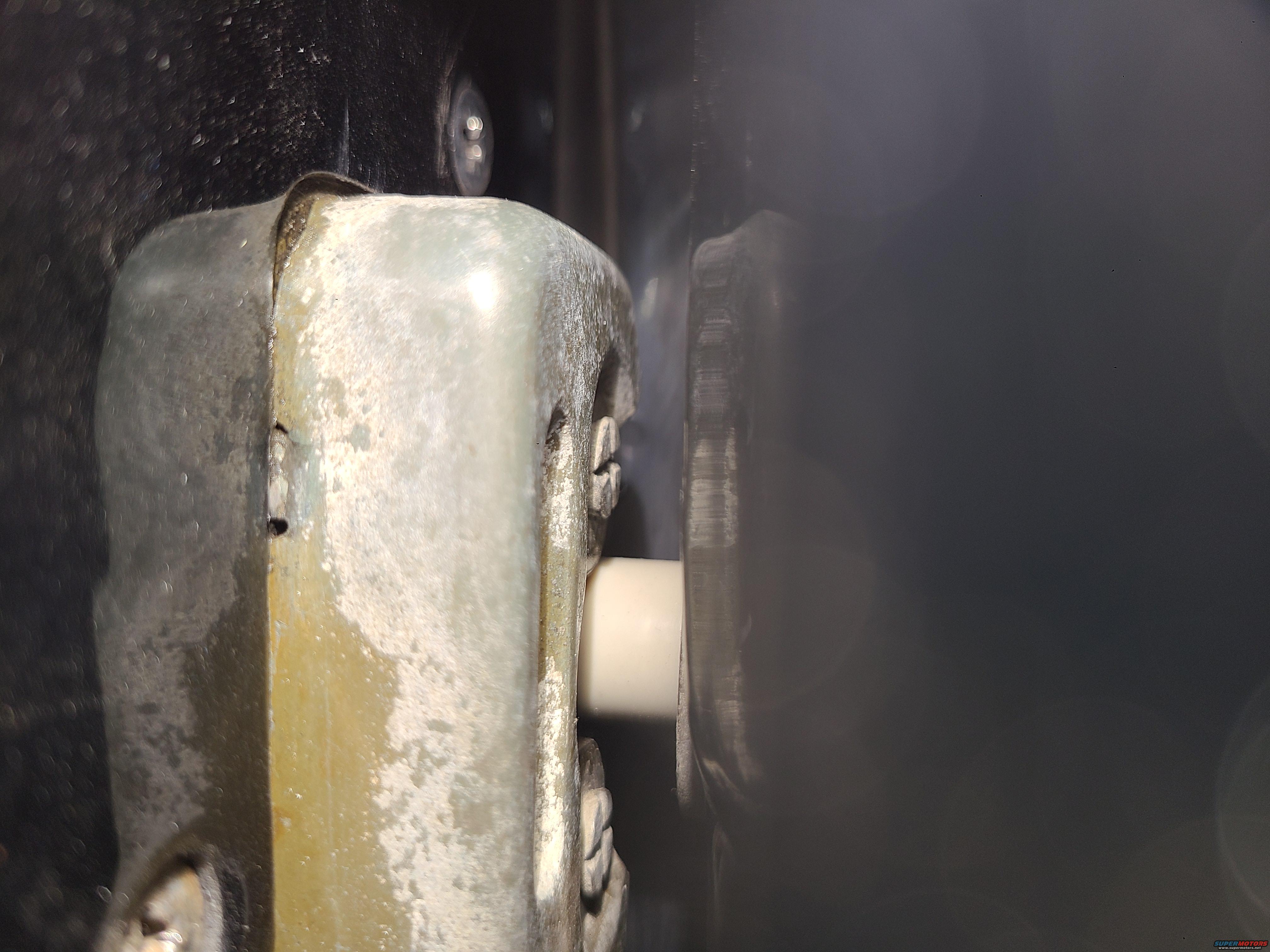

After the t/g is aligned on its hinges to the body, the strike bolts must be aligned so they meet the centers of the latches by watching through the gaps while slowly closing the t/g.
