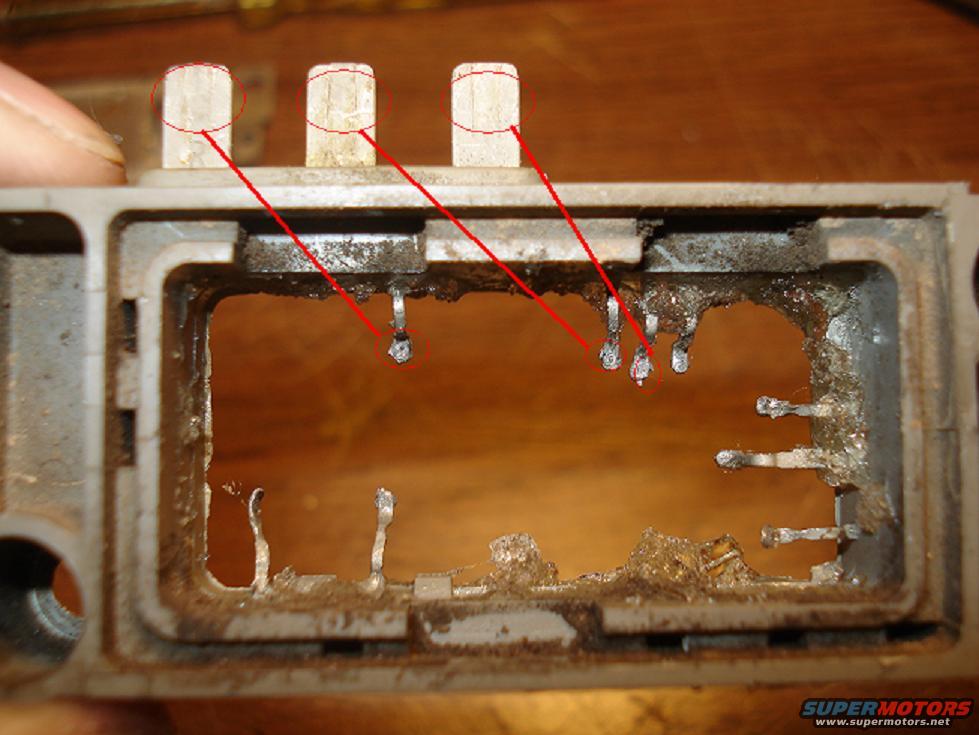

After removing the back plate, I carefully removed the electronic circuit and the sticky stuff in order to preserve the connections to the flat spade connectors. The circles show which pin goes where. The rest are useless.
