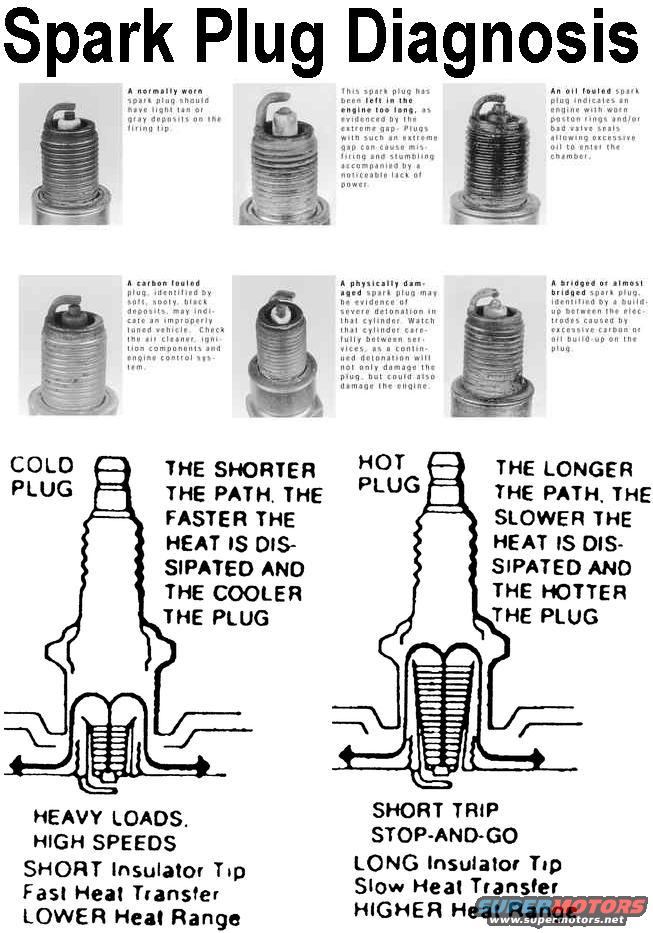

Spark Plug DIagnosis
IF THE IMAGE IS TOO SMALL, click it.
The inside back cover of any Haynes manual is much better than this B&W diagram.



5.8L MotorCraft SP-415, SP-501
5.0L MotorCraft SP-450, SP-502
4.9L MotorCraft SP-435

Spark plug & coil wires should measure ~7KOhm/foot from the terminal inside the distributor cap to the terminal in the boot that slips over the spark plug.



Before buying cheap aftermarket parts, check for coupons & service offers from Ford.
