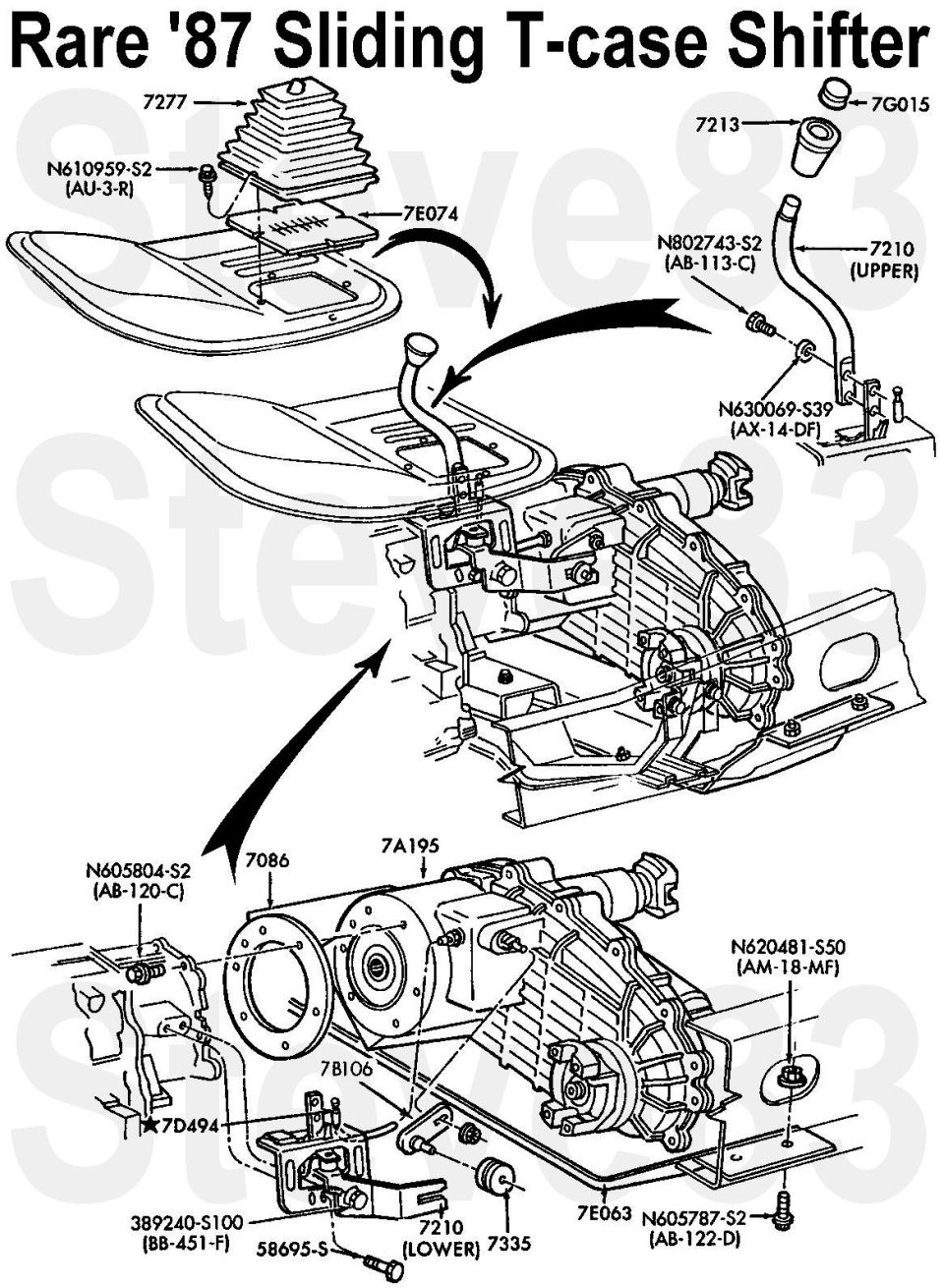

Rare '87 Sliding Transfer Case Shifter

Apparently used on some BW1356 & BW1345 (E3TA-7A195-RA) transfer cases.

389240-S100 - Bolt, shifter pivot
58695-S - Bolt, shifter to tailhousing
7086 - Gasket, tailhousing to transfer case
7210 - Shifter Assembly
7213 - Shifter Knob
7277 - Boot
7335 - Roller
7A195 - Transfer Case
7B106 - Lever
7D494 - Breather Cap
7E063 - Skidplate
7E074 - Seal Pad
7G015 - Shifter Pattern Button
N605787-S2 - Bolt, Skidplate
N610959-S2 - Boot Screw
N620481-S50 - Nut, Skidplate
N630069-S39 - Washer
N802743-S2 - Bolt, upper shifter to lower

For later push-down shifter, see:
