1778 hits | 92.43 KB | Posted: 11/1/03

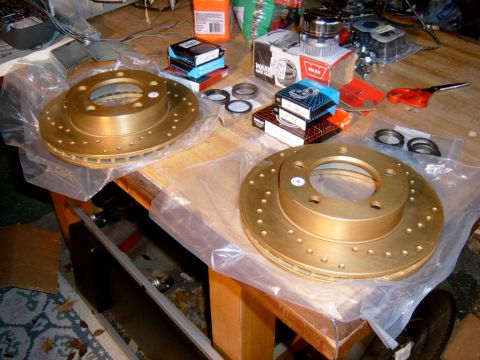

Here are all the parts I needed. The rotors had a picture of an ambulance and a cop car on the fron...

1957 hits | 66.74 KB | Posted: 11/2/03

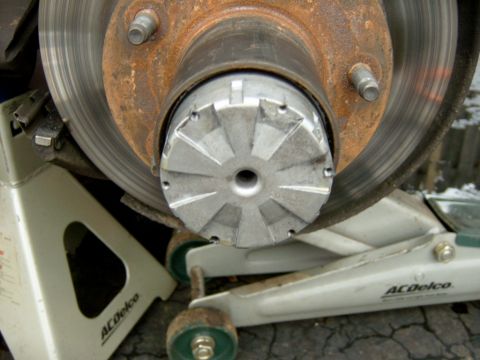

I had 3 screw autos; here is what they look like with the cover off

2148 hits | 60.3 KB | Posted: 11/2/03

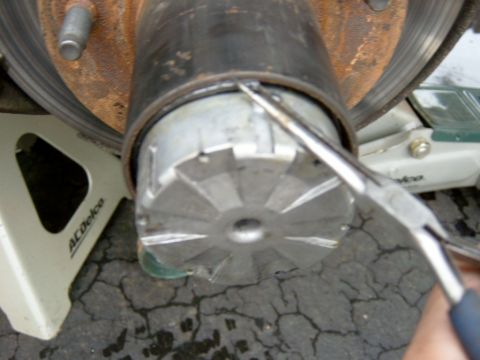

I found that a very small pair of needle nose pliers works the best for this, just because you can g...

2422 hits | 79.46 KB | Posted: 11/2/03

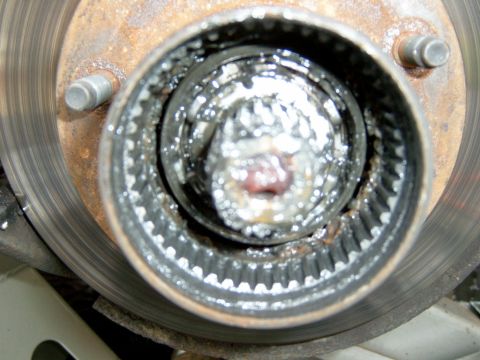

Once you have the front part of the auto hub out, there is a small C-clip holding the second half in...

2144 hits | 70.95 KB | Posted: 11/2/03

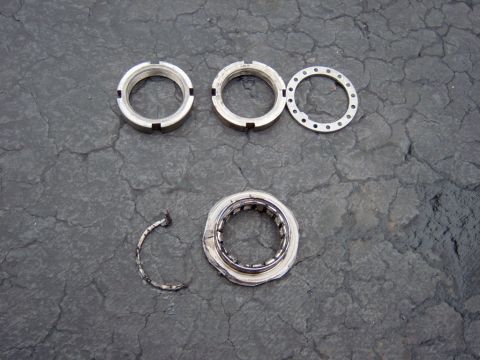

I converted to Warn premium’s so I needed the spindle nut conversion. The new nut system is on top ...

1984 hits | 72.93 KB | Posted: 11/2/03

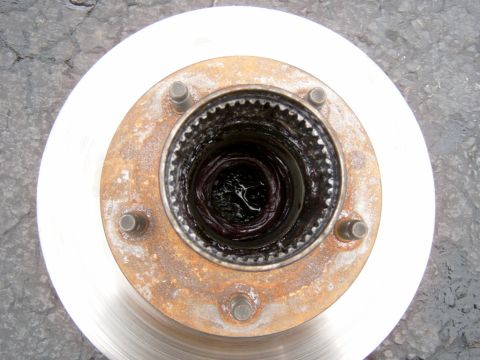

Now that you have the hub and rotor off, remove both sets of bearings, if they didn’t fall out alrea...

1615 hits | 88.21 KB | Posted: 11/2/03

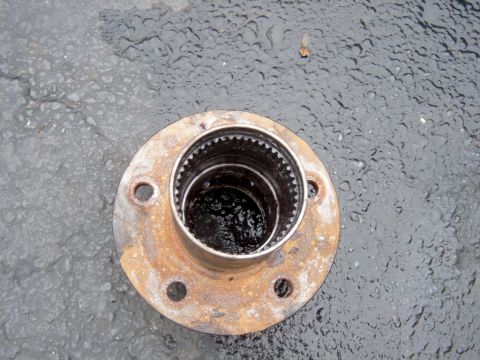

Here is just the hub after everything has been removed.

1585 hits | 64.49 KB | Posted: 11/2/03

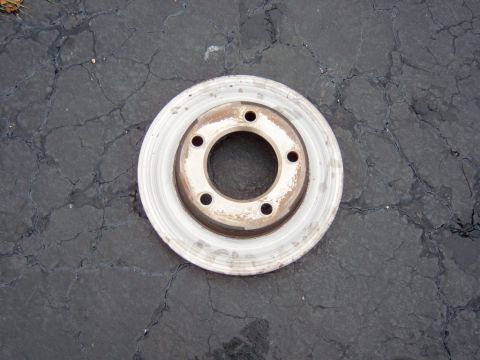

Stupid thing only lasted 5000 miles, good riddance to bad rubbish.

1688 hits | 78.3 KB | Posted: 11/2/03

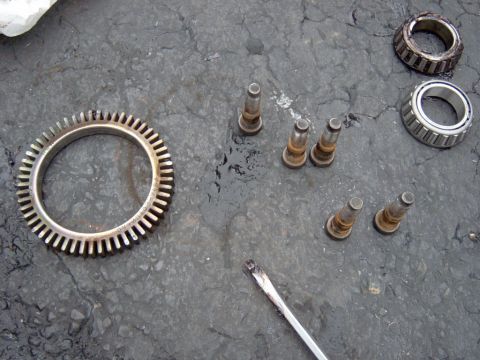

The ABS ring, studs and an old bearing next to a new one.

1648 hits | 78.33 KB | Posted: 11/2/03

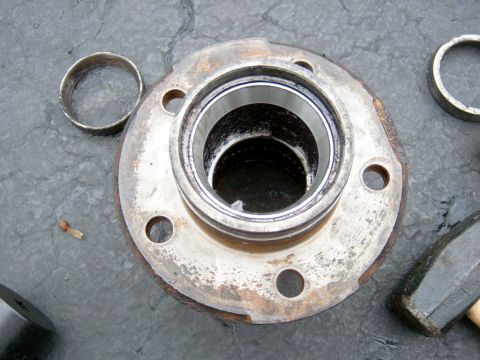

Next hammer in the new outer races, I found the easiest way to do it was to turn the old one upside ...

1620 hits | 79.99 KB | Posted: 11/2/03

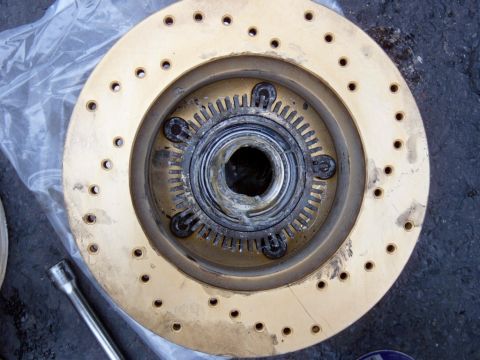

Pound the studs back in and put the new bearings in, along with the grease seal, or a new one if you...

1862 hits | 78.07 KB | Posted: 11/2/03
Then tighten the adjuster nut to 50ft lbs, loosen it the re tighten it to 30-40ft lbs. Once the bea...

1649 hits | 77.99 KB | Posted: 11/2/03

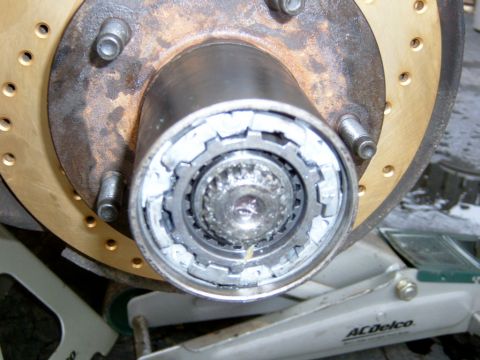

Next put the main body of the new hub in, it should just slide in, then put the new lock ring in, so...

1460 hits | 78.98 KB | Posted: 11/2/03

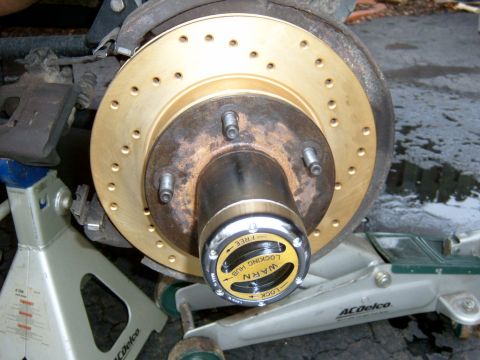

Put the cap on and tighten down all 6 screws, make sure it is set to “free” before you put it on.

1426 hits | 78.2 KB | Posted: 11/2/03

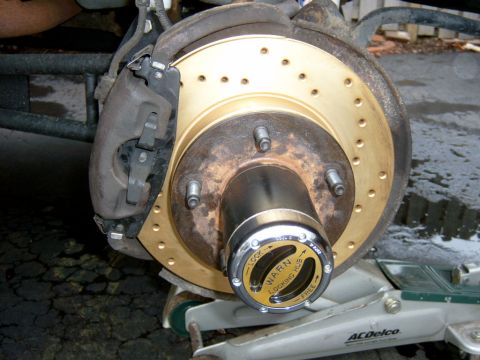

Last thing to do is put the caliper back on.

1268 hits | 75.89 KB | Posted: 11/2/03

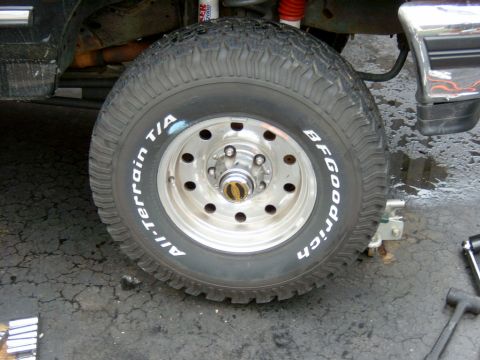

All done
