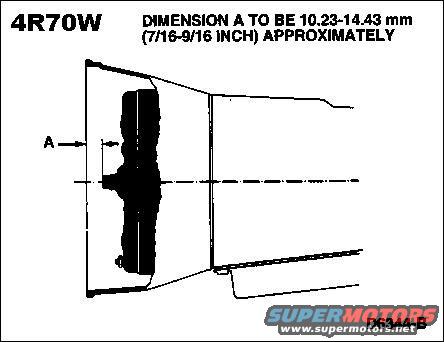

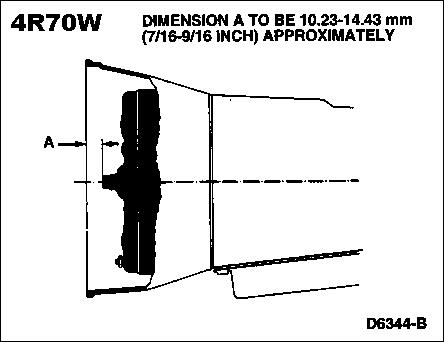

Torque Converter Installation on 4R70W Transmission
Position the torque converter to the transmission. Align the converter to the front pump by rotating and pushing it inward, until full engagement is made. Install the Torque Converter Holding Tool 307-346 (T97T-7902-A). Lubricate the converter pilot hub using Ford Multi-purpose Grease DOAZ-19584-AA (or equivalent).
.
![transtcinstall4r70w.jpg Torque Converter Installation on 4R70W Transmission
Position the torque converter to the transmission. Align the converter to the front pump by rotating and pushing it inward, until full engagement is made. Install the Torque Converter Holding Tool 307-346 (T97T-7902-A). Lubricate the converter pilot hub using Ford Multi-purpose Grease DOAZ-19584-AA (or equivalent).
