4244 hits | 43.84 KB | Posted: 2/14/05

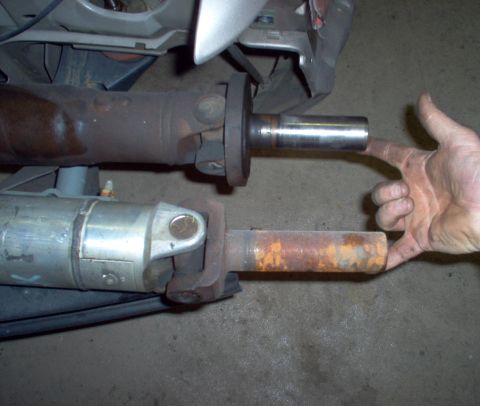

The upper steel driveshaft is slightly longer than the aluminum one, but the aluminum's yoke makes i...

2281 hits | 41.87 KB | Posted: 2/14/05

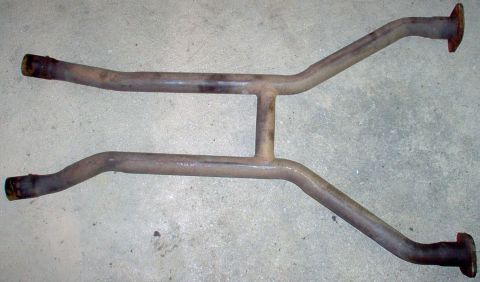

H-pipe from '00 P71.

Cat Flange Gaskets.JPG
1627 hits | 55.91 KB | Posted: 3/31/05

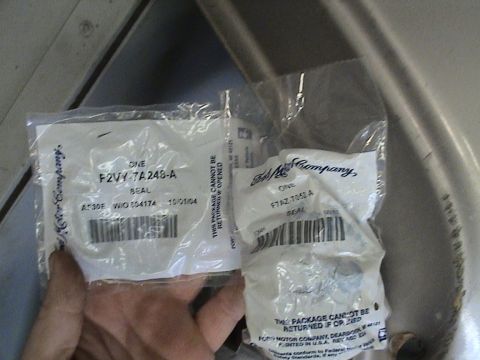

I dont remember what these gaskets are for.

1977 hits | 65.08 KB | Posted: 3/31/05

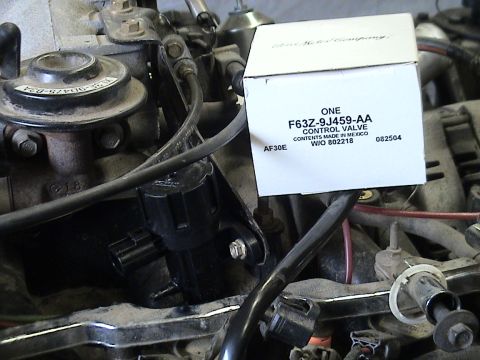

EVR

1608 hits | 68.87 KB | Posted: 3/31/05

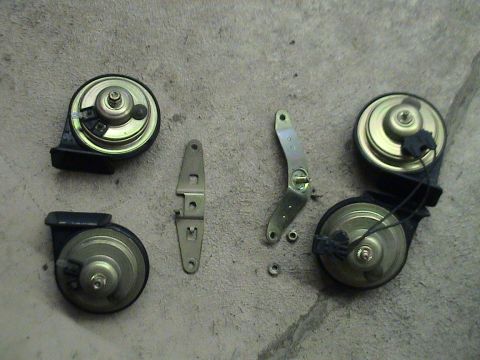

1994 horns are totally different from 2000. The connector, the way they mount to their bracket, & t...

1964 hits | 86.47 KB | Posted: 3/31/05

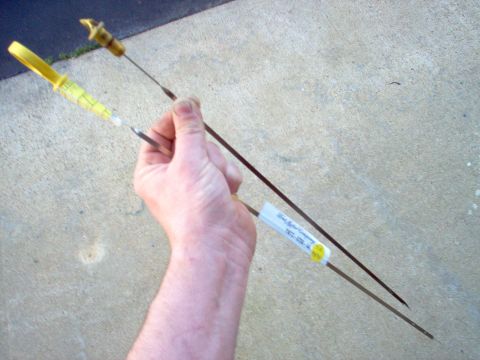

Dipstick for '00

10693 hits | 79.49 KB | Posted: 3/31/05

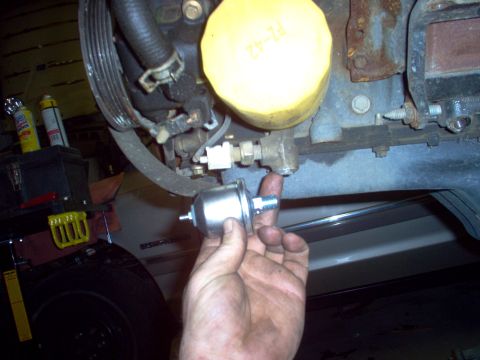

The older oil pressure sender uses the same thread as the later oil pressure switch, so swapping is ...

2591 hits | 77.23 KB | Posted: 3/31/05

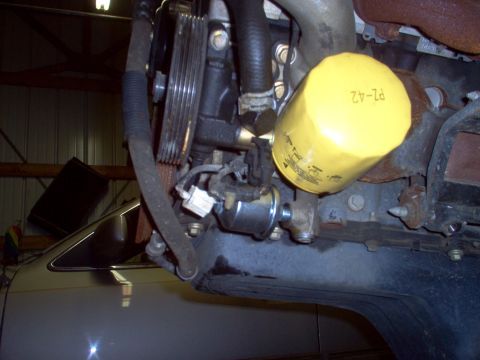

The sender uses a different terminal, so the connector will have to be changed.

The black connect...

Fuel Rail1.JPG
1713 hits | 74.4 KB | Posted: 3/31/05

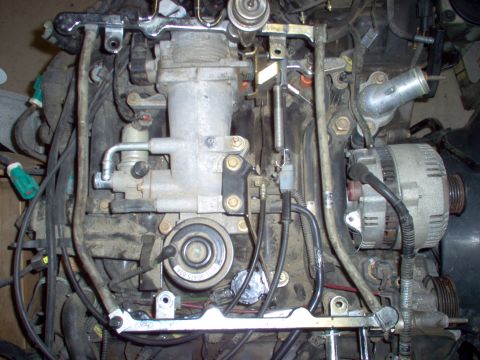

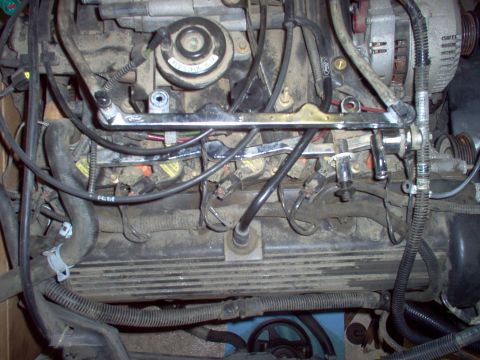

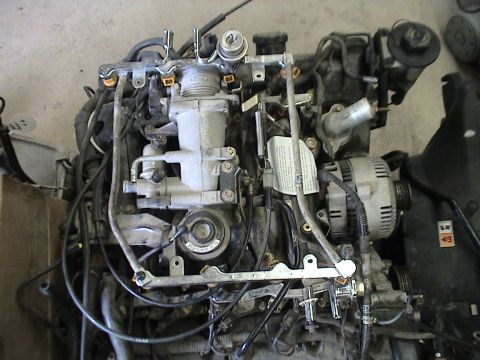

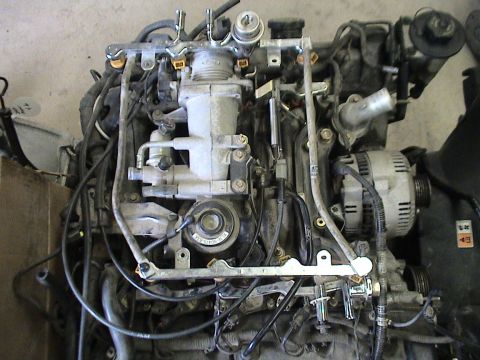

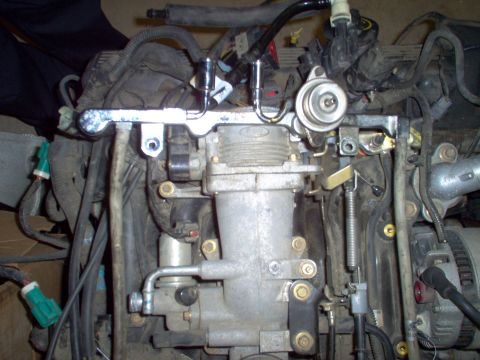

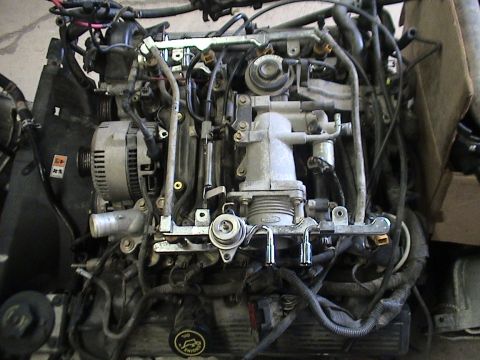

Fuel Rails

Fuel Rail2.JPG
1522 hits | 77.1 KB | Posted: 3/31/05
Fuel Rails

Fuel Rail3.JPG
1689 hits | 74.11 KB | Posted: 3/31/05
Fuel Rails

Fuel Rail 1.JPG
1791 hits | 104.21 KB | Posted: 3/31/05
Fuel Rails

Fuel Rail 2.JPG
1490 hits | 102.65 KB | Posted: 3/31/05
Fuel Rails

Fuel Rail 3.JPG
1512 hits | 93.08 KB | Posted: 3/31/05
Fuel Rails

1486 hits | 102.66 KB | Posted: 3/31/05
Fuel Rails

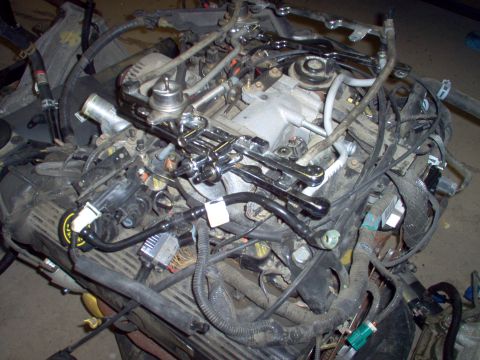

Top to bottom: 1994, 1996, 2000

1444 hits | 105.22 KB | Posted: 3/31/05

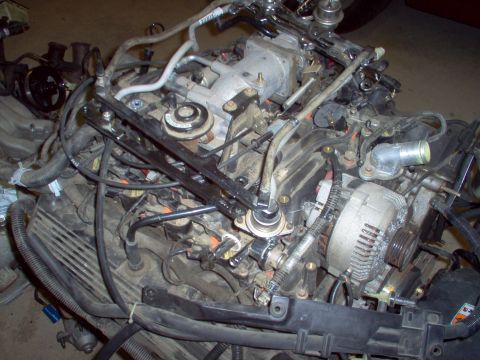

Fuel Rails
Top to bottom: 1994, 1996, 2000

1535 hits | 99.98 KB | Posted: 3/31/05

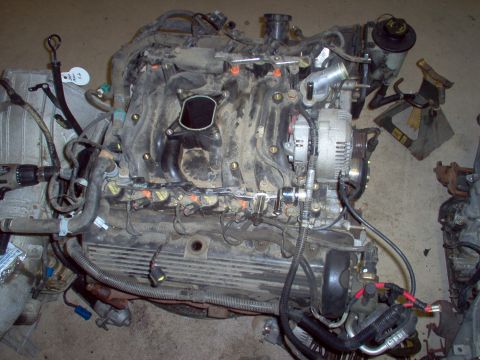

Throttle Body Off

TB Off.JPG
1437 hits | 93.94 KB | Posted: 3/31/05

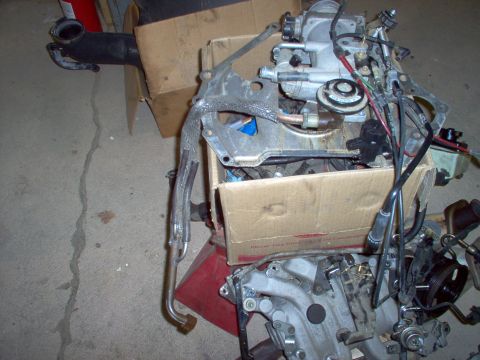

Throttle Body removed to swap fuel rails

1419 hits | 101.36 KB | Posted: 3/31/05

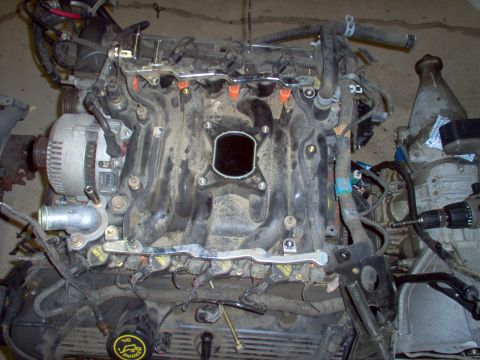

Fuel rail removal

1482 hits | 100.54 KB | Posted: 3/31/05

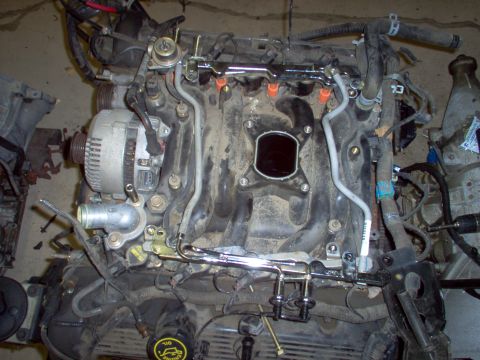

'96 rail over '00 rail

1730 hits | 76.53 KB | Posted: 3/31/05

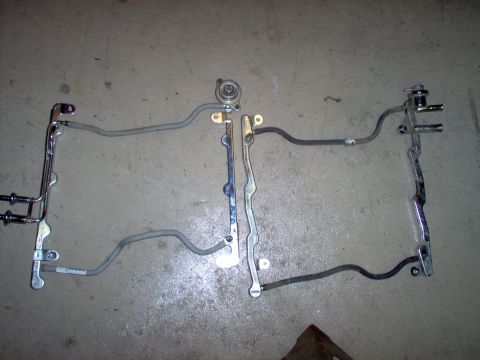

L '96 rail; R '00 rail

1278 hits | 102.8 KB | Posted: 3/31/05

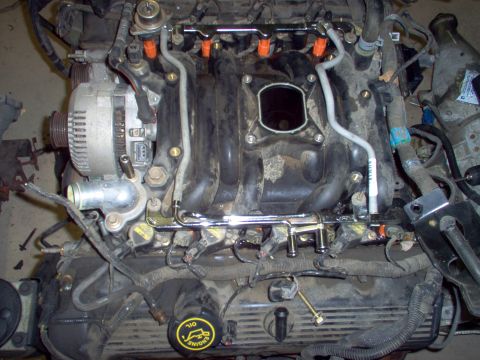

'96 rail installed on '00 intake

1285 hits | 91.48 KB | Posted: 3/31/05

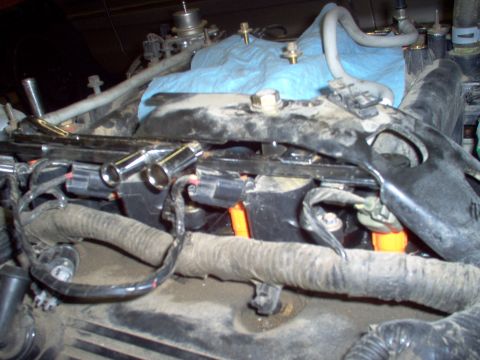

The crash bracket barely interferes with the older fuel rail, so I'll grind a small pocket in the br...

1545 hits | 87.27 KB | Posted: 3/31/05

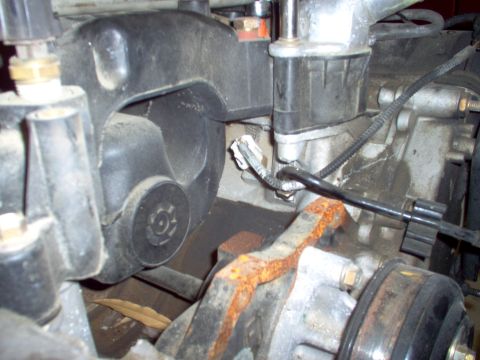

Location of the CHT sensor inside the L head.

1749 hits | 93.79 KB | Posted: 3/31/05

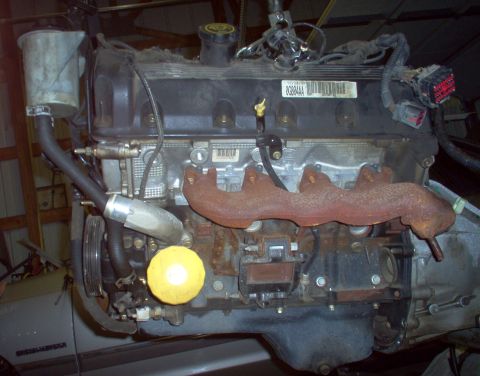

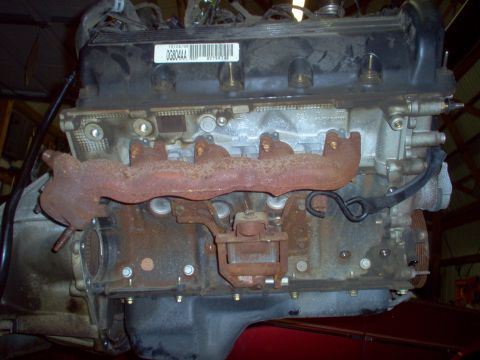

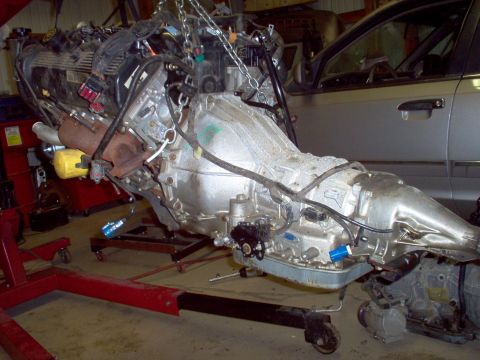

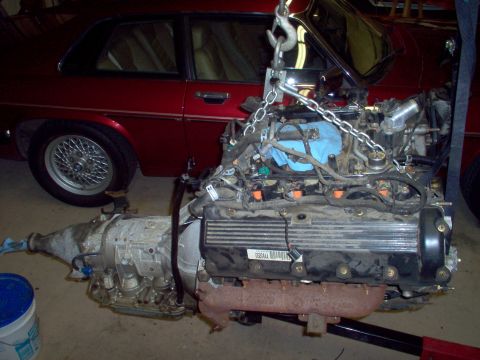

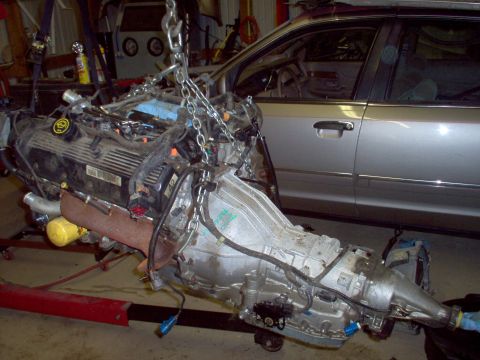

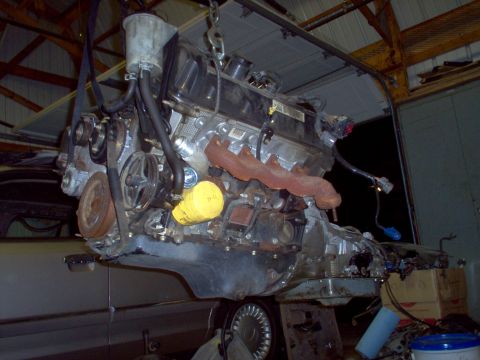

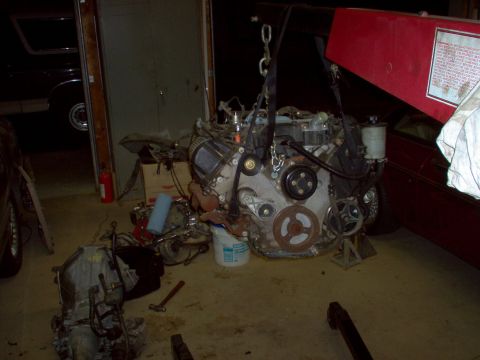

Engine assembled to transmission

2611 hits | 94.97 KB | Posted: 3/31/05
Engine assembled to transmission

3664 hits | 89.13 KB | Posted: 3/31/05

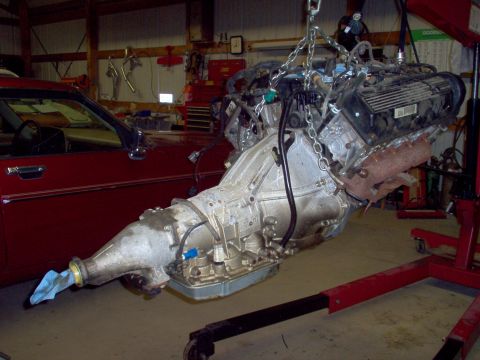

Engine assembled to transmission after changing trans input & output seals.

1456 hits | 90.34 KB | Posted: 3/31/05
Engine assembled to transmission

1394 hits | 74.43 KB | Posted: 3/31/05
Engine assembled to transmission

1421 hits | 87.34 KB | Posted: 3/31/05
Engine assembled to transmission

1292 hits | 85.22 KB | Posted: 3/31/05
Engine assembled to transmission

1829 hits | 51.83 KB | Posted: 3/31/05
Engine assembled to transmission

3728 hits | 21.63 KB | Posted: 4/8/05

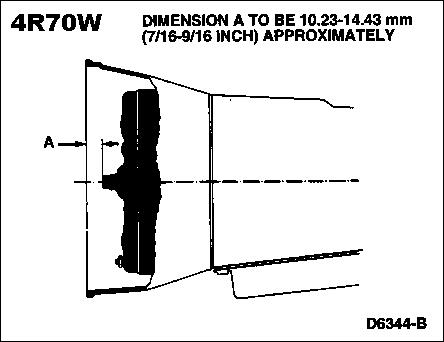

Torque Converter Installation on 4R70W Transmission

Position the torque converter to the transmis...

In L.JPG
1586 hits | 89.21 KB | Posted: 4/17/05

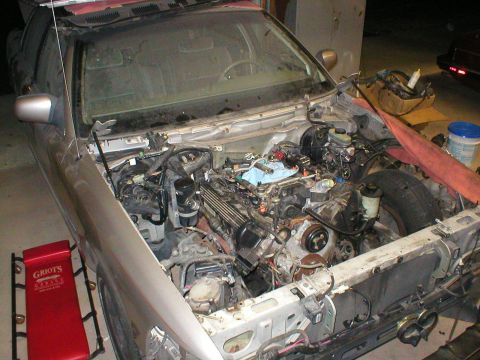

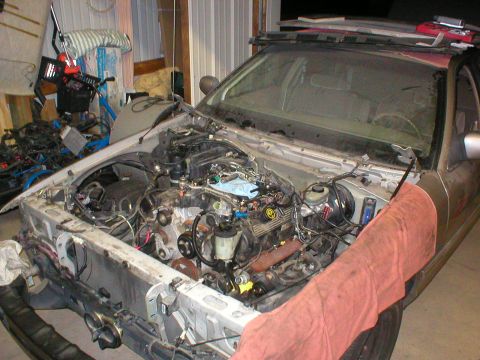

It's FINALLY back in. I still have to replace 2 connectors that the junkyard destroyed & figure out...

In R.JPG
1457 hits | 87.53 KB | Posted: 4/17/05
It's FINALLY back in. I still have to replace 2 connectors that the junkyard destroyed & figure out...

In Tunnel.JPG
1496 hits | 62.59 KB | Posted: 4/17/05

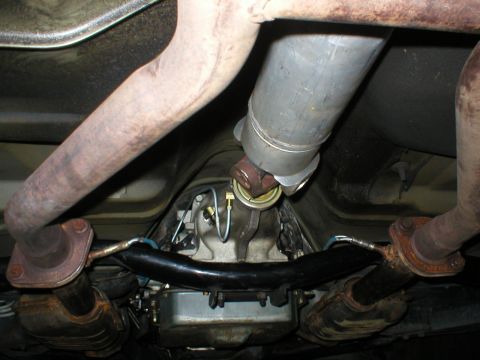

I don't have gaskets for the H-pipe flanges yet, so the damper weights aren't installed yet. The fo...

Dual Half.JPG
1403 hits | 62.58 KB | Posted: 4/17/05

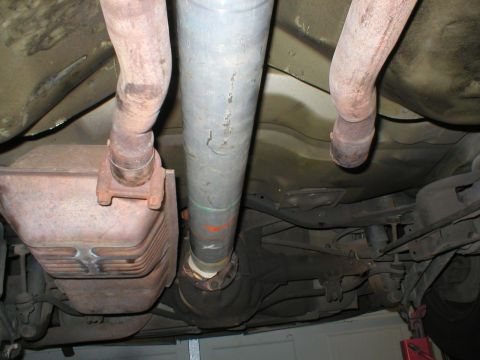

The H-pipe doesn't look centered, so I have my doubts that I can reuse the original single muffler.

1277 hits | 79.83 KB | Posted: 4/17/05

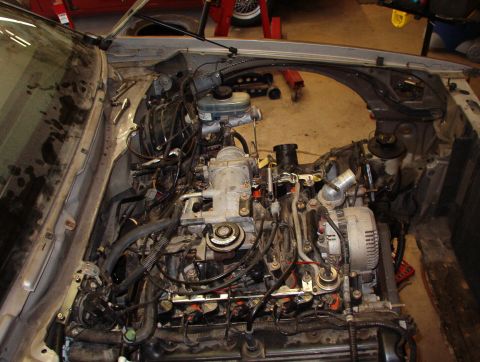

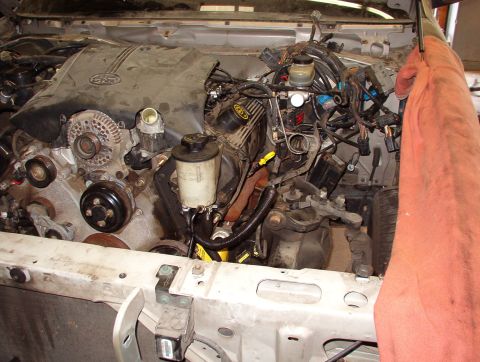

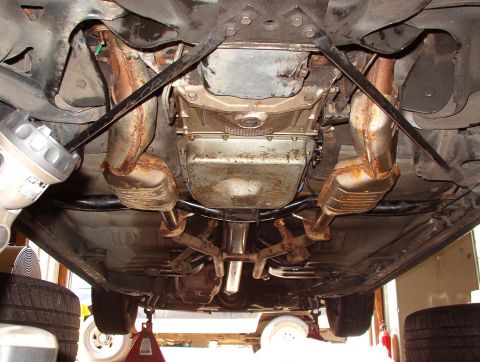

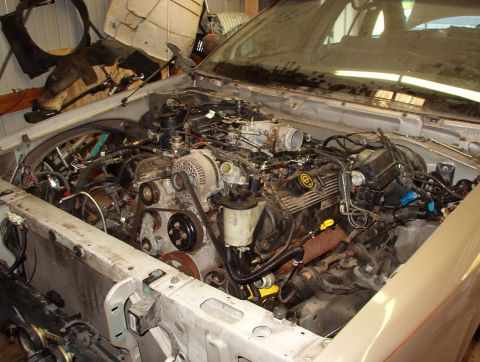

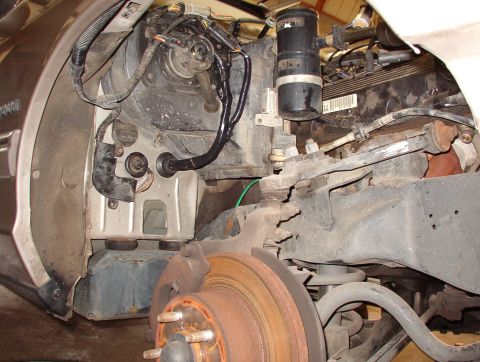

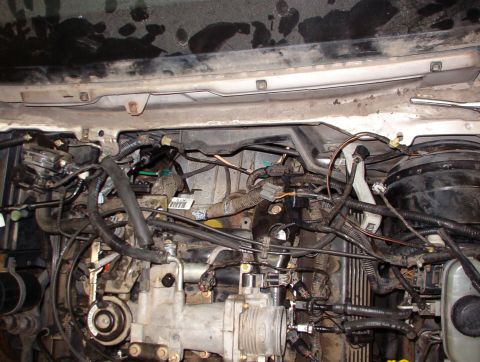

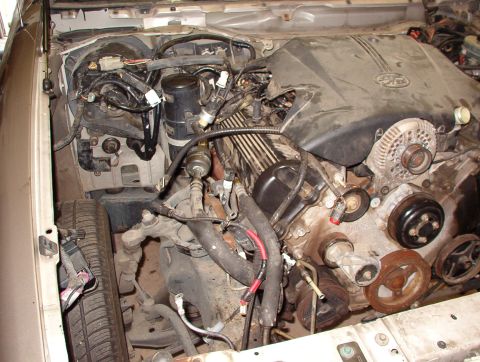

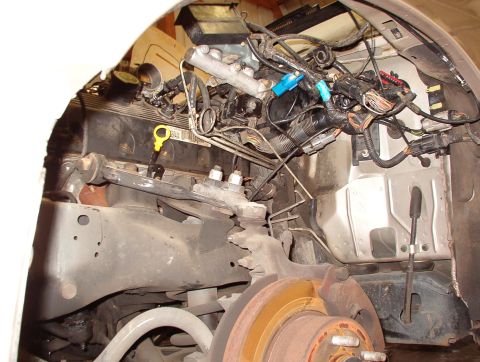

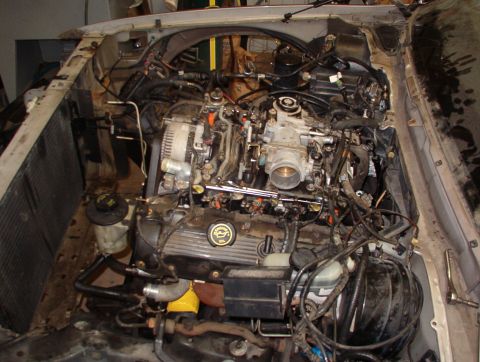

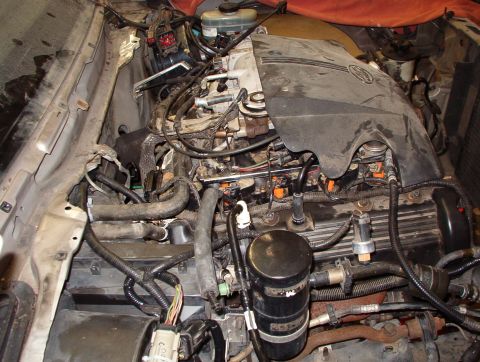

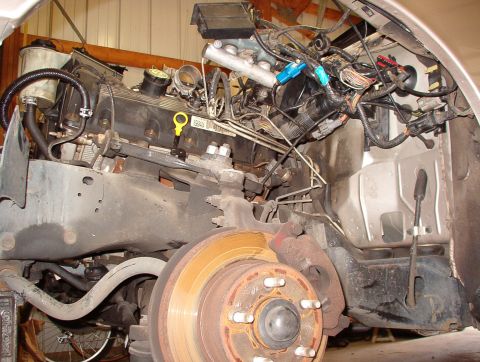

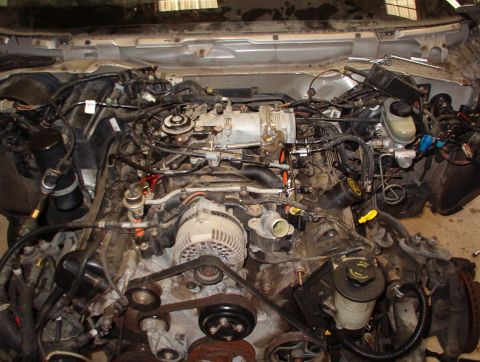

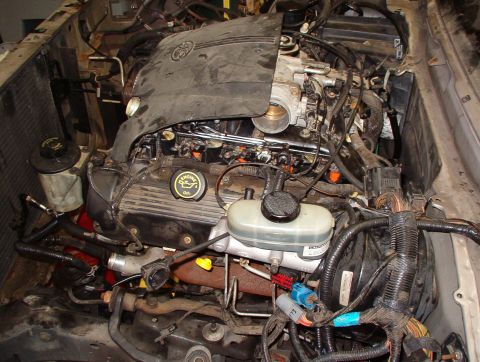

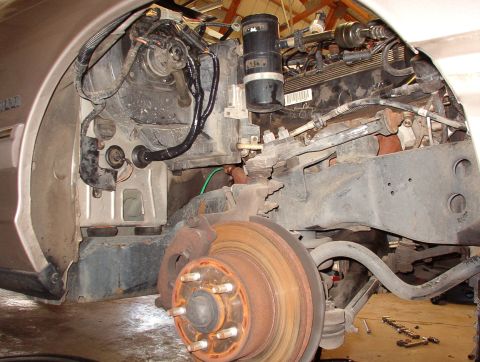

Sunday afternoon

1332 hits | 87.71 KB | Posted: 4/17/05
Sunday afternoon

1344 hits | 87.71 KB | Posted: 4/17/05
Sunday afternoon

1238 hits | 89.43 KB | Posted: 4/17/05
Sunday afternoon

1272 hits | 88.27 KB | Posted: 4/17/05
Sunday afternoon

1253 hits | 78.63 KB | Posted: 4/17/05
Sunday afternoon

1237 hits | 83.62 KB | Posted: 4/17/05
Sunday afternoon

1227 hits | 77.89 KB | Posted: 4/17/05
Sunday afternoon

1227 hits | 84.04 KB | Posted: 4/17/05
Sunday afternoon

1435 hits | 84.01 KB | Posted: 4/17/05
Sunday afternoon

1284 hits | 79.04 KB | Posted: 4/17/05
Sunday afternoon

1210 hits | 88.84 KB | Posted: 4/17/05
Sunday afternoon

1263 hits | 79.74 KB | Posted: 4/17/05
Sunday afternoon

1187 hits | 82.19 KB | Posted: 4/17/05
Sunday afternoon

1600 hits | 82.2 KB | Posted: 4/18/05
Sunday afternoon

1353 hits | 77.94 KB | Posted: 4/18/05

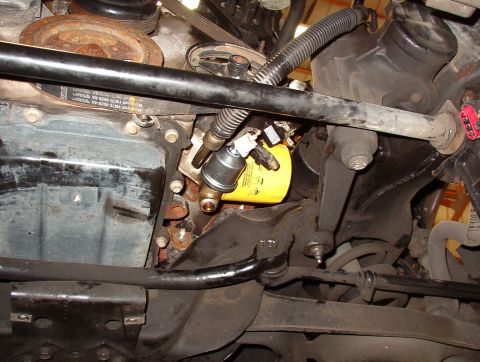

I swapped in the older style oil pressure sender, but I still have to change the connector.

1318 hits | 79.74 KB | Posted: 4/18/05

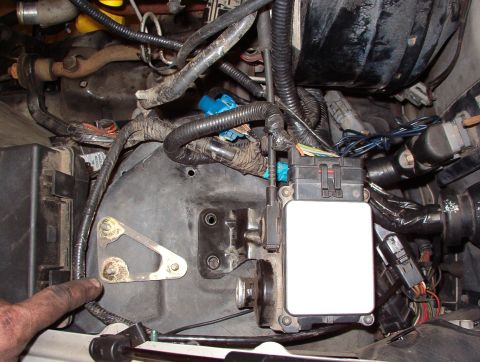

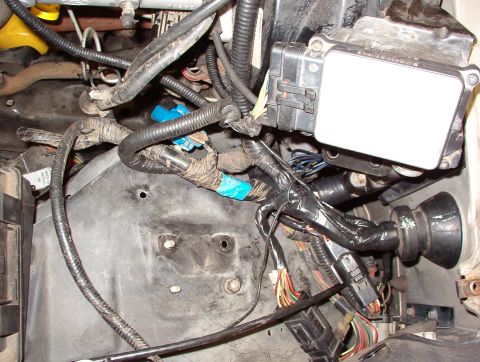

The newer throttle requires the newer cruise cable, which requires the newer servo bracket. The ser...

1270 hits | 90.15 KB | Posted: 4/18/05
The newer throttle requires the newer cruise cable, which requires the newer servo bracket. The ser...

1056 hits | 65.46 KB | Posted: 4/18/05

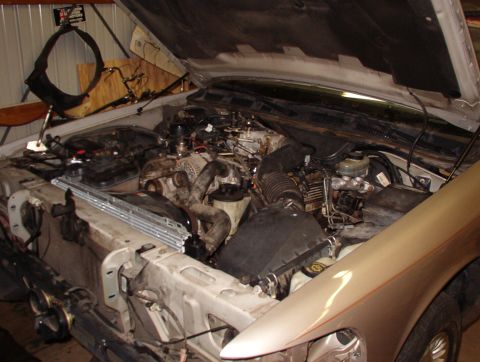

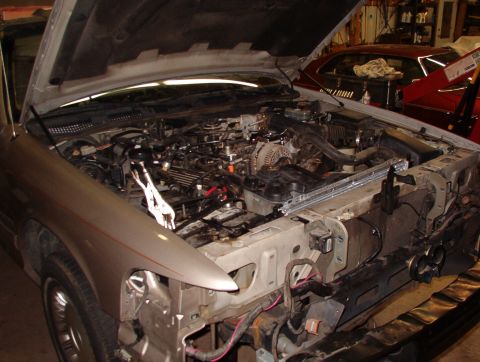

That's all for tonight. It didn't smoke when I hooked up the battery, and the dash seemed to behave...

1126 hits | 70.38 KB | Posted: 4/18/05
That's all for tonight. It didn't smoke when I hooked up the battery, and the dash seemed to behave...

1336 hits | 65.46 KB | Posted: 4/18/05
There's no coolant in it, and the radiator is just resting in place. I just realized the '00 trans ...

1217 hits | 100.73 KB | Posted: 4/21/05

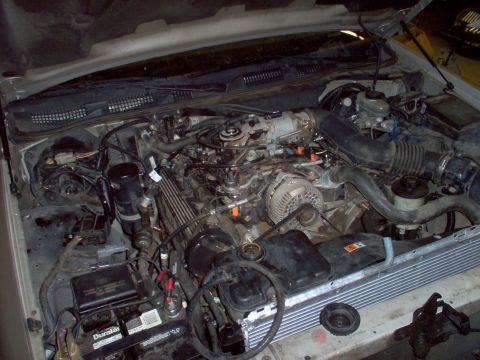

I filled it with water, but I have to drain it & pull the radiator to change the core support to the...

1325 hits | 49.43 KB | Posted: 4/21/05

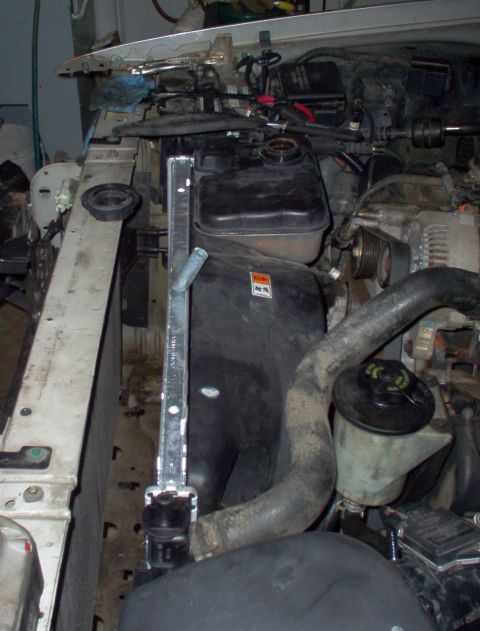

I have to use this radiator to mount the fan, which the EEC controls, but it's slightly too large fo...

1258 hits | 92.02 KB | Posted: 4/21/05

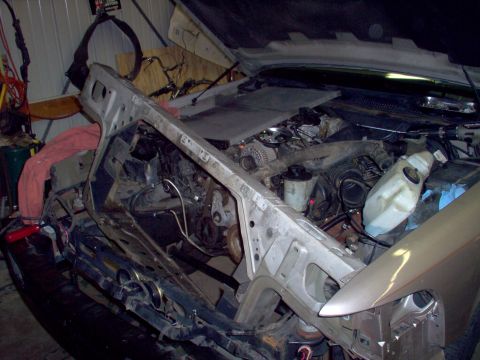

It took some hard pulling on the fenders, but I got it out without even unbolting the wheelwells.

1274 hits | 95.53 KB | Posted: 4/21/05

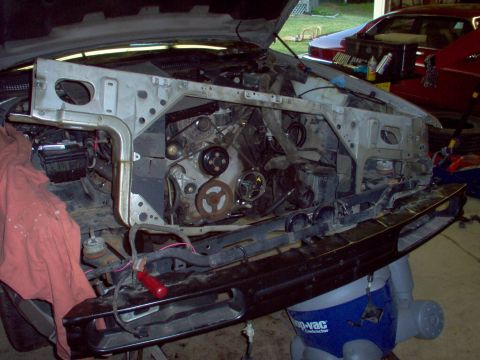

The condenser is laid back (still haven't opened the '94 A/C system) & the air filter box and radiat...

1188 hits | 82.86 KB | Posted: 4/21/05

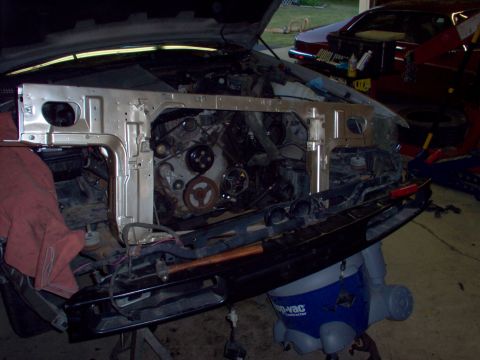

DupliColor Light Driftwood was the closest color I could find - I figure it's closer than white. It...

1211 hits | 87.63 KB | Posted: 4/21/05

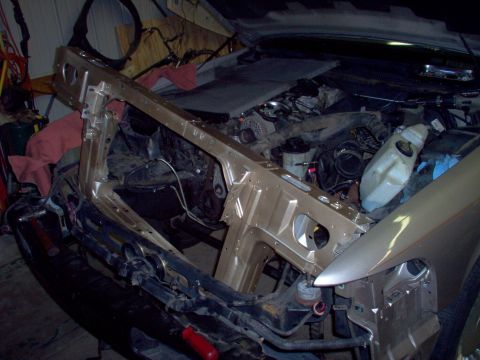

Considering the effort of getting the original out, it went in a LOT easier than I expected.

1300 hits | 86.83 KB | Posted: 4/21/05

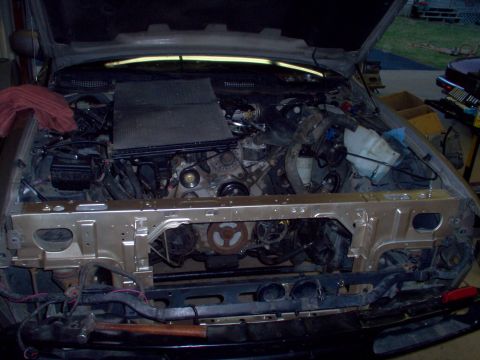

IT FITS! I'm not sure yet if the 2 vertical braces will work where they are.

2493 hits | 68.54 KB | Posted: 4/21/05

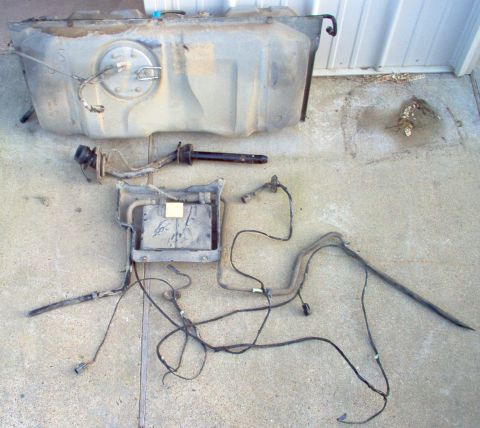

I pulled this from a '98 P71. It was nearly full of gas, so I figured it would be fairly clean insi...

3394 hits | 33.09 KB | Posted: 4/21/05

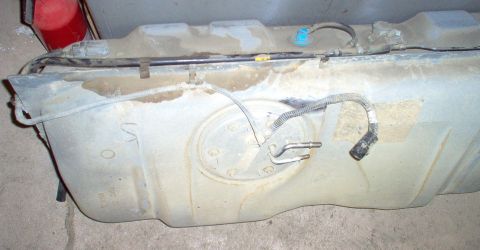

The gray Fuel Tank Pressure sensor comes out with a 1/4 CCW turn. Its connector is part of the fuel...

2211 hits | 81.08 KB | Posted: 4/21/05

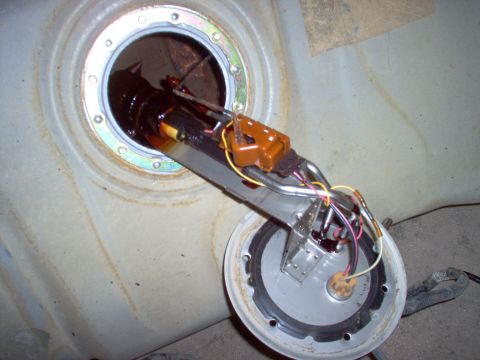

I figured it was worth the cost of the pump seal to check inside before installing, which turned out...

1882 hits | 80.98 KB | Posted: 4/21/05

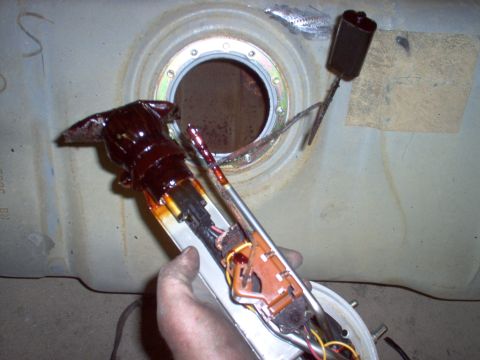

The pump looked like it had been dipped in molasses, and all the rubber in the tank was soft & swoll...

2057 hits | 99.07 KB | Posted: 4/21/05

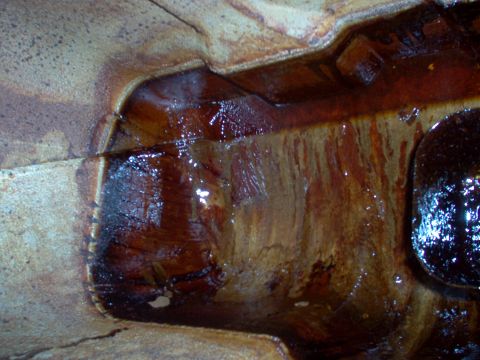

The inside wasn't much better, but there was virtually no rust.

See also:
[url=http://www.supermoto...

2547 hits | 90.67 KB | Posted: 4/21/05

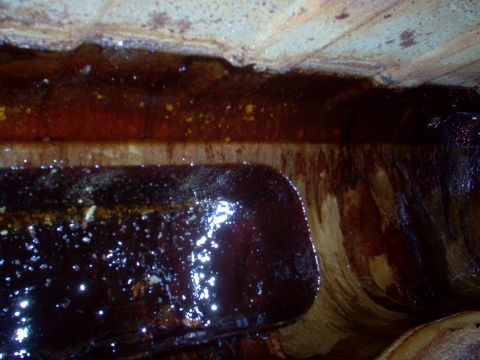

I don't know exactly how long it sat to get this bad, but it makes me want to use fuel stabilizer mo...

1860 hits | 44.55 KB | Posted: 4/21/05

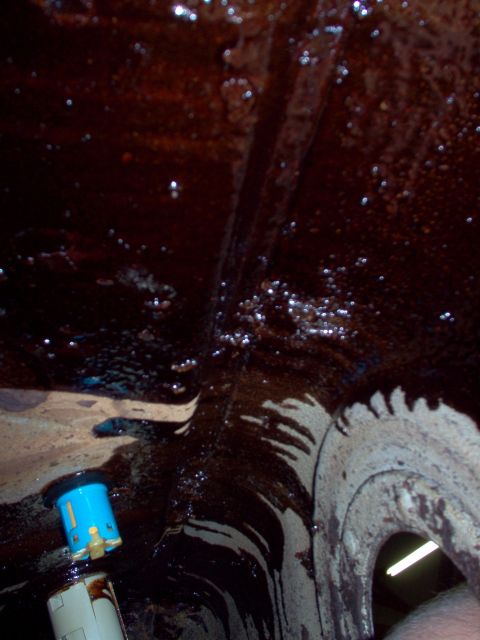

It only got on the top when the junkyard flipped the car for me to get the tank out.

See also:
[url...

3547 hits | 71.55 KB | Posted: 4/21/05

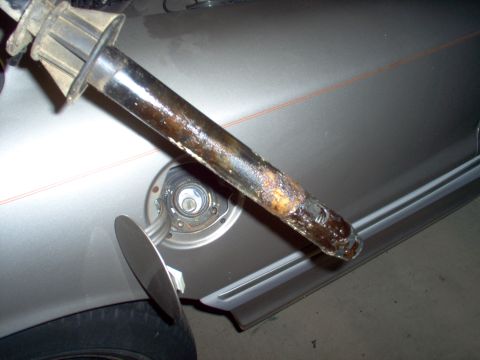

The check valve at the bottom of the filler neck was gummed & looked pretty nasty, too.

See also:
[...

3941 hits | 70.88 KB | Posted: 4/21/05

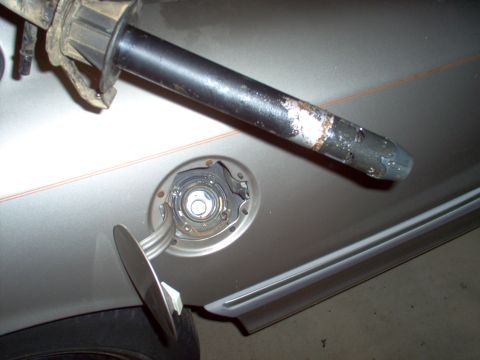

A can of B-12 got it pretty clean, and the anti-theft valve moves freely now.

1572 hits | 82.07 KB | Posted: 4/25/05

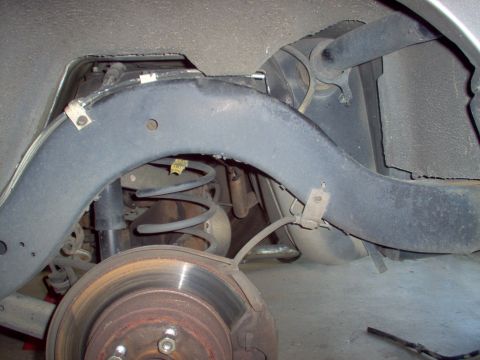

This is the old tank, just before I pulled the filler neck & dropped it.

1622 hits | 81.53 KB | Posted: 4/25/05

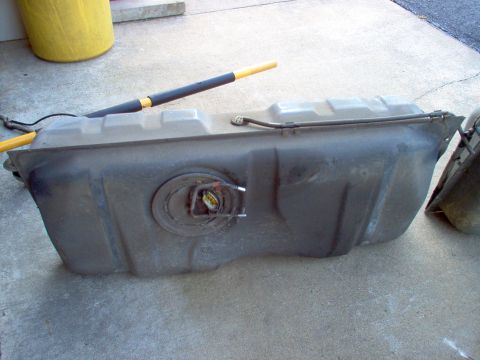

The old tank has only 1 bung on top, and the old-style locking ring for the pump.

4565 hits | 85.56 KB | Posted: 4/25/05

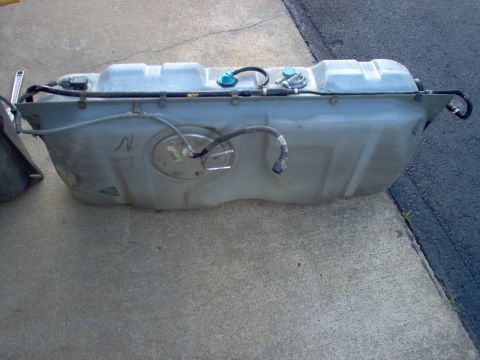

The new tank has 3 bungs on top & the pump plate is held on by 6 screws.

2412 hits | 45.61 KB | Posted: 4/25/05

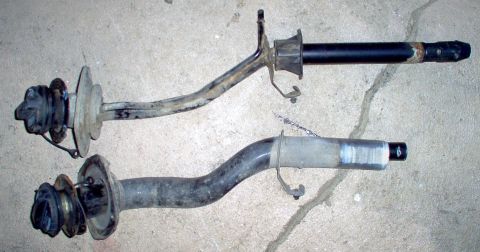

TOP - '98 P71
BOTTOM - '94 P73

The new filler neck has a 1/4-turn cap, an external vent line, a ...

1593 hits | 78.55 KB | Posted: 4/25/05

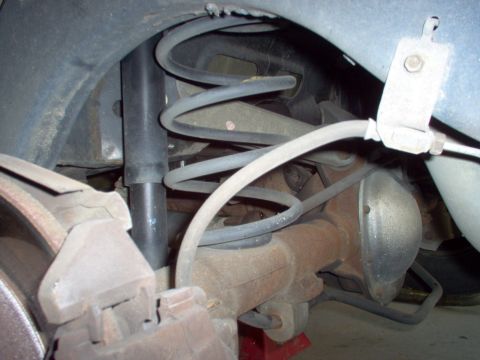

The suspension looks pretty cramped already, but a tailpipe is going in there.

2435 hits | 71.62 KB | Posted: 4/25/05

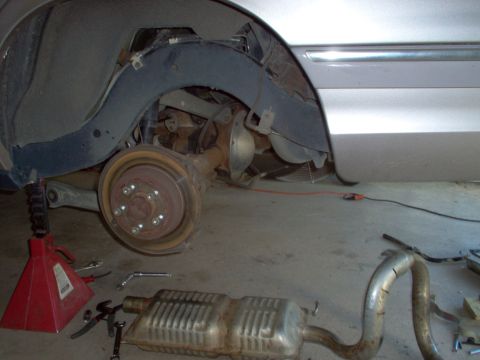

I dropped the lower control arm front bolt & e-brake cables, tied the shock up, laid the caliper bes...

1840 hits | 75.3 KB | Posted: 4/25/05

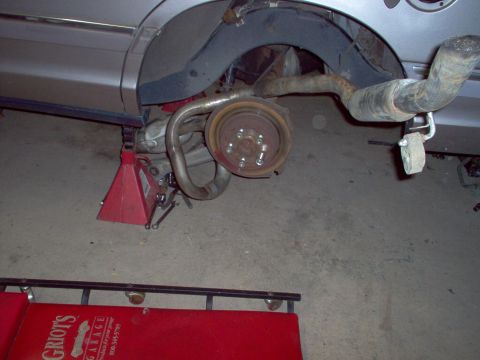

It fit in easier than I expected: set it like this, and then rotate CW so the loop drops over the ax...

1545 hits | 82.53 KB | Posted: 4/25/05

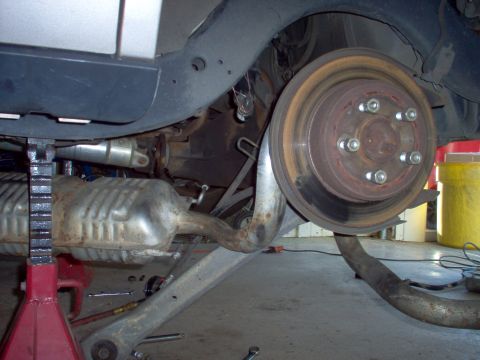

Slide it inboard past the shock, & lift it into place.

1620 hits | 85.42 KB | Posted: 4/25/05

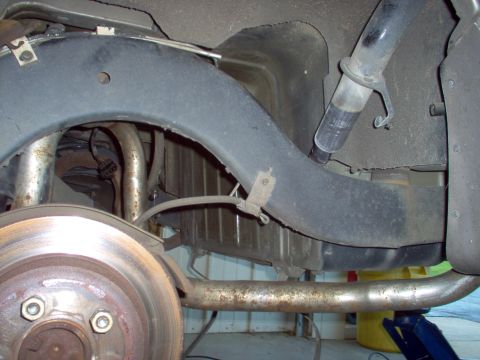

Removing the gas tank wasn't necessary to install the muffler - it fits equally well with the tank i...

1403 hits | 81.61 KB | Posted: 4/25/05

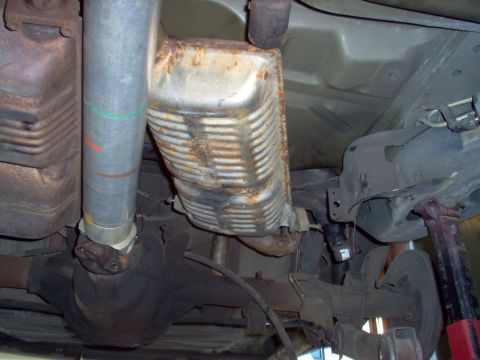

The first attempt showed just how bent it was.

1464 hits | 85.79 KB | Posted: 4/25/05

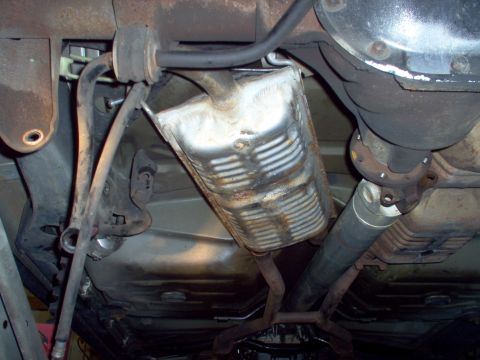

The junkyard had removed the R muffler, and apparently, this one was bent while the car was being mo...

1373 hits | 90.51 KB | Posted: 4/25/05

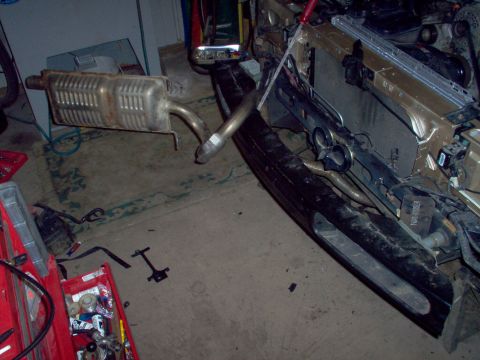

With the front bumper skin off, I found the perfect spot to work on the tailpipe.

1673 hits | 83.61 KB | Posted: 4/25/05

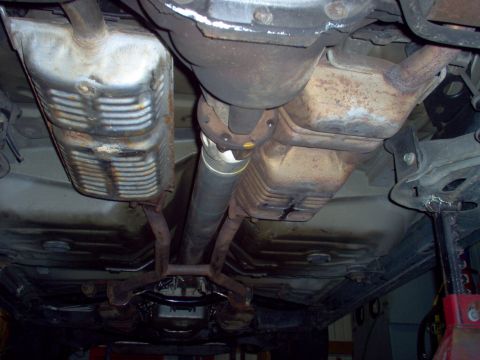

After working on it a few times, I got a pretty good fit.

1382 hits | 75.46 KB | Posted: 5/16/05

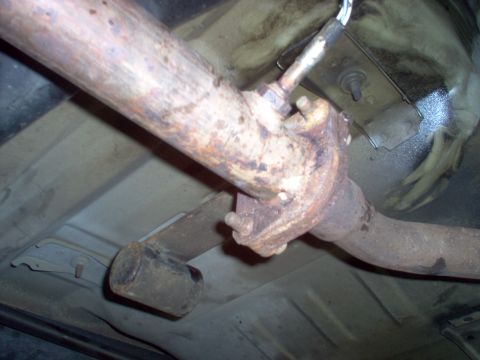

Detail of the R catalytic converter flange showing the stamped nuts & resonance weight.

1602 hits | 77.96 KB | Posted: 4/25/05

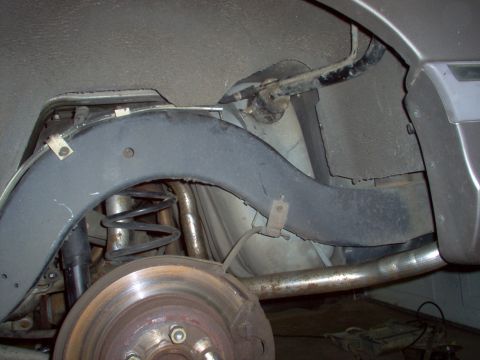

This is the new tank, filler neck, tank-to-neck O-ring, & the new tailpipe.

1521 hits | 90.1 KB | Posted: 4/25/05

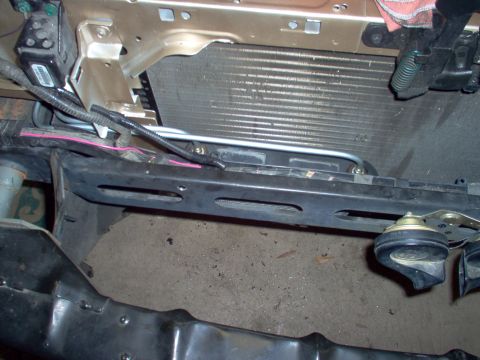

Since the new radiator doesn't have an internal trans cooler, and I couldn't find a good one in a ju...

1782 hits | 82.85 KB | Posted: 4/25/05

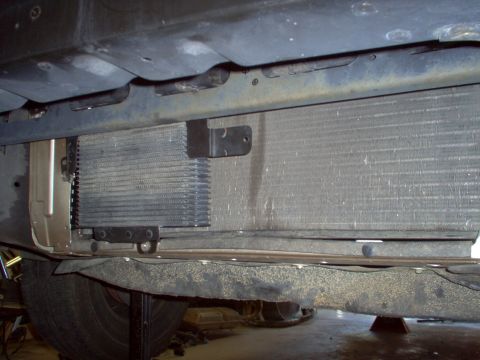

I had to bend 2 of the mounting ears, but it's pretty solid.

1303 hits | 67.54 KB | Posted: 4/25/05

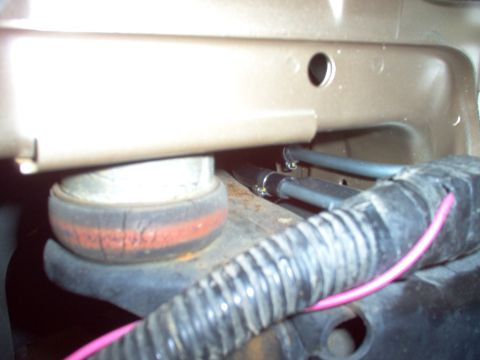

There's plenty of room between the core support & frame, and that's where I put the flexible section...

1228 hits | 38.12 KB | Posted: 4/25/05

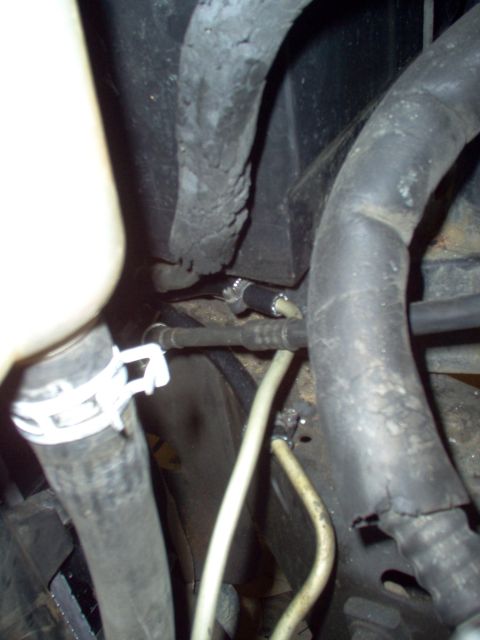

The hoses meet the original '94 hard lines at the side of the battery tray.

1193 hits | 85.3 KB | Posted: 4/25/05

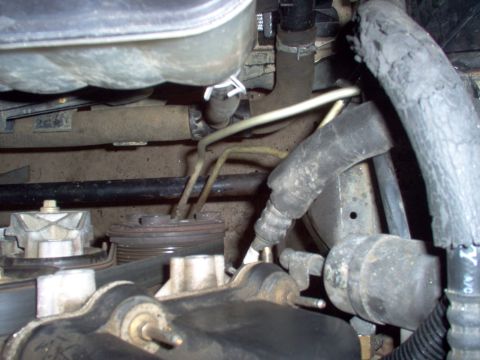

The hard lines had to be bent to the side slightly, and their flares were cut off. I reflared them ...

1721 hits | 93.52 KB | Posted: 4/25/05

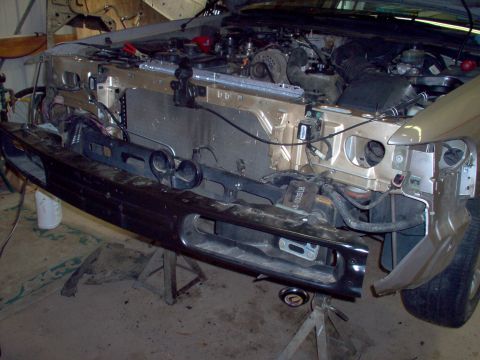

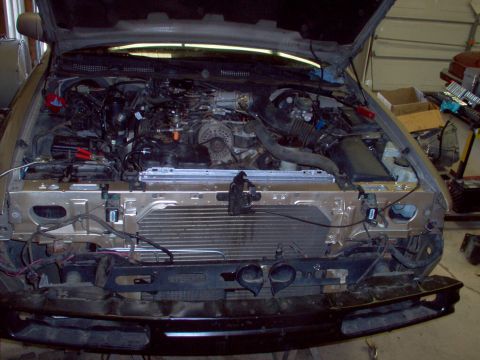

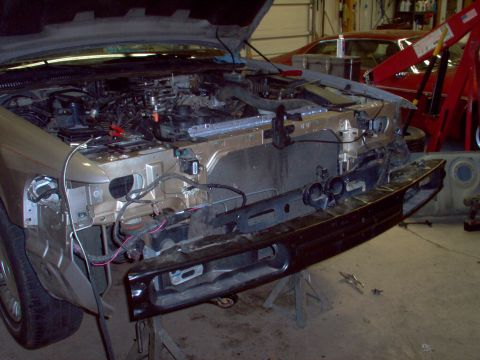

The new core support, almost ready to have the grille & bumper reinstalled.

1271 hits | 94.41 KB | Posted: 4/25/05
The new core support, almost ready to have the grille & bumper reinstalled.

1262 hits | 92.65 KB | Posted: 4/25/05
The new core support, almost ready to have the grille & bumper reinstalled.

1237 hits | 92.26 KB | Posted: 4/25/05

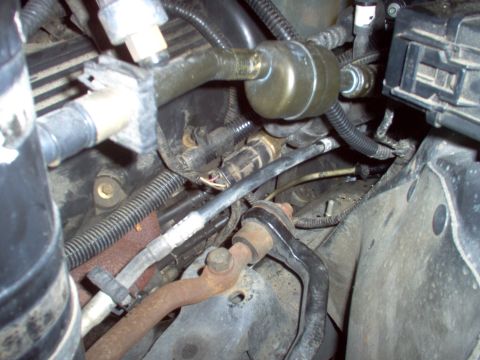

The new A/C pressure switch fits perfectly on the old port, and the new wires even reach, when rerou...

1301 hits | 89.15 KB | Posted: 4/26/05

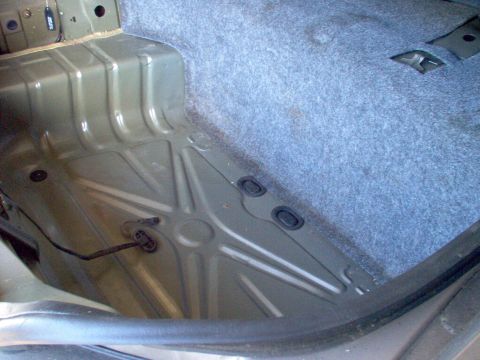

I ran the new wires for the CANV around the back of the trunk while I was rewiring the fuel pump con...

1654 hits | 92.35 KB | Posted: 4/25/05

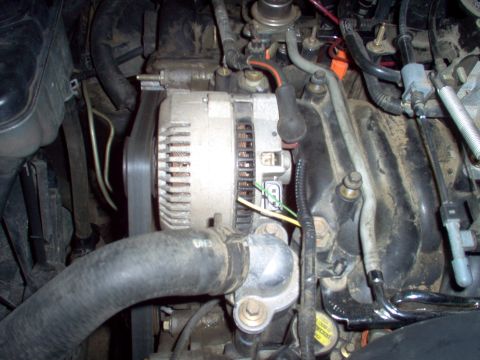

This is the LAST connector that I'm missing. The engine apparently had the normal cheapo alternator...

1306 hits | 88.05 KB | Posted: 4/26/05

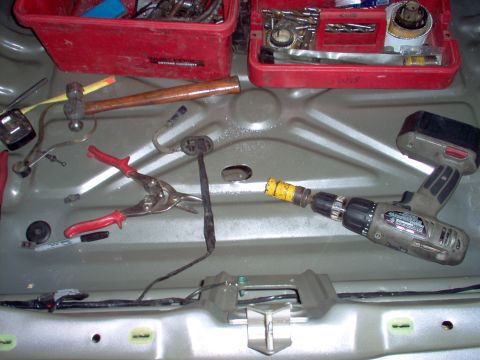

I used a 1 1/4" hole saw, but 1 3/16" would have been better.

1219 hits | 83.93 KB | Posted: 4/26/05

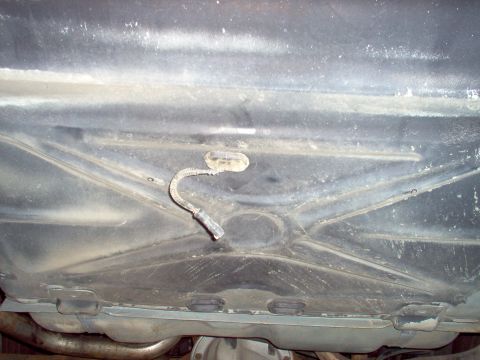

I'm using Right Stuff sealant to hold the grommet in place & sealed. The 2 circles on the ribs are ...

1646 hits | 72.02 KB | Posted: 4/26/05

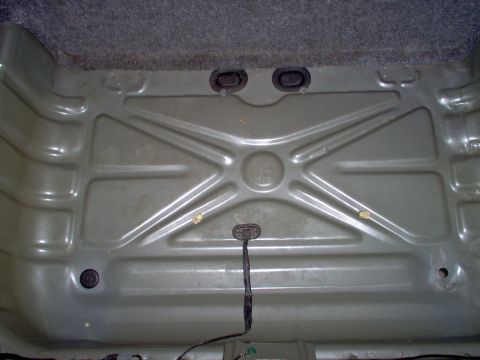

I used the original fasteners at the rear, but the fronts required longer bolts, and I flipped the U...

1890 hits | 90.89 KB | Posted: 4/26/05

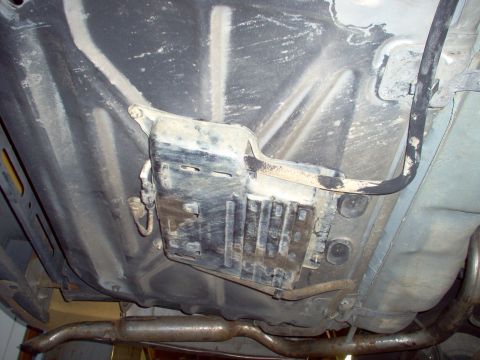

I drilled holes for the vapor hose clips, and it looks almost stock.

1279 hits | 85.96 KB | Posted: 4/30/05

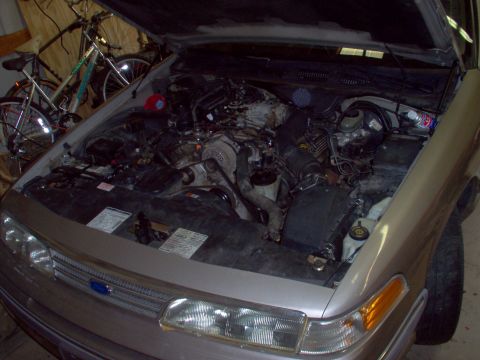

After rewiring the blinkers to the old outboard positions, soldering on the old headlight connectors...

1207 hits | 99.4 KB | Posted: 4/30/05

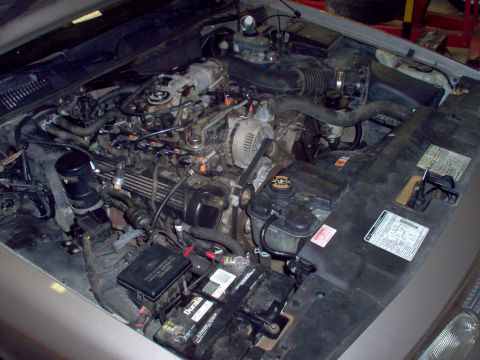

The new hood latch is about 1" R of the old location, and the bolt spacing is different, so I h...

1541 hits | 55.46 KB | Posted: 4/30/05

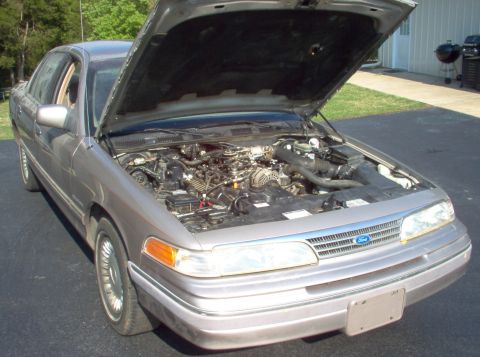

Aaaaaaaaaaaaaaaahhhh...

1618 hits | 52.51 KB | Posted: 4/30/05

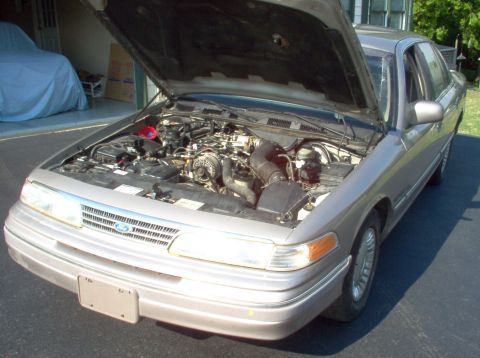

My odo: 187437
Donor's: 070020

UPDATE: 10/7/8
My odo stopped working shortly after the swap and...

1245 hits | 93.97 KB | Posted: 4/30/05

1670 hits | 96.07 KB | Posted: 4/30/05

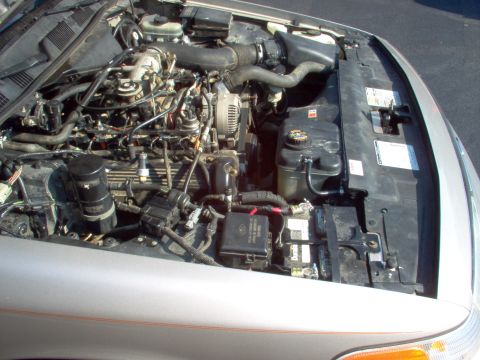

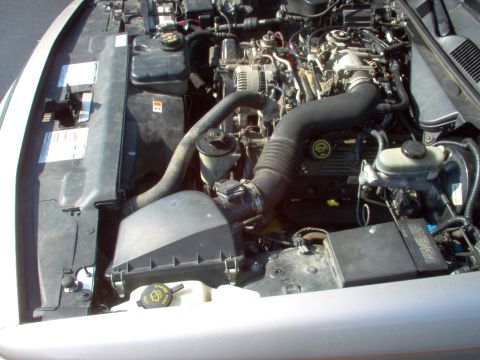

If you didn't know it was the wrong engine, it'd be hard to notice.

Note the soldered-on battery ...

1579 hits | 77.42 KB | Posted: 5/16/05

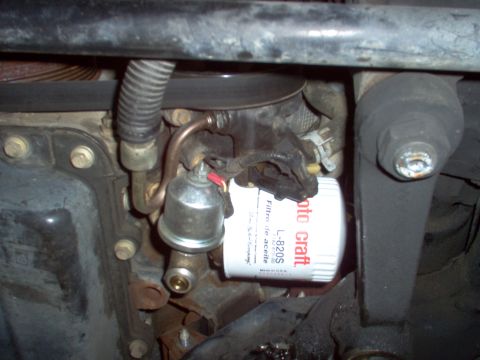

Final installation of the pressure sender. I also did the first oil change today, after flushing wi...

1470 hits | 31.19 KB | Posted: 5/17/05

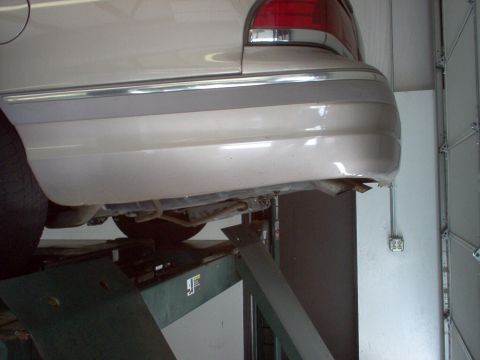

I finally got out the torch and adjusted the L tailpipe to fit right.

2964 hits | 33.97 KB | Posted: 5/19/05

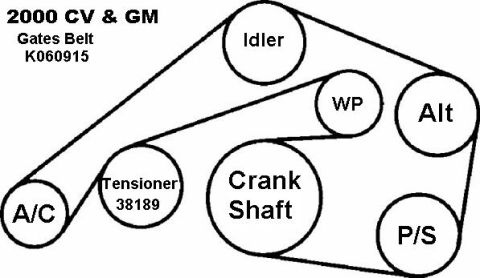

Belt routing
(Idler is actoally OUTside the loop to the R, and Alt is at the top)

Tensioner BT-6...
