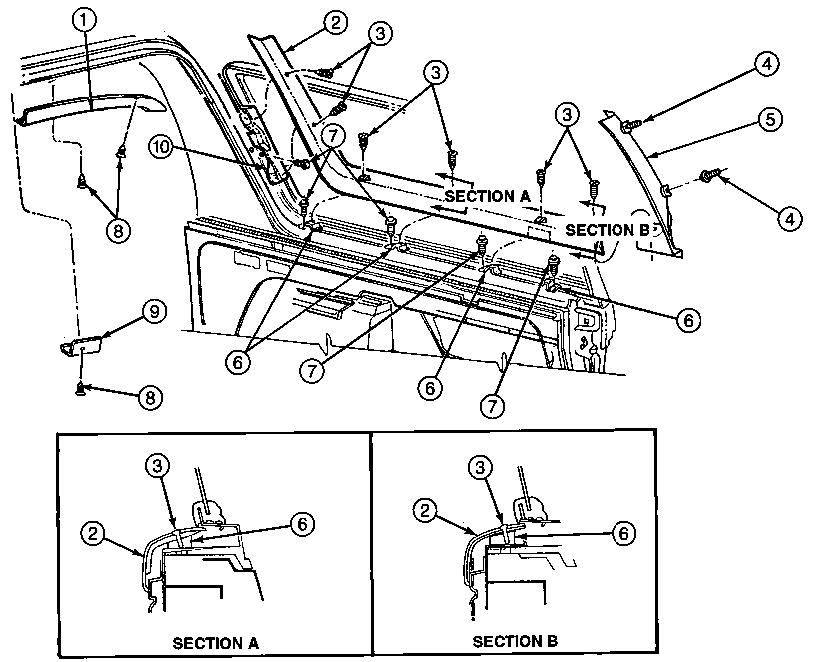

campershelltrim.jpg Camper Shell Trim
IF THE IMAGE IS TOO SMALL, click it.

1 Roof Trim Rear Moulding 517C04
2 Quarter Window Garnish Lower Front Moulding 29004
3 ('92-96) Pushpin [url=http://www.amazon.com/gp/product/B0040CX0FG/]N807154-SW[/url], ('78-91 See #8 )
4 Pushpin, Nylon (2 Req'd Each Side) [url=https://www.amazon.com/dp/B0BZDKGN32]N807372-S[/url]
5 Quarter Rear Window Garnish Rear Moulding 29010 ('92-96 only)
6 Body Side Window Garnish Moulding Bracket 29126
7 Bolt and Washer N800486-S9
8 Screw and Washer (2 Req'd Each Side, 1 Req'd Center) N801157-S58
9 Roof Trim Rear Moulding Joint Cover 518B34
10 Body Side Window Garnish Moulding Front Bracket 29070 (Left F2TZ9829071B; Right F2TZ9829070B)

[url=https://www.supermotors.net/registry/media/310324][img]https://www.supermotors.net/getfile/310324/thumbnail/campertrimmocha.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/516606][img]https://www.supermotors.net/getfile/516606/thumbnail/toptrimfillers.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/1160758][img]https://www.supermotors.net/getfile/1160758/thumbnail/campertrimfiller.jpg[/img][/url]

'78-91 use 17 self-drilling oval-head 1-1/4" phillips screws with captive countersunk washers (#8 ) to retain all the trim pieces.  6 on each long trim, 2 on each short trim (#1), & 1 on the small center joint cover (#9).

[url=https://www.supermotors.net/registry/media/730580][img]https://www.supermotors.net/getfile/730580/thumbnail/camperboltstt40.jpg[/img][/url] .

'92-96 use 5 screws as above for the short trim & cover, 2 hidden plastic pushpins (#4) on each rear corner trim (#5), & 6 color-matched pushpins (#3) on each long trim.  The colored pushpins are interchangeable with the '94-96 carpet pushpins, though the camper pins have more & thinner fins.

[url=https://www.supermotors.net/registry/media/565618][img]https://www.supermotors.net/getfile/565618/thumbnail/camperhdwr7891.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/831769][img]https://www.supermotors.net/getfile/831769/thumbnail/tgcarpet.jpg[/img][/url]

AuVeCo #.........Color.....................Head Dia..........Stem Dia................Stem Lgth
19371 ...............Blue.......................19/32" ...............9/32".......................27/32"
19372 ...............Dark Gray ............19/32" ...............9/32".......................27/32"
19373 ...............Light Gray ............19/32" ...............9/32".......................27/32"
19374 ...............Tan.........................19/32" ...............9/32".......................27/32"
BroncoGraveyard [url=https://shop.broncograveyard.com/Interior-Trim-Clips-Light-Grey-Set-Of-14/productinfo/38262/]38262[/url] $6 per 14 pcs (Opal gray) plus $8sh; or [url=https://www.amazon.com/dp/B0040CTZJ6]Amazon ClipsAndFasteners[/url] ~$11 per 25pcs no sh.

See also:
[url=https://www.supermotors.net/registry/media/894696_1][img]https://www.supermotors.net/getfile/894696/thumbnail/camper8096.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/724184][img]https://www.supermotors.net/getfile/724184/thumbnail/cabtrim.jpg[/img][/url]
campershelltrim.jpg | Hits: 9691 | Posted on: 1/17/06 | View original size (100.49 KB)

Camper Shell Trim
IF THE IMAGE IS TOO SMALL, click it.

1 Roof Trim Rear Moulding 517C04
2 Quarter Window Garnish Lower Front Moulding 29004
3 ('92-96) Pushpin N807154-SW, ('78-91 See #8 )
4 Pushpin, Nylon (2 Req'd Each Side) N807372-S
5 Quarter Rear Window Garnish Rear Moulding 29010 ('92-96 only)
6 Body Side Window Garnish Moulding Bracket 29126
7 Bolt and Washer N800486-S9
8 Screw and Washer (2 Req'd Each Side, 1 Req'd Center) N801157-S58
9 Roof Trim Rear Moulding Joint Cover 518B34
10 Body Side Window Garnish Moulding Front Bracket 29070 (Left F2TZ9829071B; Right F2TZ9829070B)

. .

'78-91 use 17 self-drilling oval-head 1-1/4" phillips screws with captive countersunk washers (#8 ) to retain all the trim pieces. 6 on each long trim, 2 on each short trim (#1), & 1 on the small center joint cover (#9).

.

'92-96 use 5 screws as above for the short trim & cover, 2 hidden plastic pushpins (#4) on each rear corner trim (#5), & 6 color-matched pushpins (#3) on each long trim. The colored pushpins are interchangeable with the '94-96 carpet pushpins, though the camper pins have more & thinner fins.

.

AuVeCo #.........Color.....................Head Dia..........Stem Dia................Stem Lgth
19371 ...............Blue.......................19/32" ...............9/32".......................27/32"
19372 ...............Dark Gray ............19/32" ...............9/32".......................27/32"
19373 ...............Light Gray ............19/32" ...............9/32".......................27/32"
19374 ...............Tan.........................19/32" ...............9/32".......................27/32"
BroncoGraveyard 38262 $6 per 14 pcs (Opal gray) plus $8sh; or Amazon ClipsAndFasteners ~$11 per 25pcs no sh.

See also:
.
