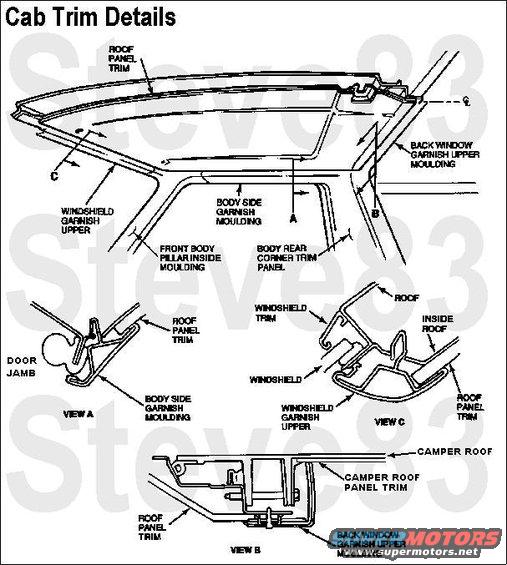

cabtrim.jpg '80-86 Cab Trim
IF THE IMAGE IS TOO SMALL, click it.

Modified diagram from TSB 93-15-13

Later trim is retained by screws instead of the spring steel clips shown in views A & C.  Also, the steel body side garnish & plastic front body pillar inside mouldings are integrated into 1 plastic piece per side for '87-96.

Possible replacement screws include AuVeCo 10654 (8-18x1.25" oval phillips head w/captive washer, black) & 12957 (8-18x1" oval phillips head w/captive washer, black)

See also:
[url=http://www.supermotors.net/registry/media/282491][img]http://www.supermotors.net/getfile/282491/thumbnail/campershelltrim.jpg[/img][/url] . [url=http://www.supermotors.net/vehicles/registry/media/831437][img]http://www.supermotors.net/getfile/831437/thumbnail/headliner8086b.jpg[/img][/url] . [url=http://www.supermotors.net/vehicles/registry/media/895154][img]http://www.supermotors.net/getfile/895154/thumbnail/trimb8096.jpg[/img][/url] . [url=http://www.supermotors.net/vehicles/registry/media/687486][img]http://www.supermotors.net/getfile/687486/thumbnail/roofdiffs8086.jpg[/img][/url]
cabtrim.jpg | Hits: 5488 | Posted on: 4/20/09 | View original size (85.29 KB)

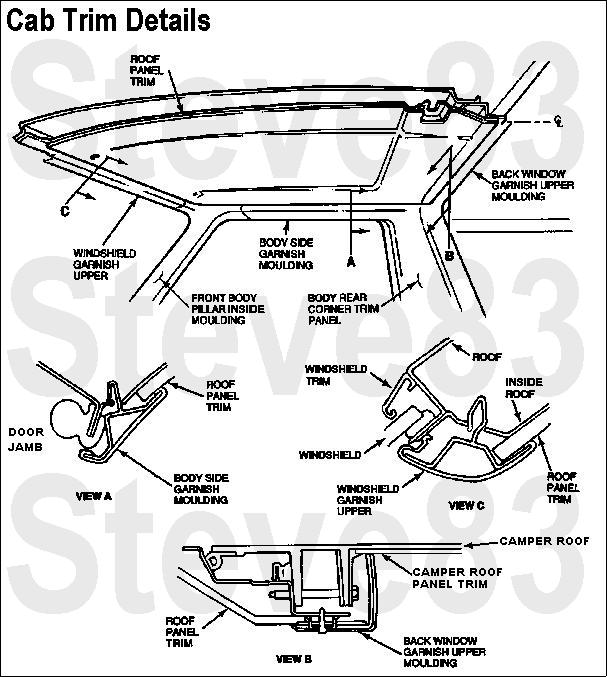

'80-86 Cab Trim
IF THE IMAGE IS TOO SMALL, click it.

Modified diagram from TSB 93-15-13

Later trim is retained by screws instead of the spring steel clips shown in views A & C. Also, the steel body side garnish & plastic front body pillar inside mouldings are integrated into 1 plastic piece per side for '87-96.

Possible replacement screws include AuVeCo 10654 (8-18x1.25" oval phillips head w/captive washer, black) & 12957 (8-18x1" oval phillips head w/captive washer, black)

See also:
. . .
