The NAPA / Wix filter number that includes the O-ring for the reservoir is 3268. See also:
. .

FSA 89S76 Cold Fuel Line Leak
Check the Ford website &/or the NHTSA to see if your VIN is affected.

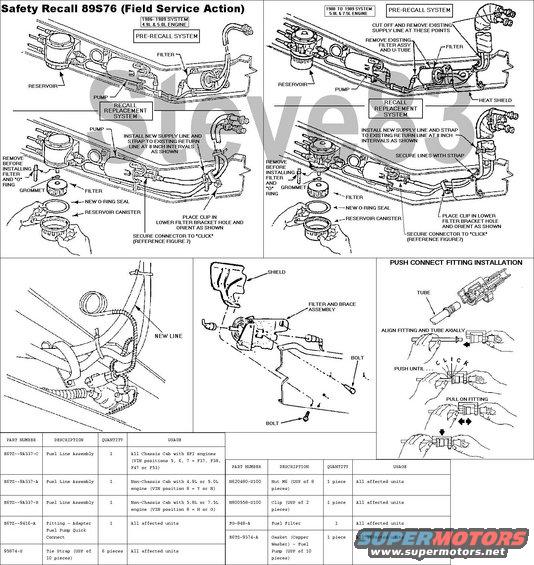

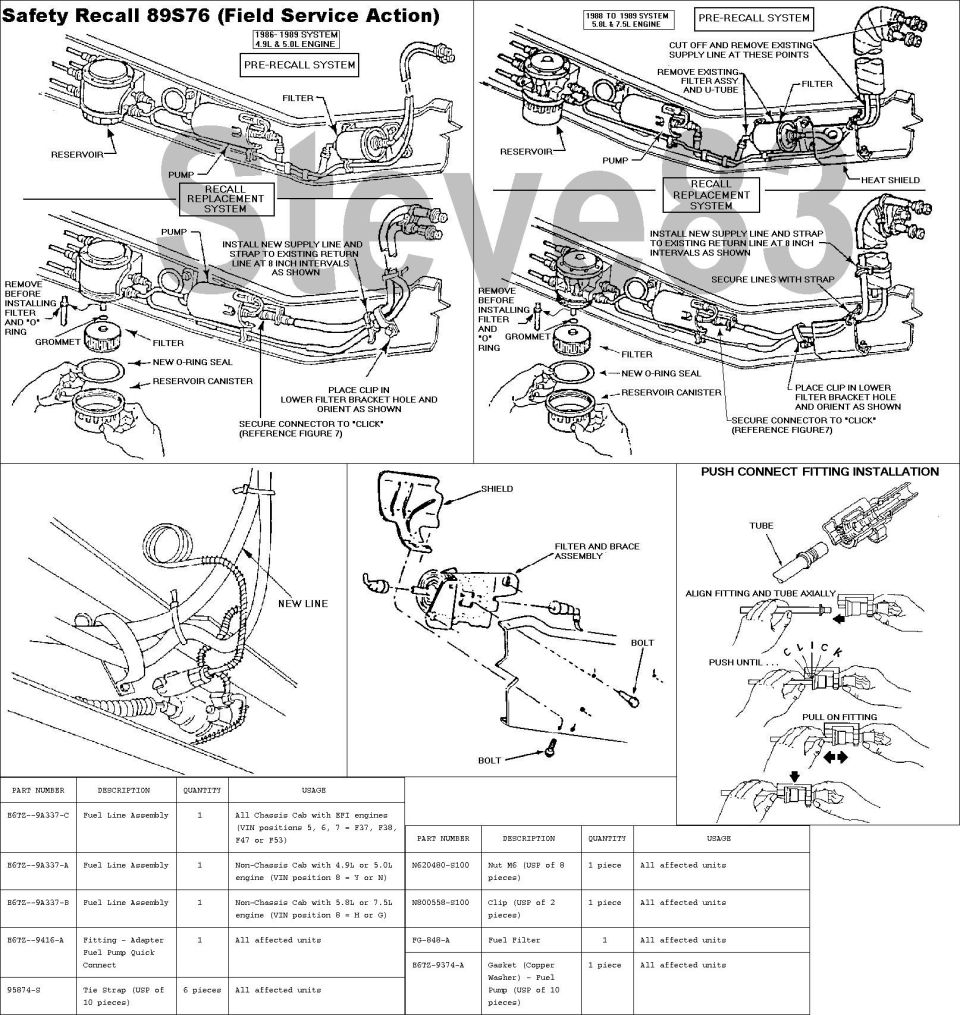

ISSUE: Ford Motor Company of Canada, Limited (Ford) has determined that certain 1986, 1987, 1988 and 1989 model F-150/250/350 Trucks and Broncos sold in specific areas of Canada where severe winter weather is experienced contain a fuel tube that may develop a leak.

Technical Instructions: The new stainless steel reinforced TeflonŽ fuel line replaces both the short "jumper" fuel line from the high-pressure frame-mounted fuel pump to the filter, and the long fuel line from the filter to the fuel rail on the engine. The existing In-Line Fuel Filter will be removed and discarded. A canister-type Fuel Filter will be added to the existing fuel reservoir on the frame rail behind the high pressure pump.
NOTE: The frame mounted fuel filter was repositioned to between the fuel pump and engine during 1986 model year production. This was incorporated in February, 1986.

Fuel System Pressure Relief

EFI Engines
CAUTION: Fuel supply lines on 4.9L EFI, 5.0L EFI, 5.8L EFI and 7.5L EFI engines will remain pressurized for some period of time after the engine is shut off. This pressure must be relieved before servicing of the fuel system.

Before opening the fuel system on vehicles with EFI engines, relieve fuel pressure as follows:
1. Locate and disconnect the electrical connection to either the fuel pump relay, the inertia switch or the in-line high pressure fuel pump.
2. Crank engine for approximately ten seconds.
NOTE: Engine may start and run for a short time. If so, crank engine an additional five seconds after engine stalls.
3. Connect the electrical connector that was disconnected in Step 1.
4. Disconnect battery ground cable.
5. Raise vehicle on hoist. Refer to the appropriate model year Volume F, Pre-Delivery Shop Manual, Section 50-04, Hoisting and Jacking.

Canister-Type Fuel Filter Installation

CAUTION: If the fuel filter canister is being serviced with the rear of the truck higher than the front, or if the tank is pressurized, fuel leakage or siphoning from the tank fuel lines could occur. To prevent this condition, maintain the vehicle front end at or above the level of the rear of vehicle. Also, relieve tank pressure by loosening the fuel fill cap. Cap should be retightened after pressure is relieved. If vehicle is warm, install the fuel filter before the pressure rebuilds.
1. Remove the reservoir shield on 4 x 4 vehicles by removing either three or four screws (depending on vehicle). On 4 x 4 vehicles it may be necessary to disconnect the rear of the front driveshaft to allow for tool clearance.
NOTE: To maintain driveshaft balance, mark the rear slip yoke in relation to the transfer case yoke for correct positioning during reinstallation. Then remove the nuts and U-bolts (bolts for F350 transfer case) that connect the front driveshaft to the rear slip yoke of the transfer case.
2. Unscrew the lower canister of the reservoir using a flexible strap type oil filter wrench, and slide canister out from frame rail.
NOTE: Fuel canister will be full of fuel.
3. Empty fuel from the fuel canister. Remove and discard the O-ring.
4. Remove the stand pipe from the reservoir by pulling it down sharply. Discard the stand pipe.
5. Install grommet (supplied with filter) into top of filter cartridge, then install the fuel filter cartridge into fuel canister.
6. Position new O-ring so that it is seated in the O-ring groove of the canister.
7. While keeping canister level, so as not to dislodge O-ring, position canister to bottom of reservoir housing and tighten loosely by hand. It may be necessary to loosen reservoir-to-frame mounting bolts to access the canister. Using a flexible strap type oil filter wrench, complete filter canister tightening by turning canister about one-sixth of a turn past initial O-ring compression.
NOTE: The rubber grommet on the filter will automatically seat on the piloted stud of the upper housing as the canister is tightened.
REMINDER: If reservoir-to-frame mounting bolts were loosened in above step, re-tighten.

Fuel Line Replacement:

CAUTION: Fuel lines may still contain fuel. Use caution when disconnecting.
1. Remove the three bolts holding the fuel filter bracket to the frame. Retain one bolt for subsequent use.
2. Disconnect "Push Connect" fitting at the high pressure pump outlet nipple by removing hairpin clip and twisting the line while pulling on it.
3. Using a 16 mm wrench for the fitting and a 14 mm wrench (on the boss of the fuel pump) for backup, unscrew outlet nipple from the front of the high pressure fuel pump. Discard nipple and copper sealing washer.
4. Install new copper washer (E6TZ-9374-A) on the new fuel pump nipple (E6TZ-9416-A). Screw this new nipple into the pump. Torque to 12-16 Nm (9-12 lb-ft), while keeping a 14 mm wrench (on the boss of the fuel pump) for backup.
5. Select the appropriate new fuel line as per Parts Ordering Information.
6. Remove red shipping plug on fuel pump outlet connector of the fuel line if present. Leave white shipping plug on for protection. Install the end of the fuel line with the small bell-shaped connector to the new fuel pump outlet nipple. Push on to nipple until distinct click is heard or felt. Pull on line to test for and confirm retention. Engage the retainer clip to line and nipple by firmly pushing down on the clip.
NOTE: If fuel line removal is required use tool T90T-9550-B to release connector.
7. Route fuel line forward inside frame rail, following routing of fuel return line. Install clip N800558-S100 to retain fuel lines, by bolting to lower front bolt hole in frame, that was previously used for the fuel filter bracket. Use bolt from Step 1 and nut N620480-S100. Torque to 8-12 Nm (6-9 lbs. ft.) Ensure fuel line is pressed against frame rail web to clear automatic transmission shift linkage.
8. Disconnect the fuel supply line at the engine fuel rail as follows:
a) lift the tethered retaining clip off the coupling connection. Move it aside, leaving it hanging by its tether.
b) disconnect the fuel line spring lock coupling, using the proper special service tool.
9. 5.0L or 4.9L engines equipped vehicles. Remove the complete fuel supply line, filter and jumper fuel line as an assembly. Mutilate and scrap.
10. 5.8L or 7.5L engine equipped vehicles. Use a pair of diagonal side cutters to cut both ends of the fuel supply line flush with the foil insulation wrapping. This leaves the wrapped section of the original supply line in place, which is not to be disturbed. Use caution to avoid damaging fuel return line. Mutilate and scrap the ends of fuel lines, fuel filter and bracket and "jumper" fuel line.
11. Remove white shipping cap and connect fuel line to engine fuel rail. Install retainer clip previously removed in Step 8.
12. (5.0L or 4.9L) Strap new fuel line to existing fuel return line using tie straps 95874-S at 8" (20cm) intervals. Cut off excess tie strap length.
13. (5.8L or 7.5L) Strap new fuel line to existing fuel line insulation bundle. Locate tie straps 95874-S at 8" (20 cm) intervals. Ensure heat shield is installed as shown. Use additional strap to secure fuel line to shield. Cut off excess tie strap length. Slight excess fuel line length is allowed to form a "hump" at the upper end of the fuel line near the engine.
14. Lower vehicle.
15. Reconnect battery ground cable.
16. Cycle ignition key to "ON" position 5 times at 2 second intervals to prime the fuel system. Inspect reservoir, pump nipple and fuel line connections for leaks (correct as required).
17. Start engine and reinspect the fuel system for leaks. (Correct as required).
18. (4 X 4 only) Reinstall fuel reservoir shield. Torque attaching bolts to 16-20 Nm (12-15 lb-ft).
19. (4 x 4 only) Reinstall driveshaft, if removed, making sure markings on rear slip yoke and transfer casing yoke line up so as to maintain driveshaft balance.
20. Mutilate and scrap all removed parts.

This Recall Supersedes and Replaces Safety Recall 88S57

Recall Time Limitation
None

Parts Return
No

LABOR ALLOWANCES
LABOR TIME: Install new fuel line from the high-pressure frame-mounted fuel pump to the engine and install filter in frame mounted reservoir 1.5 Hrs.
Administrative allowance 0.1 Hrs.
LABOR CODE: B
