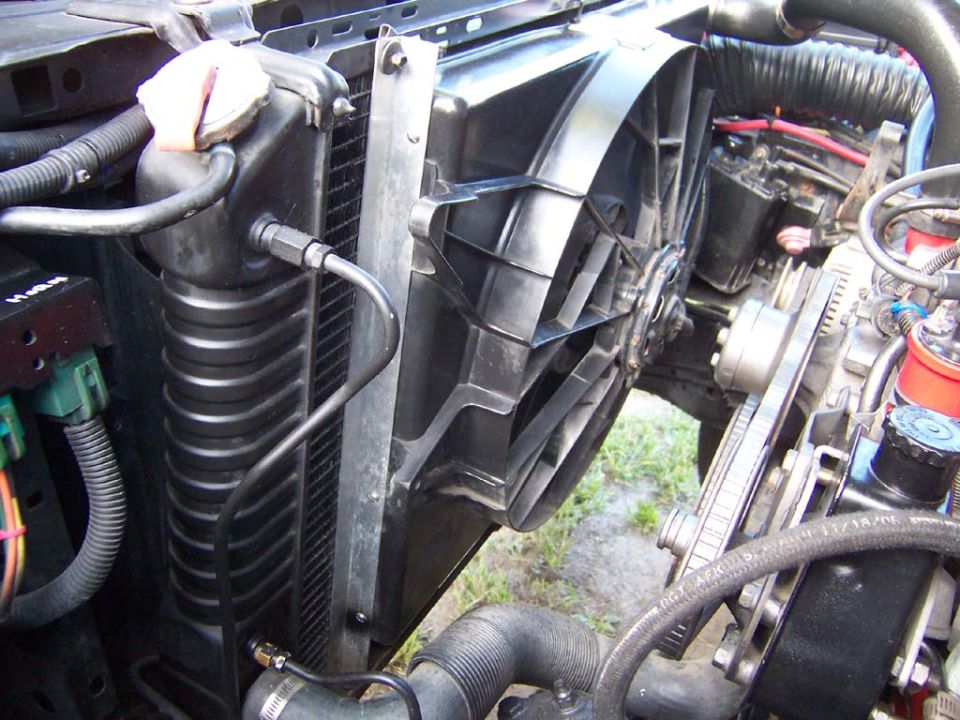

rosie-011.jpg Fabricated a bracket out of 3/4 inch aluminum L stock.  Used 8 1/2 inch bolts and washers to mount the  L bracket to the fan shroud. The L bracket is bolted at the top using two bolts and capture nuts. The bottom of the bracket locks into the radiator support (no bolts).
rosie-011.jpg | Hits: 1322 | Posted on: 9/20/08 | View original size (148.32 KB)

Fabricated a bracket out of 3/4 inch aluminum L stock. Used 8 1/2 inch bolts and washers to mount the L bracket to the fan shroud. The L bracket is bolted at the top using two bolts and capture nuts. The bottom of the bracket locks into the radiator support (no bolts).
