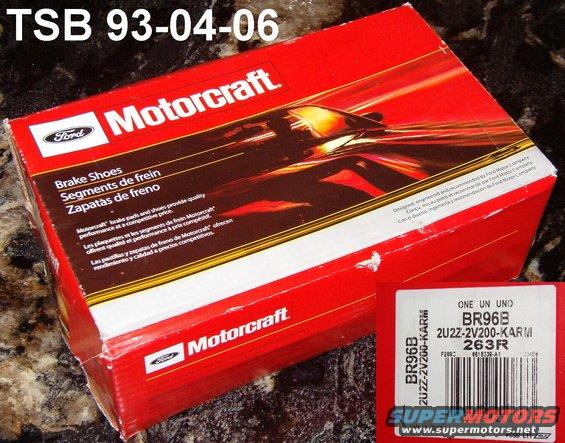

tsb930406brakesgrab.jpg TSB 93-04-06 Rear Brakes "Grab" when cold
Publication Date: FEBRUARY 17, 1993

LIGHT TRUCK: 1987-1993 BRONCO, F-150

ISSUE: The rear brakes may "grab" in the morning and/or after the vehicle sits for a long period of time. This condition may especially occur in cool and damp weather conditions. High humidity increases the friction of the brake linings.

ACTION: Replace the existing rear brake linings with new brake linings that are less sensitive to humidity/temperature conditions. Refer to the following service procedure.

SERVICE PROCEDURE
1) Remove the rear brake shoes. Refer to the appropriate model year Service Manual, Section 06-02, for the removal procedure.
2) Install new brake shoe and lining assembly Kit (F3UZ-2200-A). Refer to the appropriate model year Service Manual, Section 06-02, for the installation procedure.
3) Clean the brake assemblies and drums.
4) Adjust the brakes according to the Service Manual.

PART NUMBER PART NAME CLASS
F3UZ-2200-A Brake Shoe And Lining Assembly Kit B
**SUPERCEDED by 2U2Z-2V200-KARM**

OTHER APPLICABLE ARTICLES: 01-19-02
WARRANTY STATUS: Eligible Under Bumper To Bumper Warranty Coverage For 1992/93 Models, Basic Warranty Coverage For All Other Models

OPERATION DESCRIPTION TIME
930406A Replace Rear Brake Linings 1.0 Hr.

DEALER CODING
BASIC PART NO.: 2200
CONDITION CODE: 41

OASIS CODES: 301000

For other TSBs, check [url=http://www.bbbind.com/free_tsb.html]here[/url]. A real e-mail isn't necessary for registration.
__________________________________________________________

Before buying craptasmic brakes or other common parts, check for [url=http://owner.ford.com/servlet/ContentServer?pagename=Owner/Page/ServiceCouponsPage]coupons & service offers from Ford[/url].

For more info, see these pics:
[url=https://www.supermotors.net/registry/2742/12739-4][img]https://www.supermotors.net/getfile/730019/thumbnail/shoes.jpg[/img][/url]

'87-96 Drum [url=https://www.amazon.com/dp/B00OAKLMOY/]MotorCraft BRD49[/url]/[url=https://www.amazon.com/dp/B000C5DDGG/]BRD34[/url]
Nov '84-96 Shoes [url=https://www.amazon.com/dp/B000W9PTTQ/]MotorCraft BR96B[/url]
For '97-00 trucks, [url=http://www.bbbind.com/free_tsb.html]TSB[/url] 01-19-02 recommends F85Z-2200-AA shoes.

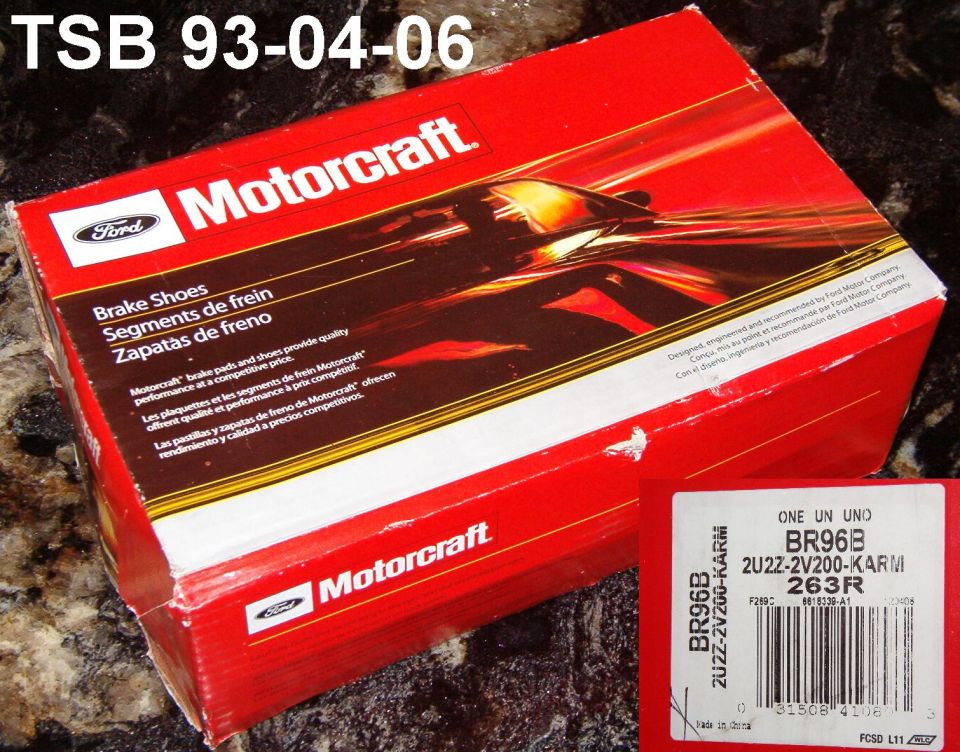

tsb930406brakesgrab.jpg | Hits: 7509 | Posted on: 7/16/09 | View original size (339.39 KB)

TSB 93-04-06 Rear Brakes "Grab" when cold
Publication Date: FEBRUARY 17, 1993

LIGHT TRUCK: 1987-1993 BRONCO, F-150

ISSUE: The rear brakes may "grab" in the morning and/or after the vehicle sits for a long period of time. This condition may especially occur in cool and damp weather conditions. High humidity increases the friction of the brake linings.

ACTION: Replace the existing rear brake linings with new brake linings that are less sensitive to humidity/temperature conditions. Refer to the following service procedure.

SERVICE PROCEDURE
1) Remove the rear brake shoes. Refer to the appropriate model year Service Manual, Section 06-02, for the removal procedure.
2) Install new brake shoe and lining assembly Kit (F3UZ-2200-A). Refer to the appropriate model year Service Manual, Section 06-02, for the installation procedure.
3) Clean the brake assemblies and drums.
4) Adjust the brakes according to the Service Manual.

PART NUMBER PART NAME CLASS
F3UZ-2200-A Brake Shoe And Lining Assembly Kit B
**SUPERCEDED by 2U2Z-2V200-KARM**

OTHER APPLICABLE ARTICLES: 01-19-02
WARRANTY STATUS: Eligible Under Bumper To Bumper Warranty Coverage For 1992/93 Models, Basic Warranty Coverage For All Other Models

OPERATION DESCRIPTION TIME
930406A Replace Rear Brake Linings 1.0 Hr.

DEALER CODING
BASIC PART NO.: 2200
CONDITION CODE: 41

OASIS CODES: 301000

For other TSBs, check here. A real e-mail isn't necessary for registration.
__________________________________________________________

Before buying craptasmic brakes or other common parts, check for coupons & service offers from Ford.

For more info, see these pics:


'87-96 Drum MotorCraft BRD49/BRD34
Nov '84-96 Shoes MotorCraft BR96B
For '97-00 trucks, TSB 01-19-02 recommends F85Z-2200-AA shoes.
