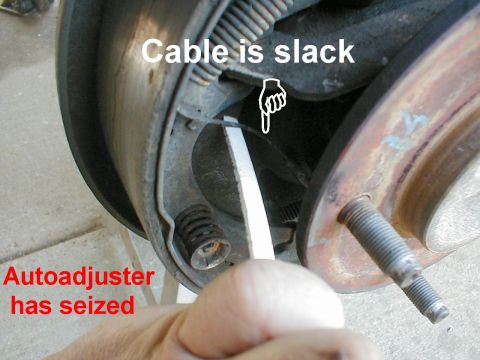

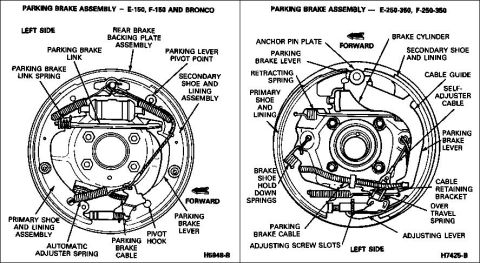

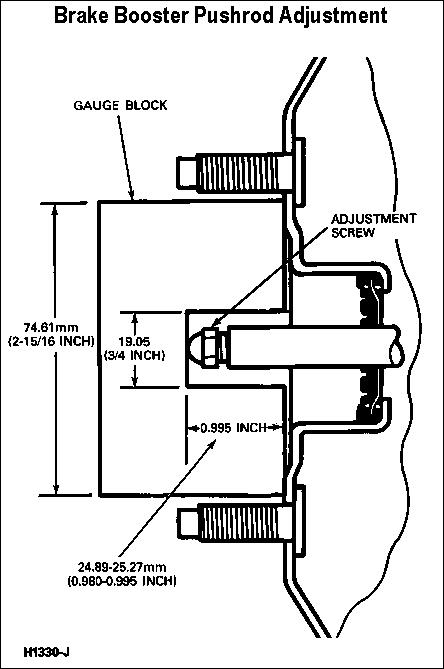

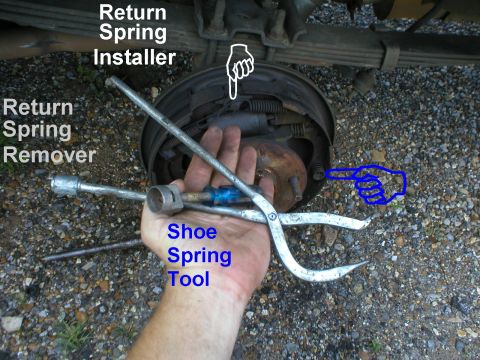

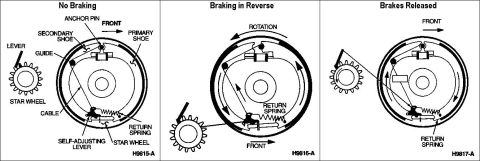

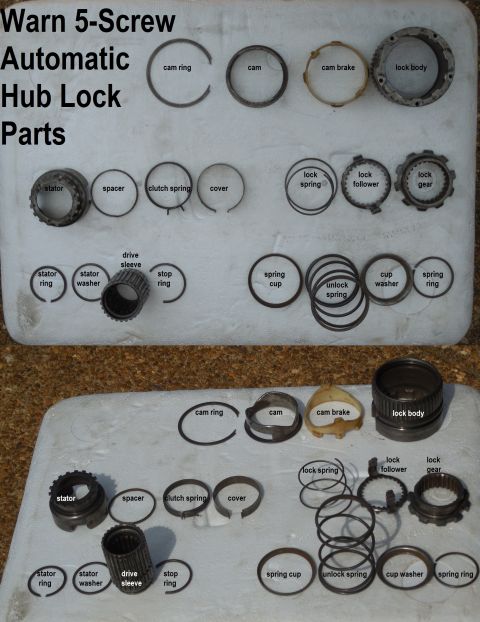

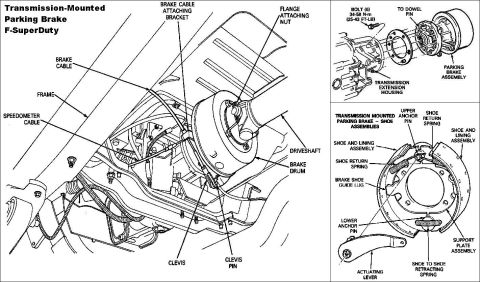

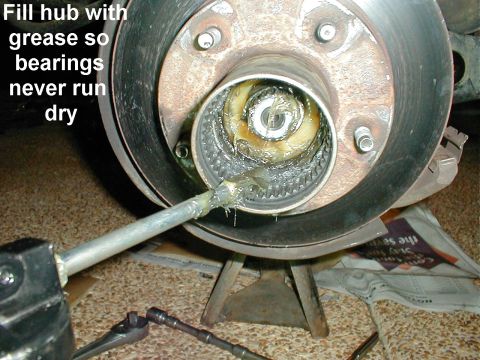

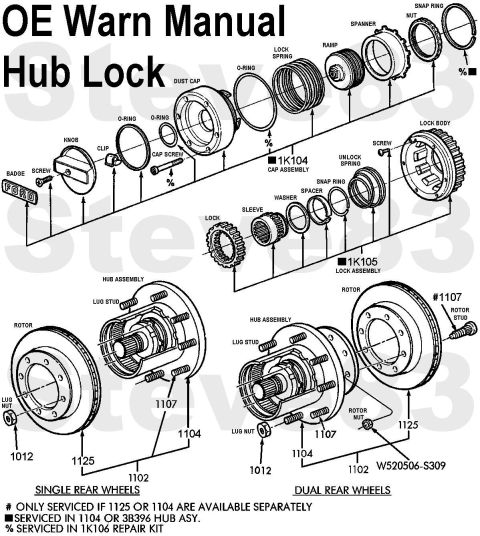

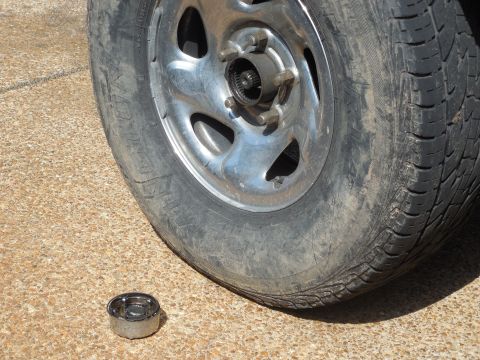

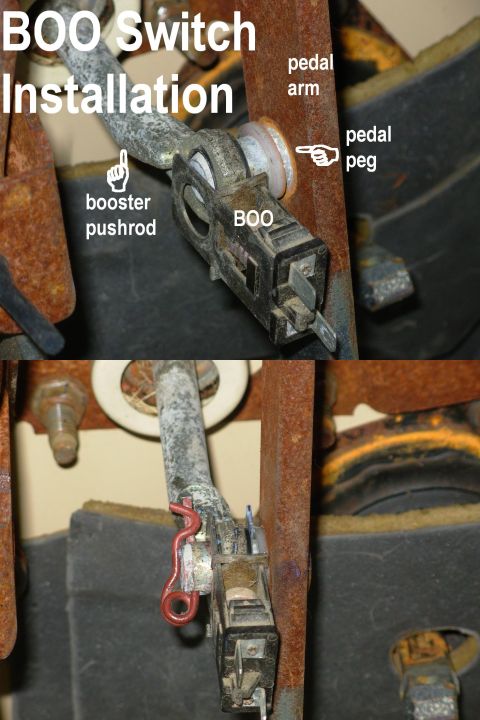

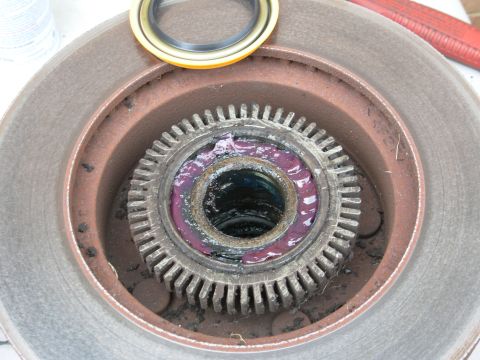

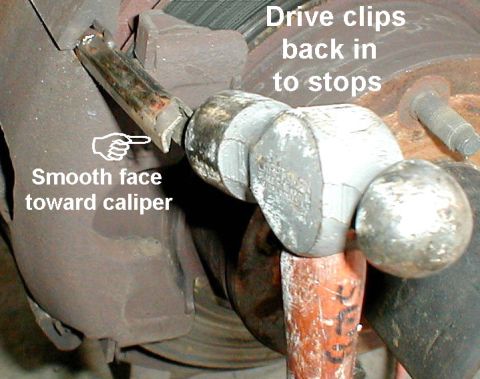

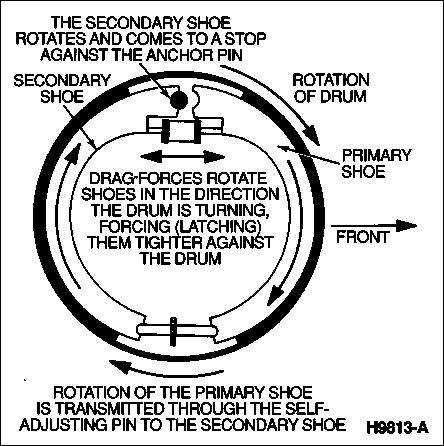

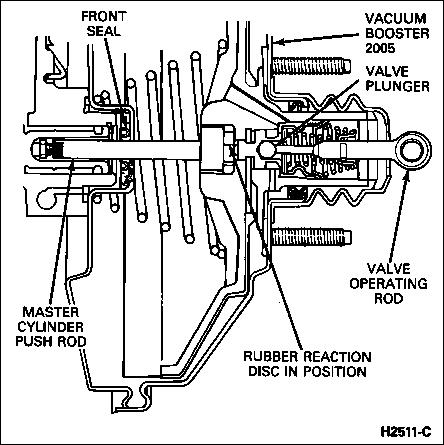

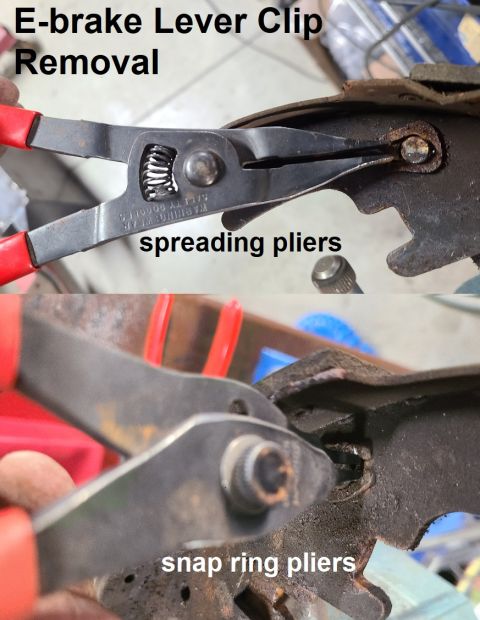

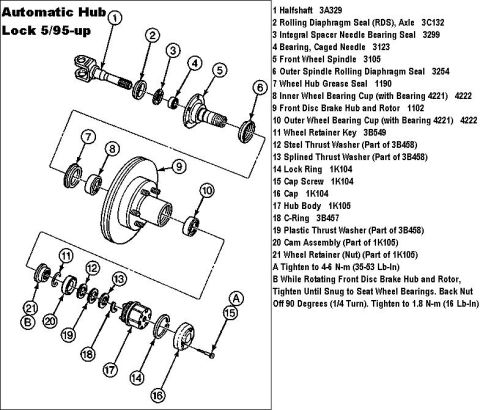

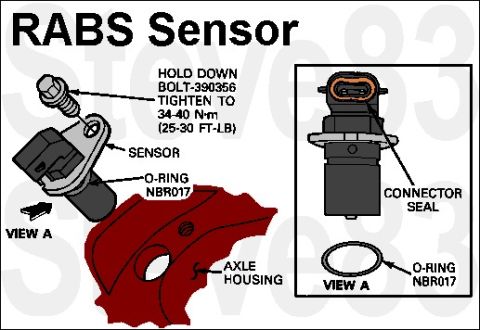

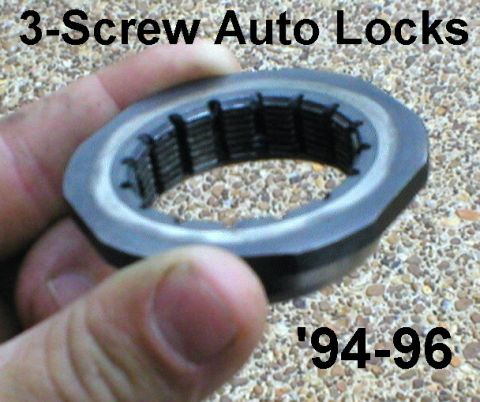

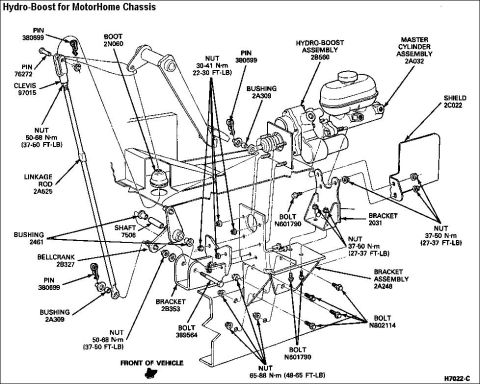

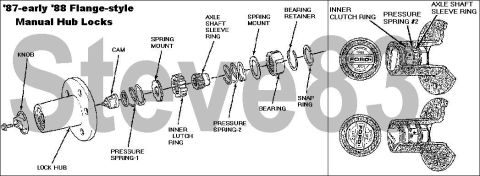

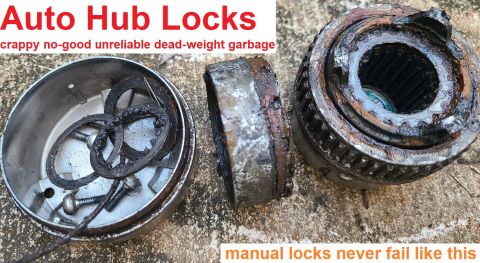

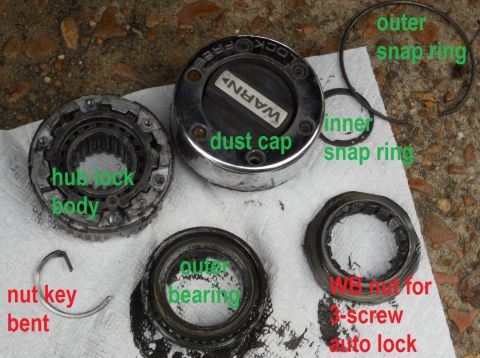

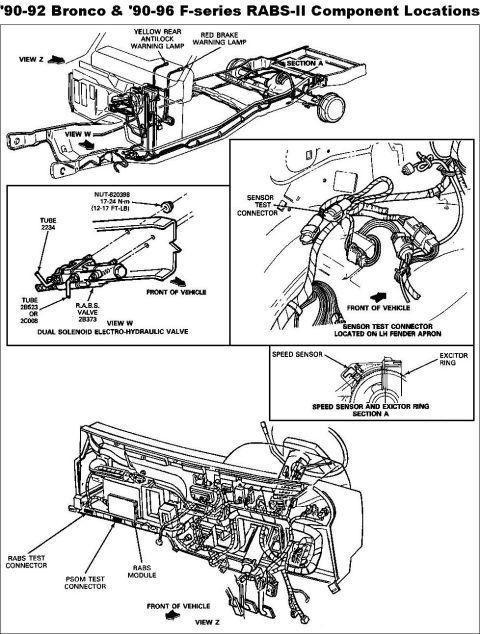

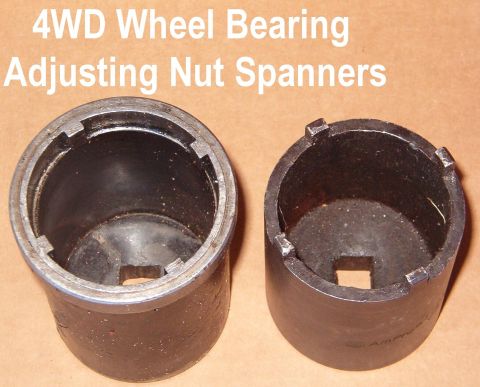

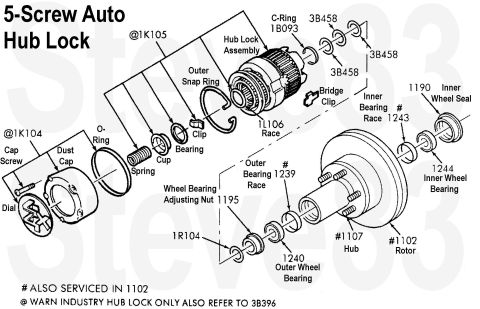

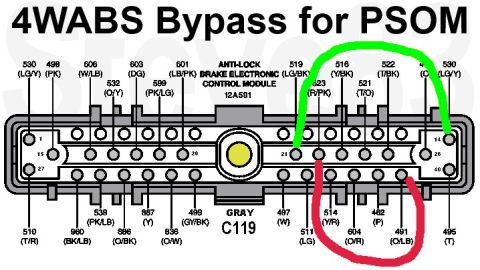

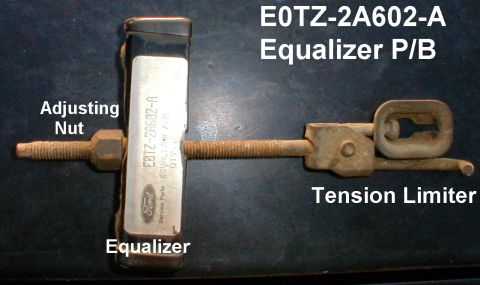

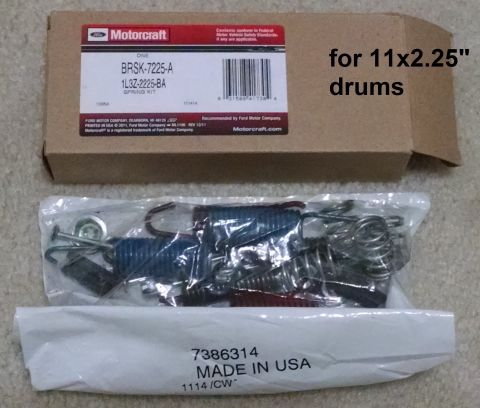

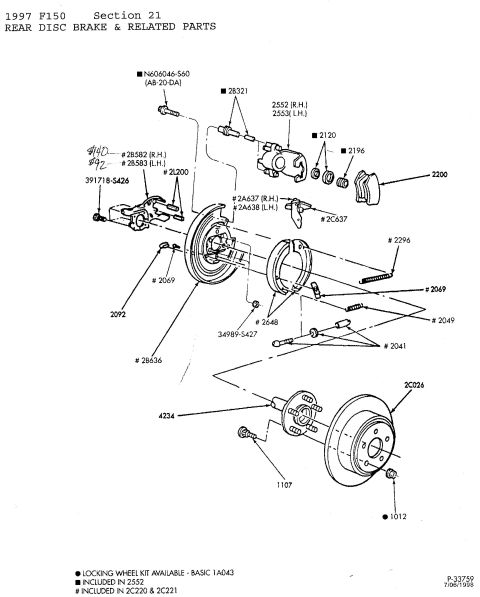

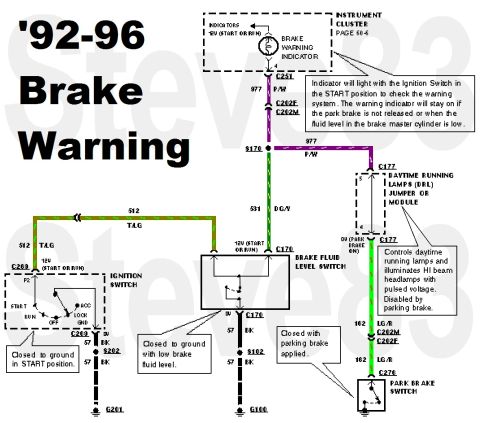

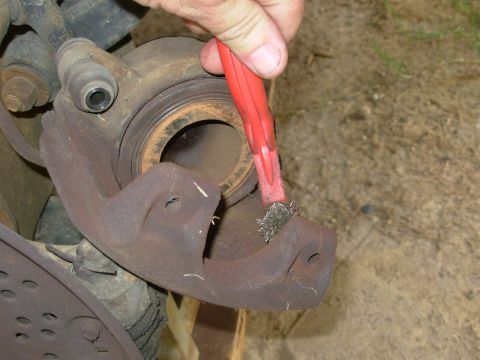

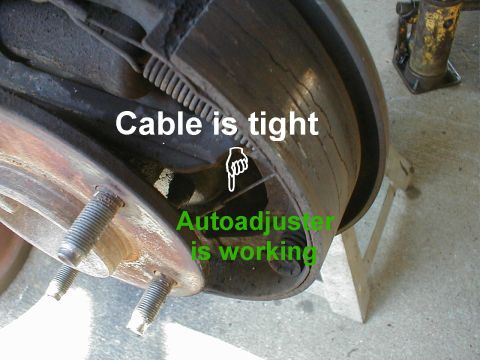

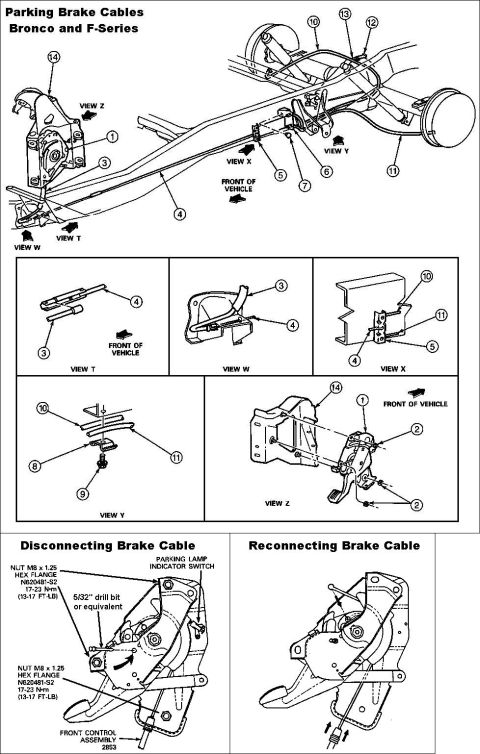

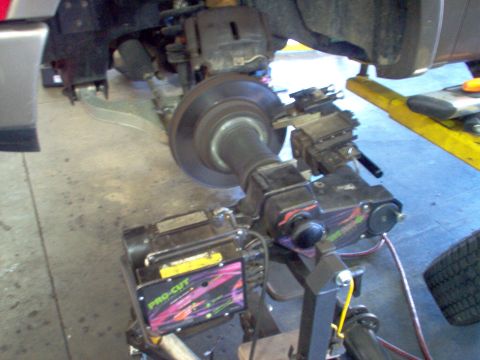

Brakes & Hubs

From 1983 Ford Bronco “That dirty old truck” — documented by Steve83.

184 photos
← Back to this vehicle

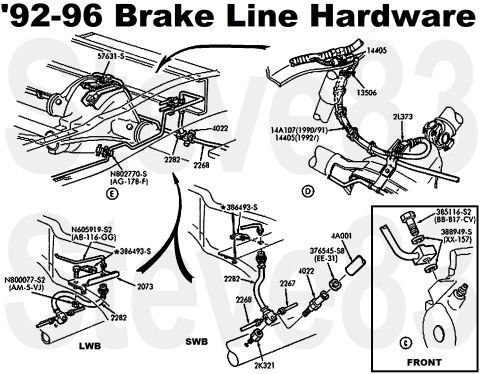

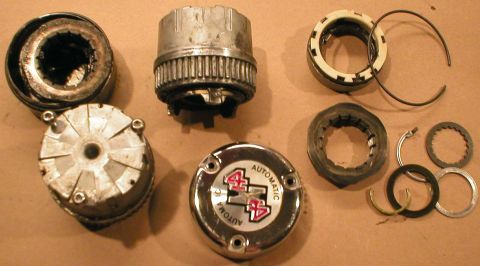

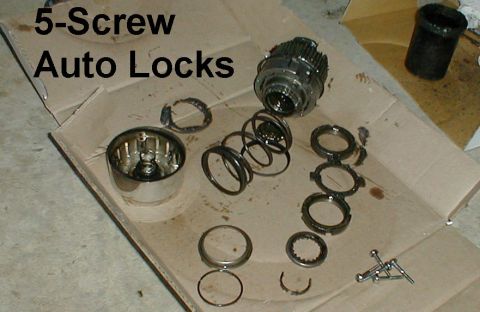

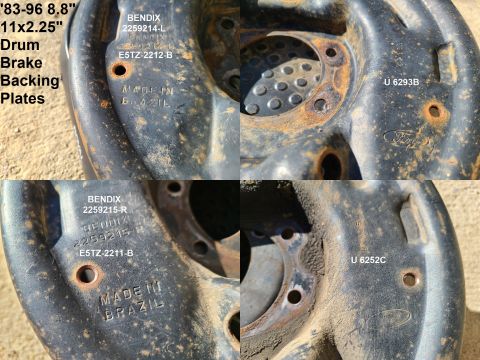

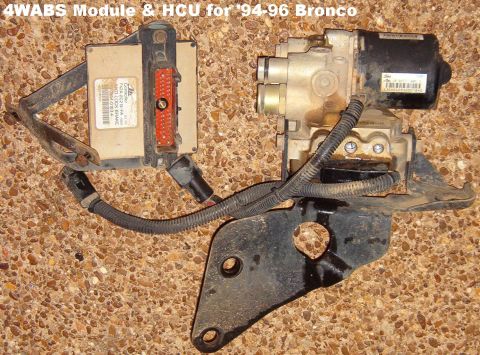

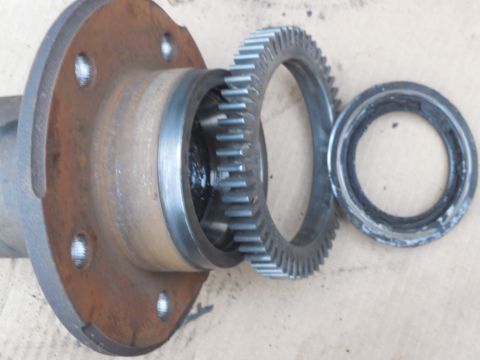

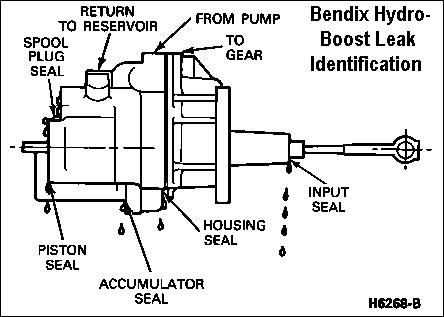

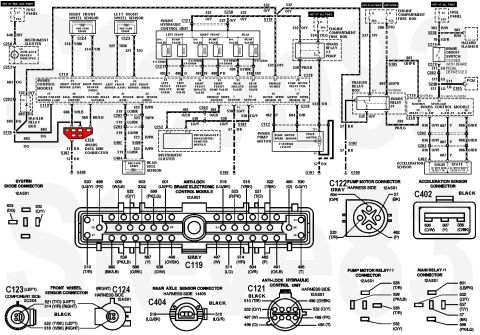

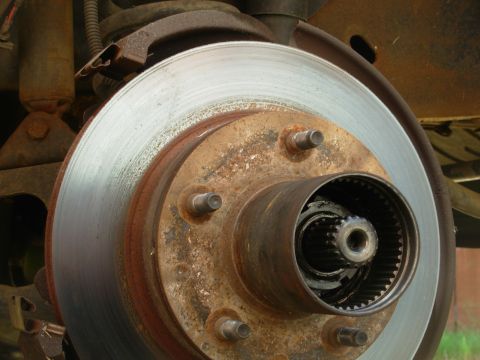

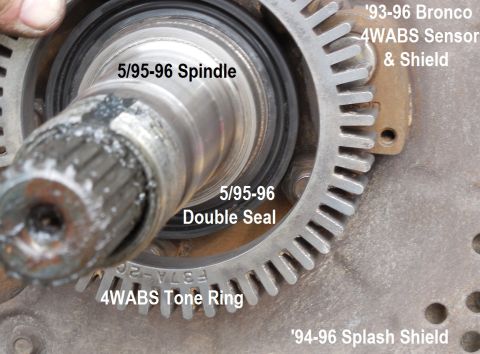

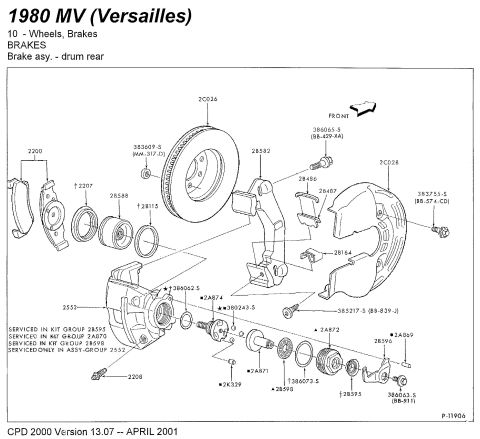

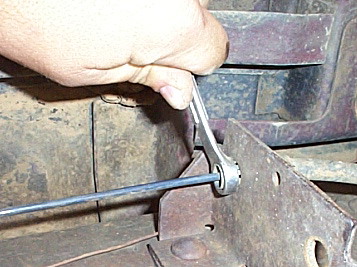

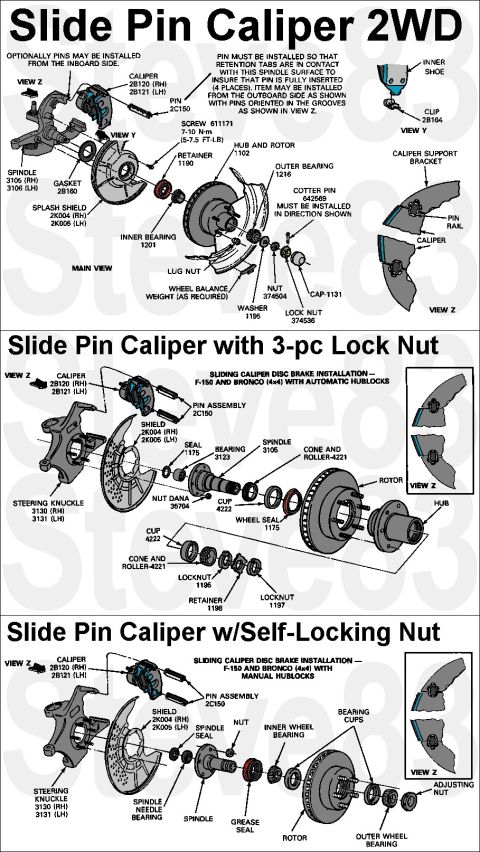

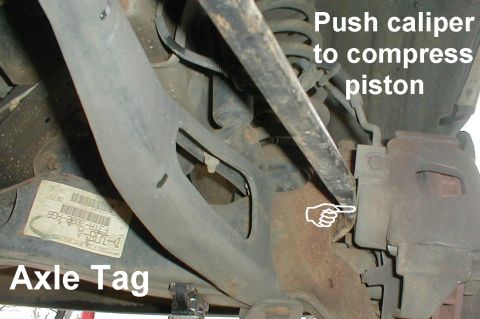

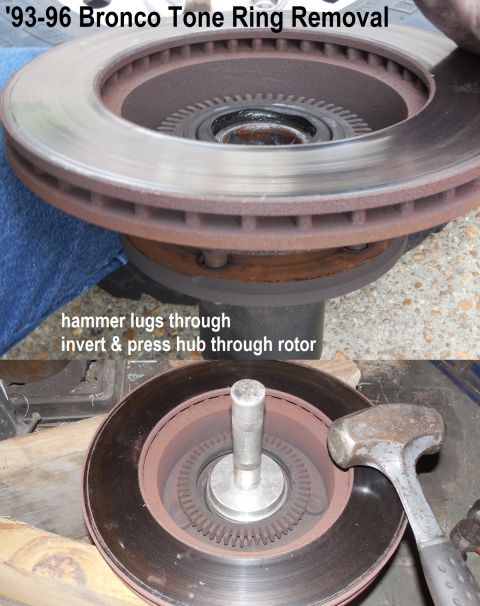

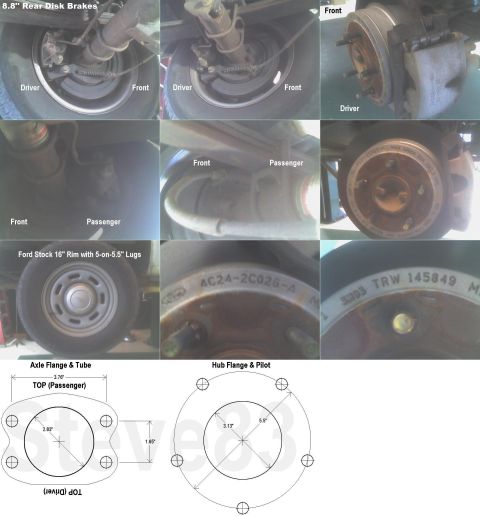

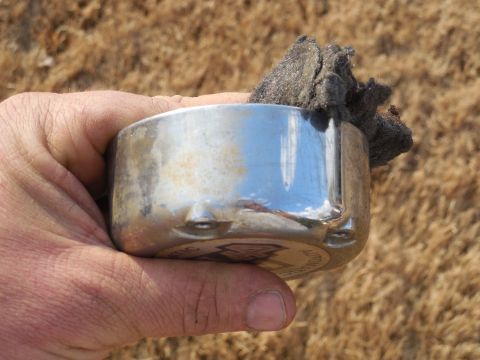

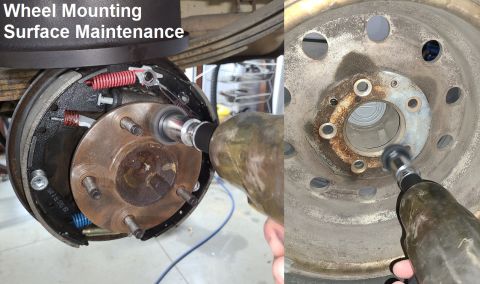

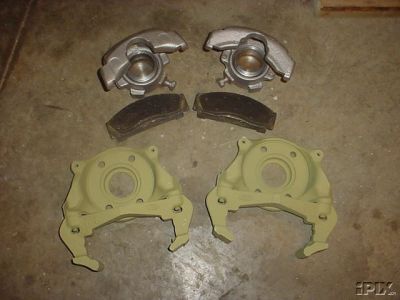

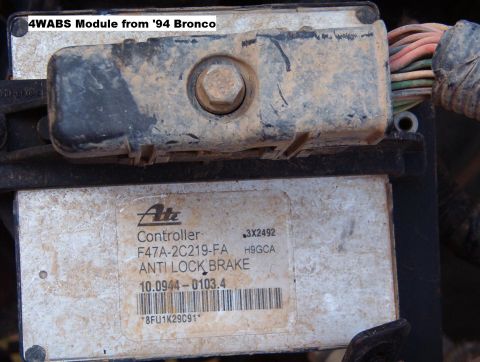

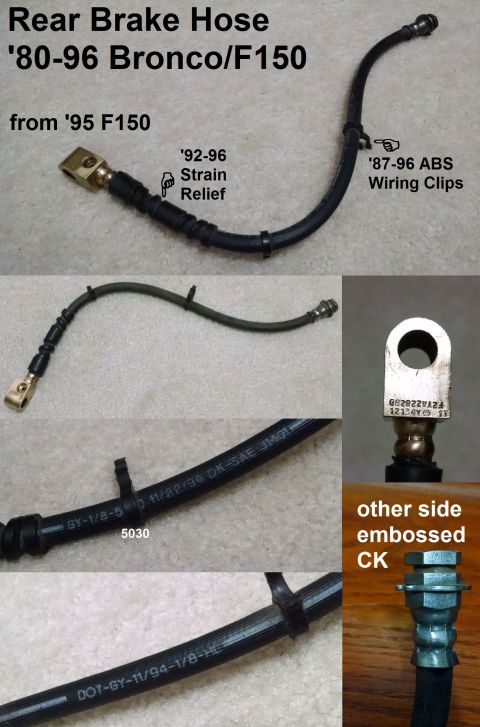

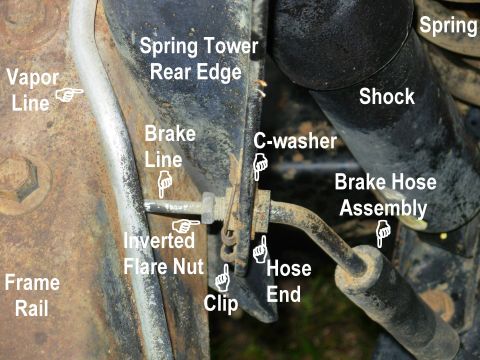

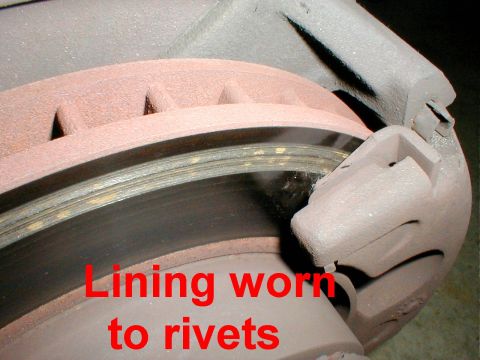

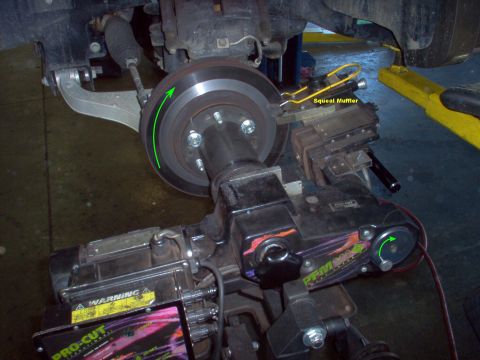

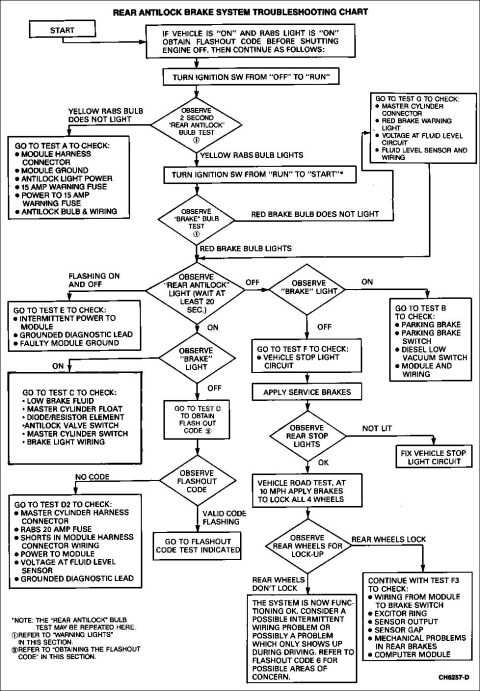

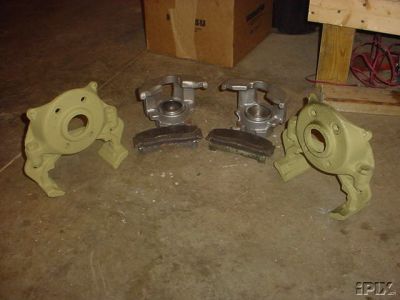

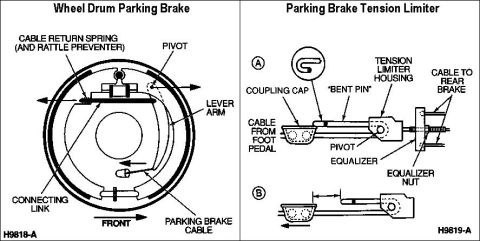

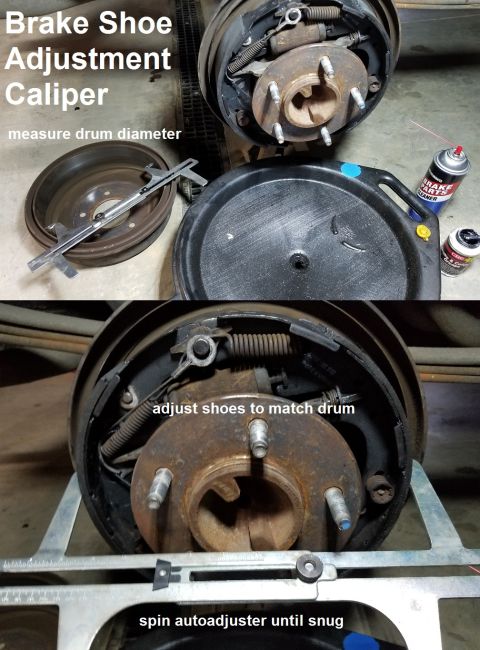

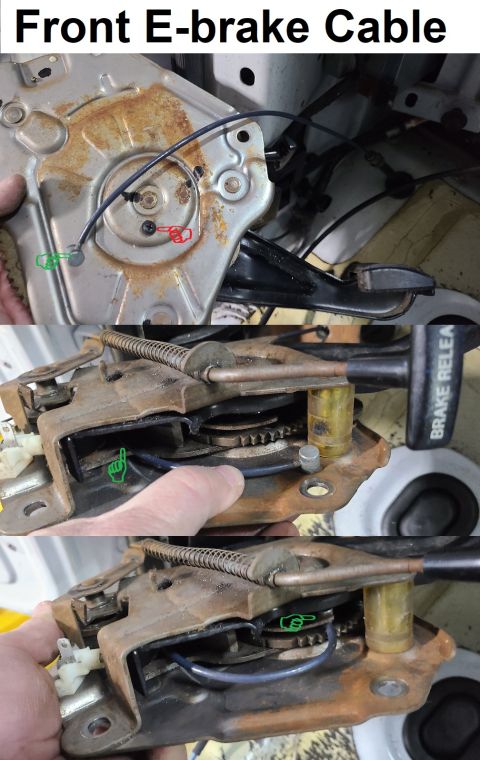

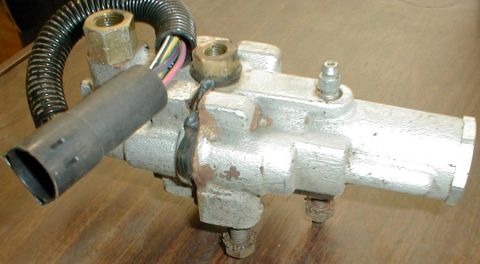

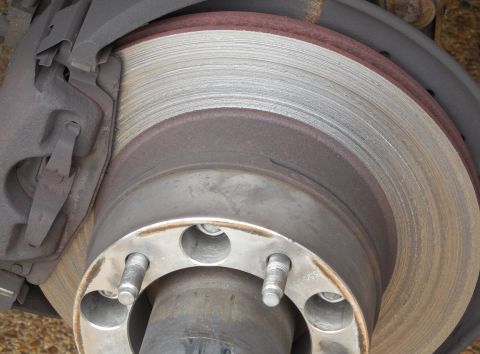

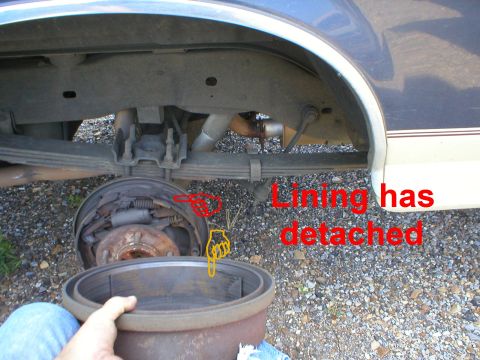

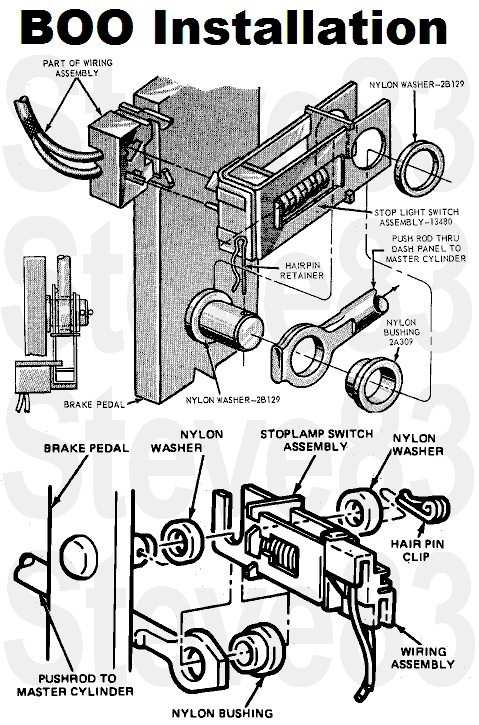

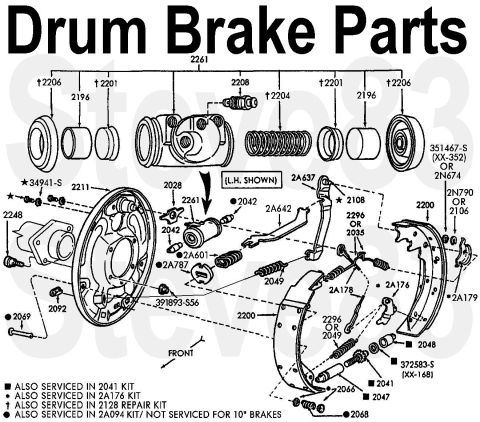

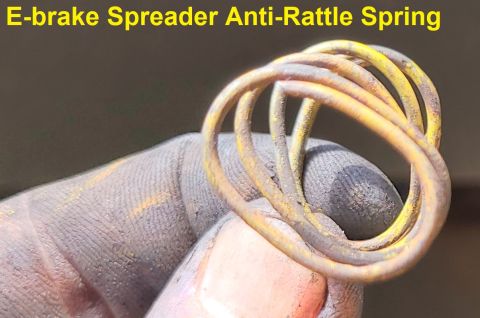

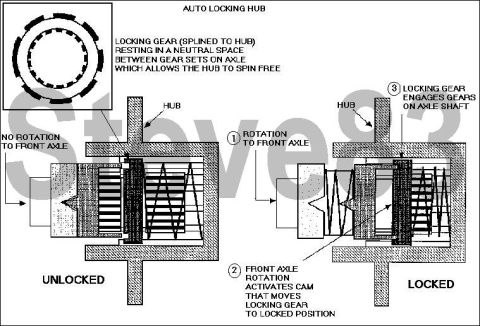

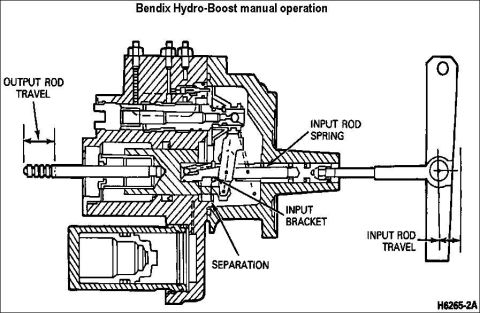

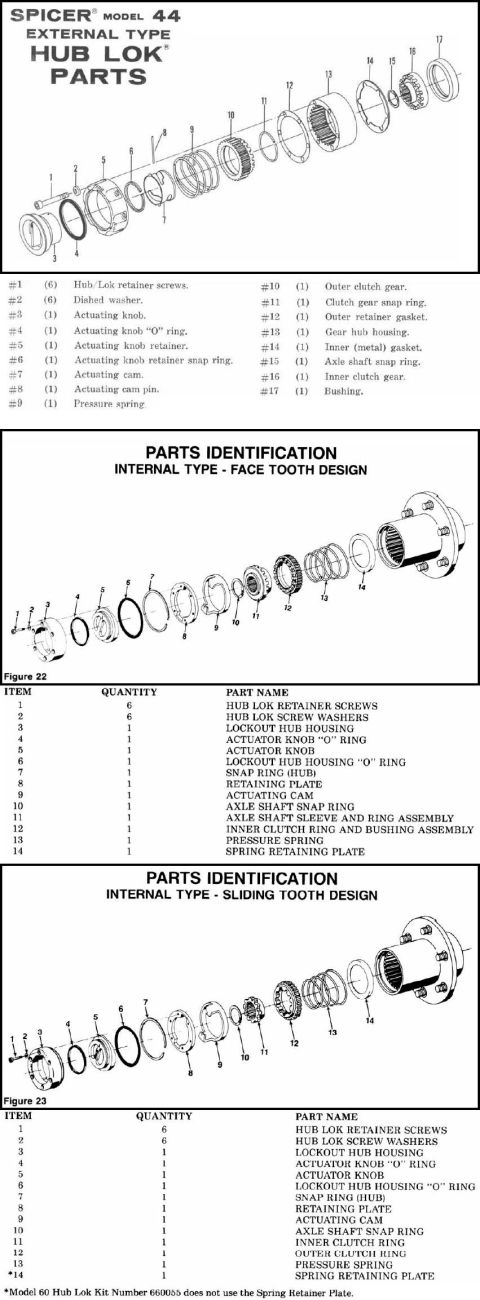

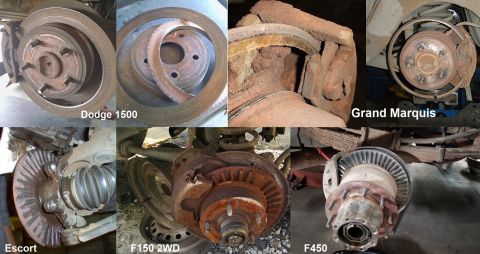

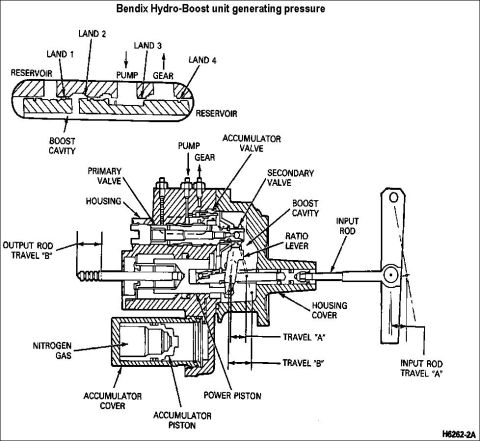

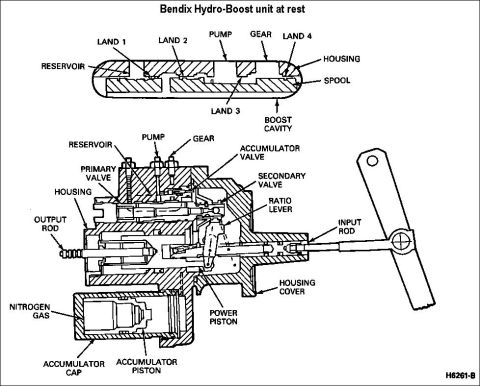

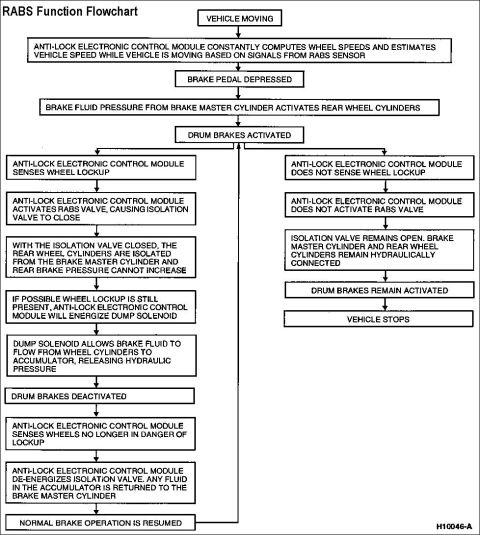

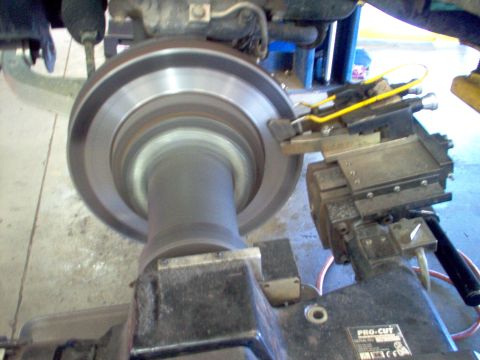

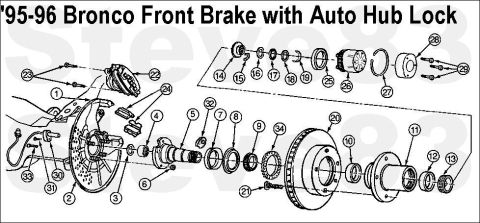

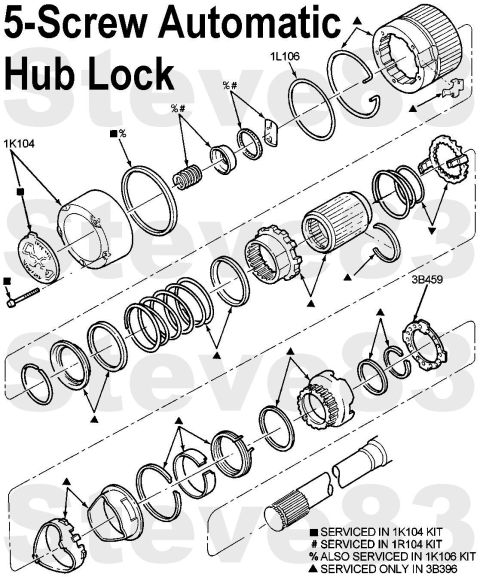

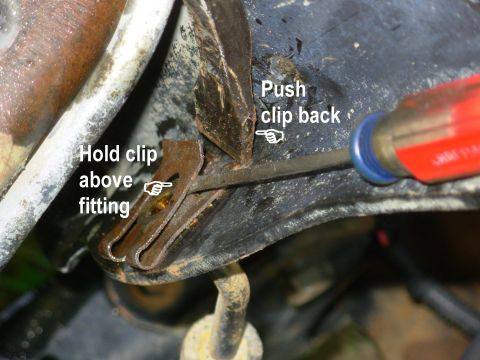

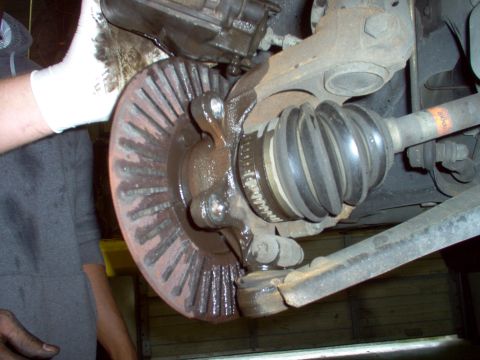

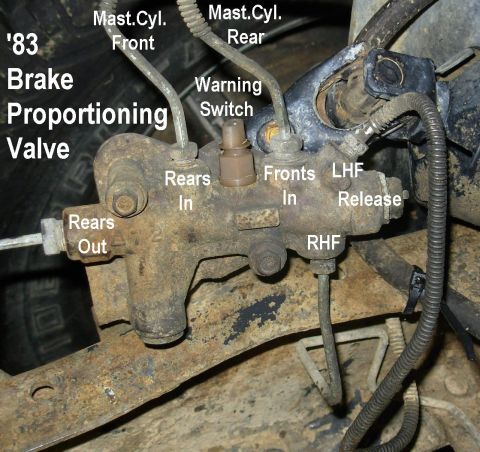

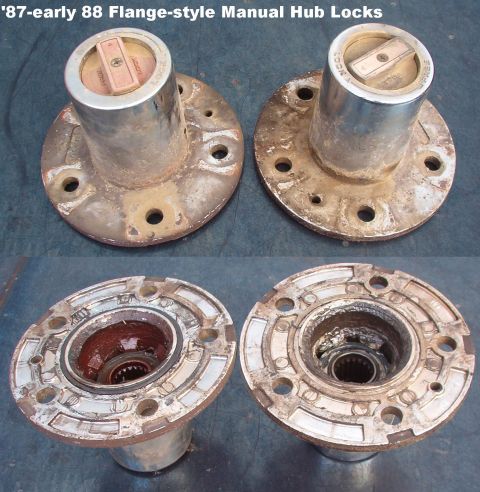

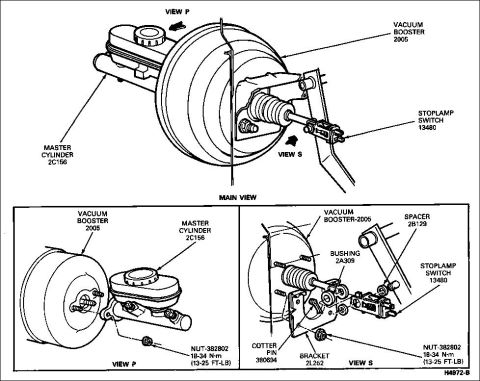

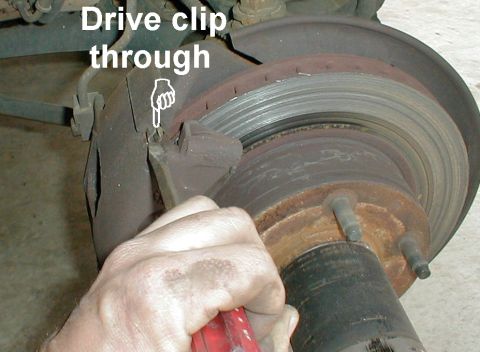

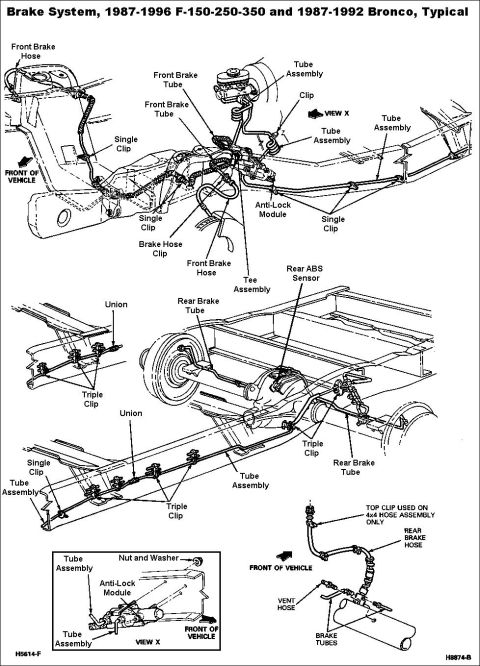

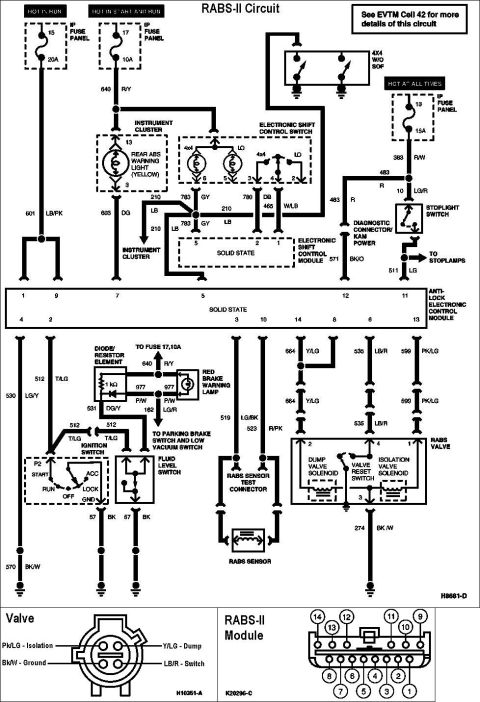

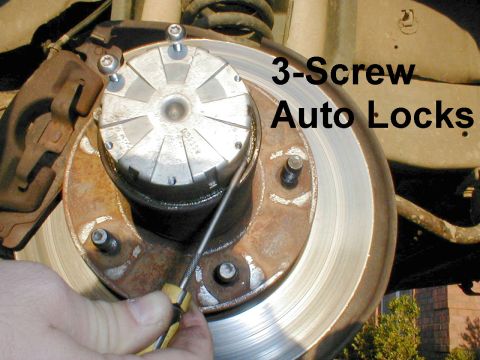

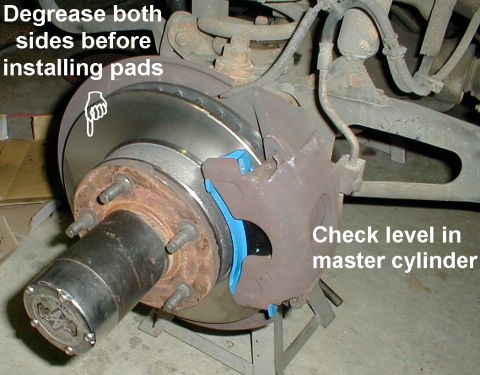

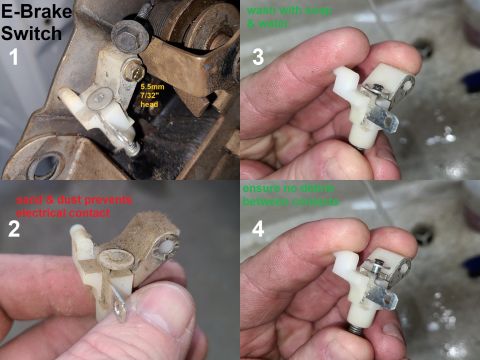

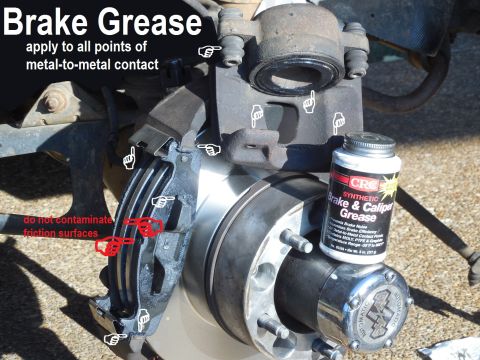

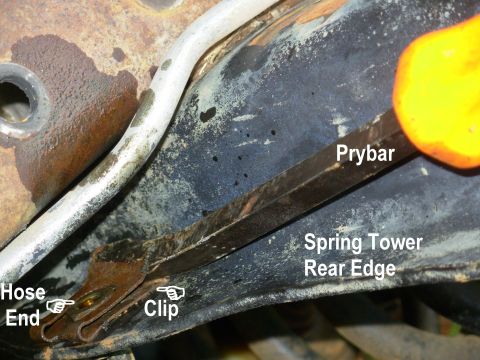

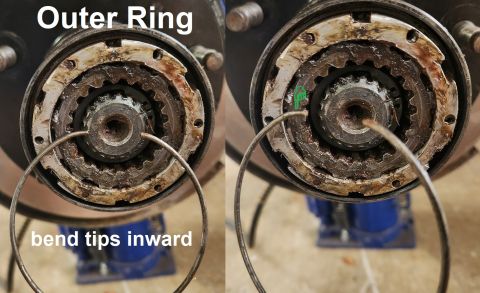

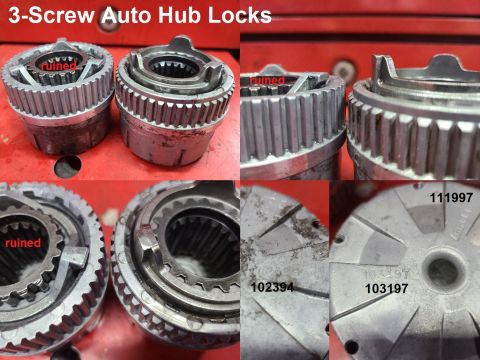

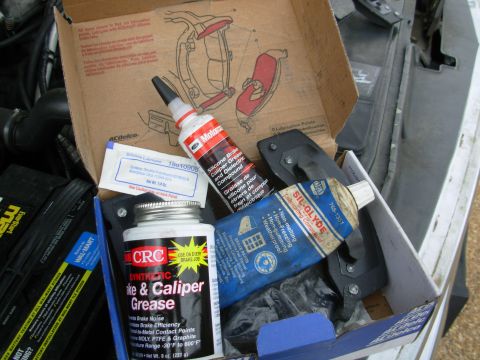

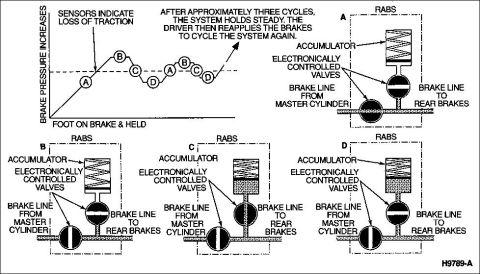

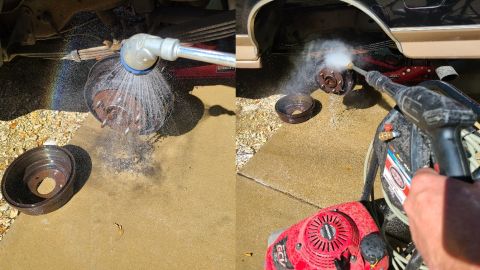

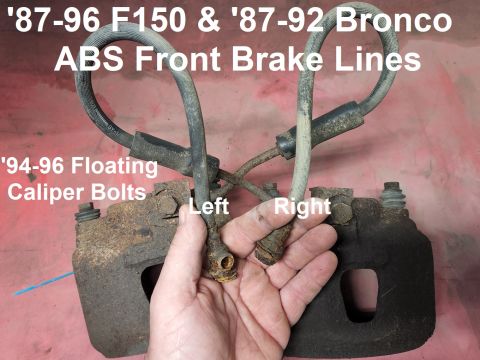

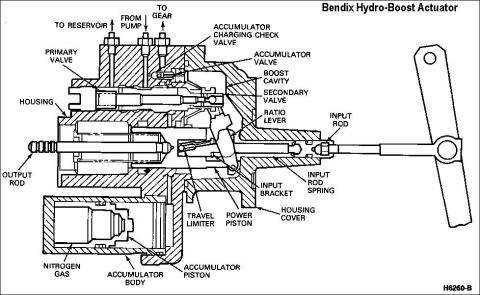

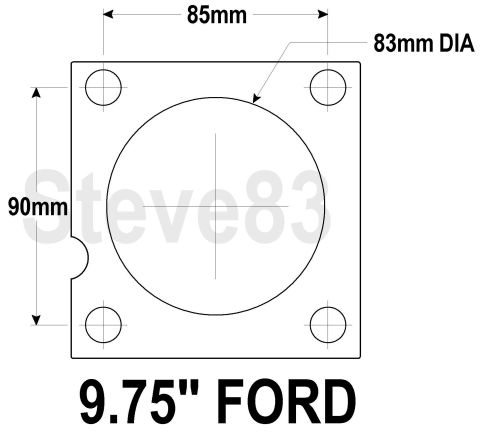

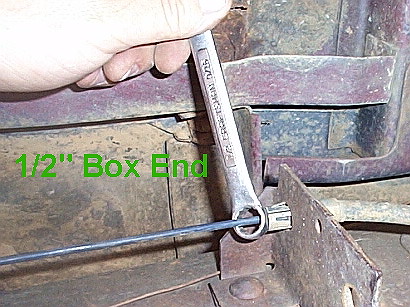

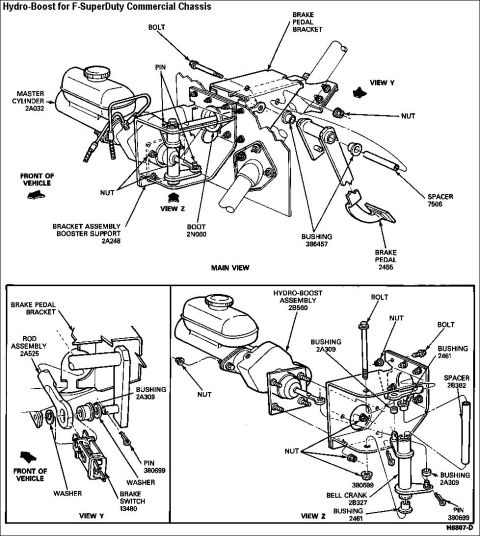

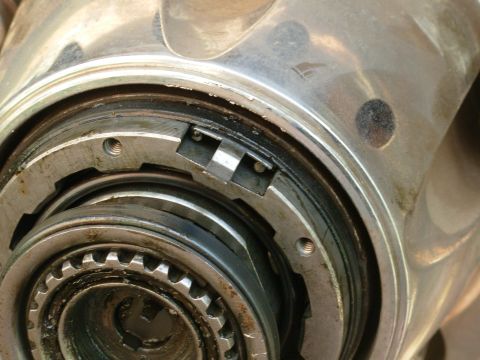

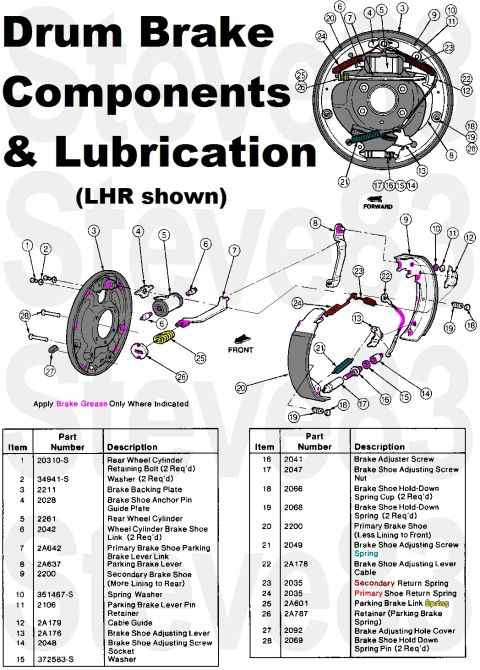

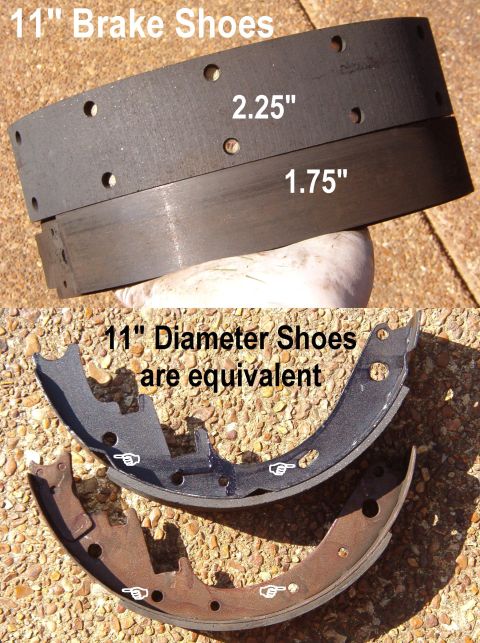

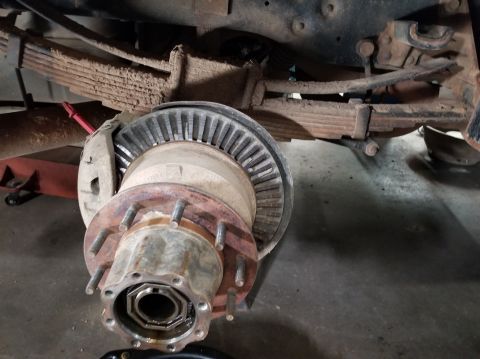

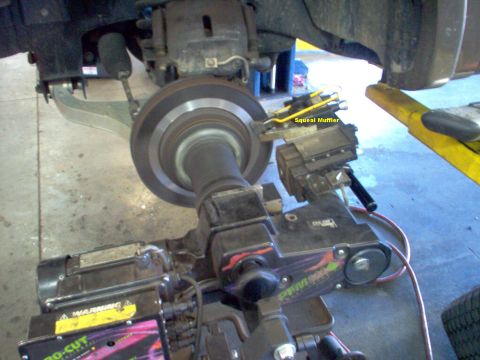

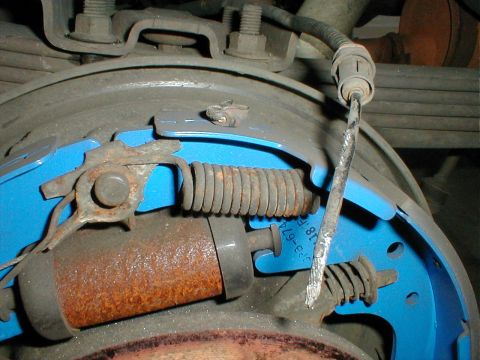

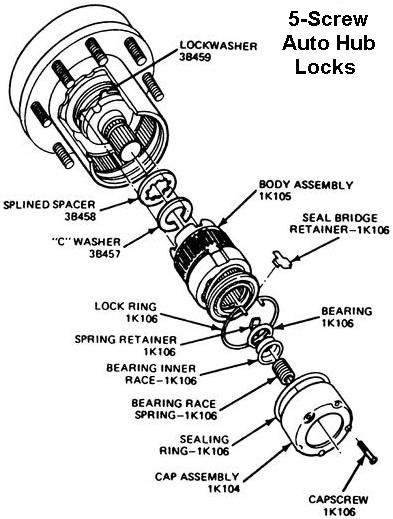

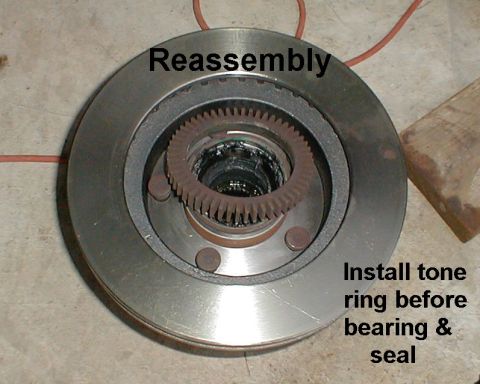

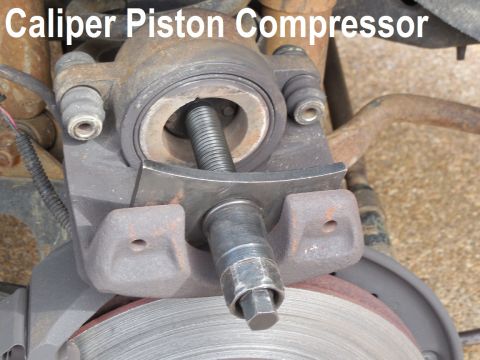

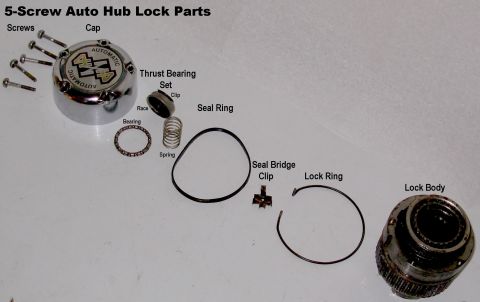

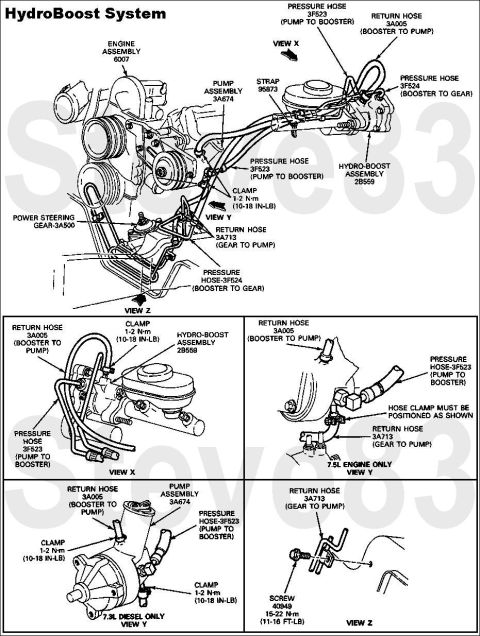

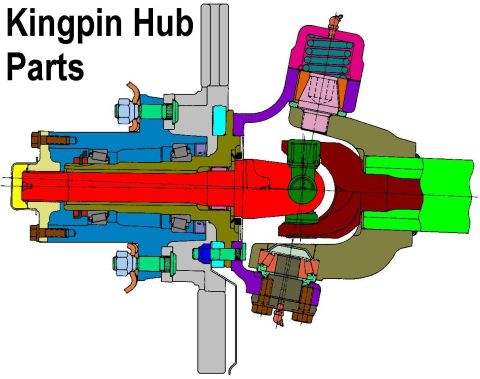

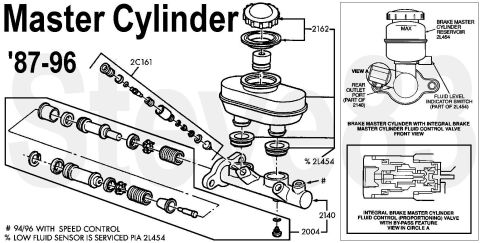

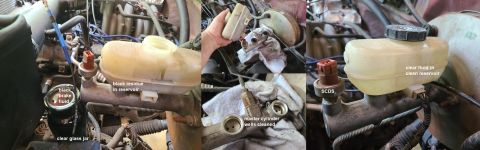

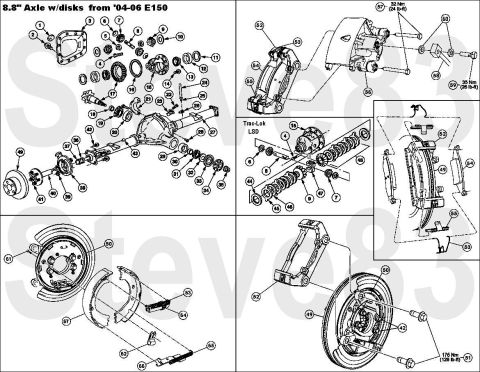

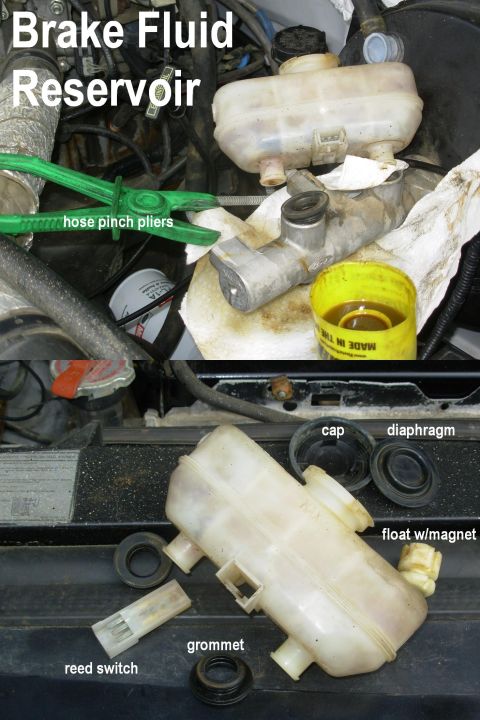

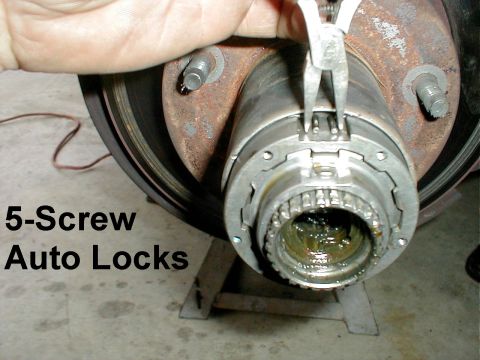

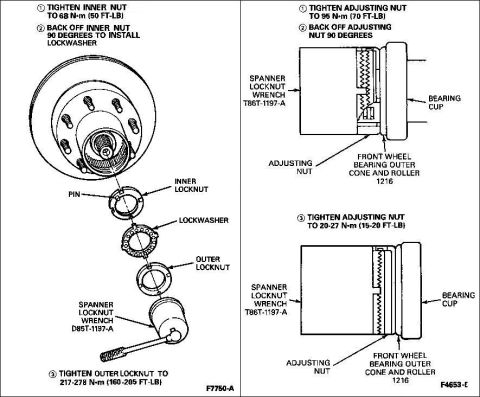

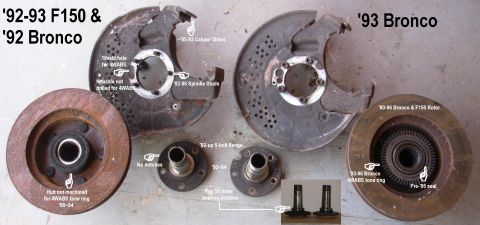

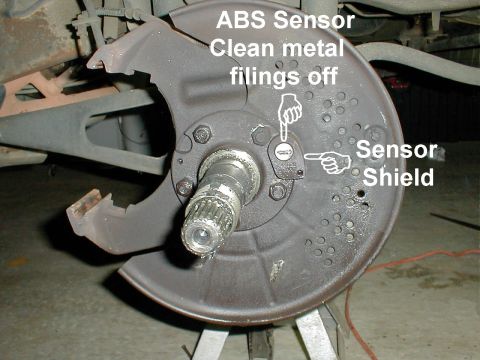

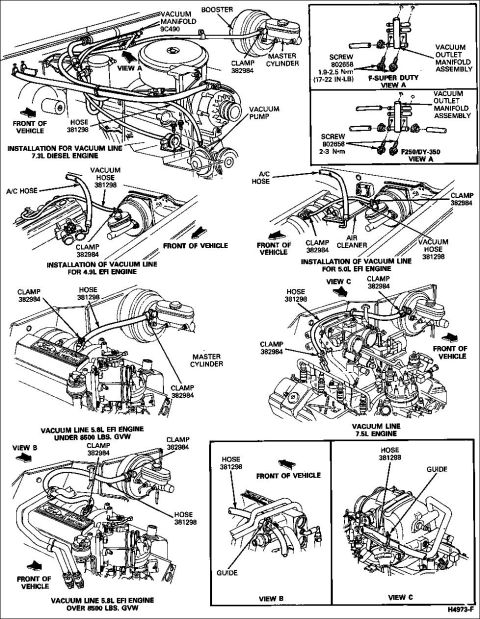

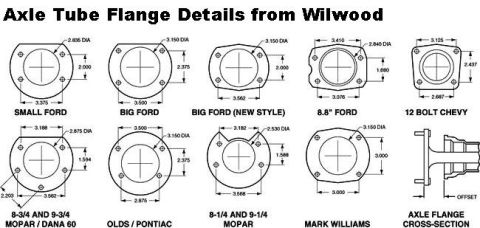

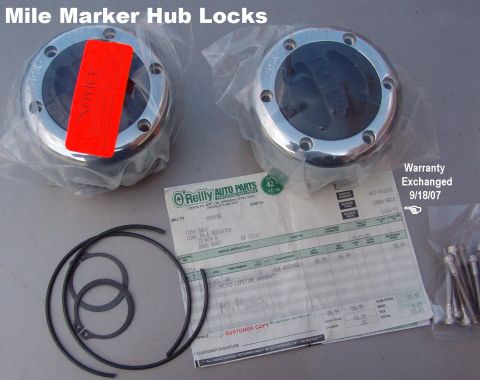

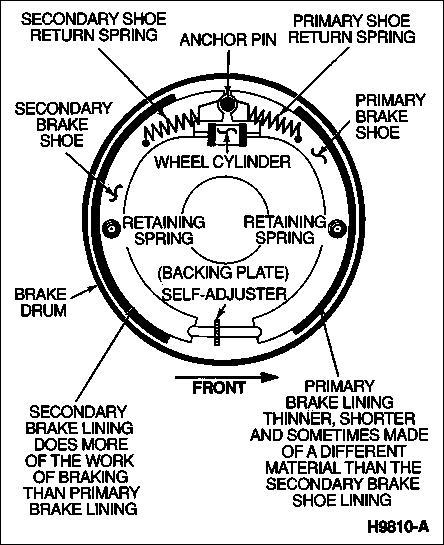

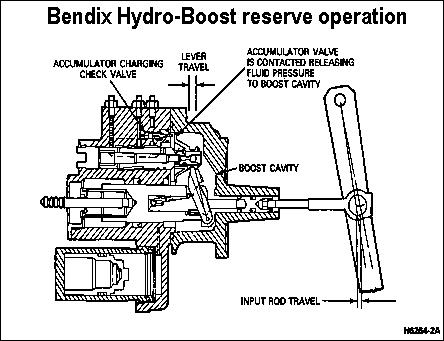

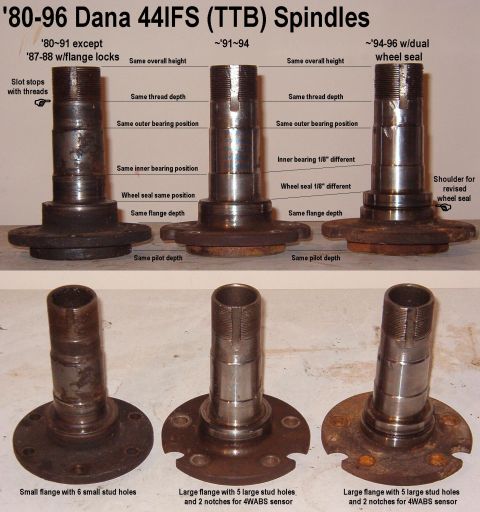

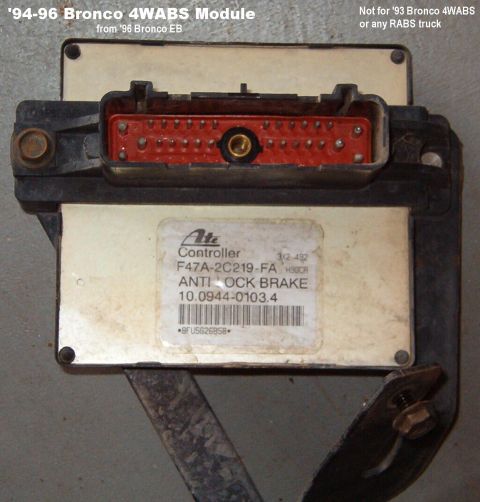

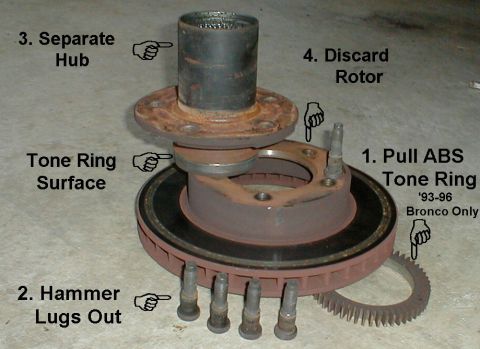

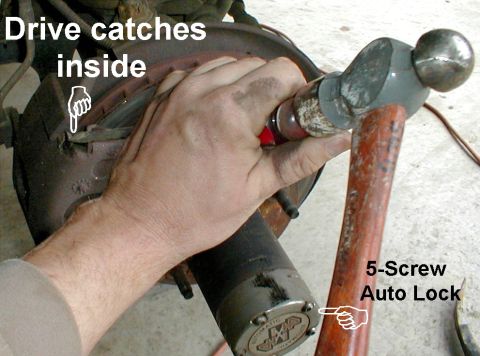

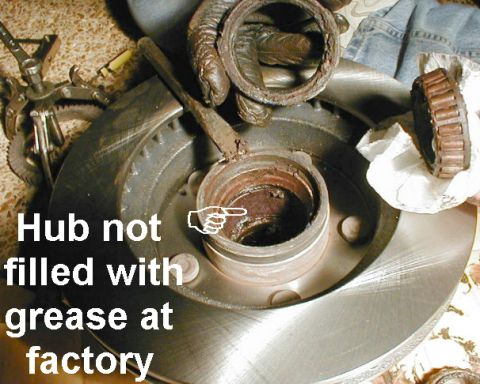

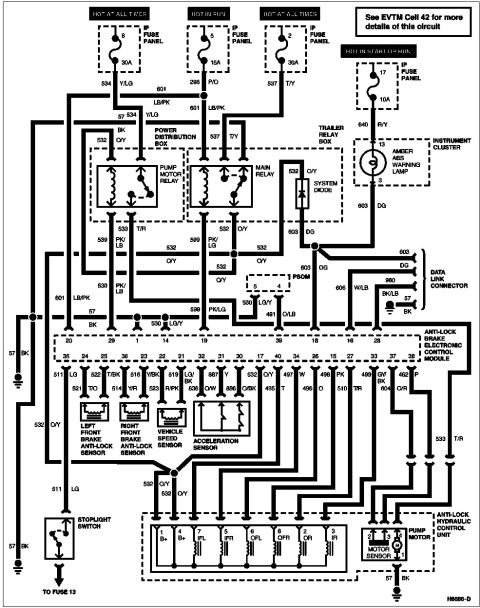

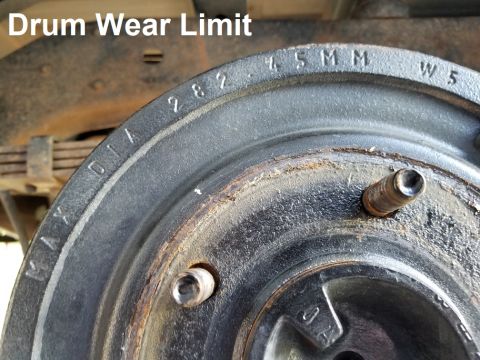

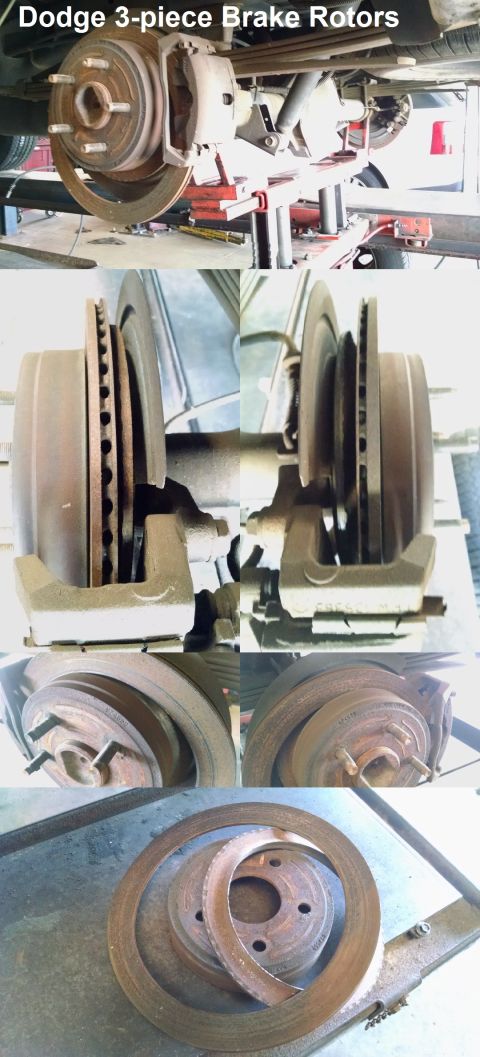

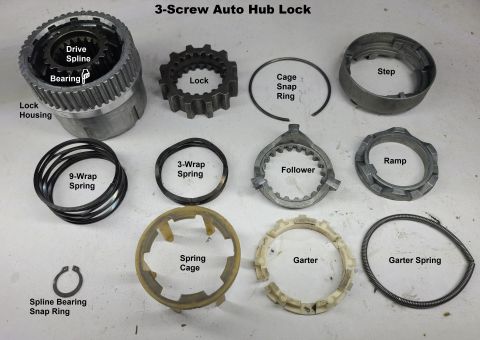

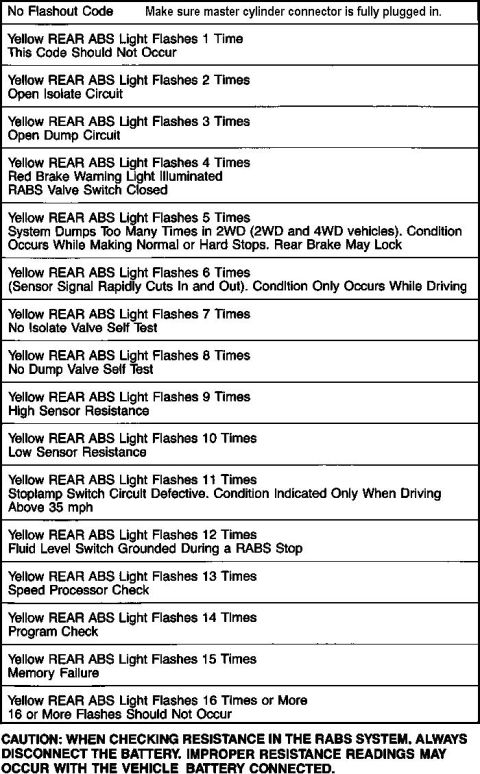

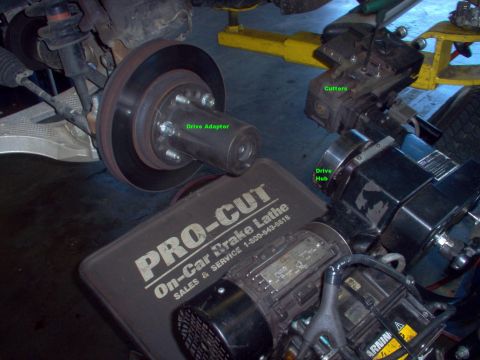

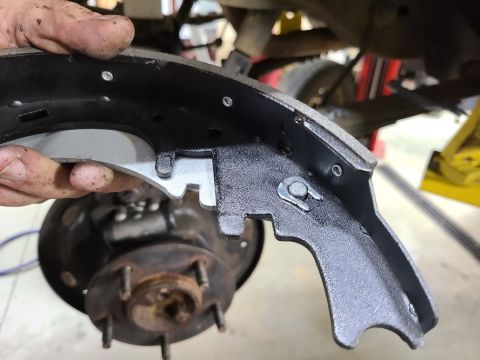

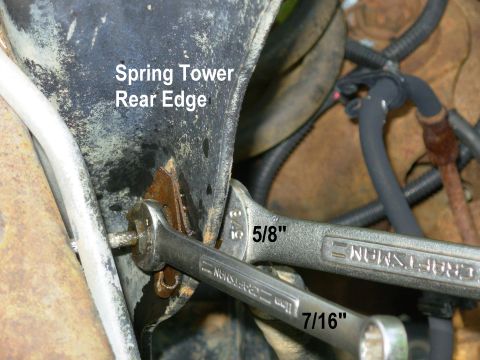

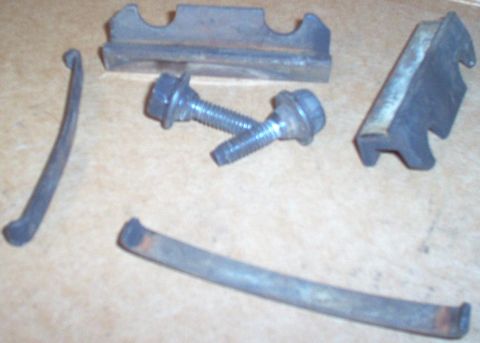

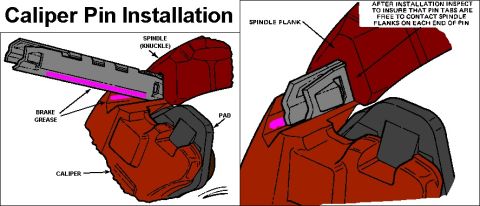

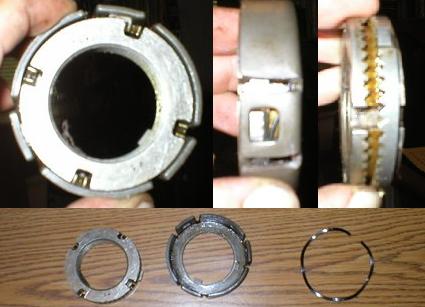

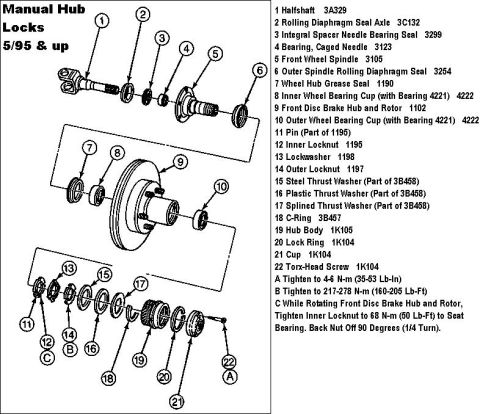

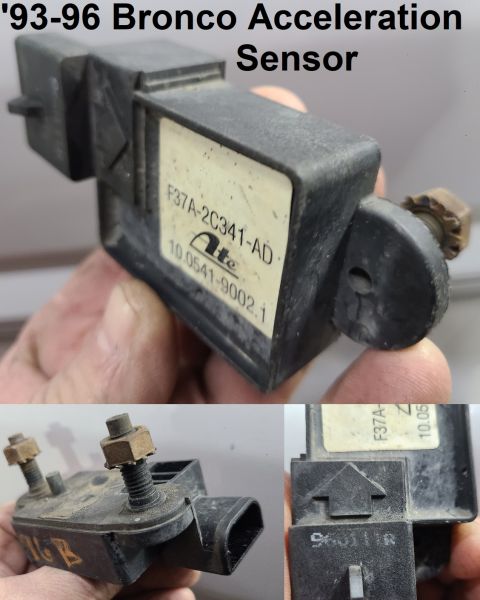

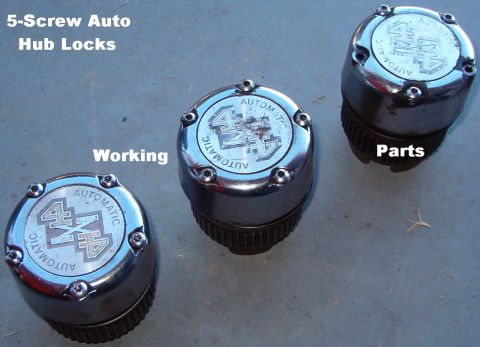

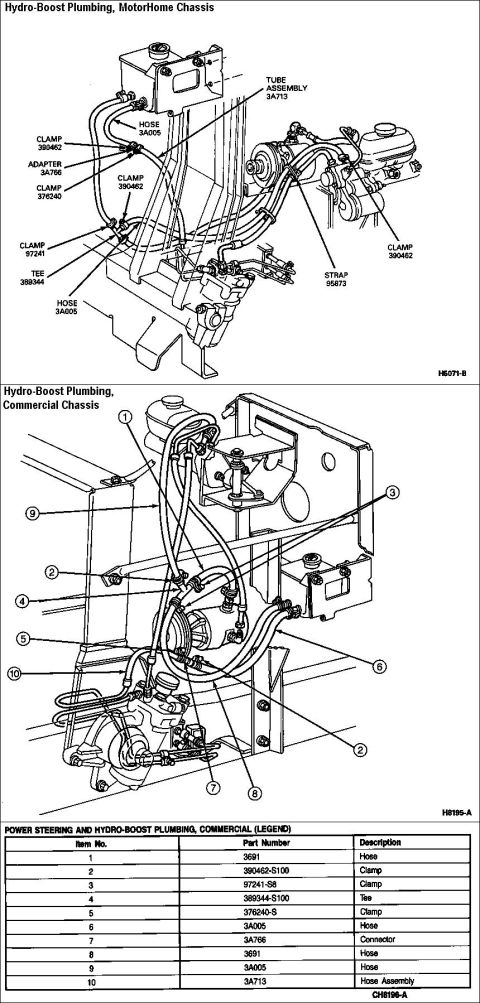

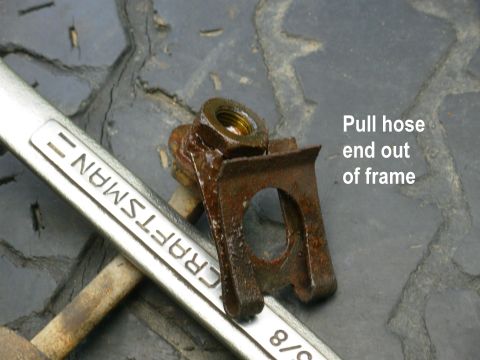

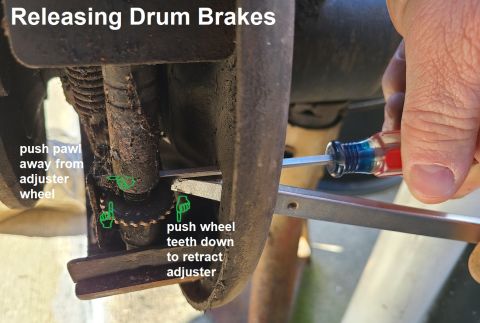

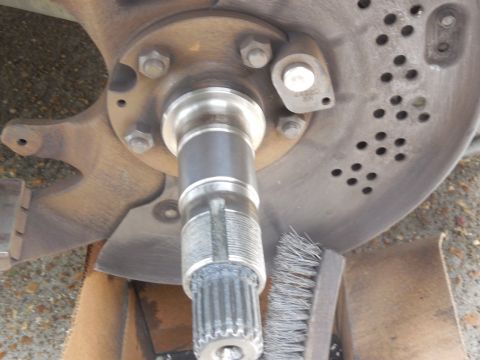

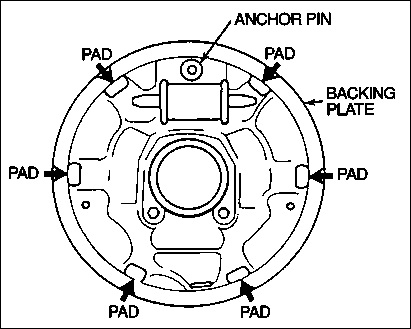

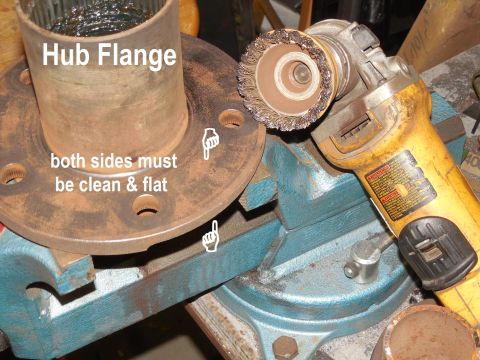

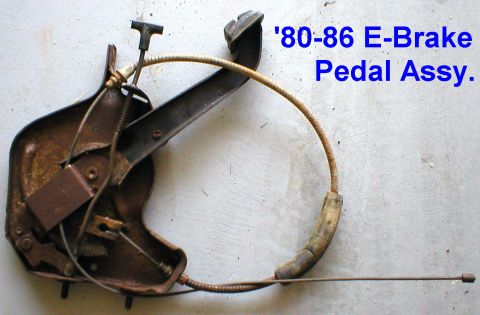

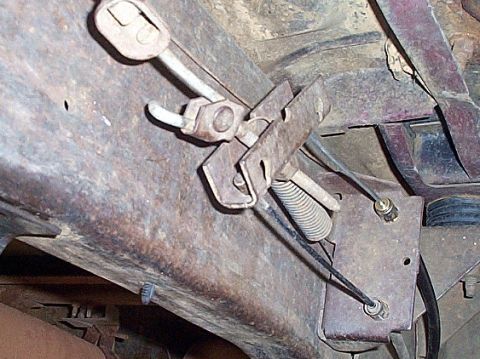

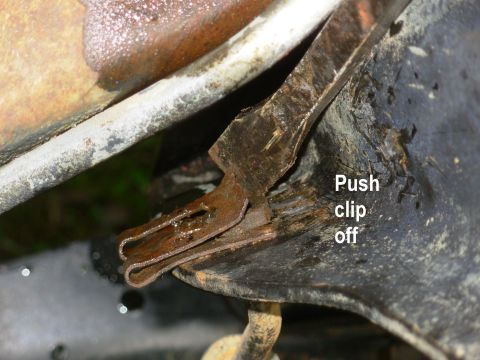

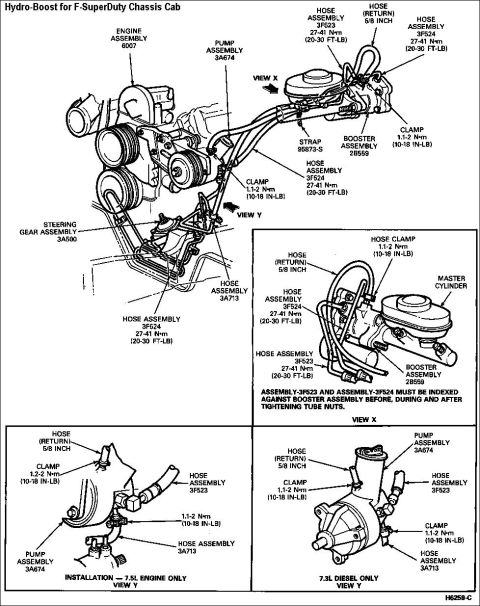

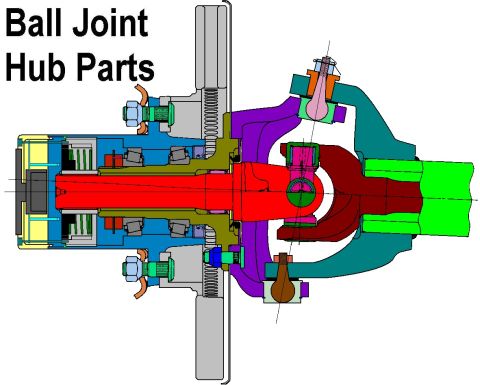

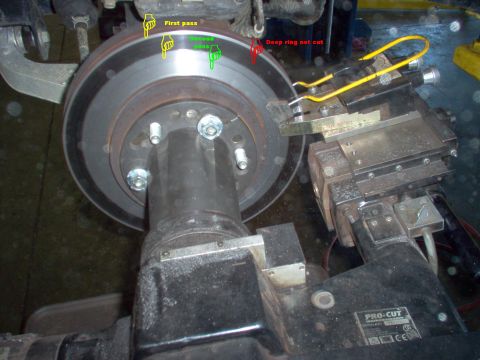

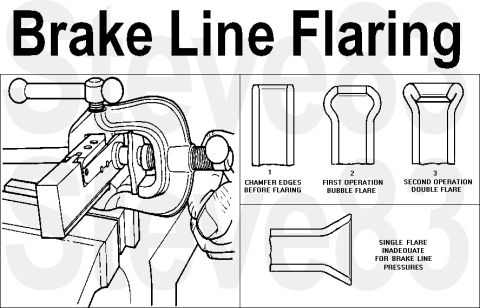

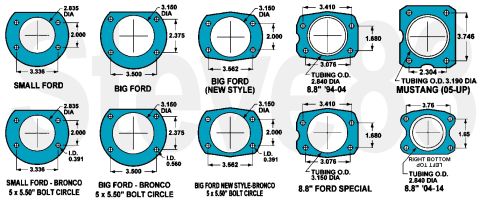

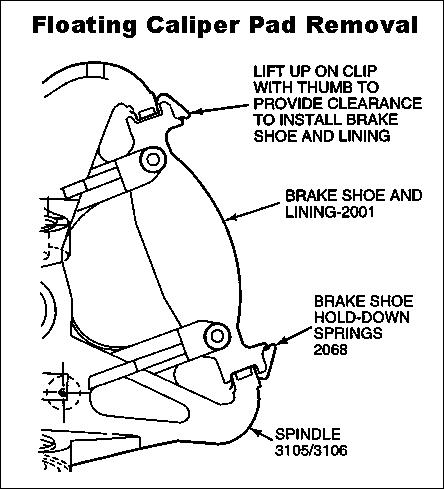

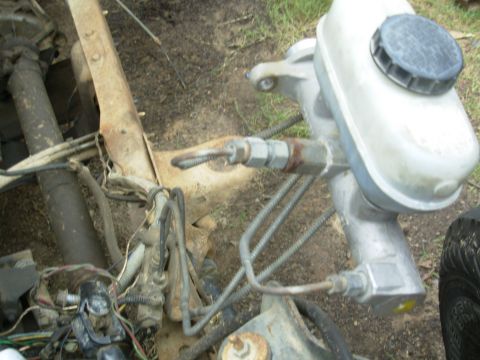

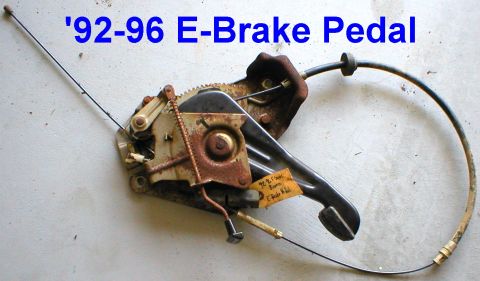

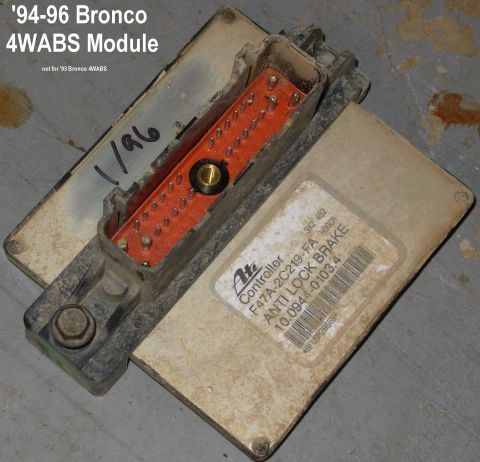

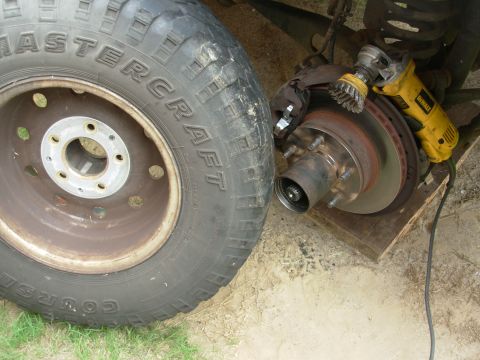

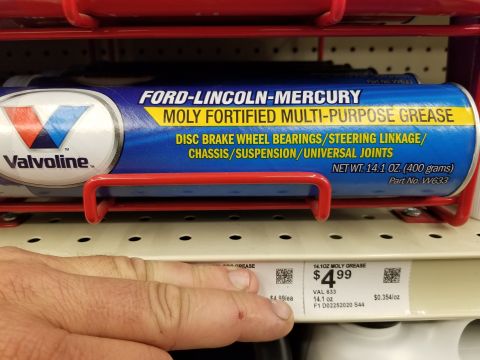

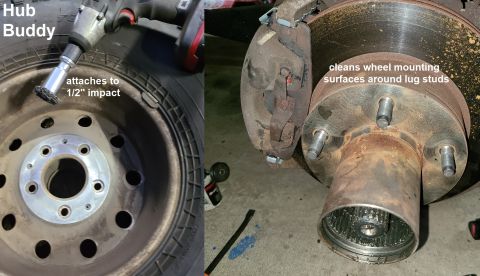

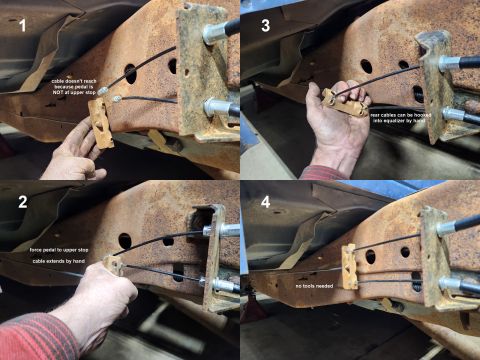

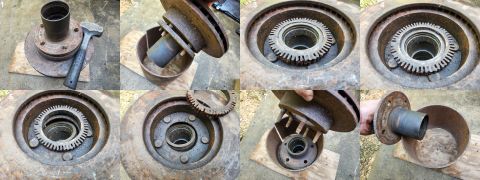

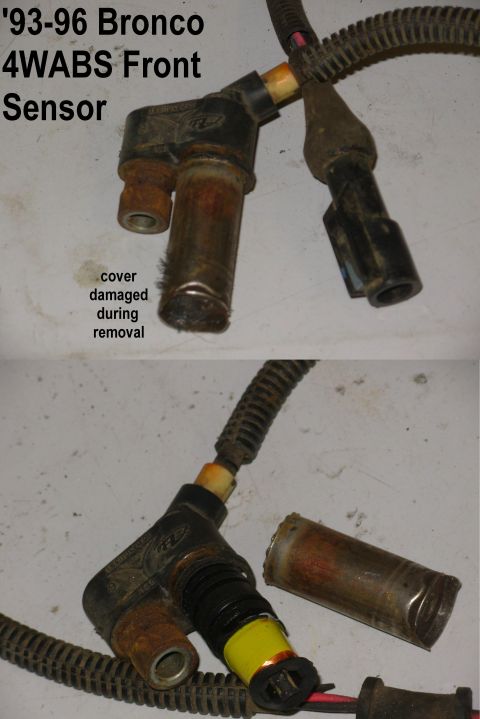

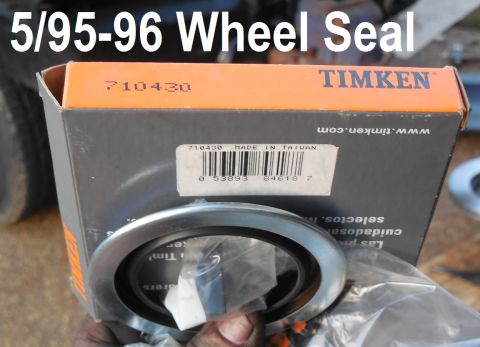

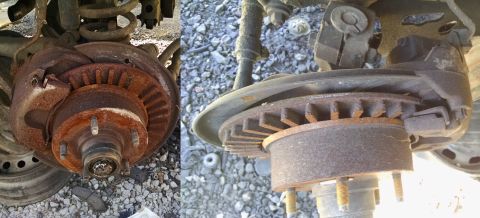

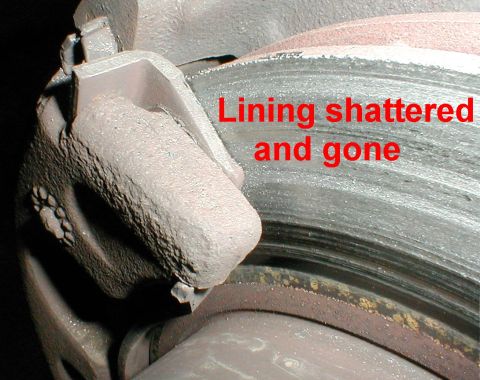

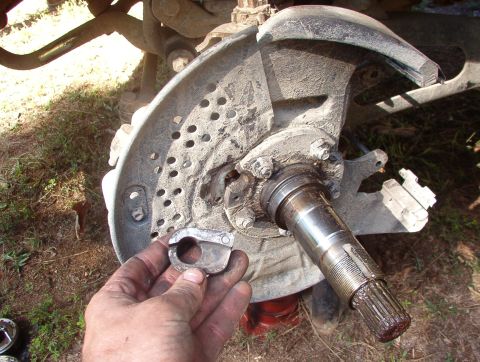

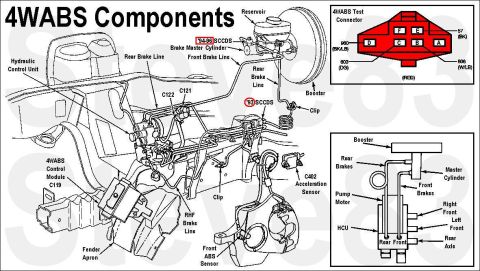

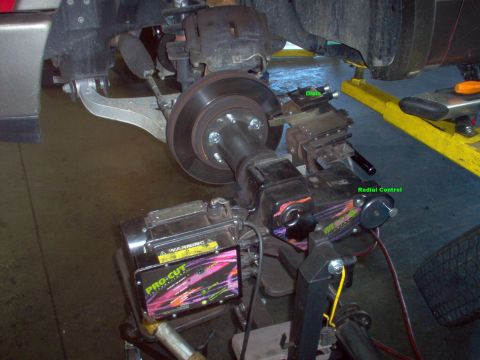

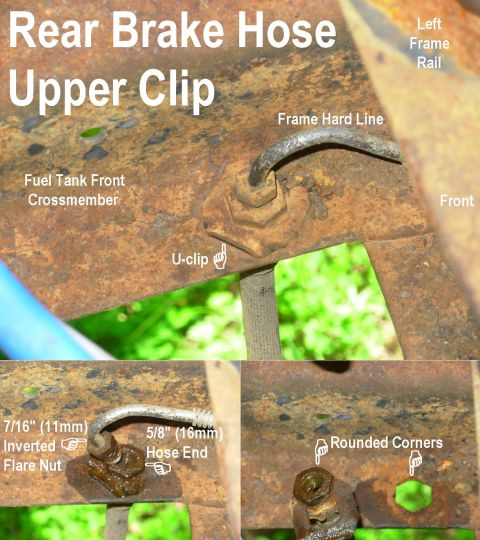

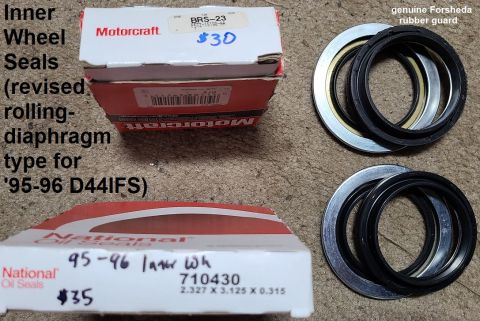

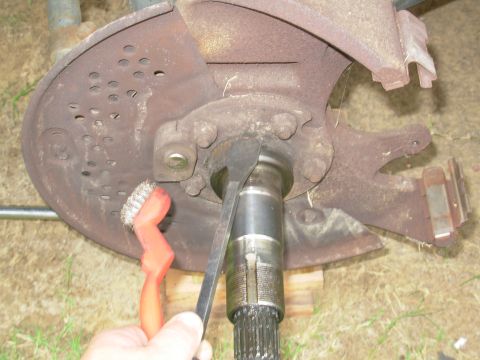

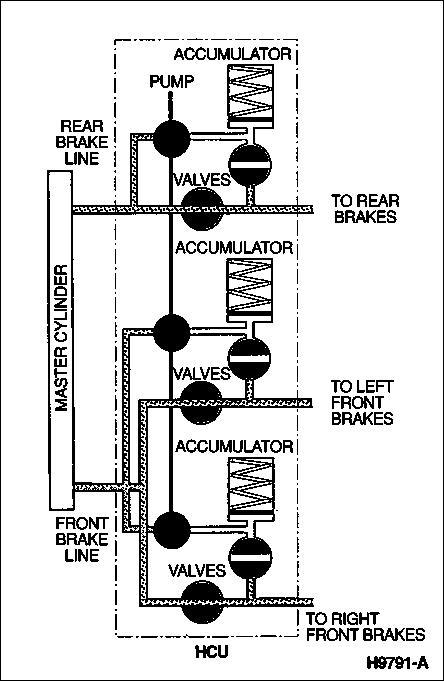

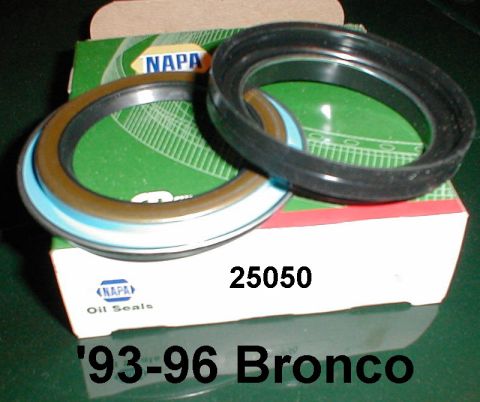

1983 Ford Bronco - Most jobs are quicker, easier, & cheaper if the vehicle is CLEAN before starting. Water is safe to use on nearly everything because it's no… 1983 Ford Bronco - This rotor ( '80-93 MotorCraft BRR8 ) has been mildly scored by excessive wear on the pad ( Motorcraft BR41B ). Although resurfacing or rep… 1983 Ford Bronco - This rotor ( '80-93 MotorCraft BRR8 ) has been scored severely by the pad ( Motorcraft BR41B ) lining wearing so thin that it shattered and… 1983 Ford Bronco - These pads are about 11 years old; the rotor was factory; the spacer is so I can run Dodge 16" rims. [url=http://www.supermotors.net/r… 1983 Ford Bronco - Any of these could have been driving next to you. IF THE IMAGE IS TOO SMALL, click it. ...or it could have BEEN you driving one of them. So… 1983 Ford Bronco - Vented Rotor - you're doing it wrong. This is what happens when you let the brakes grind for a while. The NEXT few pics show what happens i… 1983 Ford Bronco - This rotor was allowed to wear completely through the inner surface, exposing the vent fins. The driver didn't notice until the caliper pis… 1983 Ford Bronco - This guy was refilling the master cylinder reservoir every morning, and didn't have brakes again every afternoon. For a month. 1983 Ford Bronco - These were found on a truck that was driven to a local repair shop for "poor brake performance". The owner had let the rear pads… 1983 Ford Bronco - Driving Caliper Clips Out, rubber style (Ford F2TZ2C150A; MC BRCK5030) The stainless shells of the clip have 2 catches at each end holding… 1983 Ford Bronco - Driving Caliper Clips Out, rubber style The stainless shells of the clip have 2 catches at each end holding the clip to the steering knuckl… 1983 Ford Bronco - If the rotors (BRR56 / BRR207) are heavily scored or lipped, it will be necessary to compress the caliper with a prybar before swinging the… 1983 Ford Bronco - Caliper Piston Compression Tool Before new pads can be installed over a new rotor, the caliper must be fully compressed to make space. If a… 1983 Ford Bronco - Caliper Hoses IF THE IMAGE IS TOO SMALL, click it. 1983 Ford Bronco - Sliding Caliper Details IF THE IMAGE IS TOO SMALL, click it. 1983 Ford Bronco - Floating Caliper Pad Removal for '94-up MotorCraft Pad Set BR-46 does not include hold-down springs MotorCraft Pad Set BRF-1390 includes sp… 1983 Ford Bronco - 5-Screw Automatic Hub Lock Exploded IF THE IMAGE IS TOO SMALL, click it. 3B459 - E5TZ1198A There should never be a need to disassemble the… 1983 Ford Bronco - 5-screw Lock Disassembled This level of disassembly is NOT necessary for removal or replacement. 4-slot spanner nut - E5TZ1197A 4-tab lock… 1983 Ford Bronco - This lock was rusty & didn't fully engage, when I was able to force it to move. So I stripped it down, soaked all the parts in kerosene for… 1983 Ford Bronco - These are the parts of an '80-94 5-screw Automatic Hub Lock, in the order of removal. No further disassembly of the lock body is necessary… 1983 Ford Bronco - 5-Screw Auto Hub Lock These use a single thick splined shim between the C-clip & the spindle to hold the axle stub in place. Later designs… 1983 Ford Bronco - This greasy, dirty dust cap soaked in kerosene for about an hour, and then was nylon-brushed to get as clean as it is on the Left. A few se… 1983 Ford Bronco - This tiny "seal bridge" clip holds the flat rubber seal up between the cap & hub. It's often discarded or lost by careless mechan… 1983 Ford Bronco - After removing the bridge clip, compress the lock body retaining ring on 5-screw auto lock, then remove the lock body & the ring together.… 1983 Ford Bronco - This '95 Bronco XLT has floating calipers with 5-screw auto hub locks and early-style wheel bearing nuts. '80-93 Front Rotor MotorCraft BRR… 1983 Ford Bronco - The hub locks & their dust caps (including the dials for manual locks) do not support any weight or retain any parts. They can be R&I'ed wi… 1983 Ford Bronco - SOLD Auto Hub Locks 5-screw They need to be cleaned & lubed, but they're working & complete EXCEPT for the "seal bridges". Look a… 1983 Ford Bronco - 5-Screw Automatic Hub Locks The 3 parts labelled 3B458 are the shim washers. The outer is splined steel; the middle is fiber/plastic; the i… 1983 Ford Bronco - Early 5-screw auto hub lock operation. [url=http://www.supermotors.net/registry/media/895156] http://www.supermotors.net/getfile/895156/thu… 1983 Ford Bronco - 3-screw Warn Automatic Hub Locks ( F6TZ-1K105-AA ) Use a sharp pick to remove lock body retaining ring by finding the ends, then pulling on… 1983 Ford Bronco - 3-screw Warn Automatic Hub Locks ( F6TZ-1K105-AA ) The 2 items at the far L are one complete hub lock assembly piled together. The top cent… 1983 Ford Bronco - Auto Hub Locks SUCK!!! . . . . ...right? IF THE IMAGE IS TOO SMALL, click it. As bad as this looks, and despite the fact that it isn't work… 1983 Ford Bronco - This lock was grimy, so I stripped it down (which required filing away some staked metal), soaked all the parts in naphtha for a while, and… 1983 Ford Bronco - Wheel bearing adjusting nut (2.5-inch rounded hex) for 3-screw auto hub locks only. This nut requires so little torque to install that it c… 1983 Ford Bronco - This is the only pair of auto hub locks I've ever found that were actually ruined. IF THE IMAGE IS TOO SMALL, click it. 1983 Ford Bronco - '95-96 Bronco Front Disk Brake with floating calipers, 4WABS, 2-piece inner wheel seal, 3-screw auto hub locks; F150s do not have 4WABS, bu… 1983 Ford Bronco - 3-screw Warn Automatic Hub Locks ( F6TZ-1K105-AA ) Regarding part #3: I think the double-lip faces INboard (toward the diff) so that if pre… 1983 Ford Bronco - Ball Joint & Manual Hub Lock Parts IF THE IMAGE IS TOO SMALL, click it. This diagram shows a common manual hub lock. Ford 8.8" axle us… 1983 Ford Bronco - Kingpin Hub Parts This diagram shows a drive flange (pale yellow) where most have a hub lock. Ford 8.8" axle uses 10 lug studs D6AZ-11… 1983 Ford Bronco - You don't have to spend $130/pr on Warn Premium hub locks to get a lifetime warranty. And the Warns are no stronger than MileMarkers. ***SE… 1983 Ford Bronco - Stock (Warn) Manual Hub Locks IF THE IMAGE IS TOO SMALL, click it. This diagram has errors & omissions. The axle stub shaft retainer is not… 1983 Ford Bronco - Hub Lock Outer Retaining Ring IF THE IMAGE IS TOO SMALL, click it. To make removal easier, bend the tips of the ring inward slightly. Don't… 1983 Ford Bronco - Manual Hub Locks IF THE IMAGE IS TOO SMALL, click it. These use 3 washers (15,16,17) between the C-clip & the spindle to hold the axle stub… 1983 Ford Bronco - Flange-style manual hub locks used only on '87-early '88 F150s & Broncos w/manual locks. '87-88 w/auto locks are "normal". IF THE… 1983 Ford Bronco - Flange-style Hub Locks, a.k.a. TopHats Note the LACK of screws around the selector dial. --------------------------------------------------… 1983 Ford Bronco - Early Hub Lock Exploded Diagrams IF THE IMAGE IS TOO SMALL, click it. Excerpts from the Dana/Spicer hub lock service manual. http://www2.da… 1983 Ford Bronco - 4WABS Rotor Removal IF THE IMAGE IS TOO SMALL, click it. If the rotor must be replaced on a '93-96 Bronco (4WABS) hub, the tone ring often… 1983 Ford Bronco - '80-96 rotor replacement requires removing the hub assembly & driving out the lug studs ( Dorman 610-219 ). On '93-96 Broncos only, the ton… 1983 Ford Bronco - Using this seal & bearing driver is one way to remove the '93-96 Bronco-only 4WABS tone ring. Another way is: after hammering the lugs out… 1983 Ford Bronco - Rotor Installation 1. Set the rotor onto the back of the hub. 2. Drive the lug studs ( Dorman 610-219 ) through both. 3. If applicable ('93… 1983 Ford Bronco - Front ABS Sensors Motorcraft BRAB30 on '93-96 Broncos only. Clean all metal filings off to improve signal quality. To remove the spindle, r… 1983 Ford Bronco - The bolt for this shield has an extremely hard-to-find 6mm 12-point head, so most people (including me) don't carry a socket to fit it. Sin… 1983 Ford Bronco - Spindle Differences '80-96 In addition to the ~'92 loss of a spindle stud (leaving 5) and the addition of 2 notches in the spindle flange f… 1983 Ford Bronco - Differences in steering knuckles, spindles, & hubs. Both sets shown are from '93 trucks. IF THE IMAGE IS TOO SMALL, click it. See also: [ur… 1983 Ford Bronco - Wheel Bearings Dry Packing the hub with grease will prevent this, even when fording deep water. [url=http://www.supermotors.net/registry/me… 1983 Ford Bronco - 2-piece Inner Wheel Seal (Rolling Diaphragm Seal) used on late ~5/95~96 1/2-ton 4WDs. The pair is MotorCraft BRS23 or F5TZ-1S190-AA. The or… 1983 Ford Bronco - Inner Wheel Seals for rolling-diaphragm hubs IF THE IMAGE IS TOO SMALL, click it. Motorcraft BRS23 Timken 710430 National 710430 1983 Ford Bronco - Timken 710430 Inner Wheel Seal for 5/95-96 4WD 1/2-ton, and possibly some later heavier trucks 1983 Ford Bronco - Before installing the inner wheel seal, add a ring of grease to keep the bearing full. This is correct disk-brake-rated high-temperature EP… 1983 Ford Bronco - 5/95-96 hub, '93-96 tone ring E7TZ2B409B (F37A-2C182-AC), & 5/95-96 inner wheel seal 1983 Ford Bronco - Take a few extra moments to remove any accumuated grime and then brush the sealing surface so the new seal will last. Note that this steeri… 1983 Ford Bronco - It's worth the effort to clean off any accumulated grime, particularly from the base of the spindle where the inner wheel seal fits. 1983 Ford Bronco - While the rotor is off the hub, make sure both sides of the flange are thoroughly clean & flat to prevent warping the rotors. It doesn't ta… 1983 Ford Bronco - '96 Bronco front hub parts Front tone ring E7TZ2B409B (F37A-2C182-AC) 1983 Ford Bronco - This is the grease I prefer for wheel bearings & general chassis use. I get it at the local O'Reilly store. 1983 Ford Bronco - Pack bearings, then fill void between bearings with Castrol Pyroplex Blue, Mystick, or some other high-film-strength EP grease rated for di… 1983 Ford Bronco - Wheel Bearing Nut adjustments. The L pane is the common 3-piece system, which requires either of these spanners: [url=http://www.supermotor… 1983 Ford Bronco - The L spanner is stronger & less likely to slip off a nut, but it won't work on a self-locking nut. Both are 2-3/8" round spanner sockets w… 1983 Ford Bronco - Rare self-locking hub nut used in the late '80s. Its locking tooth in the center often gets bent inward by improper installation or removal… 1983 Ford Bronco - This '95 Bronco was factory-equipped with 3-screw auto hub locks, but a previous owner swapped in these light-duty Warn manuals. The curren… 1983 Ford Bronco - Caliper Pin Installation IF THE IMAGE IS TOO SMALL, click it. 1. Install the caliper on the spindle, making sure the mounting surfaces are… 1983 Ford Bronco - Install Caliper Slide Clips (Ford F2TZ2C150A; MC BRCK5030) with locking tabs facing the steering knuckle. They should also have a light coa… 1983 Ford Bronco - '83 Dana44IFS Brake caliper keys, slide springs, & bolts. Used from the late 70s until ~'84 on 2 & 4WD. -----------------------------------… 1983 Ford Bronco - Always clean the surfaces that touch the pad backing plates (& all other points of metal-to-metal contact) before applying brake grease to… 1983 Ford Bronco - Brake Greases After cleaning... [url=https://www.supermotors.net/registry/media/881403] https://www.supermotors.net/getfile/881403/thumbnai… 1983 Ford Bronco - After cleaning to the bare metal, brake grease goes at each white pointer, including inside each slide pin boot. DO NOT apply grease to any… 1983 Ford Bronco - First, clean the rust & dirt off the wheel mounting surfaces. [url=http://www.supermotors.net/vehicles/registry/media/881406] http://www.su… 1983 Ford Bronco - These trucks are notorious for warping rotors, so clean the wheel mounting surfaces before torquing the lug nuts. The best tool is 3M 07547… 1983 Ford Bronco - These trucks are notorious for warping rotors, so clean the wheel mounting surfaces before torquing the lug nuts. The best tool is 3M 07547… 1983 Ford Bronco - Wheel Mounting Surfaces should be cleaned every time a wheel is removed (including both sides of the drum) to reduce wheel-induced vibratio… 1983 Ford Bronco - This setup worked fine for many years: an '87-96 master cylinder (with the guts of the residual pressure valve removed) & booster, a few in… 1983 Ford Bronco - Brake Splitter Block (E4TZ-2B257-F) from '83 Bronco removed 2011 working with no leaks; SOLD 2019 Turns out this is NOT actually a "Brake P… 1983 Ford Bronco - '87-96 Master Cylinder IF THE IMAGE IS TOO SMALL, click it. '87-93 1/2-ton, & '87-96 w/o cruise Motorcraft BRMC63 (F4TZ2140E) '94-96 w/crui… 1983 Ford Bronco - Brake Fluid Reservoir Washing IF THE IMAGE IS TOO SMALL, click it. After the brake fluid has been neglected (it should be changed every 3 y… 1983 Ford Bronco - '87-96 Brake Master Cylinder Reservoir There's no good way to clean these reservoirs in-place, and even removing them doesn't make it much… 1983 Ford Bronco - Booster Hose Routing 1983 Ford Bronco - This diagram illustrates brake line hardware for vehicles from 1992 to 1996, not a 1983 Ford Bronco. 1983 Ford Bronco - Brake Line Flaring A newer design of tool may be easier to use: Titan 51535 Lisle 33260 turret flaring tool [url=https://www.supermotors.ne… 1983 Ford Bronco - Brake Hose Clip Removal RHF shown; others similar. Go to the NEXT... 1983 Ford Bronco - Brake Hose Clip Removal First, wash all the dirt away from the fittings, and out of the clip. Then brush away heavy rust and apply penetrat… 1983 Ford Bronco - Brake Hose Clip Removal The clip can't be removed until the brake line & inverted flare nut are gone. Pry the clip up and off; two prybars… 1983 Ford Bronco - Brake Hose Clip Removal The clip can't be removed until the brake line & inverted flare nut are gone. Pry the clip up and off; two prybars… 1983 Ford Bronco - Brake Hose Clip Removal The clip can't be removed until the brake line & inverted flare nut are gone. Pry the clip up and off; two prybars… 1983 Ford Bronco - Brake Hose Clip Removal Note that one of the hex points is rounded off to key the fitting to the frame. 1983 Ford Bronco - Caliper Hoses IF THE IMAGE IS TOO SMALL, click it. The left front hose for RABS F150s & Broncos is different from 4WABS Broncos, but the ri… 1983 Ford Bronco - '92-96 Rear Brake Hose fits '80-96 1/2-ton IF THE IMAGE IS TOO SMALL, click it. I found this in a JY, and since I can't find a new US-made… 1983 Ford Bronco - The rear hose upper clip is a simple U. First clean the area & apply penetrating oil to the fitting. Use the proper flare-nut wrench to pre… 1983 Ford Bronco - Cross-drilling is only for looks. On race cars, it reduces weight, but on trucks, it only makes the brakes run hotter because it removes th… 1983 Ford Bronco - Booster Operation Under normal driving conditions, the engine's intake manifold vacuum passes to both sides of the brake booster diaphragm… 1983 Ford Bronco - Booster Installation The booster can be changed without opening any hydraulic lines. Remove the master cylinder nuts, pull the MC away & la… 1983 Ford Bronco - Booster Pushrod Adjustment 1983 Ford Bronco - Brake On-Off Switch (E9LY-13480-A) Motorcraft SW2237 Installation 1) Install the ring bushing on the pedal peg against the arm. 2) Install… 1983 Ford Bronco - BOO Switch Installation See also: [url=https://www.supermotors.net/registry/media/1172136] https://www.supermotors.net/getfile/1172136/thum… 1983 Ford Bronco - 1/2-ton Drum Brake Parts IF THE IMAGE IS TOO SMALL, click it. [url=https://www.supermotors.net/registry/media/1171758] https://www.supermot… 1983 Ford Bronco - '78-96 F150/Bronco Drum Brake Components & Lubrication IF THE IMAGE IS TOO SMALL, click it. The springs are shown in their actual OE colors… 1983 Ford Bronco - Brake Spring Kit (BRSK-7225-A) for all '80-96 F150s & Broncos Contains: 2 - primary shoe retractor spring (red) - part of 2035 (2296) 2 - s… 1983 Ford Bronco - How to release drum brakes (drum removed for clarity) if the drum cannot be slipped off. IF THE IMAGE IS TOO SMALL, click it. Use a screwdr… 1983 Ford Bronco - Drum Brake Tools I actually don't use the big tool, and I rarely use the smaller one - it's easier to install the shoes & springs by hand.… 1983 Ford Bronco - Park Brake Lever Clip Removal IF THE IMAGE IS TOO SMALL, click it. Either style of spreading pliers will work, if its tips are small enough… 1983 Ford Bronco - If it looks like this immediately after slipping the drum off, then the autoadjuster is OK. SEE THE NEXT PIC... [url=http://www.supermotors… 1983 Ford Bronco - Autoadjuster seized; probably because it wasn't cleaned & lubricated properly. SEE THE PREVIOUS PIC... [url=http://www.supermotors.net/regi… 1983 Ford Bronco - Shoe Lining separated; probably due to cheap shoes, and/or the truck being abandoned long enough for rust to break the glue. See also: [url… 1983 Ford Bronco - The anti-rattle spring for the e-brake spreader bar naturally twists over time, causing it to bind & wear against the bar. Manually twist i… 1983 Ford Bronco - Typical Drum Components; RIGHT side shown IF THE IMAGE IS TOO SMALL, click it. See also: [url=http://www.supermotors.net/registry/media/895… 1983 Ford Bronco - LEFT Drum Components for F-series pre-'97; RIGHT heavy-duty drum brakes IF THE IMAGE IS TOO SMALL, click it. Note that the primary (front)… 1983 Ford Bronco - Drum Brake Action; RIGHT side rolling FORWARD shown IF THE IMAGE IS TOO SMALL, click it. During rolling braking, the brake linings don't me… 1983 Ford Bronco - The C-clip for the e-brake lever doesn't need to be mangled, ruined, or bent tip-to-tip during installation - just enough to keep it from s… 1983 Ford Bronco - Drum Brake Shoe Caliper allows setting the autoadjuster before installing the drum IF THE IMAGE IS TOO SMALL, click it. With or without thi… 1983 Ford Bronco - Brake Drum Wear Limit Specification is stamped into drum lip IF THE IMAGE IS TOO SMALL, click it. 282.45mm = 11.12" 1983 Ford Bronco - Autoadjuster Action IF THE IMAGE IS TOO SMALL, click it. Self-adjustment takes place in two steps when the vehicle is driven in reverse and… 1983 Ford Bronco - Parking Brake Action IF THE IMAGE IS TOO SMALL, click it. The "FRONT" label at the bottom is wrong for fullsize trucks, whose par… 1983 Ford Bronco - Drum Shoe Pads IF THE IMAGE IS TOO SMALL, click it. An often overlooked area that requires servicing is the backing plate pads that support… 1983 Ford Bronco - '83-96 8.8" Axle 11x2.25" Drum Brake Backing Plates IF THE IMAGE IS TOO SMALL, click it. 1983 Ford Bronco - Parking Brake Cables ('92-96) IF THE IMAGE IS TOO SMALL, click it. Park/e-brake switch Standard DS3398 View Y has been revised - see the TS… 1983 Ford Bronco - The e-brake switch is an open design, so simple dust can interfere with it making contact. Remove & clean it as needed. IF THE IMAGE IS TOO… 1983 Ford Bronco - SOLD E-brake pedal assembly from 96 Bronco. Fits 92-96 F-series & Bronco. Front cable (shown) Motorcraft BRCA-34 1983 Ford Bronco - Front E-brake Cable Installation IF THE IMAGE IS TOO SMALL, click it. With a pin (or small screw - Red pointer) holding the pedal self-adju… 1983 Ford Bronco - E-brake Cable Re-connection on '92-up trucks IF THE IMAGE IS TOO SMALL, click it. The pedal MUST be hard against its upper (released) stop… 1983 Ford Bronco - SOLD This might actually have come from an '88 F150. 1983 Ford Bronco - Tension Limiter for early parking brake systems (pre-'92) 1983 Ford Bronco - This is the early (pre-'92) e-brake tension limiter & equalizer. The upper cable is an aftermarket replacement, which is surprisingly affor… 1983 Ford Bronco - This is the easiest way to remove e-brake cable sheaths: slide a 1/2" box-end wrench over the end of the cable & use it to release all… 1983 Ford Bronco - This is the easiest way to remove e-brake cable sheaths: slide a 1/2" box-end wrench over the end of the cable & use it to release all… 1983 Ford Bronco - This e-brake cable was allowed to go slack inside the drum, probably due to a stuck autoadjuster and a stuck or frozen cable. The drum then… 1983 Ford Bronco - Brake Shoes Comparison: '78-96 Bronco/F150 vs. '66-77 Bronco Before buying craptasmic brakes or other common parts, check for [url=http://o… 1983 Ford Bronco - SD Park Brake The parking brake is mounted to the transmission extension housing and incorporates a case assembly and a cable actuated 9x3-… 1983 Ford Bronco - '92-96 Bronco Brake Warning (F-series wiring slightly different) [url=http://www.supermotors.net/registry/media/933122] http://www.supermot… 1983 Ford Bronco - 4WABS Components IF THE IMAGE IS TOO SMALL, click it. See the NEXT several captions for more... [url=https://www.supermotors.net/registry/m… 1983 Ford Bronco - 4WABS Valves The 4-wheel anti-lock brake system (ABS) prevents wheel lockup by automatically modulating the brake pressure during an emerge… 1983 Ford Bronco - 4WABS Circuit & Connectors IF THE IMAGE IS TOO SMALL, click it. '93 Bronco shown; '94-96 Bronco similar. Front Wheel Speed Sensor Motorcraf… 1983 Ford Bronco - 4WABS Circuit The front inlet valves should read 5-8 Ohms each; all other valves should read 3-6 Ohms each. The 3 ABS sensors (pins 21-25 &… 1983 Ford Bronco - SOLD '94-96 Bronco 4WABS module F47A-2C219-FA & '93-96 Bronco HCU F3TA-2C215-BE Both came from this truck: http://www.supermotors.net/vehic… 1983 Ford Bronco - SOLD 4WABS Module from '96 EB Bronco '93 Broncos were built with a different PN module. Untested. [url=https://www.clipsandfasteners.com/M8… 1983 Ford Bronco - 4WABS Module from a '94 Bronco The "F4..." at the beginning of the EN indicates it was designed in 1994. '93 Broncos were built w… 1983 Ford Bronco - SOLD '96 4WABS Module fits '94-96 Broncos UNTESTED, but the truck it came from was in fairly good shape (for a junker) 1983 Ford Bronco - SOLD 4WABS Acceleration Sensor from '96 Bronco IF THE IMAGE IS TOO SMALL, click it. 1983 Ford Bronco - '93-96 Bronco Front ABS Sensor Motorcraft BRAB30 (F4TZ2C204AA) This (or worse) is what happens every time I've tried to drive one out of a… 1983 Ford Bronco - 4WABS Bypass for PSOM IF THE IMAGE IS TOO SMALL, click it. When the 4WABS module fails (and they all will eventually), it's virtually impos… 1983 Ford Bronco - ABS sensor (DY1123, F85Z-9E731-AB) should read 800-1400 Ohms across the pins (when disconnected), and more than 10K Ohms from any external… 1983 Ford Bronco - RABS Components ('87-89 similar) IF THE IMAGE IS TOO SMALL, click it. The RABS TEST CONNECTOR location indicated may only apply to '92-up;… 1983 Ford Bronco - Brake Lines for RABS Trucks IF THE IMAGE IS TOO SMALL, click it. The two middle sections (showing the Union) & the bottom Right view apply… 1983 Ford Bronco - RABS (& RABS-II) Flashout Codes Chart IF THE IMAGE IS TOO SMALL, click it. Two warning lamps are located on the instrument panel to alert t… 1983 Ford Bronco - RABS & RABS-II Function Flowchart IF THE IMAGE IS TOO SMALL, click it. 1983 Ford Bronco - RABS & RABS-II Function IF THE IMAGE IS TOO SMALL, click it. The dotted box is the RABS valve assembly. The lower vavle is the Isolate; upp… 1983 Ford Bronco - RABS & RABS-II Circuit IF THE IMAGE IS TOO SMALL, click it. The ABS sensor (DY1123, F85Z-9E731-AB) in the rear diff should read 800-1400 Oh… 1983 Ford Bronco - RABS & RABS-II Troubleshooting IF THE IMAGE IS TOO SMALL, click it. Flashout Codes Whenever the yellow REAR ABS light comes on during norma… 1983 Ford Bronco - SOLD '88 RABS valve - untested, but apparently undamaged. Fits all '87-96 pickups and '87-92 Broncos. Actual dimensions: 3lb 10oz, 6.5x4.5x… 1983 Ford Bronco - 9-Inch Disc Brakes 1983 Ford Bronco - 9-Inch Disc Brake Brackets from '78-82 Lincoln Versailles. 1983 Ford Bronco - 9-Inch Disc Brake Brackets from '78-82 Lincoln Versailles. 1983 Ford Bronco - 8.8-Inch Disc Brakes with Drum-In-Hat parking brake with METRIC lug spacing IF THE IMAGE IS TOO SMALL, click it. See also: [url=https://www… 1983 Ford Bronco - Disc 8.8" from '04-06 E150 with 5x5.5" lug spacing requires 16" rims IF THE IMAGE IS TOO SMALL, click it. 1 Rear axle identi… 1983 Ford Bronco - 8.8" Rear Disk Brakes from '04-up E150 IF THE IMAGE IS TOO SMALL, click it. [url=http://www.supermotors.net/registry/media/516839] htt… 1983 Ford Bronco - Brake Flange Details IF THE IMAGE IS TOO SMALL, click it. https://www.wilwood.com/brakekits/brakekitaxleflange [url=https://www.supermotors… 1983 Ford Bronco - REPLACE WITH [url=https://www.supermotors.net/registry/media/1172064] https://www.supermotors.net/getfile/1172064/thumbnail/brake-flanges.j… 1983 Ford Bronco - I've abandoned this idea - I'm going with an '04-13 E150 rear disc axle. Brake Flange Details Compare to: [url=http://www.supermotors.net/r… 1983 Ford Bronco - HydroBoost System Installation & Components IF THE IMAGE IS TOO SMALL, click it. View Y shows a Ford C-II pump, but a Saginaw would be bett… 1983 Ford Bronco - Hydro-Boost for SuperDuty Chassis Cab 92 IF THE IMAGE IS TOO SMALL, click it. Removal 1. With the engine off, depress the brake pedal sever… 1983 Ford Bronco - Hydro-Boost for SuperDuty Commercial 92 IF THE IMAGE IS TOO SMALL, click it. Removal 1. With the engine off, depress the brake pedal severa… 1983 Ford Bronco - Hydro-Boost for MotorHome 92 IF THE IMAGE IS TOO SMALL, click it. Removal 1. With the engine off, depress the brake pedal several times to… 1983 Ford Bronco - Hydro-Boost Plumbing 92 IF THE IMAGE IS TOO SMALL, click it. For disassembled photos, see [url=http://www.dieselplace.com/forum/showpost.ph… 1983 Ford Bronco - Hydro-Boost The Bendix Hydro-Boost brake booster is a hydraulically operated brake booster powered by the power steering pump. The power st… 1983 Ford Bronco - Hydro-Boost at Rest With the Hydro-Boost at rest (engine on, brakes released) oil flows from the inlet (pump) port, across the number 3 lan… 1983 Ford Bronco - Hydro-Boost Generating Pressure During normal power operation, the brake pedal is applied as shown by input rod travel A. The movement of t… 1983 Ford Bronco - Hydro-Boost Reserve The reserve braking system consists of a charging valve, an accumulator valve and a compressed gas accumulator. The sys… 1983 Ford Bronco - Hydro-Boost Manual When reserve power is depleted (manual operation) pressure on the brake pedal will cause the input bracket to separate f… 1983 Ford Bronco - Hydro-Boost Leak Basic Test With the engine off, depress and release the brake pedal several times to deplete all hydraulic pressure from t… 1983 Ford Bronco - On-car brake lathe being set up. The adapter is installed & the cutter base is positioned on its arm to align with the rotor. Then the driv… 1983 Ford Bronco - On-car brake lathe. The motor is turned on, the automatic calibration process finishes, & the cutters are set to the rotor's surfaces. Then… 1983 Ford Bronco - On-car brake lathe. When the small knob on the radial control is pushed in, it is automatically driven to move the cutter base outward. 1983 Ford Bronco - On-car brake lathe. The first cut was not deep enough to resurface this badly worn rotor, so it is being cut again. 1983 Ford Bronco - On-car brake lathe. Same as 02, but without flash. 1983 Ford Bronco - On-car brake lathe. Same as 03, but without flash. 1983 Ford Bronco - On-car brake lathe. Same as 04, but without flash. [url=http://www.supermotors.net/registry/media/487374] http://www.supermotors.net/getfil…
