Power Antenna

From 1994 Ford Crown Victoria “Vicky (totalled & shredded)” — documented by Steve83.

10 photos
← Back to this vehicle

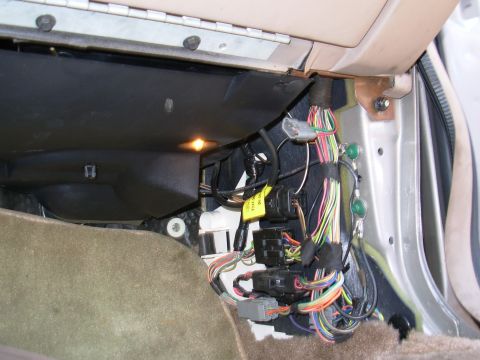

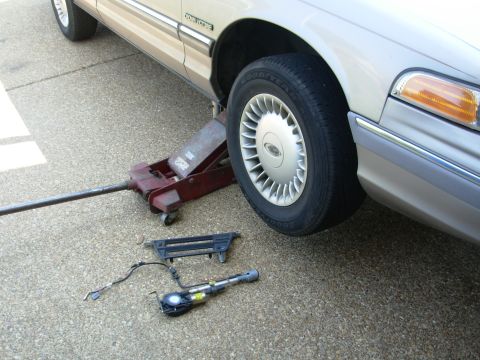

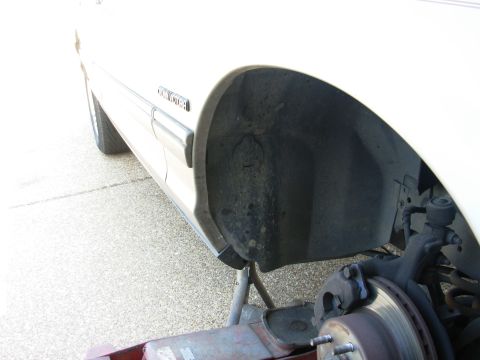

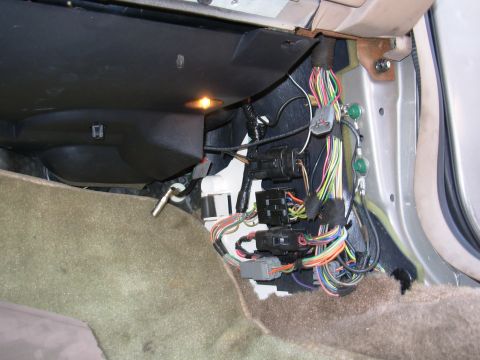

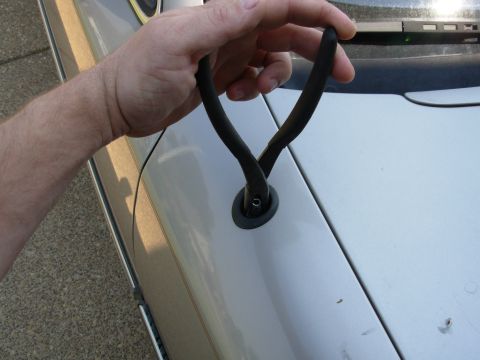

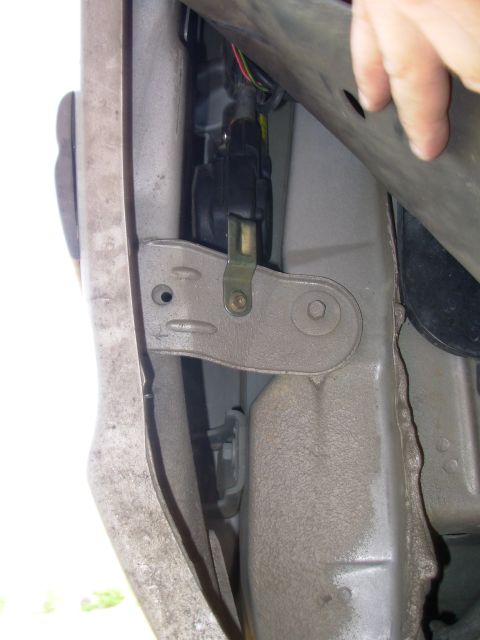

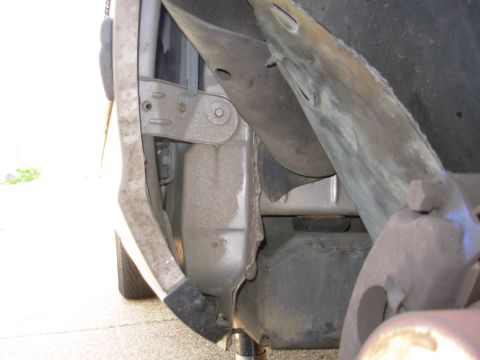

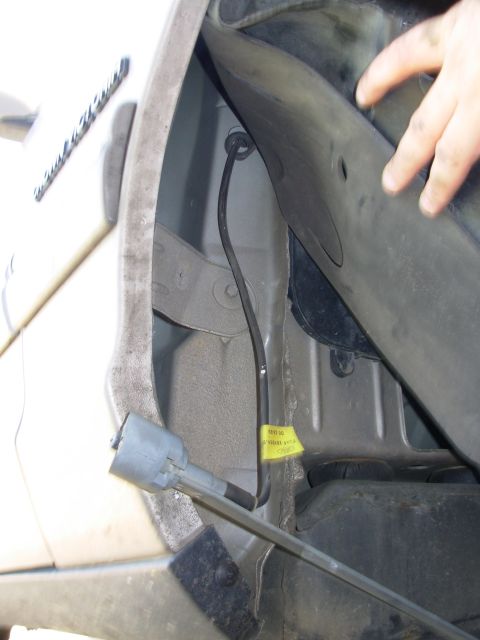

1994 Ford Crown Victoria - Start by finding a good antenna motor & mast, and a dash switch & bezel for your car's year. The dash wiring is already there, except possi… 1994 Ford Crown Victoria - Unscrew the fixed mast. There are tools available for the base nut, but it usually comes loose with just a little effort, and then spins of… 1994 Ford Crown Victoria - Removing the RF tire makes the job MUCH easier, but if that's not possible, steer fully R. 1994 Ford Crown Victoria - Peel the wheelwell forward to expose the gold T-20 Torx screw, and remove it. 1994 Ford Crown Victoria - Pull the base down & out of the fender. The black plastic bezel can stay on top of the fender. 1994 Ford Crown Victoria - Remove the R kick panel for access to the underdash wiring. The antenna wire with the yellow tag runs to the dash frame below the far R cor… 1994 Ford Crown Victoria - Install the motor, pushing it as far UP as possible before tightening the screw, then install the nut on top. The original nut & bezel can… 1994 Ford Crown Victoria - The unused 2-pin connector with a Green & a Red wire is for the antenna motor. Route the new antenna wire like the original, and then conne… 1994 Ford Crown Victoria - Remove the original radio bezel, connect & install the new switch, and install the new bezel. The antenna motor should work with the key tu… 1994 Ford Crown Victoria - Push the insulation & wheelwell back into place, replace the wheel, and you're DONE!
