This album shows the '92-96 legacy Archive DVD, but this procedure applies to the '92-03 CDs as well. For instructions on using the '96-08 DVDs, see this album:


The data is stored in a proprietary format (*.ARC) which can't be opened except through the INCLUDED GUI, and from there, it's easy to print/copy/save. Place the disk in the drive that you plan to use every time - the GUI will only look for it in the same drive letter that it was installed from. Alternatively, the disk's entire contents (also available here) can be copied to the root directory of a drive letter on the computer, or mounted to a virtual drive using DaemonTools. Another option is to copy it to a USB flash drive. There can be other folders on that drive letter, but only one service disk, and it MUST be in the root. From the disk's root directory, run Setup.EXE .

Here are the 20 Ford/L/M (North America) CDs I have:
2002 & '03 Cars
2002 Trucks & Vans
2001 Cars v08
2000 & '01 Trucks & Vans v12
2000 F-650 & 750 v01 (included on '00-01 T&V)
2000 Cars v12
1999 Trucks & Vans v13
1999 Cars v12
1998 Trucks & Vans v11
1998 Cars v14
1997 Trucks & Vans v15
1997 Cars v15
1996 Trucks & Vans v17
1996 Cars v18
1995 Trucks & Vans v11
1995 Cars v11
1993 & '94 Trucks & Vans v11
1993 & '94 Cars v10
1992 Cars, Trucks, & Vans v5.0
I also have the '89-00 TSB CD v02, but installing it on the same computer as the service discs causes problems. I don't know why.

These DVDs contain ALL the same info as on the 19 CDs above, except '03 Cars:
'92-96 Archive (June 01) no TSBs or FSAs
'96-02 Archive v5.0 (April 06) no TSBs or FSAs

Getting these disks to run under Win7 or later requires some extra steps, and someone else is working on compiling those instructions. I don't know about Linux or other OSs.

It's still worth having a Haynes:



KEEP READING THE NEXT DOZEN PAGES...

Share This
Url
Tag
Thumb

ServiceDVDInstall31.jpg | Hits: 2016 | Size: 36.03 KB | Posted on: 10/15/08 | Link to this image

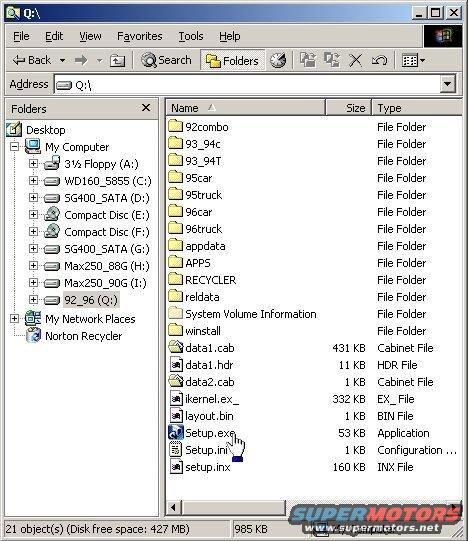

After running Setup.EXE from the drive letter that you will want to use permanently, follow the on-screen instructions.

Share This
Url
Tag
Thumb

ServiceDVDInstall32.jpg | Hits: 1754 | Size: 37.74 KB | Posted on: 10/15/08 | Link to this image


Follow the on-screen instructions.

Share This
Url
Tag
Thumb

ServiceDVDInstall33.jpg | Hits: 1566 | Size: 34.67 KB | Posted on: 10/15/08 | Link to this image


The final folder name can be changed, but there will be fewer glitches if it stays in C:\\Ford\\

Share This
Url
Tag
Thumb

ServiceDVDInstall34.jpg | Hits: 1532 | Size: 31.87 KB | Posted on: 10/15/08 | Link to this image

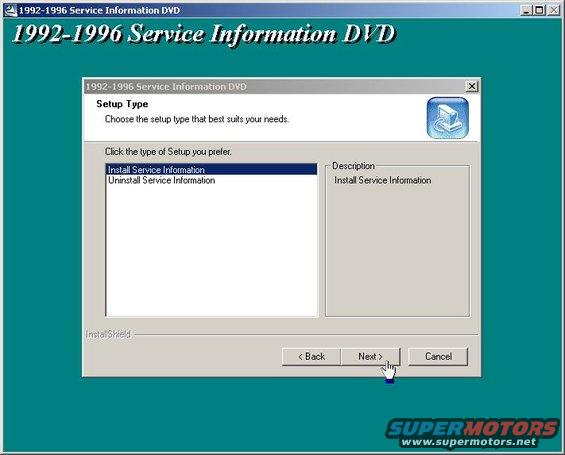

Follow the on-screen instructions.

Share This
Url
Tag
Thumb

ServiceDVDInstall35.jpg | Hits: 1473 | Size: 39.14 KB | Posted on: 10/15/08 | Link to this image

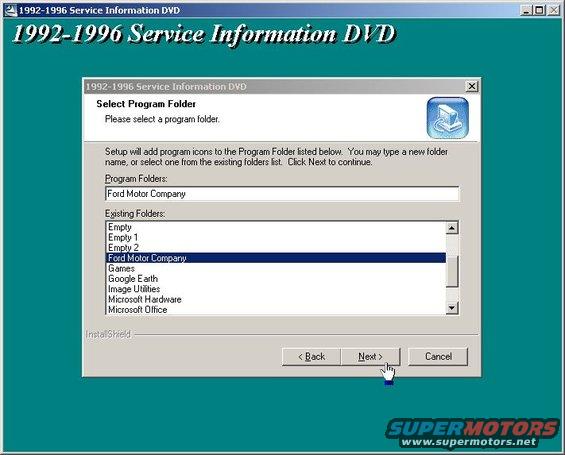

Select a START menu folder for the shortcut. A shortcut will also be added to the desktop.

Share This
Url
Tag
Thumb

ServiceDVDInstall36.jpg | Hits: 1417 | Size: 20.52 KB | Posted on: 10/15/08 | Link to this image


Follow the on-screen instructions. If the application doesn't start, run it from the desktop or START menu. The source disk MUST be in the same drive it was installed from for the application to find the data.

Getting these disks to run under Win7 or later requires some extra steps, and someone else is working on compiling those instructions. I don't know about Linux or other OSs.

Share This
Url
Tag
Thumb

ServiceDVDInstallation37.jpg | Hits: 1577 | Size: 55.77 KB | Posted on: 10/15/08 | Link to this image

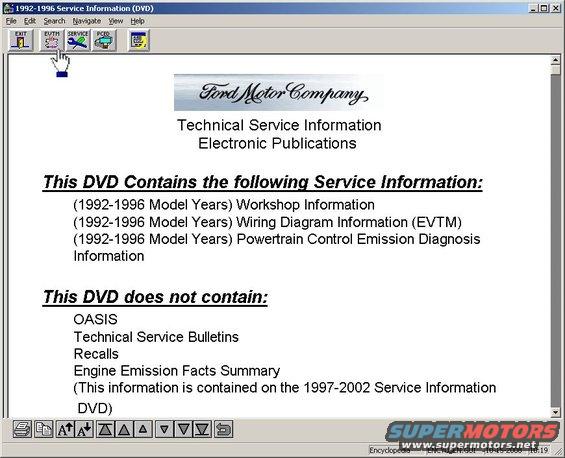

For this example, the symptoms on a '96 Bronco are:
1) turn signal stalk doesn't move normally
2) turn signals don't work but hazards, wipers, & hi-beams do
3) rear defrost doesn't work, but the switch is illuminated when the parking lights are on
4) fuse #7 in the dash burns immediately when the key is in RUN

The defrost seems like the easiest to fix, so start with the EVTM.

Share This
Url
Tag
Thumb

ServiceDVDInstallation38.jpg | Hits: 1405 | Size: 49.43 KB | Posted on: 10/15/08 | Link to this image

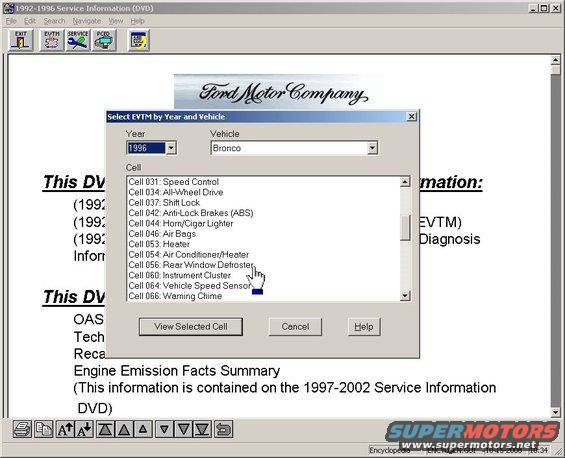

A dialogue opens allowing the vehicle & EVTM cell to be selected. Double-clicking the cell name is equivalent to clicking the cell to select, then clicking "View Selected Cell".

Share This
Url
Tag
Thumb

ServiceDVDInstallation39.jpg | Hits: 1404 | Size: 48.08 KB | Posted on: 10/15/08 | Link to this image

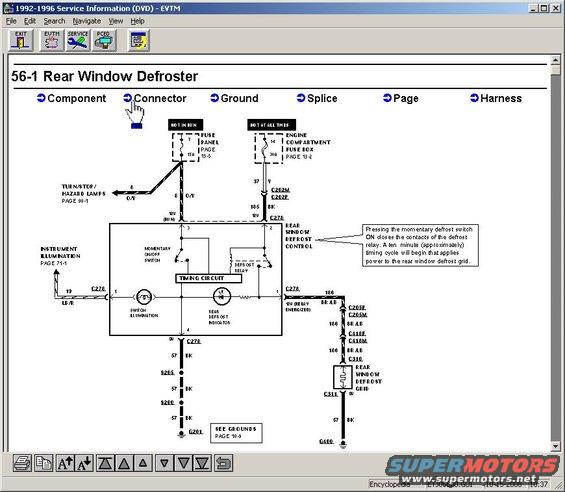

The entire cell is shown on one browser page. The slider on the R side will scroll down to subsequent cell pages, but in this case, there is only one.

Using this diagram, it's obvious why the defrost switch illumination still works: it's fed from the instrument panel circuit, and merely grounds through the defrost switch. Since the defrost doesn't come on, but the ground obviously works, the fuses are suspicious. To check power in the connector, the pinout is needed, so note the connector number of the wires in question (C278 for all 5 wires) & click "Connector".

Share This
Url
Tag
Thumb

ServiceDVDInstallation40.jpg | Hits: 1442 | Size: 28.17 KB | Posted on: 10/15/08 | Link to this image


A list of all connectors shown in the source cell appears. Scrolling up or down will show the lists of components, grounds, splices, & referenced pages.

To check the defrost switch connector, click its number.

Share This
Url
Tag
Thumb

ServiceDVDInstallation41.jpg | Hits: 1513 | Size: 27.58 KB | Posted on: 10/15/08 | Link to this image


The connector's location appears. This particular connector does not include a diagram - just a text description. It has 5 terminals and is molded from Natural-colored plastic. To see the pinout, click "Connector". Some connector pinouts (including most with 3 or fewer terminals) are not shown.

Share This
Url
Tag
Thumb

ServiceDVDInstallation42.jpg | Hits: 1480 | Size: 42.27 KB | Posted on: 10/15/08 | Link to this image


Pins 2 & 3 are the suspect terminals. After testing with a voltmeter or 12V test light with the key OFF and in RUN, it is found that pin 3 is never hot.

To trace that circuit, hit ESCAPE or click the back button 2x to return to the defroster cell.

Share This
Url
Tag
Thumb

ServiceDVDInstallation43.jpg | Hits: 1516 | Size: 48.1 KB | Posted on: 10/15/08 | Link to this image


Fuse 7 is the feed for pin 3, and its details are shown on page 13-3, so click PAGE, then click 13-3 from the list.

Share This
Url
Tag
Thumb

ServiceDVDInstallation44.jpg | Hits: 1610 | Size: 70.32 KB | Posted on: 10/15/08 | Link to this image


Since the fuse burns, it obviously has power coming from the battery, so this diagram doesn't help. But the circuit is continued on page 13-10, so click PAGE again and go there. Alternatively, since the target page is in this same cell, the RHS scroll bar can be used to find that page.

Share This
Url
Tag
Thumb

ServiceDVDInstallation45.jpg | Hits: 1475 | Size: 56.74 KB | Posted on: 10/15/08 | Link to this image


There are no splices or connectors in the circuit, but fuse 7 also feeds the turn signals, which are another symptom, so explore that circuit by clicking COMPONENT.

Share This
Url
Tag
Thumb

ServiceDVDInstallation46.jpg | Hits: 1450 | Size: 44.95 KB | Posted on: 10/15/08 | Link to this image

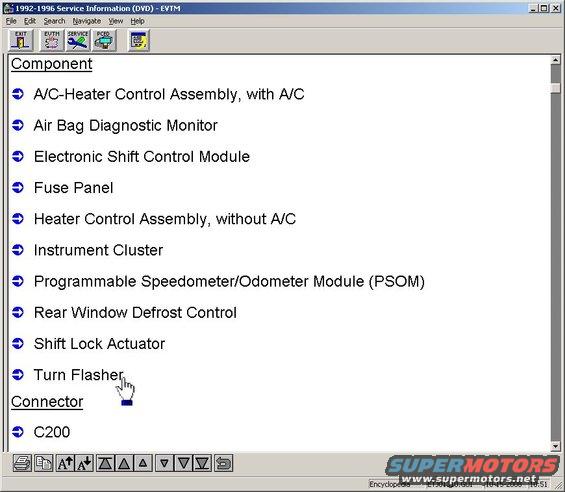

Click Turn Flasher to view the cell containing it.

Share This
Url
Tag
Thumb

ServiceDVDInstallation47.jpg | Hits: 1448 | Size: 69.81 KB | Posted on: 10/15/08 | Link to this image


Following the circuit down (toward ground), it passes through the MFS, which is another symptom. It's also a known problem, so it's reasonable to think the bad MFS might be the source of ALL the symptoms.

Share This
Url
Tag
Thumb

ServiceDVDInstallation48.jpg | Hits: 1486 | Size: 69.9 KB | Posted on: 10/15/08 | Link to this image


Since the wires in question pass through C231, find the pinout for that connector.

Share This
Url
Tag
Thumb

ServiceDVDInstallation49.jpg | Hits: 1417 | Size: 28.39 KB | Posted on: 10/15/08 | Link to this image

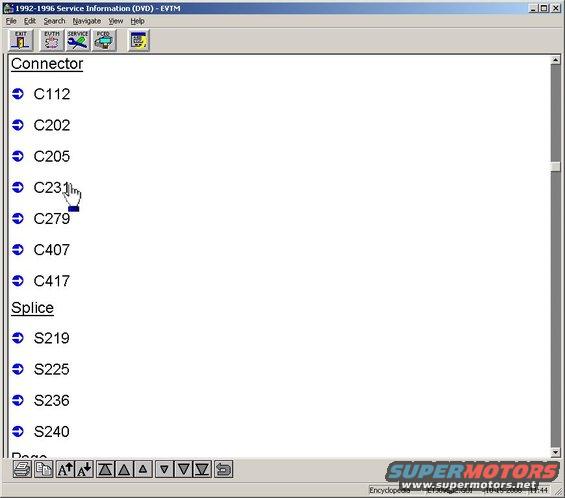

Click C231

Share This
Url
Tag
Thumb

ServiceDVDInstallation50.jpg | Hits: 1555 | Size: 69.76 KB | Posted on: 10/15/08 | Link to this image

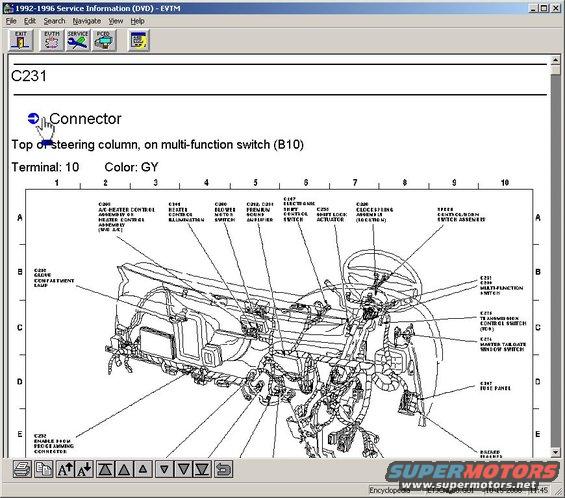

Click Connector to see the pinout.

Share This
Url
Tag
Thumb

ServiceDVDInstallation51.jpg | Hits: 1398 | Size: 46.28 KB | Posted on: 10/15/08 | Link to this image


Remembering that this view is INTO the face of the connector, it will be a mirror-image of the view into the component.

To learn how to remove the MFS, open the service manual.

Share This
Url
Tag
Thumb

ServiceDVDInstallation52.jpg | Hits: 1499 | Size: 50.16 KB | Posted on: 10/15/08 | Link to this image


In the dialogue box, select the vehicle again. The MFS is inside the steering column, so go to the steering group.

Share This
Url
Tag
Thumb

ServiceDVDInstallation53.jpg | Hits: 1366 | Size: 53.68 KB | Posted on: 10/15/08 | Link to this image

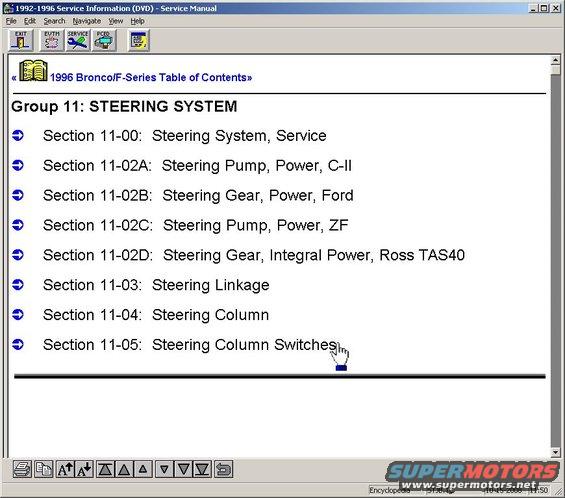

Click Steering Column Switches.

Share This
Url
Tag
Thumb

ServiceDVDInstallation54.jpg | Hits: 1377 | Size: 48.84 KB | Posted on: 10/15/08 | Link to this image

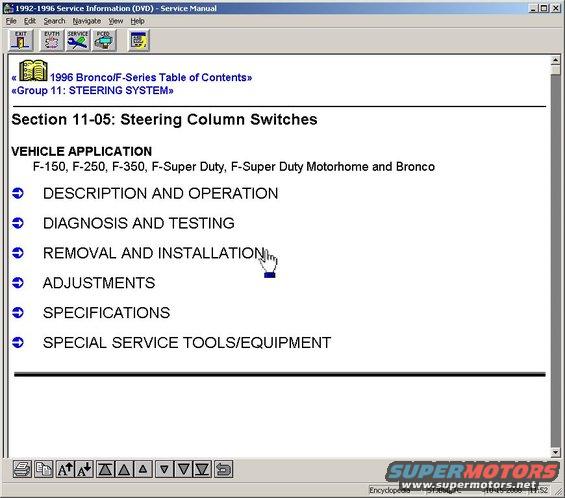

Click Removal and Installation.

Share This
Url
Tag
Thumb

ServiceDVDInstallation55.jpg | Hits: 1419 | Size: 38.79 KB | Posted on: 10/15/08 | Link to this image

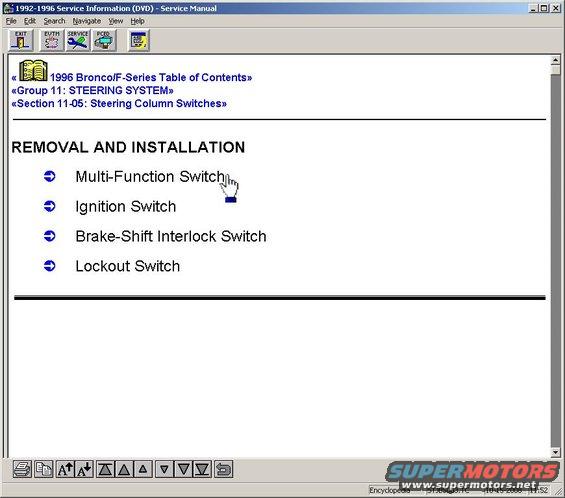

Click MFS.

Share This
Url
Tag
Thumb

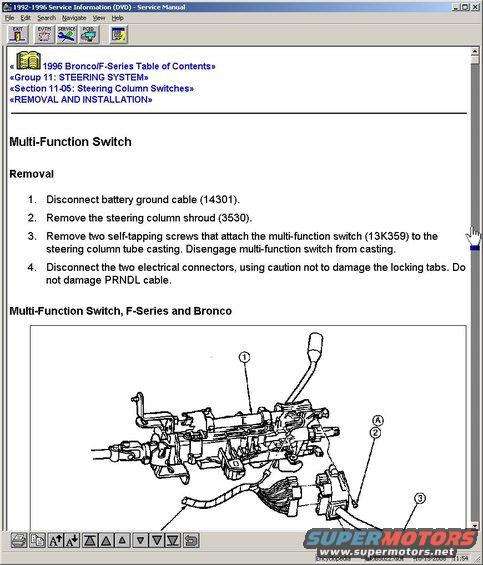

ServiceDVDInstallation56.jpg | Hits: 1310 | Size: 58.49 KB | Posted on: 10/15/08 | Link to this image


Follow the instructions to gain access to the MFS pins.

After testing continuity, it is found that pin 1 on the MFS is always shorted to pins 2, 5, 8, & 10 indicating a bad MFS. With the MFS removed, fuse 7 does not burn & the rear defrost works, confirming the diagnosis. Installing a known-good MFS will complete the repair, so test the replacement part BEFORE installation, EVEN if it's new.

Use the slider bar to scroll down the page to see installation instructions.

For instructions on using the later DVDs, see this album:


Getting these disks to run under Win7 or later requires some extra steps, and someone else is working on compiling those instructions. I don't know about Linux or other OSs.

Share This
Url
Tag
Thumb

Fuse8IP94Bronco.jpg | Hits: 3010 | Size: 47.99 KB | Posted on: 1/30/05 | Link to this image


1994 IP Fuse 8

Share This
Url
Tag
Thumb

RKEDiagStart.jpg | Hits: 2705 | Size: 80.41 KB | Posted on: 10/17/05 | Link to this image


RKE Diagnostic Step 1

Share This
Url
Tag
Thumb

HDMirrorConnectors03.jpg | Hits: 2037 | Size: 34.65 KB | Posted on: 11/3/05 | Link to this image

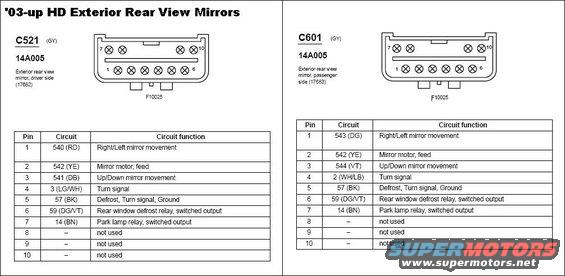

Connectors for '03-up HD side mirrors

Share This
Url
Tag
Thumb

HeadlightC205ab-04F250.jpg | Hits: 2154 | Size: 59.22 KB | Posted on: 1/13/06 | Link to this image

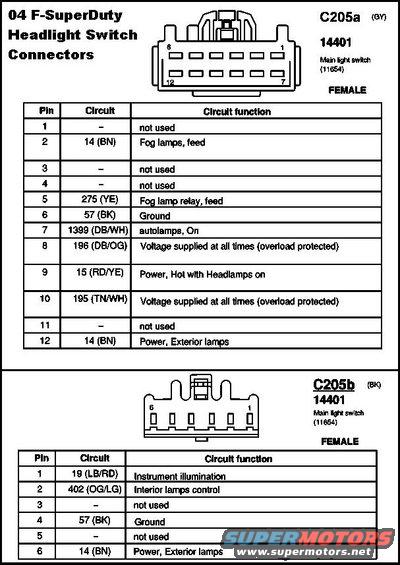

Headlight Connectors 04 SD

Share This
Url
Tag
Thumb

HeadlightC273,4-99F250.jpg | Hits: 2021 | Size: 27.5 KB | Posted on: 1/14/06 | Link to this image


99 SuperDuty Headlight Connectors

Share This
Url
Tag
Thumb

ACVacuum97.jpg | Hits: 3458 | Size: 58.27 KB | Posted on: 2/1/06 | Link to this image


A/C Vacuum 97 F150

Share This
Url
Tag
Thumb

Starter99F150.JPG | Hits: 2745 | Size: 80.34 KB | Posted on: 1/6/07 | Link to this image

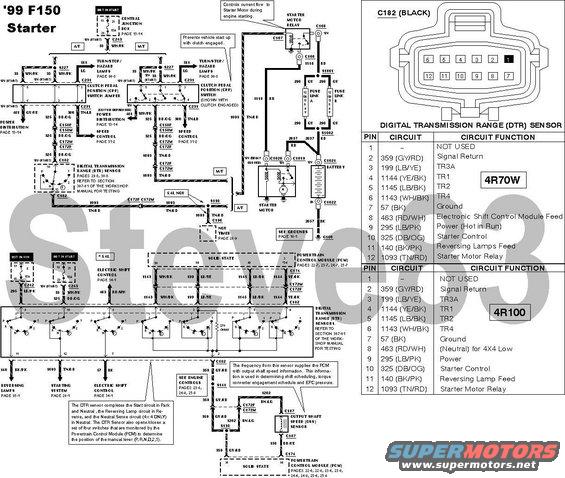

99 F150 Starter Circuit
