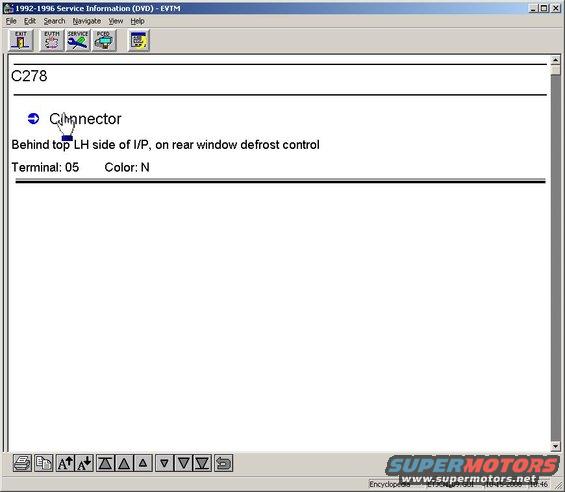

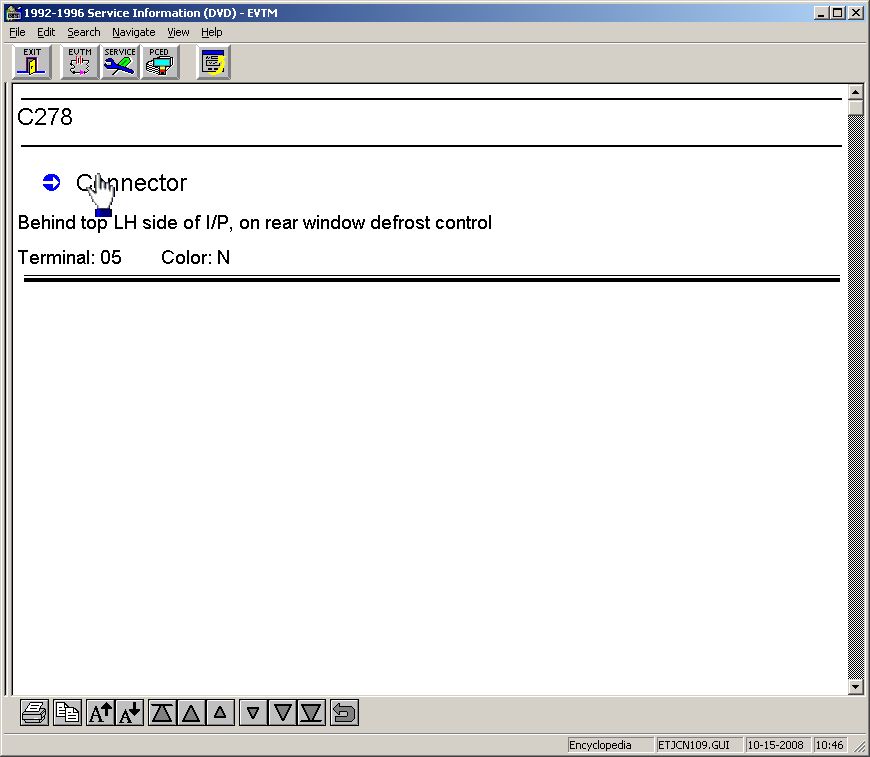

The connector's location appears. This particular connector does not include a diagram - just a text description. It has 5 terminals and is molded from Natural-colored plastic. To see the pinout, click "Connector". Some connector pinouts (including most with 3 or fewer terminals) are not shown.
