Album section

Fuel System

From 1992 Jeep Wrangler “General Lee”, documented by 92GreenYJ.

33 photos
← Back to this vehicle

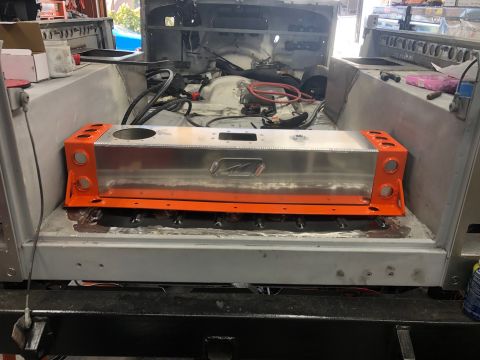

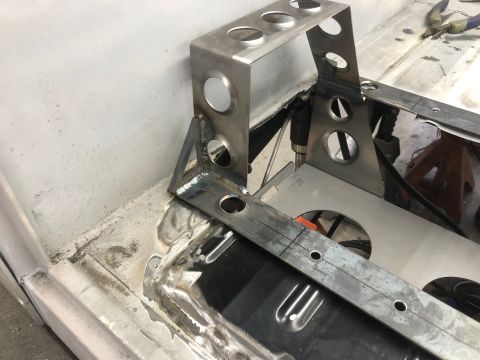

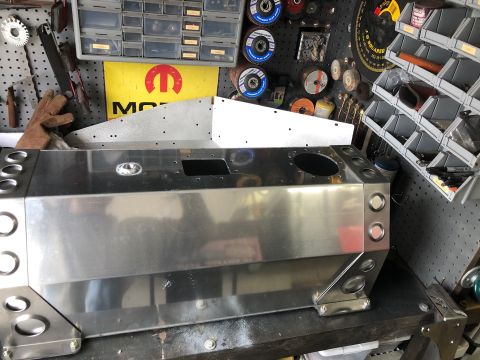

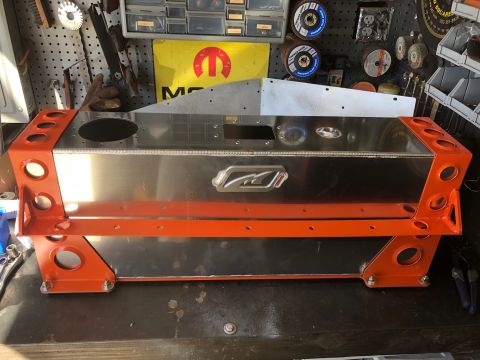

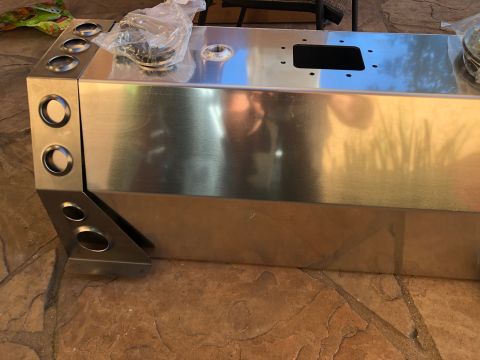

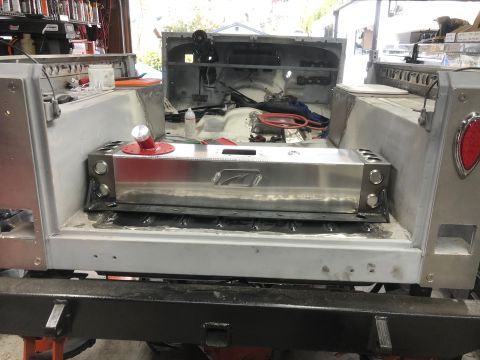

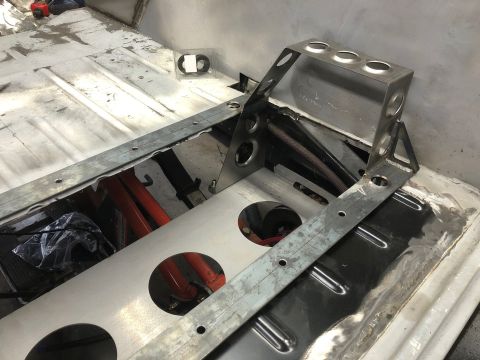

1992 Jeep Wrangler - A polished metal fuel tank with multiple circular cutouts is shown on a stone patio. The tank has a rectangular opening on its top surface… 1992 Jeep Wrangler - A custom-fabricated aluminum fuel tank sits on a workbench in a garage setting, surrounded by tools and automotive parts. The tank features… 1992 Jeep Wrangler - A custom-fabricated aluminum or stainless steel fuel tank or storage box is shown mounted on a workbench. The box has multiple circular cut… 1992 Jeep Wrangler - The interior of a vehicle under construction shows a custom metal fabrication in the floor area, likely for a transmission or transfer case… 1992 Jeep Wrangler - A custom metal bracket with circular cutouts is being welded to the floor of a vehicle. The bracket appears to be part of a fabrication pro… 1992 Jeep Wrangler - A custom metal fabrication is being installed inside a vehicle, likely for a roll cage or battery box. The fabrication features several cir… 1992 Jeep Wrangler - Underside view of a vehicle's chassis, showing suspension components, exhaust, and drivetrain parts. A metal plate with circular cutouts is… 1992 Jeep Wrangler - The rear interior of a Jeep Wrangler is shown with a large, polished aluminum fuel tank installed. The tank has a red fuel cap and is mount… 1992 Jeep Wrangler - A custom aluminum fuel tank is installed in the floor pan of a vehicle, with a red fuel filler cap visible on top. The vehicle's interior a… 1992 Jeep Wrangler - A custom aluminum fuel tank is installed in the bed of a vehicle, likely a Jeep Wrangler. The tank has multiple circular fittings on its si… 1992 Jeep Wrangler - Underside view of a vehicle showing a custom aluminum skid plate installed with numerous bolts and rivets. The skid plate features circular… 1992 Jeep Wrangler - A custom aluminum fuel tank with a red fill neck adapter is installed in the rear of a vehicle, positioned between two gray bucket seats. S… 1992 Jeep Wrangler - A close-up view shows a rectangular cutout in a brushed aluminum panel, surrounded by several silver screws. The cutout reveals a dark inte… 1992 Jeep Wrangler - Close-up of a vehicle's metal body panel showing welding repairs and threaded mounting points. The panel is a dark color with areas of silv… 1992 Jeep Wrangler - A close-up view of a Holley Sniper EFI fuel pump assembly with a float mechanism and wiring. The fuel pump is black with a red top and has… 1992 Jeep Wrangler - A person's hand holds a metal fuel pump sending unit with two black AN fittings and a black corrugated hose attached. The sending unit is s… 1992 Jeep Wrangler - A custom-built aluminum fuel tank with orange powder-coated end caps and support brackets is shown on a workbench. The tank features a prom… 1992 Jeep Wrangler - The rear interior of a vehicle build is shown, featuring a large, silver, rectangular fuel tank with orange metal brackets on each end. The… 1992 Jeep Wrangler - A close-up view of a fuel tank cap and a black elbow fitting attached to a red plate, bolted onto a silver aluminum fuel tank. An orange me… 1992 Jeep Wrangler - A close-up view of a red fuel cell cap assembly bolted to a brushed aluminum fuel tank. A black hose fitting is attached to the angled red… 1992 Jeep Wrangler - A close-up view shows a black hose connected to a red fuel cell cap on a silver fuel tank. The fuel tank is mounted with an orange bracket. 1992 Jeep Wrangler - A triangular metal bracket with several circular cutouts rests on a red metal toolbox. To the right, a black circular part with a flange an… 1992 Jeep Wrangler - A custom-fabricated metal bracket with three circular cutouts sits on top of a red metal surface, possibly a toolbox. To the right of the b… 1992 Jeep Wrangler - A custom metal part with two circular openings is placed on top of a red metal toolbox. The part appears to be a component for a vehicle mo… 1992 Jeep Wrangler - A close-up view of a custom metal bracket with multiple holes, attached to a vehicle's interior floor. A black rubber grommet is installed… 1992 Jeep Wrangler - A close-up view of the custom aluminum fuel tank and filler neck assembly being installed in a vehicle. The assembly includes a fuel filler… 1992 Jeep Wrangler - A close-up view of a custom fuel tank installation in a vehicle, featuring a red fuel cap, a silver sending unit, and black hoses. The tank… 1992 Jeep Wrangler - A close-up view of a custom fuel tank and filler neck assembly being installed in a vehicle. The assembly includes a red fuel filler adapte… 1992 Jeep Wrangler - A close-up view shows a custom fuel tank installation with a black hose connected to a red fuel filler cap on a metal tank. The surrounding… 1992 Jeep Wrangler - A custom fuel tank is installed in the rear of an orange-painted vehicle, likely undergoing modification. 1992 Jeep Wrangler - An aftermarket aluminum fuel tank is installed in the orange interior of a vehicle. 1992 Jeep Wrangler - Close-up of a Jeep tailgate with a circular cutout and the Jeep logo is visible. 1992 Jeep Wrangler - A hand is shown covering a black fuel filler cap installed on the rear panel of a Jeep.
