Dual front shocks/mounts

From 1995 Ford Bronco “Shadofax”, documented by Mark Zoelch.

26 photos
← Back to this vehicle

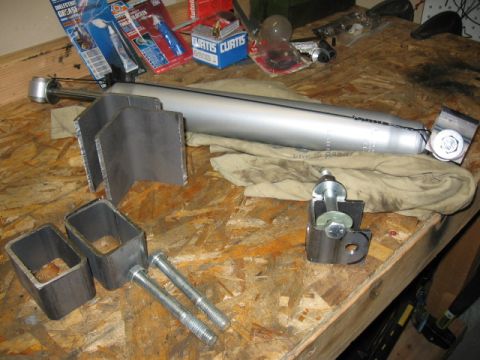

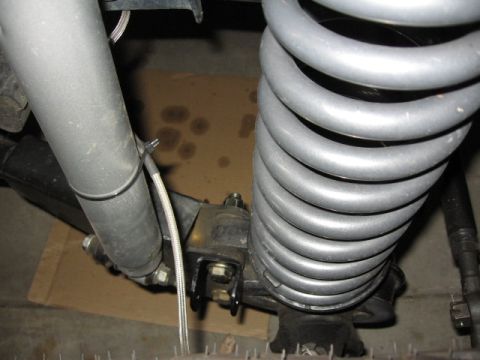

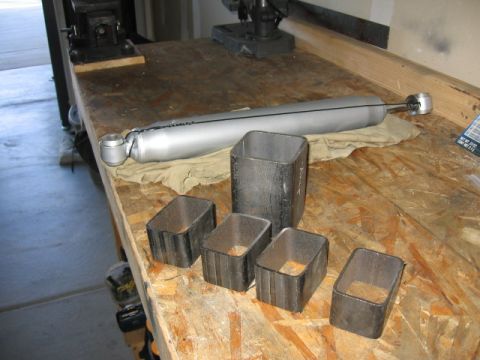

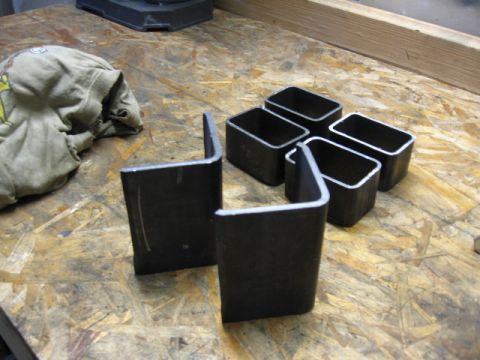

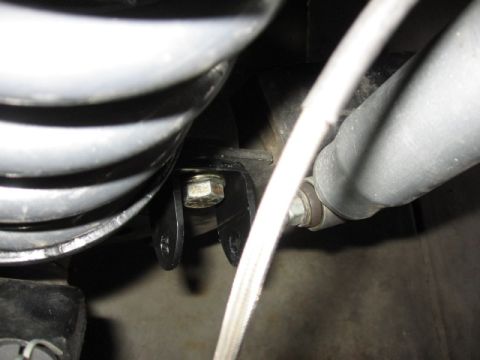

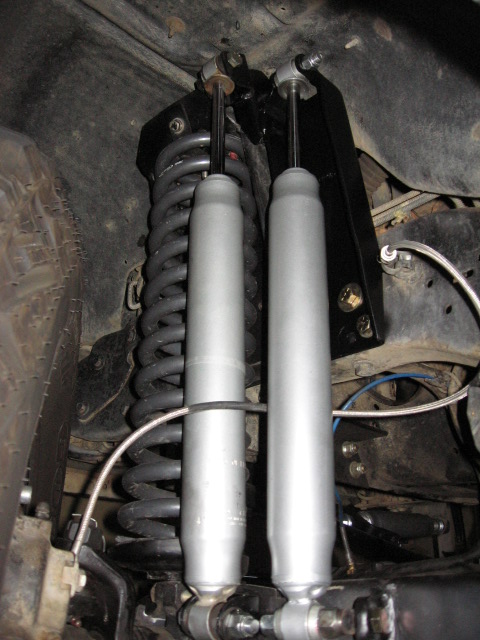

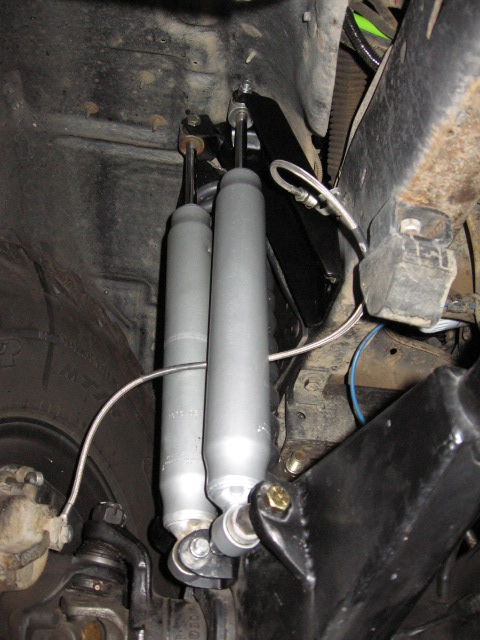

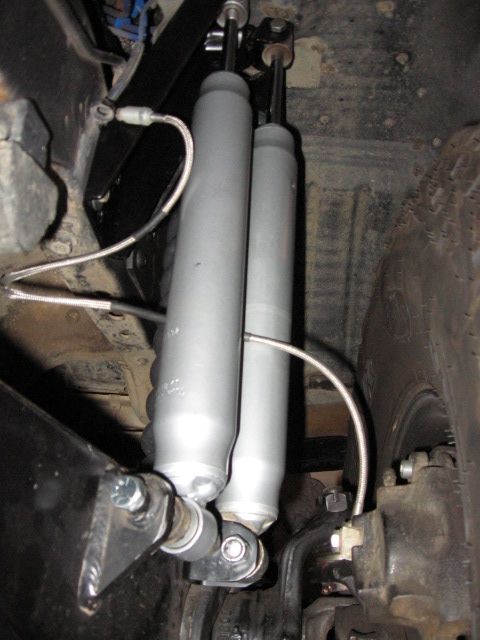

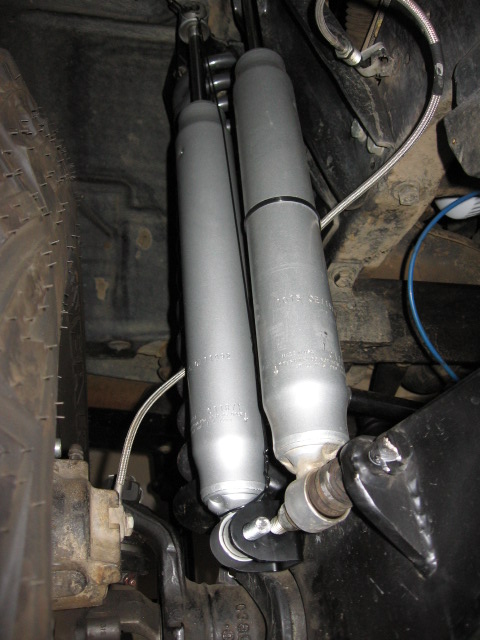

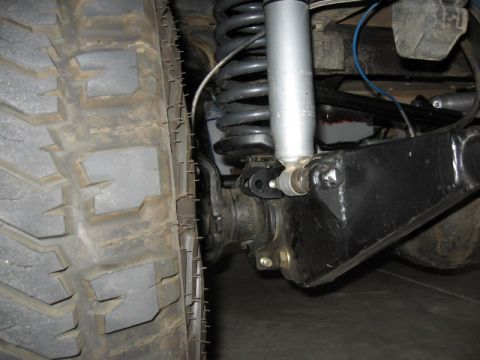

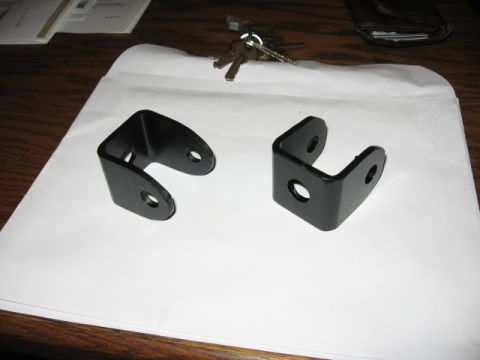

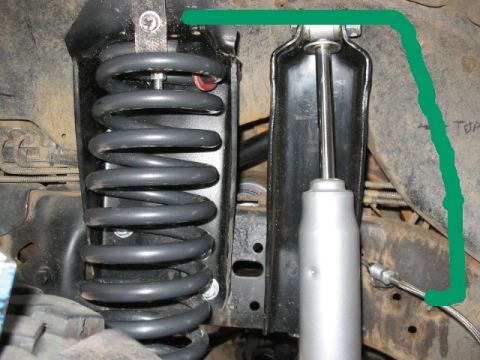

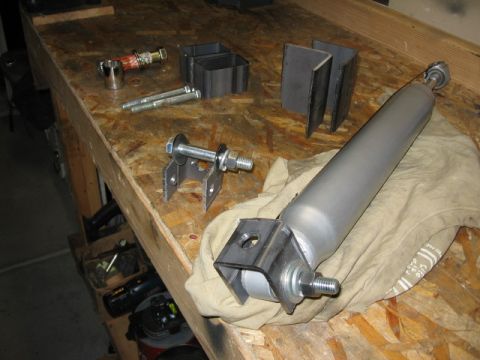

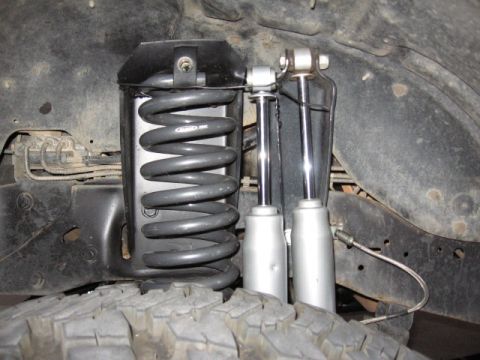

1995 Ford Bronco - Just a start here, long overdue, but finally put some thought into how to add this easily with little/no cost. More pics and explanation co… 1995 Ford Bronco - More pics coming. had to order a little steel, so patience and check back. Should get going on this with more pics in the next 2 weeks. 12-… 1995 Ford Bronco - working on the rough lower mounts. had to wait for some 2x3 .188 wall rectangular tube. 1995 Ford Bronco - A silver shock absorber or damper lies on a plywood workbench alongside fabricated steel mounting brackets, two square tubing sleeves, hex… 1995 Ford Bronco - lower mounts primed, painted, ready for install. 1995 Ford Bronco - bolted in the lower mount, just put a shock up to test fit here. 1995 Ford Bronco - more test fit. 1995 Ford Bronco - Close-up underside view of a suspension mount showing a coil spring with black-and-silver coating, a metal bracket with a gold zinc-plated… 1995 Ford Bronco - Close-up of a vehicle's rear suspension showing a silver coil spring on the right and a shock absorber with braided stainless steel line on… 1995 Ford Bronco - Close-up underbody view of a coil-spring front suspension showing a silver-bodied shock absorber mounted to a black lower control arm, with… 1995 Ford Bronco - testing turning radius to make sure nothing contacts, specifically the caliper. 1995 Ford Bronco - all clear, nothing will touch so it's on to the upper mount which are the 2 larger pieces of angle shown in 003.jpg above. Those need trimm… 1995 Ford Bronco - .188 U welded to a cut down piece of .188 angle, which in turn is welded all around onto the side of the ford shock tower, which is actuall… 1995 Ford Bronco - Underside view of a suspension component showing a chrome shock absorber shaft mounted to a black bracket, with a white-collared sway bar e… 1995 Ford Bronco - Close-up underside view of a suspension mount showing a black bracket with a hex bolt and a Torx-head bolt, alongside a chrome shock absorb… 1995 Ford Bronco - Underside view showing a pair of gray dual shock absorbers mounted vertically side-by-side, connected to black upper and lower brackets wit… 1995 Ford Bronco - so my original shock position in the ford tower leaves about 5 inches up travel, close to 9 down. The new one right next to the coil is a l… 1995 Ford Bronco - Underbody view of a coil spring and shock absorber mounted in a bracket, with a green hand-drawn line tracing a proposed shock hoop routing… 1995 Ford Bronco - thinking about fabricating superduty type shock mounts but dual shock, for the front, like these. 1995 Ford Bronco - Close-up of a black-painted fabricated steel bracket with a bare bright-metal upper plate and a bolt through its center, held up indoors fo… 1995 Ford Bronco - Close-up of a black metal roll bar or frame mount bracket with a white metal tab featuring a drilled hole, plus a visible bolt/screw head l… 1995 Ford Bronco - A freshly painted black fabricated bracket assembly held up in a garage doorway, showing a welded plate with a mounting tab and pivot hole… 1995 Ford Bronco - A freshly painted black suspension arm or bracket with mounting eyes and bolt holes, laid on white paper atop a wood table. Paperwork and a… 1995 Ford Bronco - A hand steadies a glossy black stamped-steel upper mount bolted to a welded lower bracket on a wooden table indoors. Fresh weld beads and b… 1995 Ford Bronco - Underside view of a suspension setup showing two silver coilover/shock bodies mounted side by side, with a dark gray coil spring behind and… 1995 Ford Bronco - Underbody view of a dual shock absorber setup, showing two gray/silver shocks mounted vertically between upper and lower bracket mounts. A…
