650 hits | 54.68 KB | Posted: 8/6/06

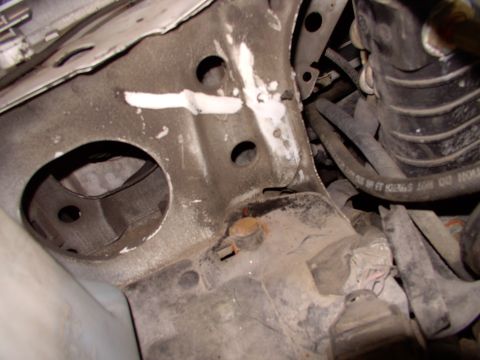

The space between the rad and the sheet metal bulkhead is almost big enough to allow a fresh air tub...

588 hits | 49.95 KB | Posted: 8/6/06

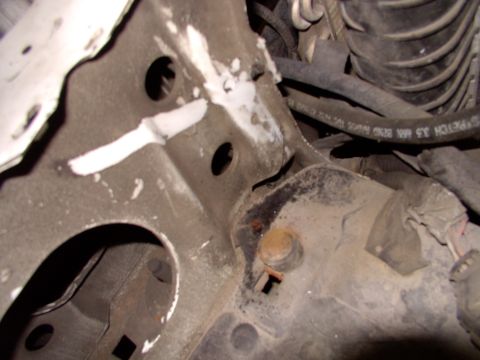

Everything below the white (clean) line on a slant is where the available airbox will accept the fre...

582 hits | 57.54 KB | Posted: 8/6/06

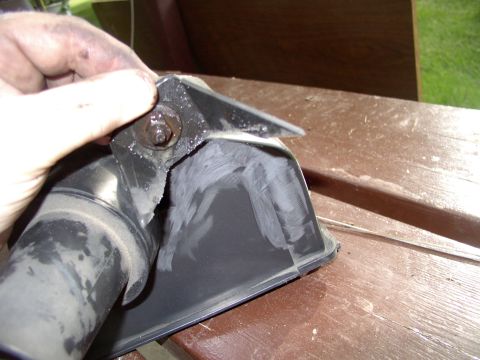

Speak of the devil, there's the busted isolation mount still attached to the tab I just sawed off.

538 hits | 47.94 KB | Posted: 8/6/06

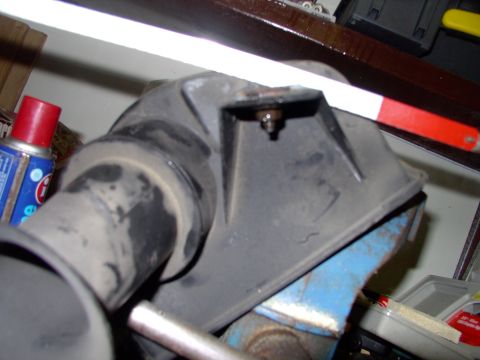

Sawing off the isolator mount tab is neither rocket science or difficult.

534 hits | 65.16 KB | Posted: 8/6/06

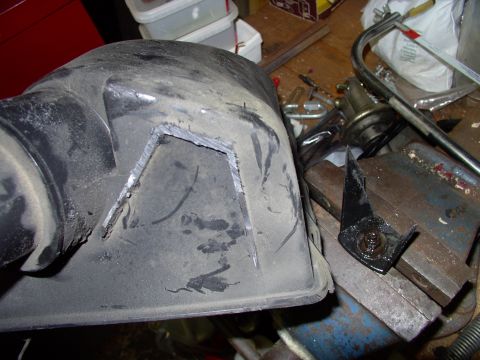

Leaving you with a bit of tab left to get rid of.

561 hits | 63.09 KB | Posted: 8/6/06

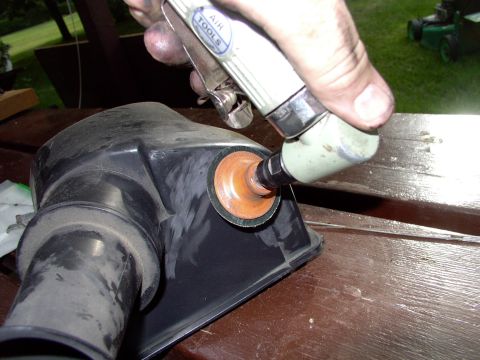

Getting rid of the remainder of the tab is fairly easy

542 hits | 51.79 KB | Posted: 8/6/06

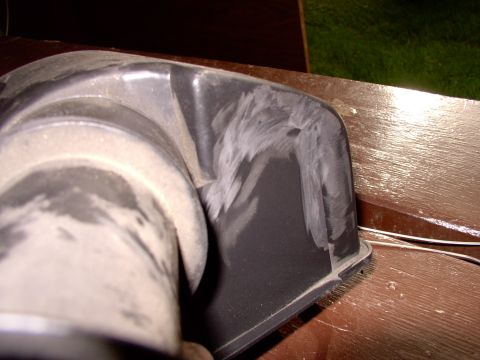

Smooth enough for our purposes

625 hits | 54.32 KB | Posted: 8/6/06

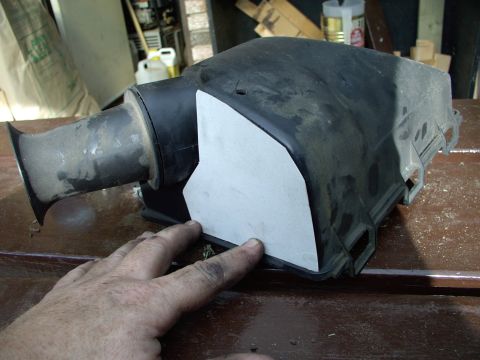

Good old cardboard template mocked up with scissors.

604 hits | 48 KB | Posted: 8/6/06

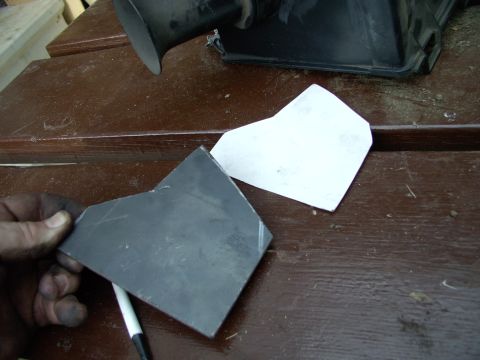

Transferred to mild (easy to work with)1/8" plate steel

575 hits | 65.59 KB | Posted: 8/6/06

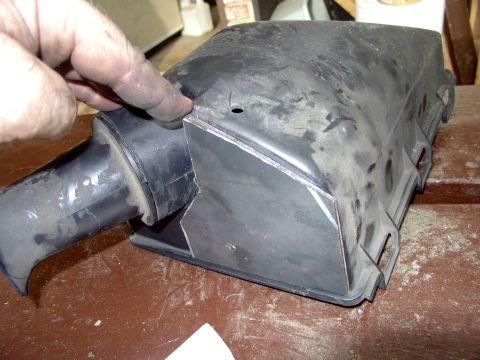

Plate ready to accept tubing (once a hole is cut into it).The small hole in the airbox is the drain ...

599 hits | 67.35 KB | Posted: 8/6/06

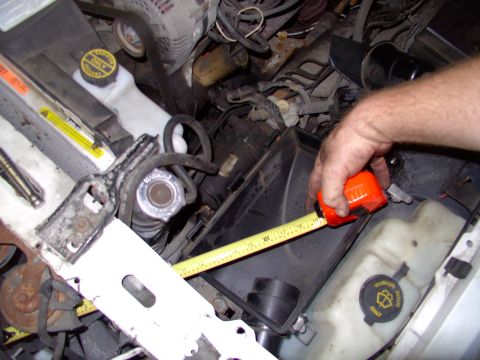

Getting the idea yet ?

632 hits | 71.41 KB | Posted: 8/6/06

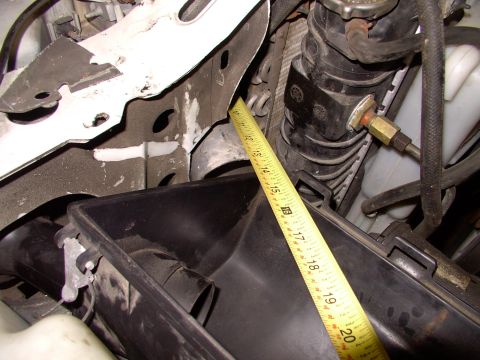

A little Sawzall work (see the cut out piece of sheetmetal on top of the support) and there's some r...
