9004 headlight relays

From 1990 Lincoln Town Car “Mileage Master” — documented by Sixlitre.

10 photos
← Back to this vehicle

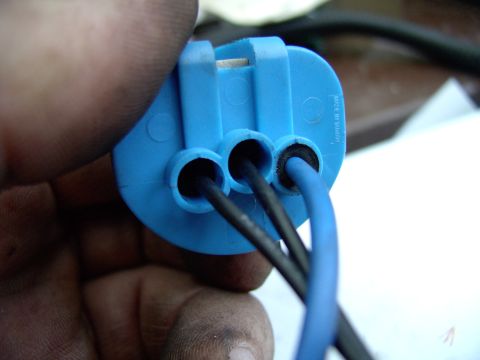

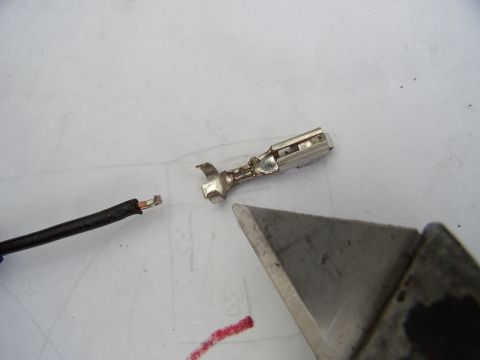

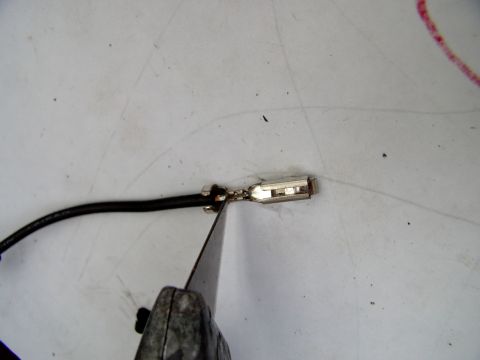

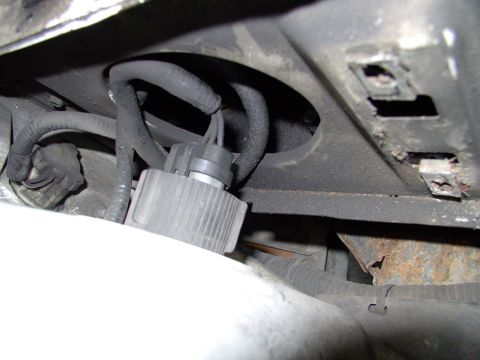

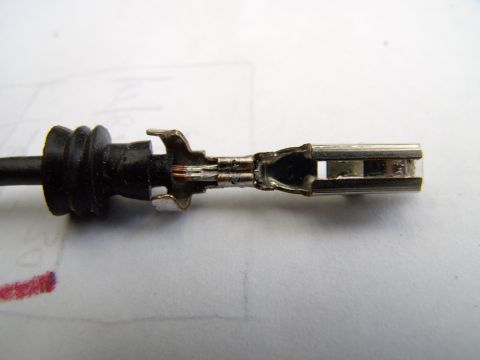

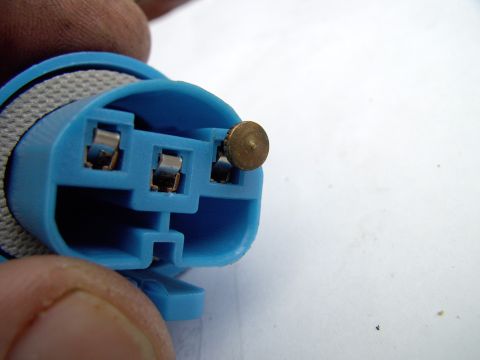

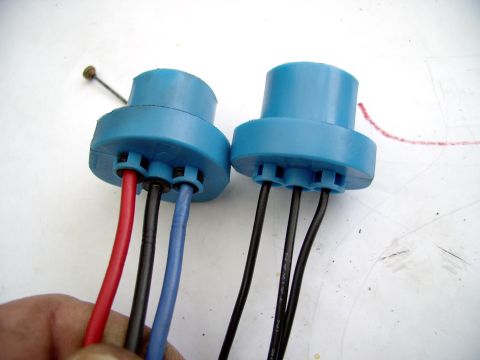

1990 Lincoln Town Car - I'm just about to upgrade my 9004s to Streetglow 80/100 bulbs and I didn't want to burn down the TC with these stock 18 gauge fed headlight… 1990 Lincoln Town Car - I wanted 12 gauge wires (left) all the way from the headlight pins to the battery (fused of course). Unfortunately all that's available are… 1990 Lincoln Town Car - Just stick a pin or nail into the top of each terminal and you'll depress the tang so you can just pull the wire, with terminal, out the ba… 1990 Lincoln Town Car - Pry open the tang. That will allow you to pull back the weatherpack style rubber grommet, out of the way and off for shortening and re use. 1990 Lincoln Town Car - There's no need to try to pry open the next tang as you'll never get 12 gauge wire to fit where the 18 gauge was. Just leave it and cut it… 1990 Lincoln Town Car - Press down with the carpet knife and just pull up on the wire and bend and break the rest of the strands. It's really easy this way. 1990 Lincoln Town Car - What you're left with is exactly what you're after, to solder the 12 gauge wire to. 1990 Lincoln Town Car - Slice the snout off the grommet, as the 10 gauge wire doesn't need the extra length. 1990 Lincoln Town Car - Slip the grommet over the new 10 gauge wire, crimp the outer tangs onto the wire and solder it solid. 1990 Lincoln Town Car - Quite the difference now, with the 10 gauge wire next to the two 18 gauge wires. They just push back in and "click" into place. If the tang…
