pa050077a.jpg | Hits: 407 | Posted on: 12/18/08 | View Low-Res

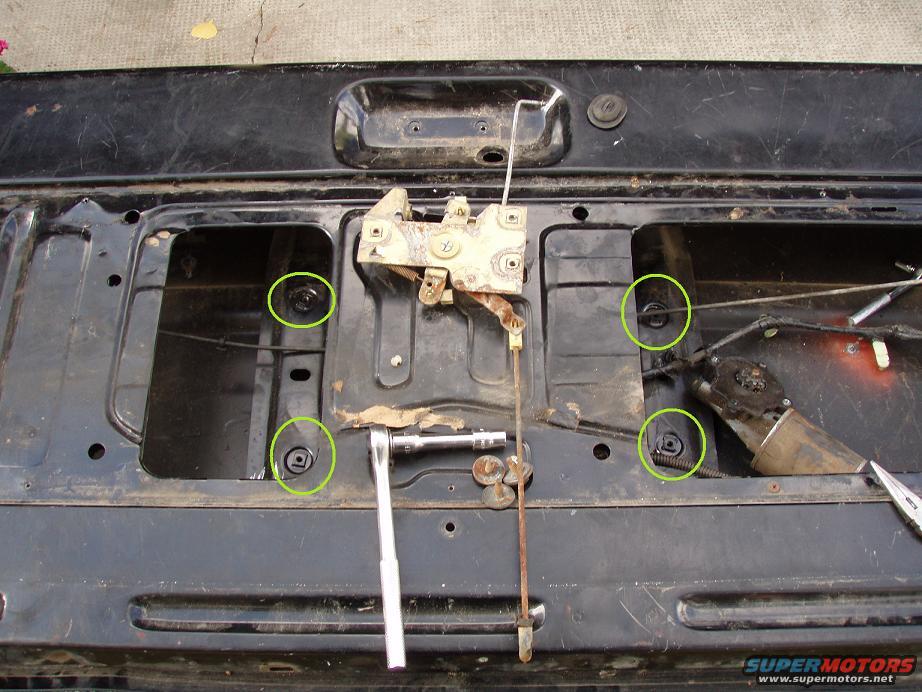

these are 4 of the 5 bolts you have to remove to get the motor, and swing arm mechanism out.

also, this is the latch mechanism (how it would look if it were bolted underneath)
