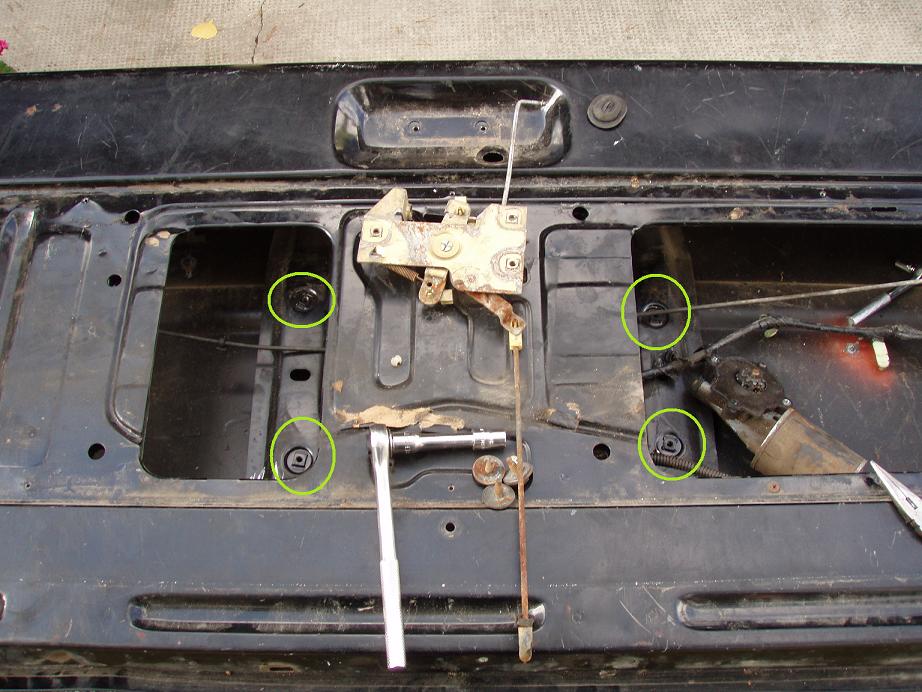

these are 4 of the 5 bolts you have to remove to get the motor, and swing arm mechanism out.

also, this is the latch mechanism (how it would look if it were bolted underneath)
