relay_headlight_circuit_schematic.jpg | Hits: 243 | Posted on: 6/7/13 | View Low-Res

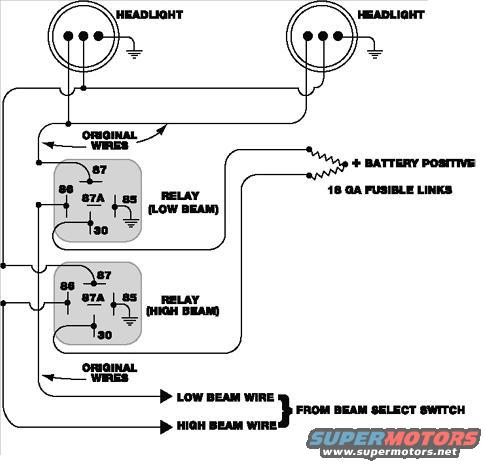

Here is the circuit diagram I used. I did NOT make this nor do I take credit for it. Here is where I got it from: http://www.67chevyii.com/tech/headlights/relay_headlight_circuit_schematic.jpg
