Corner lamp conversion to turn signals

From 2001 Ford Crown Victoria “Flying Snow” — documented by Embassy Vic.

16 photos 1 video
← Back to this vehicle

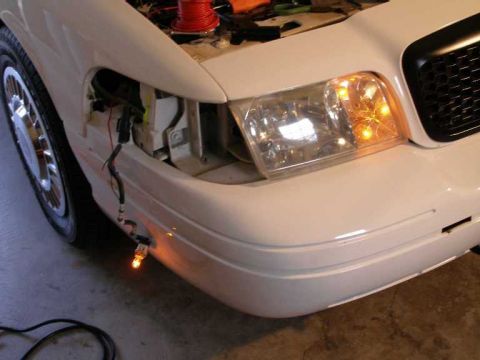

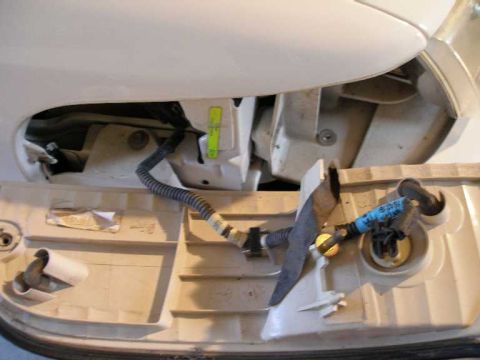

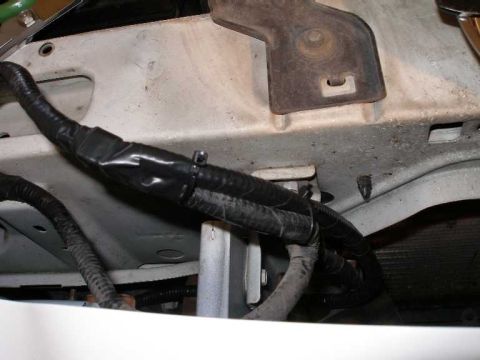

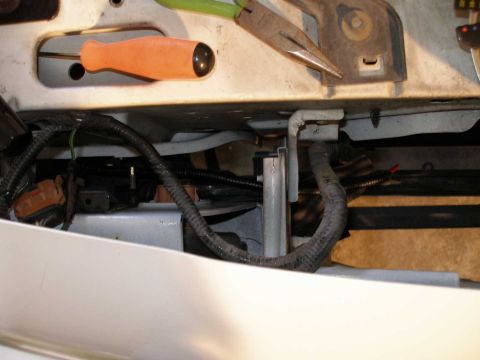

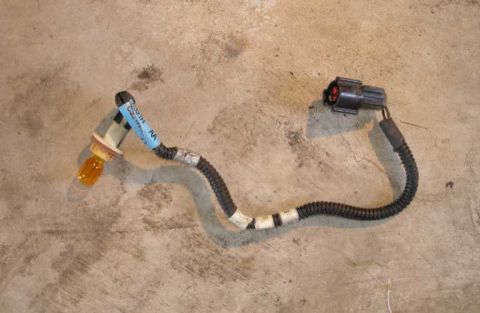

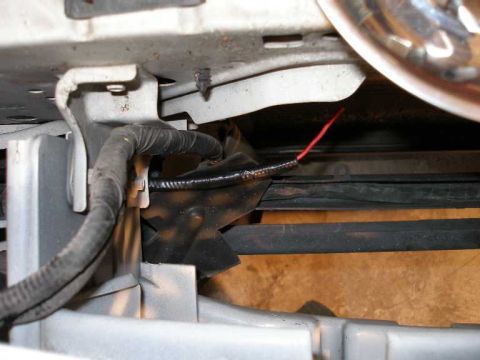

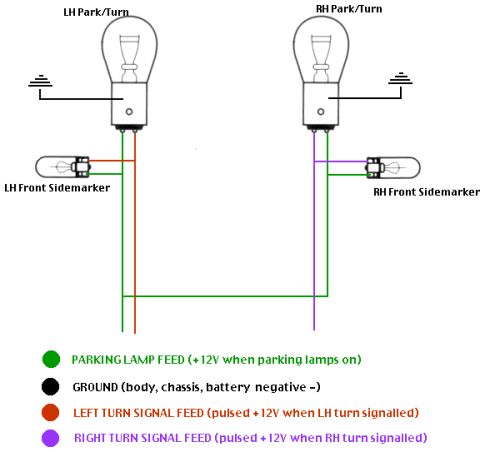

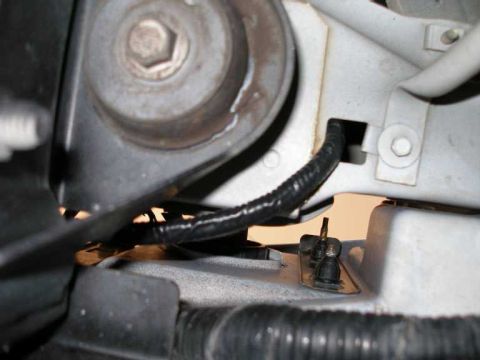

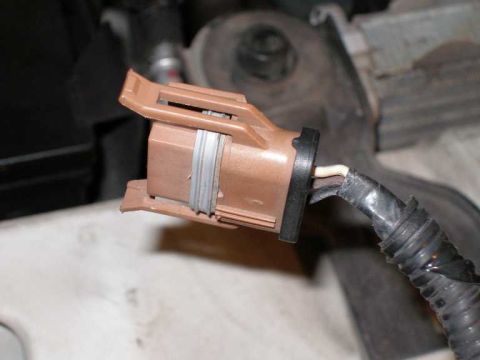

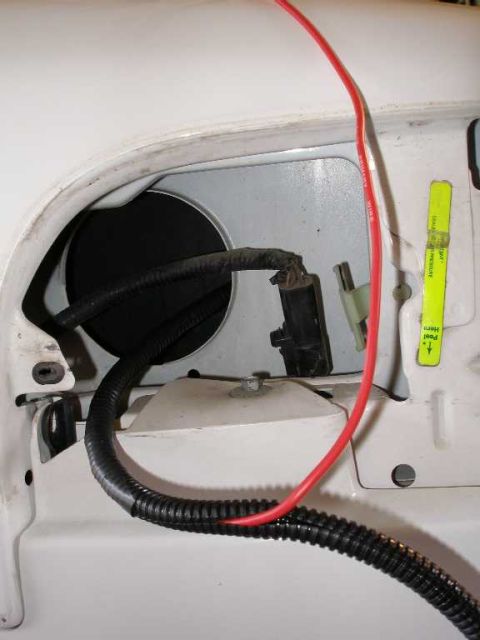

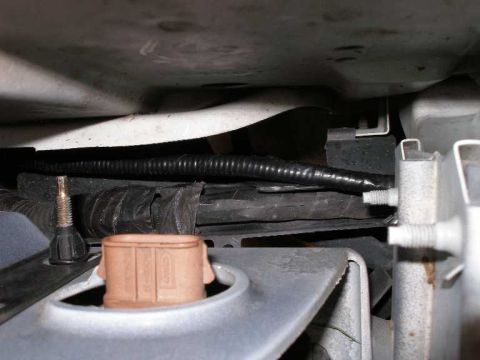

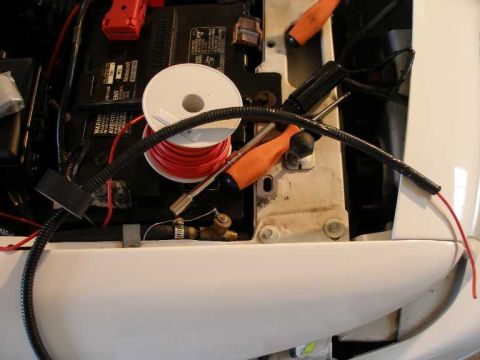

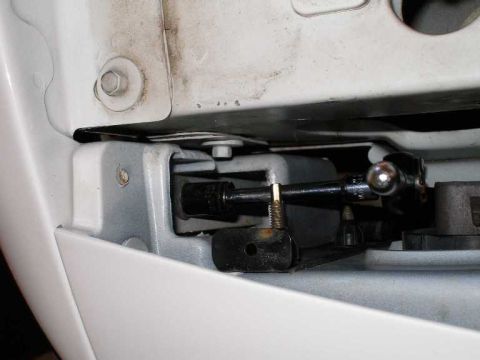

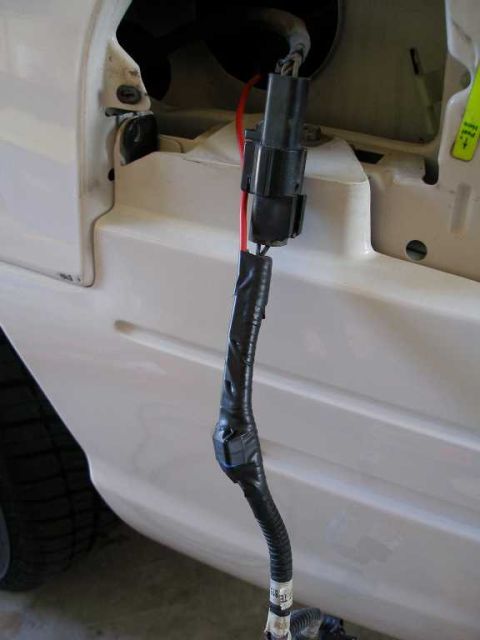

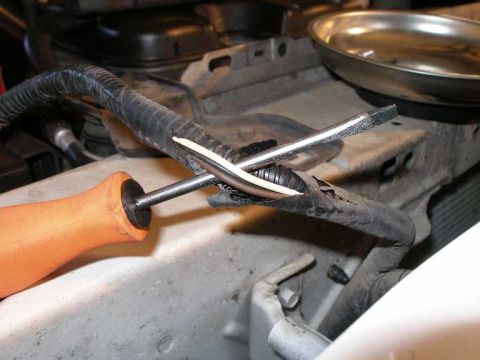

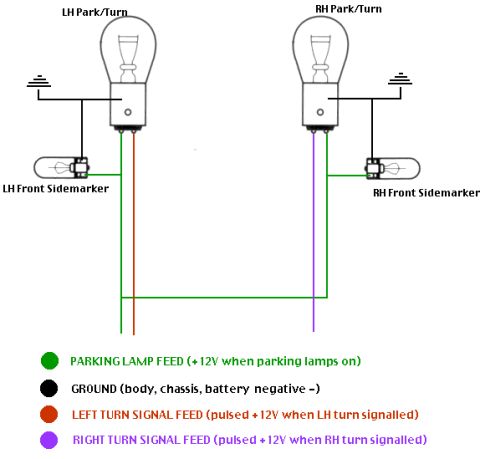

2001 Ford Crown Victoria - The corner/marker lamps on Crown Victorias does not act as turn signal, leaving no visible turn signal for traffic approching the vehicle f… 2001 Ford Crown Victoria - This diagram illustrates the wiring for two light bulbs, detailing their electrical connections. 2001 Ford Crown Victoria - First, the corner lamp must be removed. There is a nut, under the trim panel, that runs along the radiator support, that must be removed. 2001 Ford Crown Victoria - The back side of the corner lamp and its respective wiring. 2001 Ford Crown Victoria - Use a test light and a needle to determine which of the three wires is the turn signal. On my '01, the white wire on the passenger side har… 2001 Ford Crown Victoria - I used a knife to peel back the wiring loom to gain access to the correct turn signal wire. 2001 Ford Crown Victoria - I ran new wiring in a wire loom, wrapped up with electrical tape to ensure an OEM appearance. 2001 Ford Crown Victoria - The passenger side corner lamp harness, consisting of a brown wire and a black ground wire. It is the ground wire that needs to be cut and… 2001 Ford Crown Victoria - The new wiring, going in from the corner lamp's position. 2001 Ford Crown Victoria - I ran the wiring under the fender and up in front of the radiator support. 2001 Ford Crown Victoria - The new wiring can see seen. Look for the red wire. 2001 Ford Crown Victoria - The new wiring, passing by the turn signal connector. 2001 Ford Crown Victoria - The factory turn signal wiring can be seen in the lefthand corner of the picture. The new wiring is the red wire. 2001 Ford Crown Victoria - The new wire, spliced into the ground and before I cut the ground going back towards the frame. 2001 Ford Crown Victoria - The new wiring, spliced into the turn signal wiring, wrapped up with electrical tape and secured with zip ties. 2001 Ford Crown Victoria - It works. 2001 Ford Crown Victoria - Here's a vid, courtesy of Nell's Crown Victoria website, that shows the results of modification.Video
