Custom gauge cluster trim panel

From 2003 Mercury Marauder “Black Sunshine” — documented by Embassy Vic.

25 photos
← Back to this vehicle

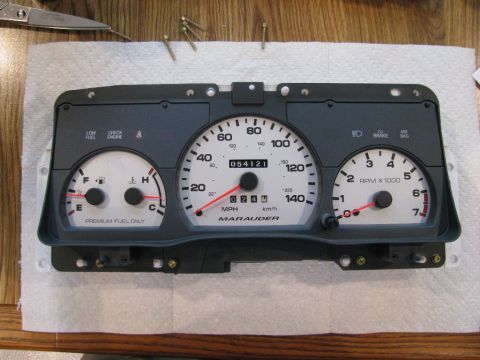

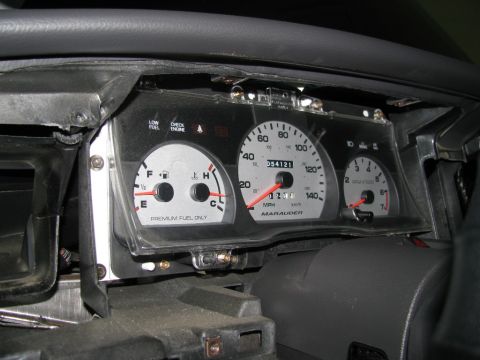

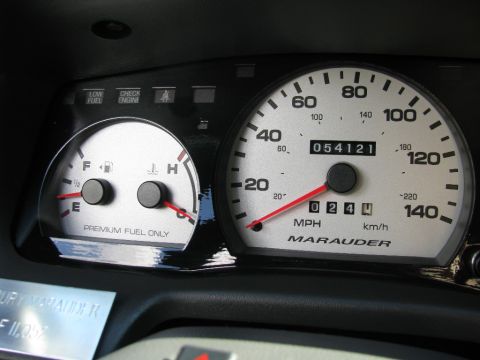

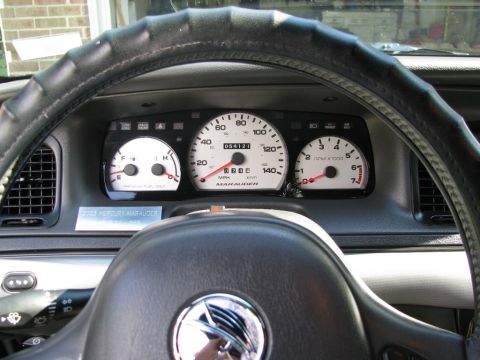

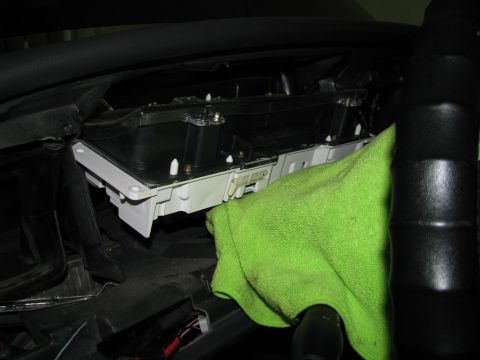

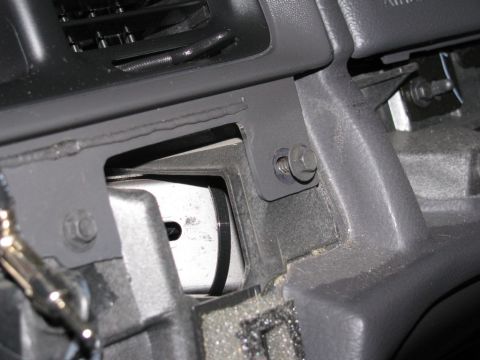

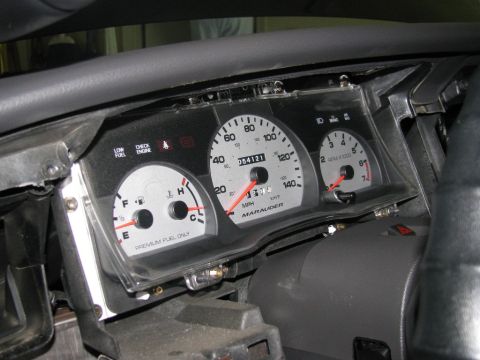

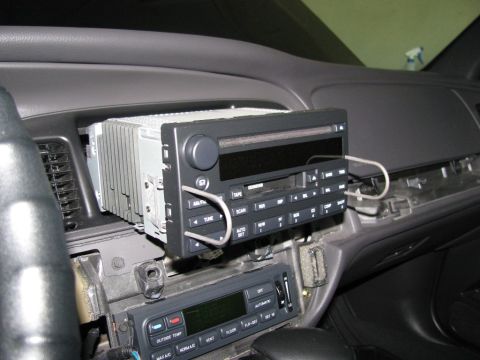

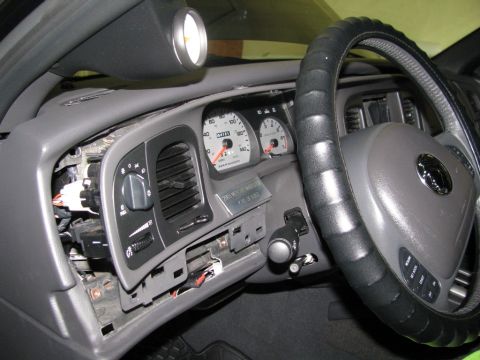

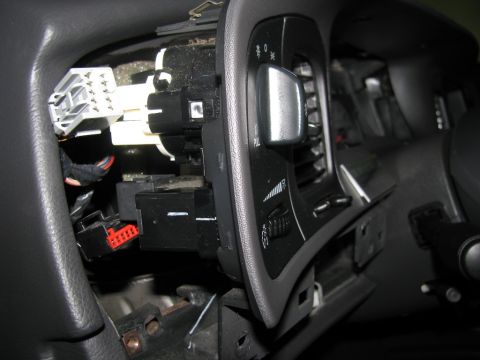

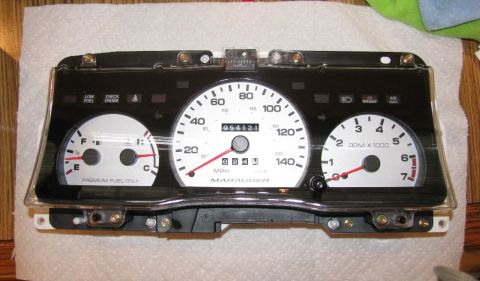

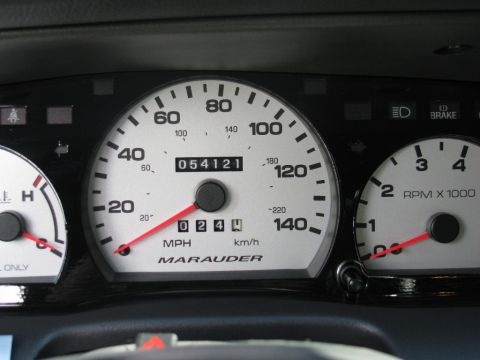

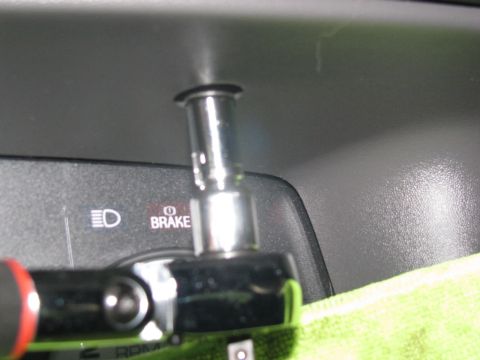

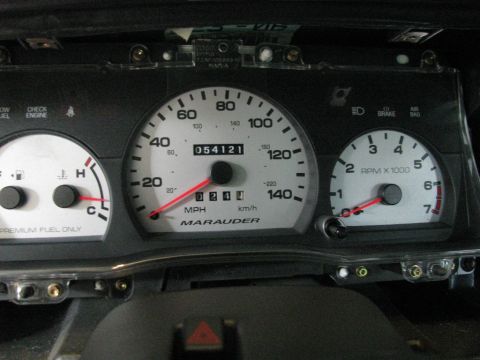

2003 Mercury Marauder - After removing the passenger side trim panel that runs between the head unit and temp controls, remove the head unit. 2003 Mercury Marauder - There are two 7mm screws going up into the dash from the gauge cluster panel. 2003 Mercury Marauder - More 7mm screws that must be removed to pull the gauge cluster/AC vent panel. 2003 Mercury Marauder - Removing the gauge cluster and A/C panel. 2003 Mercury Marauder - Disconnecting the headlamp and dimmer harnesses. Be sure to disconnect the battery or the headlamps with illuminate. 2003 Mercury Marauder - Four 7mm screws secure the gauge cluster. 2003 Mercury Marauder - Close-up of the instrument cluster gauges, including the speedometer, tachometer, and fuel gauge. 2003 Mercury Marauder - The gauge cluster displays 'Marauder' and mileage, but no year is visible. 2003 Mercury Marauder - Removal of the gauge cluster. Place a towel over the steering column to prevent scratching or marring. Two harnesses must be diconnected fr… 2003 Mercury Marauder - Several hex screws hold the clear plastic lense in place. This is a good time to use a plastic polish to clean this lense. Also, it''s a go… 2003 Mercury Marauder - The custom guage cluster trim panel, painted the same OEM black as the Marauder's exterior. 2003 Mercury Marauder - Double-sided trim adhesive applied. 2003 Mercury Marauder - Installed. 2003 Mercury Marauder - A vehicle's gauge cluster, identified as 'MARAUDER', is shown with its various dials and indicators. 2003 Mercury Marauder - With the now polished lense cover re-installed. 2003 Mercury Marauder - This a good time to replace all the instrument cluster bulbs. 2003 Mercury Marauder - Circuit board for a car's dashboard, showing the rear electronic components and wiring connections. 2003 Mercury Marauder - Random engine shots. 2003 Mercury Marauder - The engine bay of a black car is open, revealing a modified engine with a turbocharger and custom exhaust components. 2003 Mercury Marauder - Trunk badge. 2003 Mercury Marauder - Installed. The contrast between the gloss black trim panel and silver gauges is oustanding. 2003 Mercury Marauder - The gauge cluster displays the word MARAUDER, but no year is visible. 2003 Mercury Marauder - The custom gauge cluster trim panel for a Marauder features white-faced gauges with red needles and clear markings. 2003 Mercury Marauder - The gauge cluster for a 2003 Mercury Marauder shows the speedometer, odometer, and fuel/temperature readings. 2003 Mercury Marauder - The interior view shows the speedometer, tachometer, and fuel gauge of a 2003 Mercury Marauder.
