production 'Power By Ford' covers
early examples have drippers
|
|
production Ford 'oval' covers
|
|
first type Aus import D block covers
dimple on the corner is not a dent
|
|
AusDimpleRoundcorner.jpg | Hits: 432 | Size: 17.83 KB | Posted on: 10/26/10 | Link to this image
first type Aus import dimple cover with
round corners on the outline box
|
|
AusChamferSquare.jpg | Hits: 464 | Size: 21.16 KB | Posted on: 10/26/10 | Link to this image
2nd type Aus with chamfered corner
|
|
AusChamfSqCorners.jpg | Hits: 447 | Size: 57.79 KB | Posted on: 10/26/10 | Link to this image

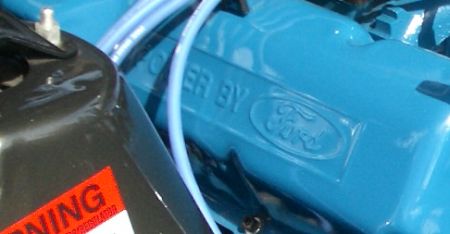

2nd type Aus chamfer cover with
square corners on outline box
|
|
USvsAusChamfer.jpg | Hits: 495 | Size: 50.15 KB | Posted on: 10/26/10 | Link to this image
comparison of US & Aus chamfers
|
|
stamped steel, stock height
|
|
ProForm 66720
polished steel? OEM style baffles
|
|
Spectre5263chrome.jpg | Hits: 505 | Size: 13.86 KB | Posted on: 10/16/10 | Link to this image
Spectre 5263 stamped steel chrome w/baffle
|
|

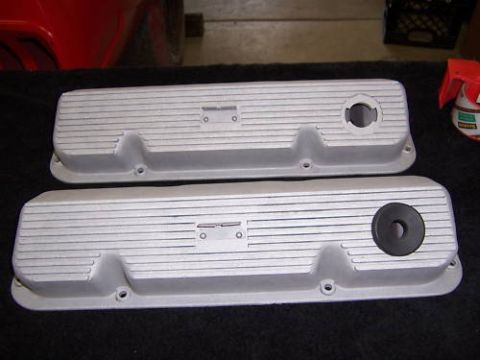

Ford factory Boss w/wire loom brackets
|
|

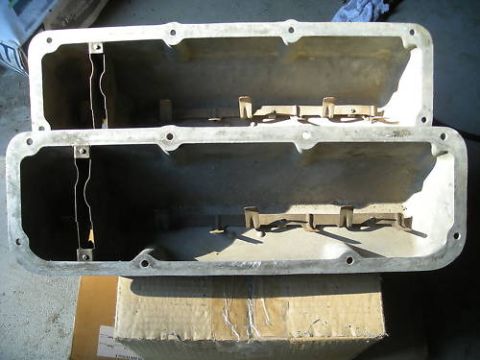

Ford factory Boss oil drippers
|
|
MotorsportGirdleCovers1.jpg | Hits: 1062 | Size: 15.98 KB | Posted on: 10/15/10 | Link to this image

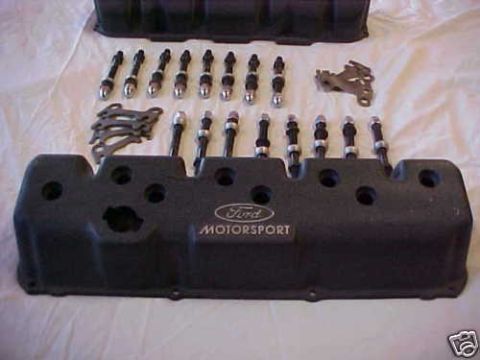

the ultimate Cleveland valve cover
studs & external acorn nuts use the
cast cover to create a stud girdle
|
|
MotorsportGirdleCovers2.jpg | Hits: 595 | Size: 19 KB | Posted on: 10/15/10 | Link to this image
designed for Motorsport alloy heads which have a taller gasket rail,
factory iron heads need a spacer for the hardware to work
|
|

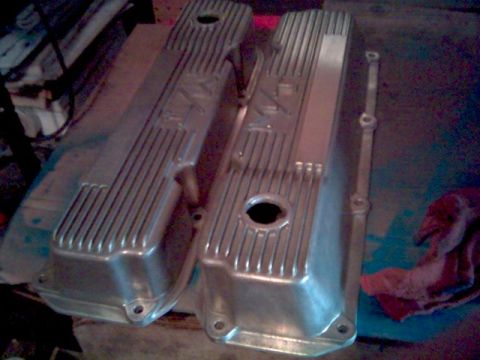

cast alloy M/T logo, roller rockers & poly
locks on screw-in studs fit under these
|
|
Early style M/T cast alloy w/o logo & cnc pad
|
|
FordRacing351blue.jpg | Hits: 736 | Size: 14.52 KB | Posted on: 10/16/10 | Link to this image
Ford Racing '351 Cleveland' logo
cast alloy, also in polished and black
|
|
Ansen cast alloy 'Shelby' logo
|
|
Ansen 'Detomaso' logo cast alloy
also in polished & Blue
|
|
Ansen 'all fins' cast alloy
|
|
Unknown7214cast2.jpg | Hits: 674 | Size: 35.69 KB | Posted on: 10/16/10 | Link to this image
aftermarket cast alloy wprovision for factory dripper rail
could be Ansen, shows # 7214
|
|
AnsenTallBlack.jpg | Hits: 510 | Size: 16.03 KB | Posted on: 10/16/10 | Link to this image
Ansen cast alloy tall
also in polished, Red & Blue
|
|
Edelbrock script logo, cast alloy
listed as 'Rare' on ebay
|
|
just another Holley / Mickey Thompson contract
|
|
tall, stamped & anodized aluminum
|
|
unknown tall stamped aluminum
|
|
Ridgeway Racing Associates
tall stamped aluminum, no holes or baffles
|
|
tallFordRacingcover.jpg | Hits: 547 | Size: 14.76 KB | Posted on: 10/16/10 | Link to this image

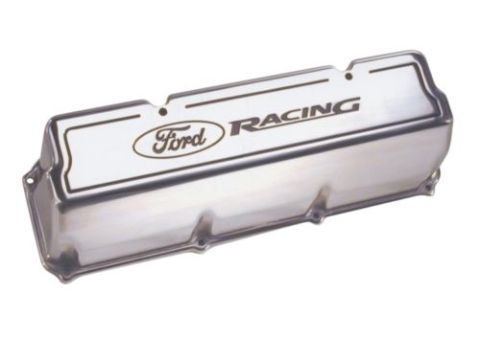

tall 'Ford Racing' logo
cast alloy, also low version
|
|

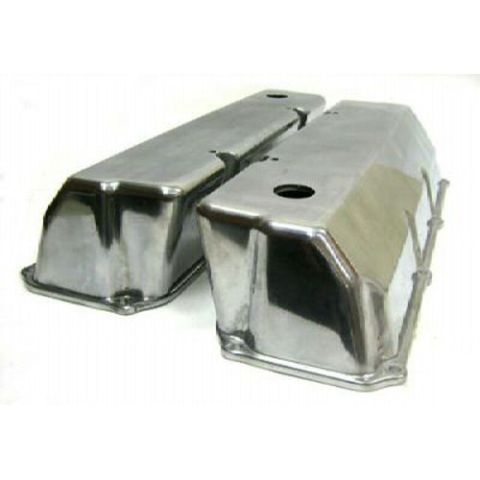

ProComp polished cast alloy
|
|
Unique Aluminum Products fabricated sheetmetal
|
|
Canton 65310
fabricated allloy
|
|
Moroso 68339
fabricated alloy with billet rail
|
|
Bluethunder cast tall with baffles
|
|
RaceFabdOilers1.jpg | Hits: 559 | Size: 19.63 KB | Posted on: 10/26/10 | Link to this image
unknown mfg presented as endurance or road race covers. oil pressure source supplies external fittings
|
|
RaceFabdOilers2.jpg | Hits: 589 | Size: 25.15 KB | Posted on: 10/26/10 | Link to this image
oil pressure is plumbed internally and
sprayed onto the valve springs for cooling
|
|
RaceFabdOilers3.jpg | Hits: 507 | Size: 14.64 KB | Posted on: 10/26/10 | Link to this image
flanges are milled to retain gaskets
and bolt holes have steel inserts
|
|
Edelbrock 4267
cast alloy with no holes
|
|
Racing Power Company R6242
fabricated alloy billet rail
|
|
PRW fabricated alloy
available natural & polished
|
