From 1994 Ford Bronco “Plug Ugly” — documented by Damon Haas.

38 photos
← Back to this vehicle

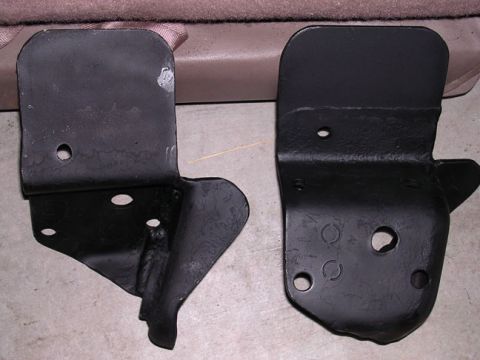

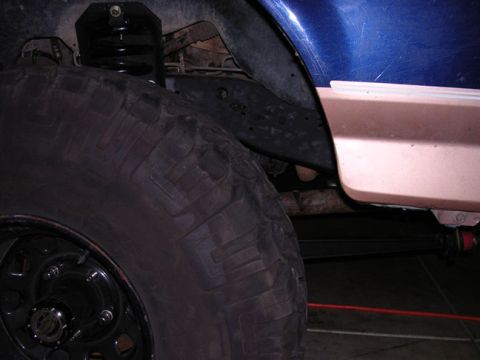

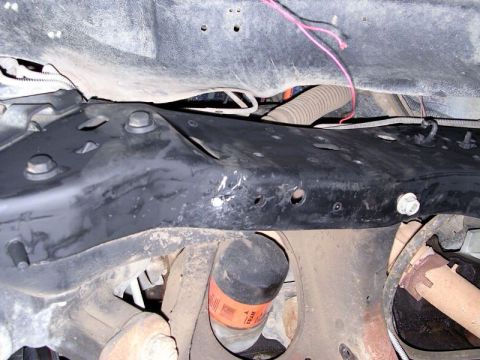

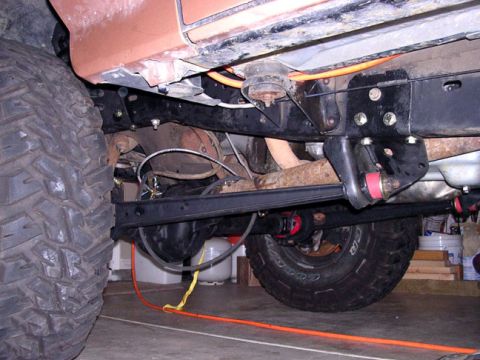

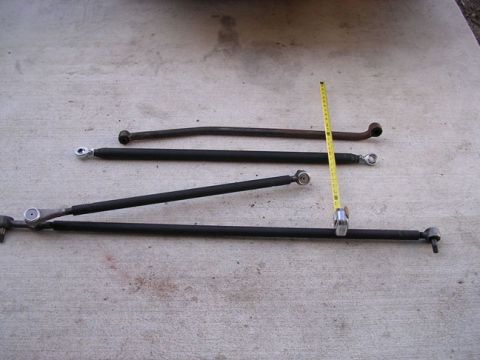

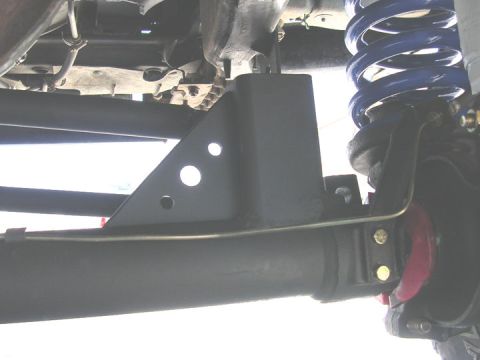

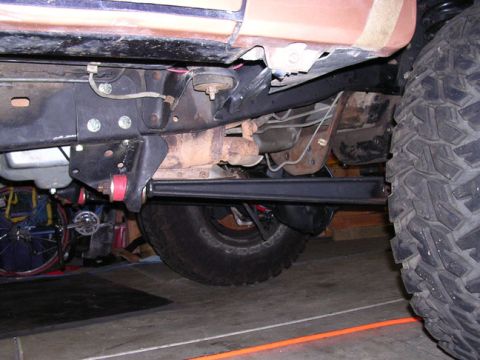

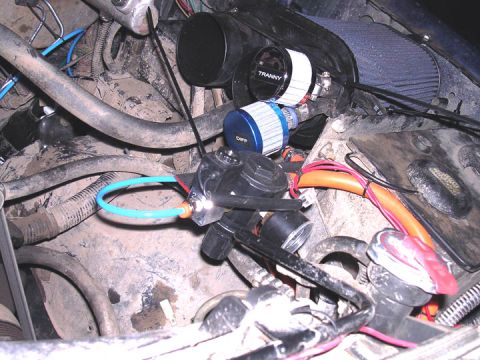

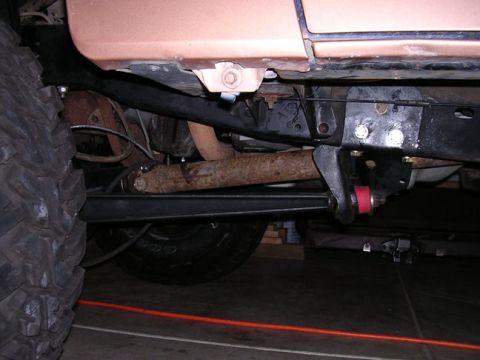

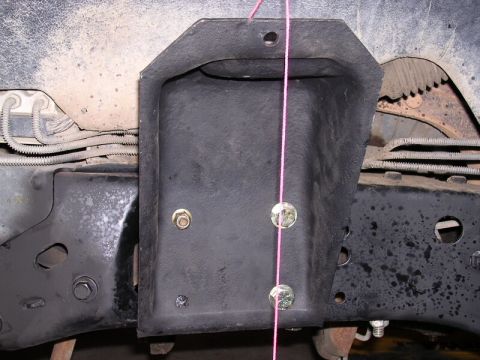

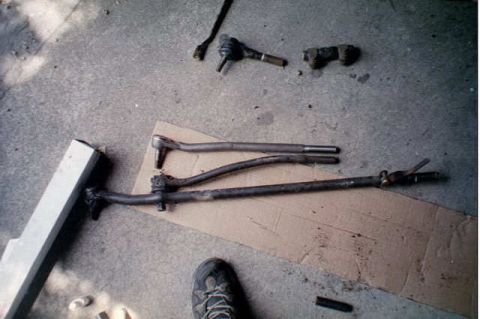

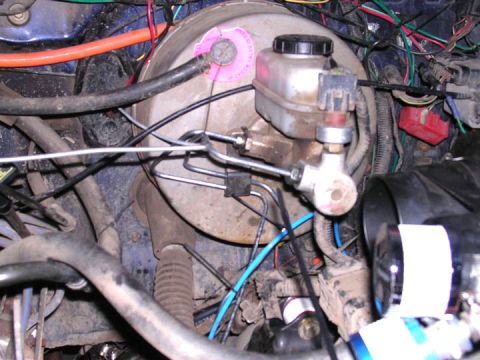

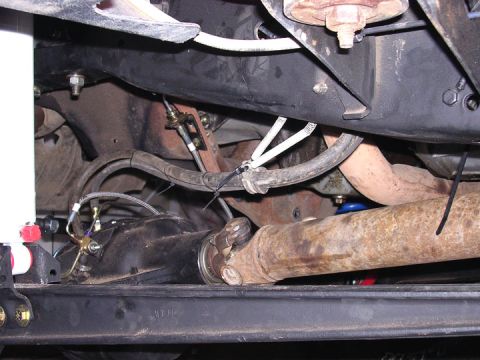

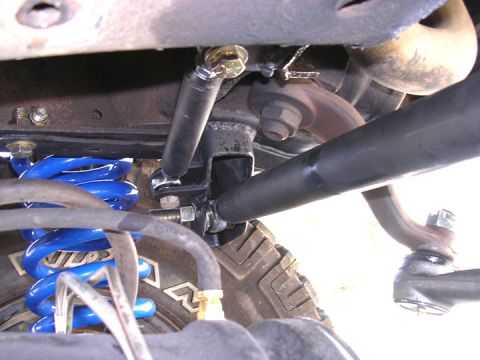

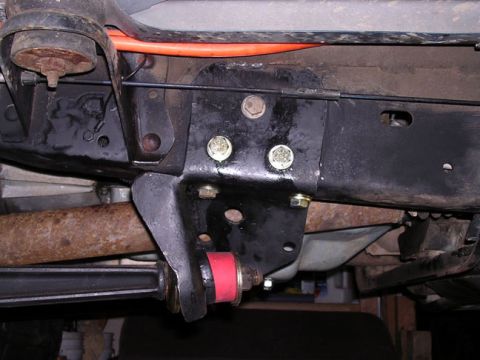

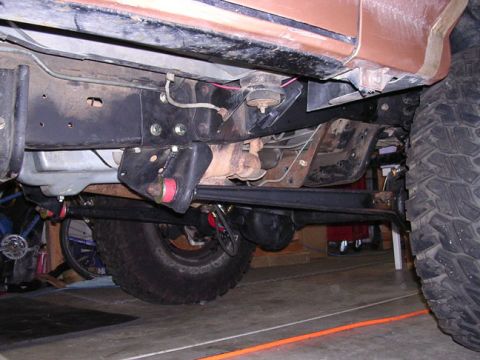

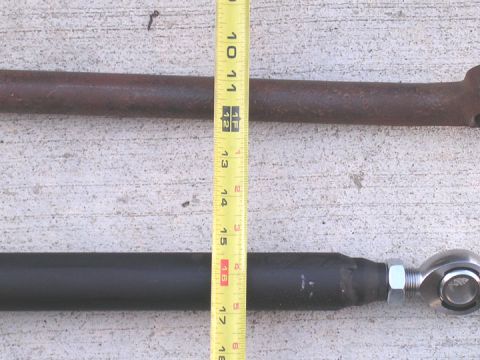

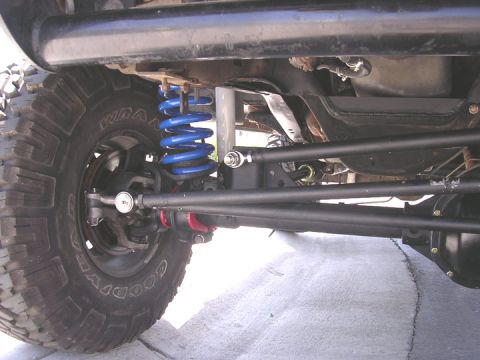

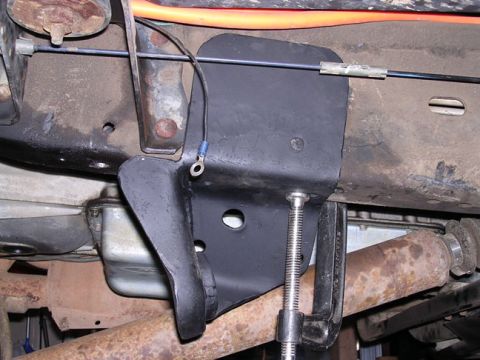

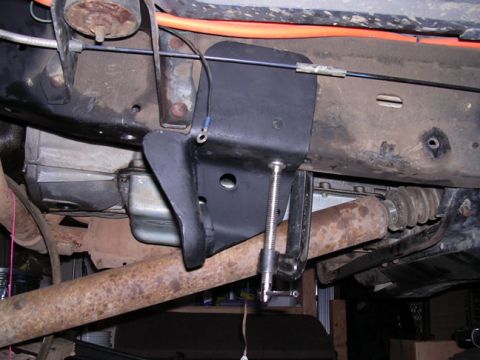

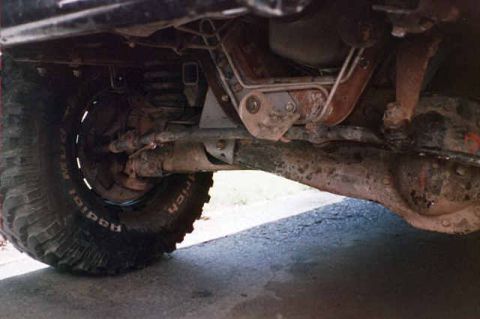

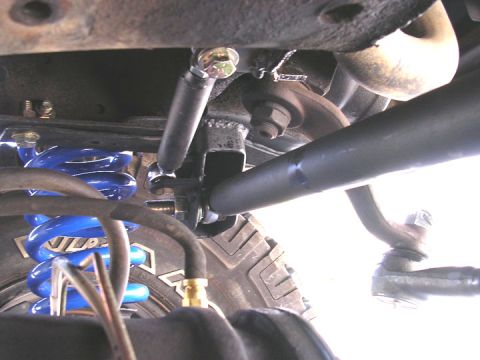

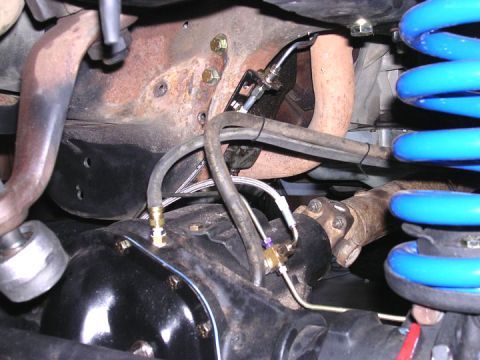

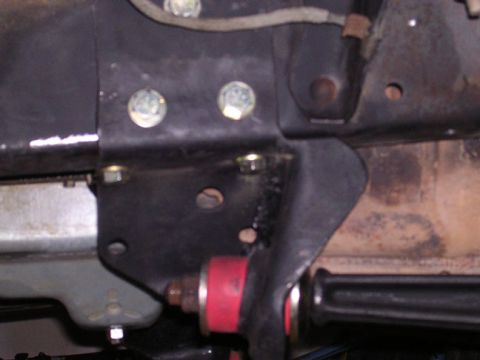

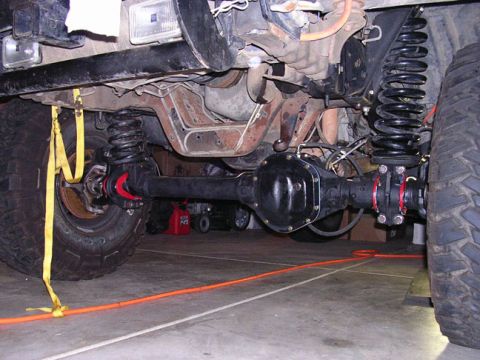

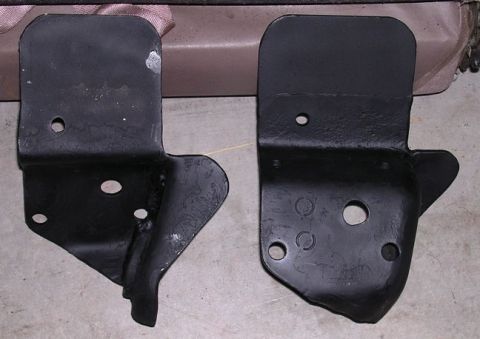

1994 Ford Bronco - why I went for a sas 1994 Ford Bronco - yet again 1994 Ford Bronco - drivers side front most rivet removed. it was interfering with the bucket being mounted. It was where all the scratches are 1994 Ford Bronco - drivers side coil bucket installed 1994 Ford Bronco - here's bill playing with his nuts 1994 Ford Bronco - stock radius arm bracket for 79 ford, laid back approx 20 degrees. 1994 Ford Bronco - I also added some more metal on the side of the frame rail to help spread the load since the newer fords have can't use a x-member with the… 1994 Ford Bronco - temporarily secured. Note how it is notched out for the body mount so I can push the axle forward to clear the rear of the front fender 1994 Ford Bronco - It should allow for a much better angle on the radius arm. Without the lay back, it would have put the bushings at a bind at normal ride he… 1994 Ford Bronco - still need steering and track bar 1994 Ford Bronco - drivers side bracket installed with 5, 1/2" bolts 1994 Ford Bronco - radius arm angle at ride height with the laid back bracket. It is pretty a good angle 1994 Ford Bronco - another shot of arm 1994 Ford Bronco - drivers side tire clearance from fender 1994 Ford Bronco - bumper clearance on drivers side 1994 Ford Bronco - driveshaft clearance 1994 Ford Bronco - passenger side bracket with return fuel line 1994 Ford Bronco - passenger side arm 1994 Ford Bronco - passenger side again 1994 Ford Bronco - much mo beefy than the stock crap 1994 Ford Bronco - old and new trackbars. the new stuff is much more heavy duty. got it from rockequipment.com 1994 Ford Bronco - arb connection 1994 Ford Bronco - arb line tied to breather line. They are held out of the way with a soft spring to allow for wheel travel 1994 Ford Bronco - arb regulator tied into the york system 1994 Ford Bronco - just another shot of the regulator with the diff and tranny breathers tied in behind it. 1994 Ford Bronco - bent all new brake lines since I removed the 4wabs computer. Stock ford is metric, so you need to re-use these fittings. the skyjacker drop… 1994 Ford Bronco - all the lines to the pumpkin 1994 Ford Bronco - front of lower track bar mount 1994 Ford Bronco - rear of lower track bar mount. the holes add at least 15 horse power 1994 Ford Bronco - upper track bar mount. Welded to frame and notched for access to the gearbox bolt 1994 Ford Bronco - different angle 1994 Ford Bronco - again 1994 Ford Bronco - the cross memeber suport bar 1994 Ford Bronco - again 1994 Ford Bronco - the best i could do close to home 1994 Ford Bronco - This lifted Ford Bronco is shown from the rear, parked on a dirt embankment with the sun low in the sky. 1994 Ford Bronco - A big thanks to Jack for fab'ing up the mount. there is no bumpsteer. 1994 Ford Bronco - Gusseted the radius arm bracket after it started cracking on the ramsey trail. this should fix any potential week spots
