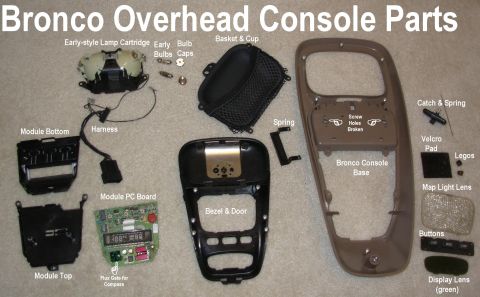

Bronco Overhead Console Parts
IF THE IMAGE IS TOO SMALL, click it.

These early bulbs are type 31...
Hits: 4256
Size: 55.17 KB
Posted: 1/30/11
Bronco Overhead Console Parts IF THE IMAGE IS TOO SMALL, click it. These early bulbs are type 31...

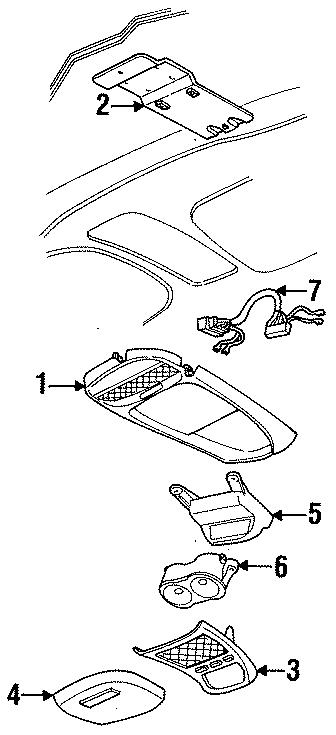

Bronco Overhead Console Parts
1 - Base & Basket
2 - Roof Bracket
3 - Bezel & Lenses
4 - Door
5 ...
Hits: 4507
Size: 29.07 KB
Posted: 1/16/05
Bronco Overhead Console Parts 1 - Base & Basket 2 - Roof Bracket 3 - Bezel & Lenses 4 - Door 5 ...

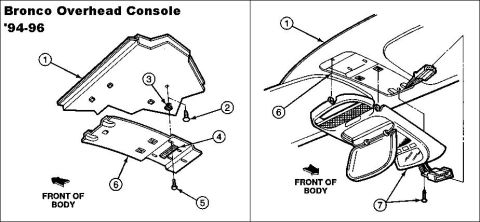

'94-96 Bronco Overhead Console Installation

1 Roof Trim Panel   51944
2 Pushpin (without Headlin...
Hits: 4720
Size: 35.13 KB
Posted: 10/16/05
'94-96 Bronco Overhead Console Installation 1 Roof Trim Panel 51944 2 Pushpin (without Headlin...

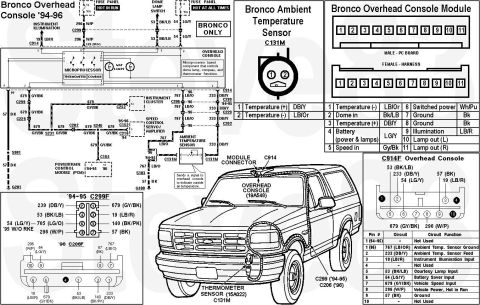

Bronco Overhead Console Wiring & Connectors
IF THE IMAGE IS TOO SMALL, click it.
The rear-view mirro...
Hits: 7491
Size: 76.16 KB
Posted: 1/29/11
Bronco Overhead Console Wiring & Connectors IF THE IMAGE IS TOO SMALL, click it. The rear-view mirro...

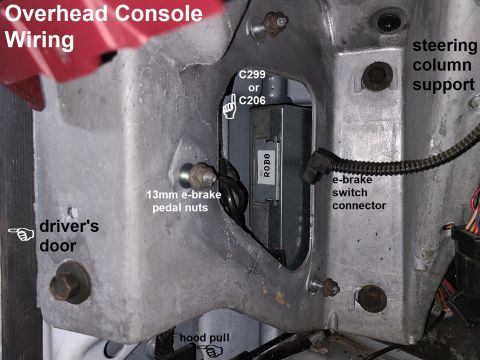

C299 is the '94-96 (& maybe '97 >8500GVWR) XLT/EB connector for the overhead console (Broncos only),...
Hits: 29
Size: 72.51 KB
Posted: 1/30/24
C299 is the '94-96 (& maybe '97 >8500GVWR) XLT/EB connector for the overhead console (Broncos only),...

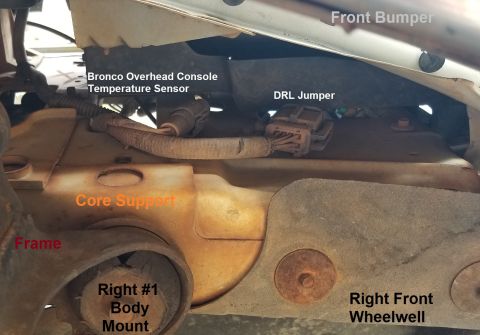

'94-96 Bronco Overhead Console Temperature Sensor, and '92-97 F-series/Bronco DRL
IF THE IMAGE IS T...
Hits: 21
Size: 56.92 KB
Posted: 1/30/24
'94-96 Bronco Overhead Console Temperature Sensor, and '92-97 F-series/Bronco DRL IF THE IMAGE IS T...

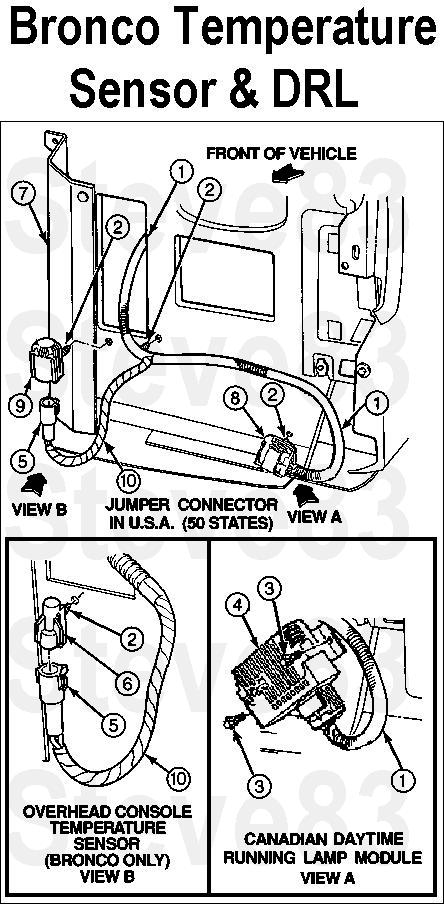

'94-96 Bronco Overhead Console Temperature Sensor, and '92-97 F-series/Bronco DRL

[url=https://www....
Hits: 3567
Size: 54.77 KB
Posted: 7/18/12
'94-96 Bronco Overhead Console Temperature Sensor, and '92-97 F-series/Bronco DRL [url=https://www....
Temperature Sensor & connector pigtail (Ford 3U2Z-14S411-BAA or [url=https://www.amazon.com/dp/B00N2...
Hits: 4352
Size: 82.7 KB
Posted: 7/12/08
Temperature Sensor & connector pigtail (Ford 3U2Z-14S411-BAA or [url=https://www.amazon.com/dp/B00N2...

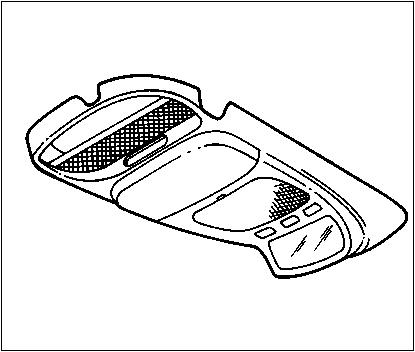

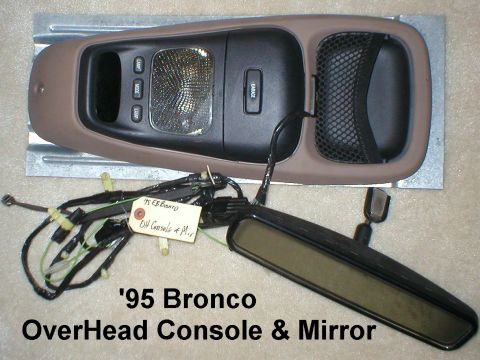

'95-96 EB Bronco OverHead Console

If you're looking for a Bronco overhead console, e-mail me thru...
Hits: 4426
Size: 24.82 KB
Posted: 7/14/03
'95-96 EB Bronco OverHead Console If you're looking for a Bronco overhead console, e-mail me thru...

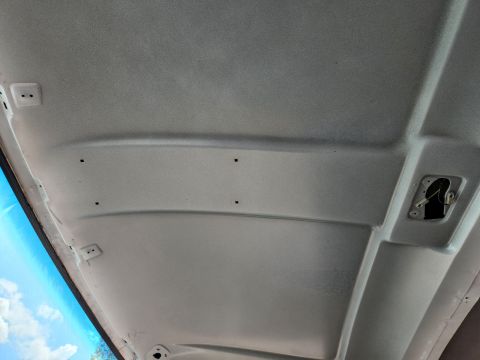

This '95 Bronco XLT was built without the overhead console, but it still has the mounting holes in t...
Hits: 25
Size: 74.98 KB
Posted: 1/30/24
This '95 Bronco XLT was built without the overhead console, but it still has the mounting holes in t...

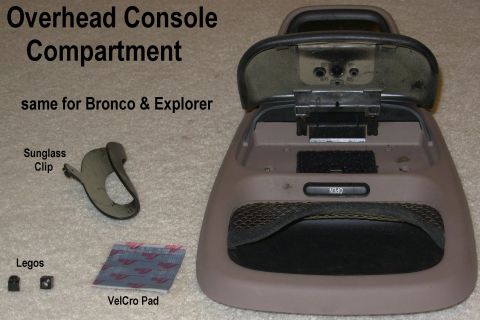

The main difference between the Bronco & Ex consoles is the basket for the Bronco.  But the roof con...
Hits: 2312
Size: 49.67 KB
Posted: 5/1/10
The main difference between the Bronco & Ex consoles is the basket for the Bronco. But the roof con...
It's common for these holes to crack & break out of Bronco consoles.  Explorer consoles don't seem t...
Hits: 2134
Size: 55.7 KB
Posted: 5/1/10
It's common for these holes to crack & break out of Bronco consoles. Explorer consoles don't seem t...

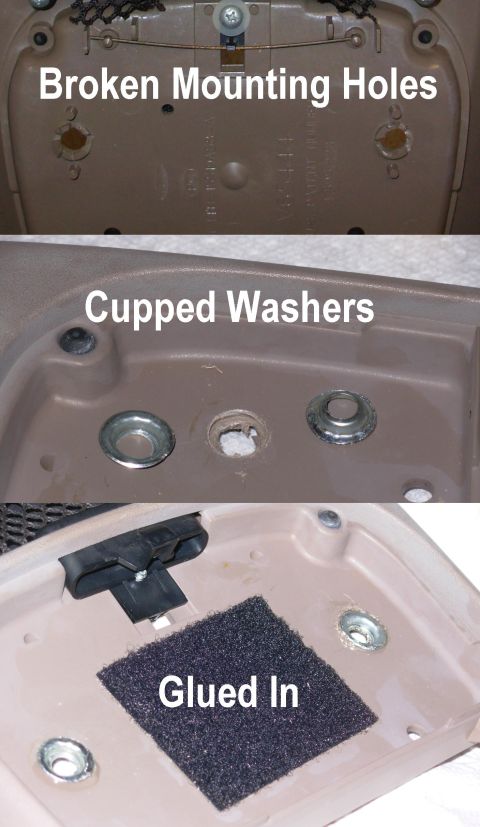

Cracks in the mounting screw wells are very common in Bronco OHCs (and NOT common in Ex OHCs, for so...
Hits: 2204
Size: 42.07 KB
Posted: 1/30/11
Cracks in the mounting screw wells are very common in Bronco OHCs (and NOT common in Ex OHCs, for so...

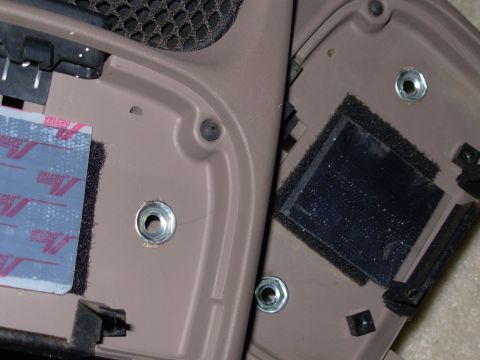

Reinforcing Washers glued into broken & drilled holes.

See also:
[url=http://www.supermotors.net...
Hits: 1956
Size: 77.73 KB
Posted: 2/27/11
Reinforcing Washers glued into broken & drilled holes. See also: [url=http://www.supermotors.net...

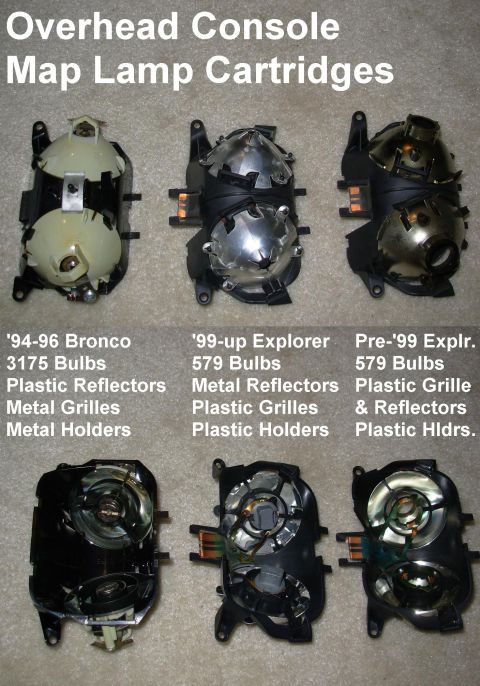

The plastic bulb holders are larger than those used for the instrument cluster.

The Bronco cartridg...
Hits: 2616
Size: 71.33 KB
Posted: 2/18/11
The plastic bulb holders are larger than those used for the instrument cluster. The Bronco cartridg...

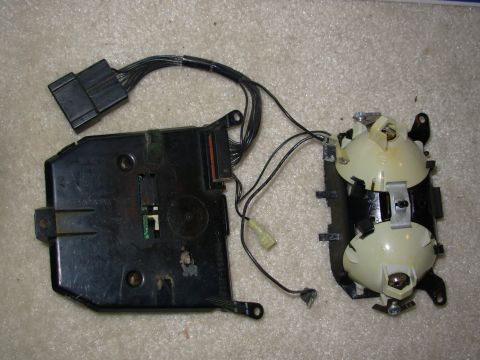

Original-type Bronco module & lamp cartridge, using soft lamp buttons & #3175 bulbs.
Hits: 1909
Size: 92.35 KB
Posted: 2/18/11
Original-type Bronco module & lamp cartridge, using soft lamp buttons & #3175 bulbs.

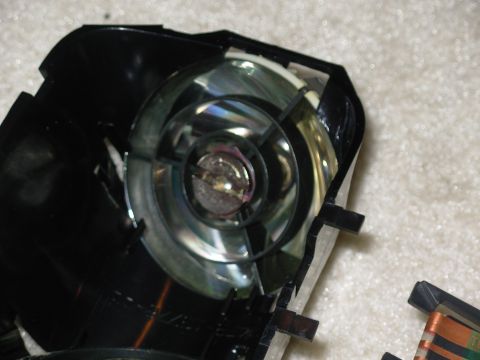

Bronco-specific metal bulb retainers in metal grilles.
Hits: 1806
Size: 75.06 KB
Posted: 2/18/11
Bronco-specific metal bulb retainers in metal grilles.

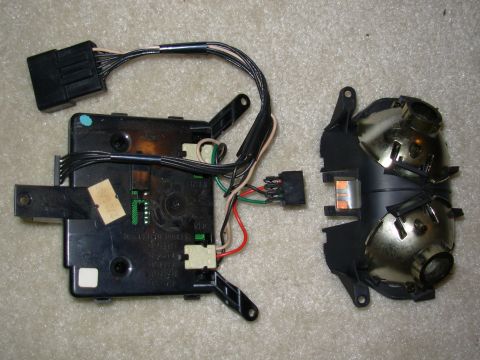

Later module using hard lamp switches and #579 bulbs with plastic reflectors.
Hits: 1821
Size: 97.03 KB
Posted: 2/18/11
Later module using hard lamp switches and #579 bulbs with plastic reflectors.

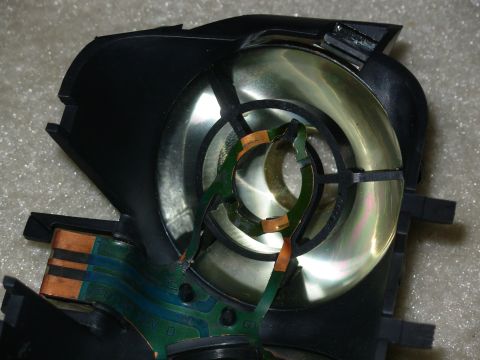

Film traces for bulb contacts.
Hits: 1794
Size: 84.02 KB
Posted: 2/18/11
Film traces for bulb contacts.

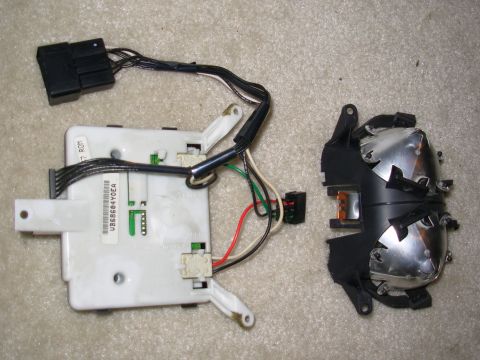

Later module using hard lamp switches and #579 bulbs with Alumninum reflectors.
Hits: 1914
Size: 94.39 KB
Posted: 2/18/11
Later module using hard lamp switches and #579 bulbs with Alumninum reflectors.

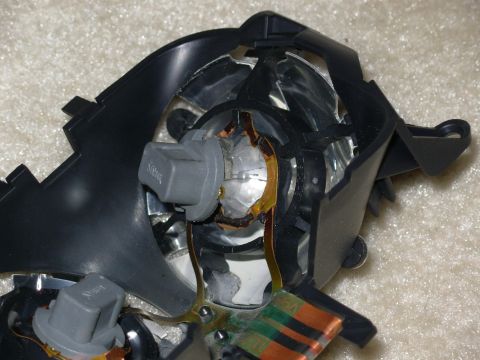

Reflector grille has melted, making bulb removal impossible.  Film traces (Copper) have begun to del...
Hits: 1914
Size: 89.02 KB
Posted: 2/18/11
Reflector grille has melted, making bulb removal impossible. Film traces (Copper) have begun to del...

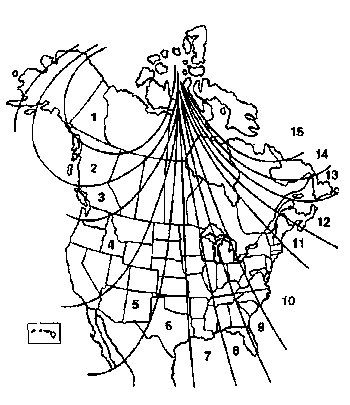

Electronic Compass Zone Map
IF THE IMAGE IS TOO SMALL, click it.

To change the OHC compass zone, ho...
Hits: 4635
Size: 42.86 KB
Posted: 7/14/03
Electronic Compass Zone Map IF THE IMAGE IS TOO SMALL, click it. To change the OHC compass zone, ho...

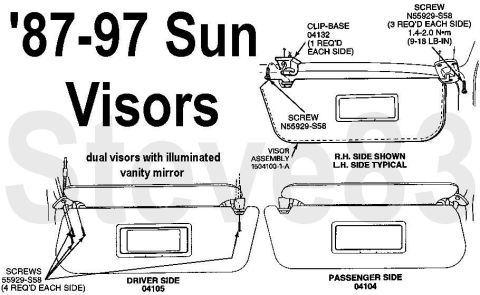

Sun Visors '87-97
IF THE IMAGE IS TOO SMALL, click it.

Earlier visors lacked the inboard support cl...
Hits: 2838
Size: 47.61 KB
Posted: 1/7/10
Sun Visors '87-97 IF THE IMAGE IS TOO SMALL, click it. Earlier visors lacked the inboard support cl...

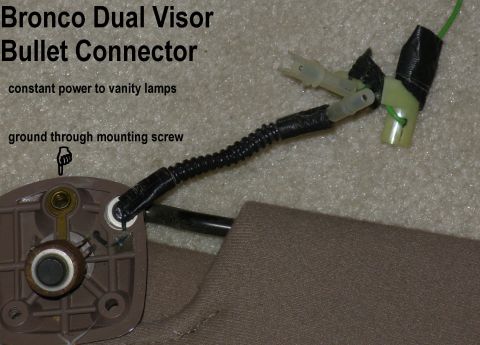

This is the common connector for truck illuminated visors, but apparently some got a black 2-pin con...
Hits: 2257
Size: 61.07 KB
Posted: 5/1/10
This is the common connector for truck illuminated visors, but apparently some got a black 2-pin con...

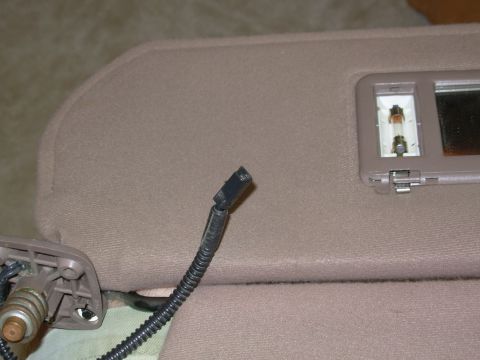

I don't remember what Bronco I took these out of, but this is the only Bronco visor set I've ever se...
Hits: 1998
Size: 73.16 KB
Posted: 4/24/11
I don't remember what Bronco I took these out of, but this is the only Bronco visor set I've ever se...
[url=http://www.supermotors.net/registry/media/795850][img]http://www.supermotors.net/getfile/795850...
Hits: 1959
Size: 69.98 KB
Posted: 5/1/10
[url=http://www.supermotors.net/registry/media/795850][img]http://www.supermotors.net/getfile/795850...

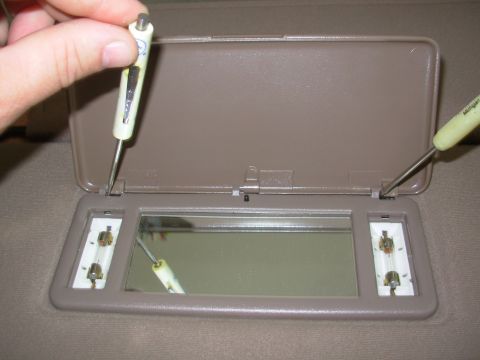

The vanity cover can be removed by gently prying both hinges sideways.
IF THE IMAGE IS TOO SMALL, cl...
Hits: 1742
Size: 68.23 KB
Posted: 4/24/11
The vanity cover can be removed by gently prying both hinges sideways. IF THE IMAGE IS TOO SMALL, cl...

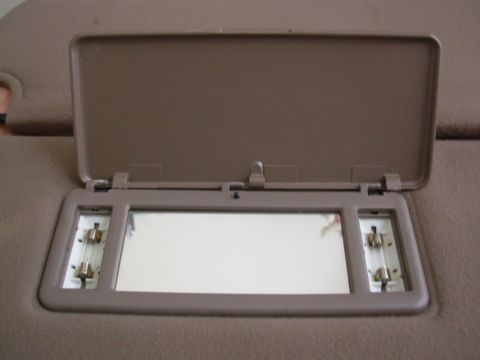

Once clear of the hinge pegs, the cover can be removed.
IF THE IMAGE IS TOO SMALL, click it.

Origin...
Hits: 1607
Size: 59.71 KB
Posted: 4/24/11
Once clear of the hinge pegs, the cover can be removed. IF THE IMAGE IS TOO SMALL, click it. Origin...

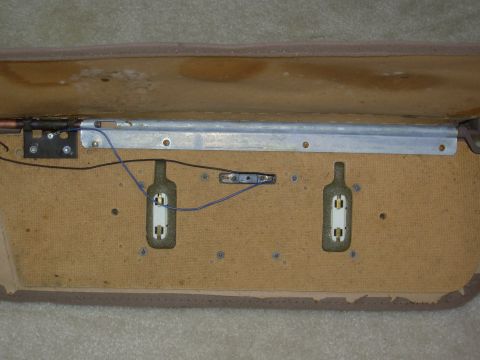

After ripping the sewn seam, the upholstery can be unfolded to expose the back of the vanity assembl...
Hits: 1683
Size: 77.24 KB
Posted: 4/24/11
After ripping the sewn seam, the upholstery can be unfolded to expose the back of the vanity assembl...

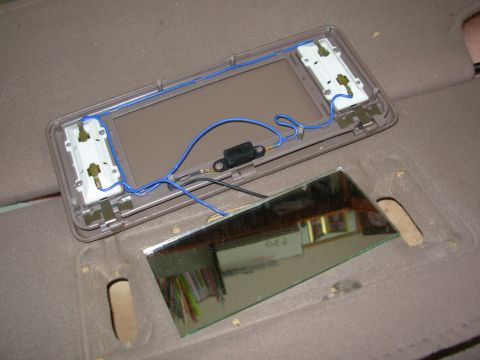

Removing the stamped nuts allows the vanity assembly to be lifted from the visor, but the riveted wi...
Hits: 1623
Size: 81.31 KB
Posted: 4/24/11
Removing the stamped nuts allows the vanity assembly to be lifted from the visor, but the riveted wi...

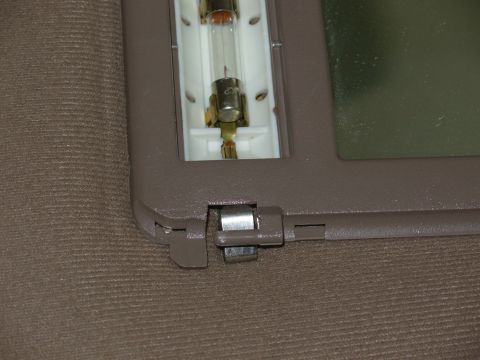

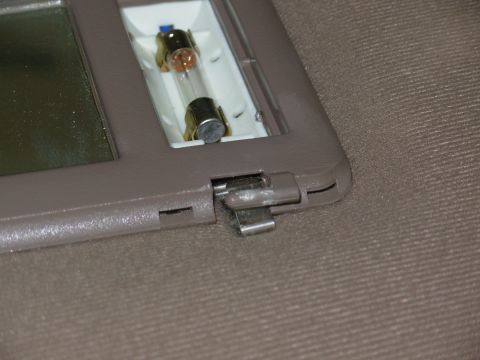

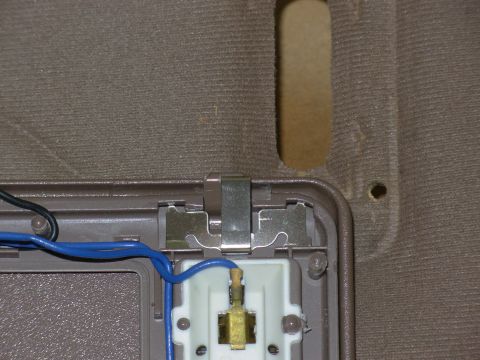

This is why the lid doesn't stay shut - the spring pops out of its position, so it can't hold any pr...
Hits: 1471
Size: 75.04 KB
Posted: 4/24/11
This is why the lid doesn't stay shut - the spring pops out of its position, so it can't hold any pr...
This is why the lid doesn't stay shut - the spring pops out of its position, so it can't hold any pr...
Hits: 1434
Size: 77.92 KB
Posted: 4/24/11
This is why the lid doesn't stay shut - the spring pops out of its position, so it can't hold any pr...
This is why the lid doesn't stay shut - the spring pops out of its position, so it can't hold any pr...
Hits: 1468
Size: 93.04 KB
Posted: 4/24/11
This is why the lid doesn't stay shut - the spring pops out of its position, so it can't hold any pr...

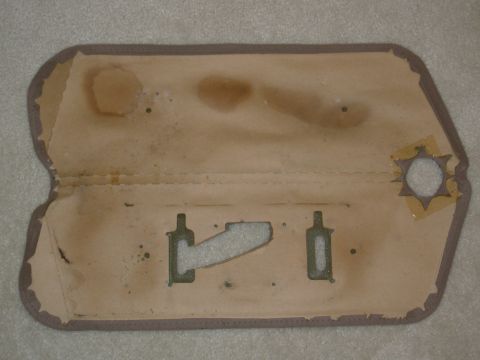

I cut this cover behind the mirror so the vanity assembly would pass through and the cover could be ...
Hits: 1551
Size: 68.22 KB
Posted: 4/24/11
I cut this cover behind the mirror so the vanity assembly would pass through and the cover could be ...

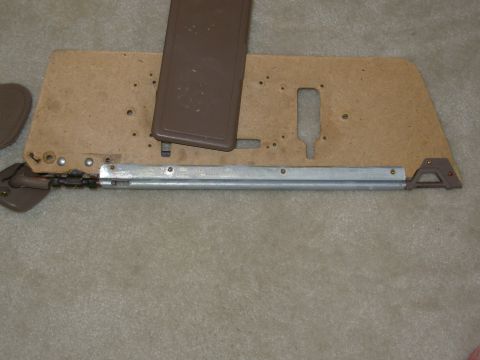

The actual visor is hardboard with a folded steel tube riveted to the front edge.
IF THE IMAGE IS TO...
Hits: 1663
Size: 72.46 KB
Posted: 4/24/11
The actual visor is hardboard with a folded steel tube riveted to the front edge. IF THE IMAGE IS TO...

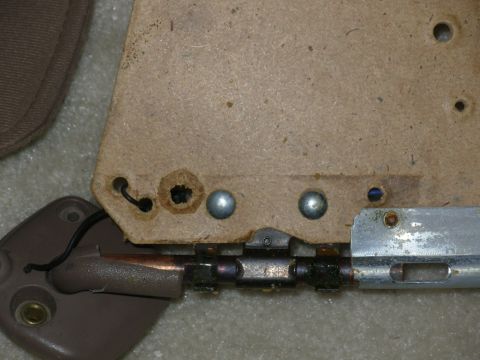

The black clip is a heavy spring that keeps the visor up when the outer arms are in the machined fla...
Hits: 1531
Size: 83.05 KB
Posted: 4/24/11
The black clip is a heavy spring that keeps the visor up when the outer arms are in the machined fla...
SOLD Red Dual Visors & Autodimming Mirror (F4TZ17700A) Set from '95 F150 XLT.
IF THE IMAGE IS TOO SM...
Hits: 2172
Size: 48.1 KB
Posted: 2/16/11
SOLD Red Dual Visors & Autodimming Mirror (F4TZ17700A) Set from '95 F150 XLT. IF THE IMAGE IS TOO SM...

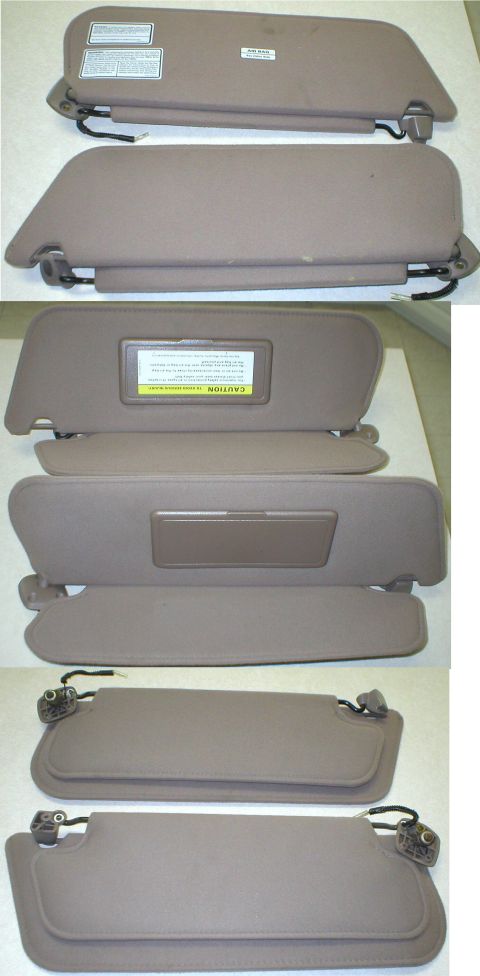

SOLD Rare dual visors from a 95 EB Bronco.  Older trucks may need slight metal trimming inside the v...
Hits: 2824
Size: 30.04 KB
Posted: 7/10/03
SOLD Rare dual visors from a 95 EB Bronco. Older trucks may need slight metal trimming inside the v...

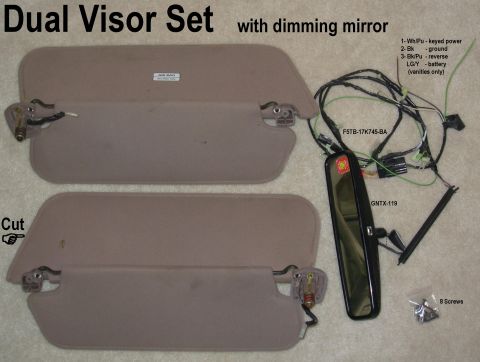

SOLD Dual Visor Set from '95 F150

Includes autodimming rear-view mirror (F4TZ17700A) with mounting ...
Hits: 2036
Size: 46.81 KB
Posted: 5/8/10
SOLD Dual Visor Set from '95 F150 Includes autodimming rear-view mirror (F4TZ17700A) with mounting ...

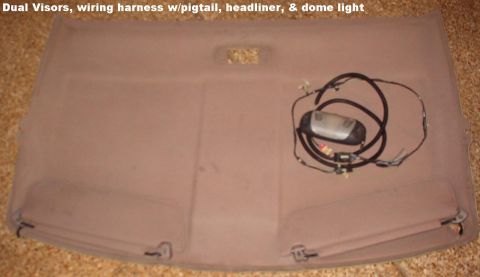

SOLD Rare Dual Visors from a '95 XLT Bronco, including wiring, headliner, & black dome light

Ship...
Hits: 2290
Size: 29.72 KB
Posted: 10/20/07
SOLD Rare Dual Visors from a '95 XLT Bronco, including wiring, headliner, & black dome light Ship...
SOLD Visor shelf (aftermarket) fits '80-96 F-Series & Bronco

Mounting brackets:
[url=http://www.sup...
Hits: 3552
Size: 45.68 KB
Posted: 7/26/03
SOLD Visor shelf (aftermarket) fits '80-96 F-Series & Bronco Mounting brackets: [url=http://www.sup...

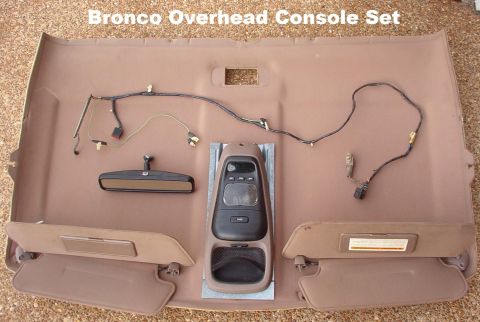

SOLD Overhead console from '96 Bronco EB including headliner, dual visors, autodimming RV mirror (F4...
Hits: 3661
Size: 47.8 KB
Posted: 4/7/06
SOLD Overhead console from '96 Bronco EB including headliner, dual visors, autodimming RV mirror (F4...

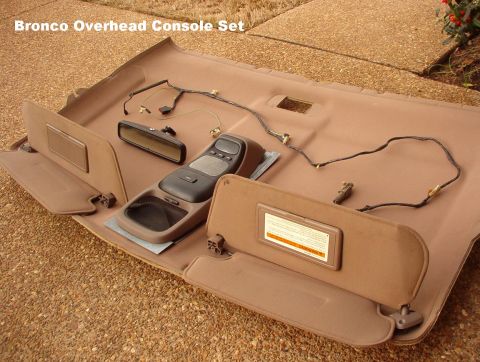

SOLD Overhead console from '96 Bronco EB including headliner, dual visors, autodimming RV mirror (F4...
Hits: 2617
Size: 69.34 KB
Posted: 4/7/06
SOLD Overhead console from '96 Bronco EB including headliner, dual visors, autodimming RV mirror (F4...
SOLD '94-96 Bronco Overhead Console Set

Includes ~4' of wiring, temperature sensor w/pigtail, both ...
Hits: 2611
Size: 79.84 KB
Posted: 5/16/09
SOLD '94-96 Bronco Overhead Console Set Includes ~4' of wiring, temperature sensor w/pigtail, both ...

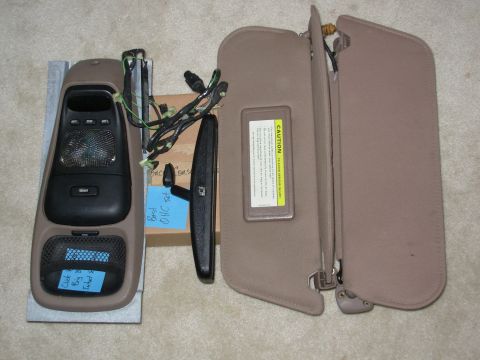

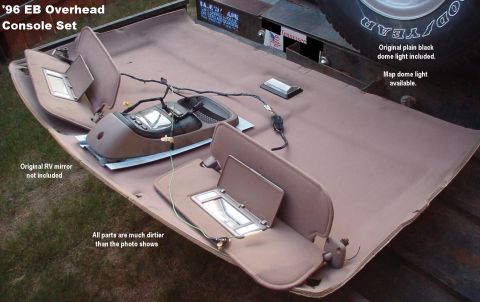

SOLD Bronco Overhead Console Set

Extremely rare '94-96 Eddie Bauer only.  Includes illuminated vani...
Hits: 4155
Size: 51.93 KB
Posted: 7/19/07
SOLD Bronco Overhead Console Set Extremely rare '94-96 Eddie Bauer only. Includes illuminated vani...

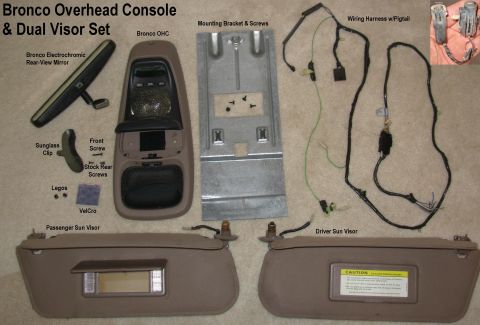

Bronco '94-96 Overhead Console, Electrochromic RV Mirror (F4TZ17700A), & Dual Visor Set

[url=https:...
Hits: 2753
Size: 51.12 KB
Posted: 5/1/10
Bronco '94-96 Overhead Console, Electrochromic RV Mirror (F4TZ17700A), & Dual Visor Set [url=https:...

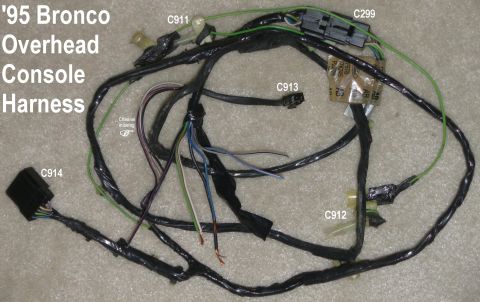

SOLD '94-95 Bronco Overhead Console Harness

http://www.supermotors.net/registry/628/75649-2
Hits: 1925
Size: 60.61 KB
Posted: 4/13/11
SOLD '94-95 Bronco Overhead Console Harness http://www.supermotors.net/registry/628/75649-2

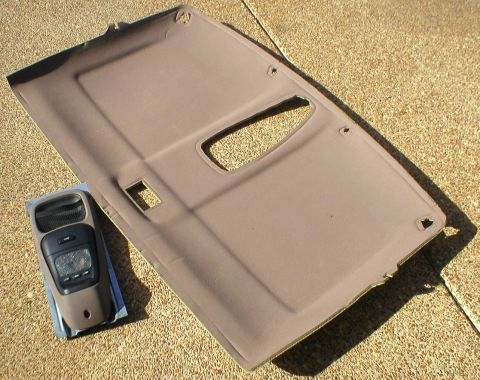

If you're looking for a Bronco overhead console, e-mail me thru my profile here or on almost any BBS...
Hits: 3699
Size: 85.93 KB
Posted: 1/16/05
If you're looking for a Bronco overhead console, e-mail me thru my profile here or on almost any BBS...
If you're looking for a Bronco overhead console, e-mail me thru my profile here or on almost any BBS...
Hits: 6357
Size: 95.65 KB
Posted: 7/10/03
If you're looking for a Bronco overhead console, e-mail me thru my profile here or on almost any BBS...

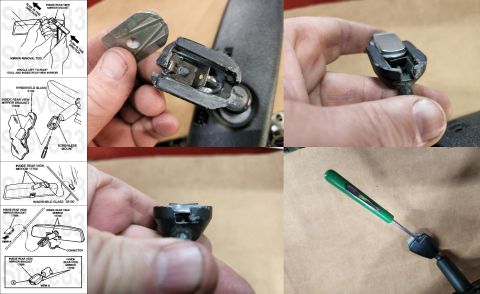

Screwless Rear-View Mirror
IF THE IMAGE IS TOO SMALL, click it.

A tool was made to release the ...
Hits: 178
Size: 50.94 KB
Posted: 5/18/22
Screwless Rear-View Mirror IF THE IMAGE IS TOO SMALL, click it. A tool was made to release the ...
If you're looking for a Bronco overhead console, e-mail me thru my profile here or on almost any BBS...
Hits: 3509
Size: 55.28 KB
Posted: 1/16/05
If you're looking for a Bronco overhead console, e-mail me thru my profile here or on almost any BBS...

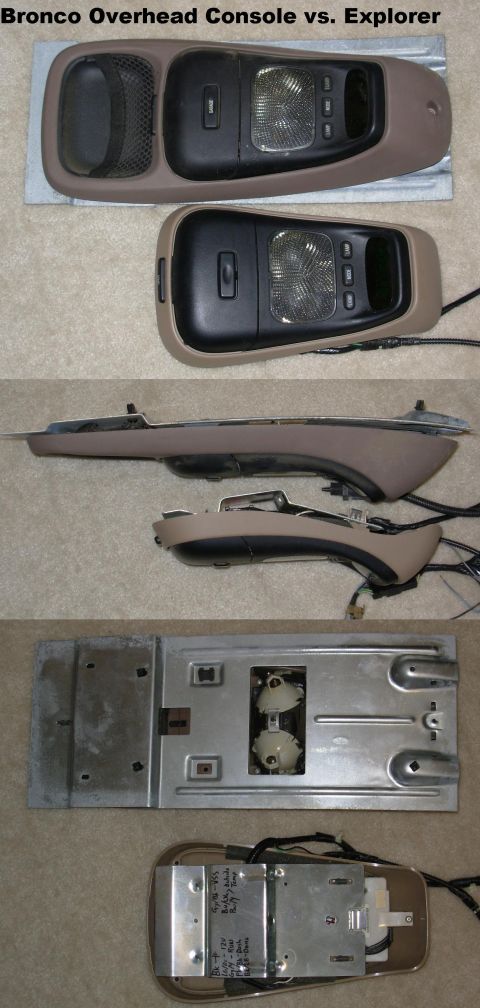

Bronco vs. Explorer Overhead Console Comparison

If you're looking for a Bronco overhead console, e-...
Hits: 3444
Size: 40.4 KB
Posted: 7/12/08
Bronco vs. Explorer Overhead Console Comparison If you're looking for a Bronco overhead console, e-...

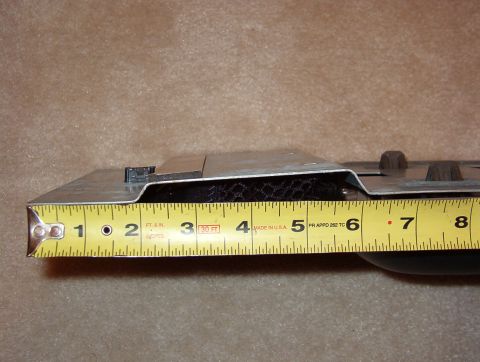

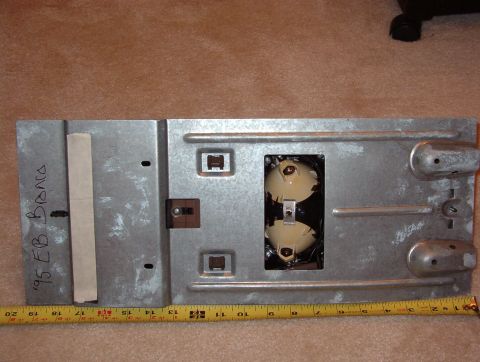

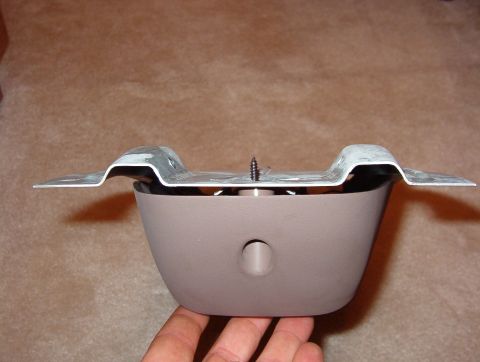

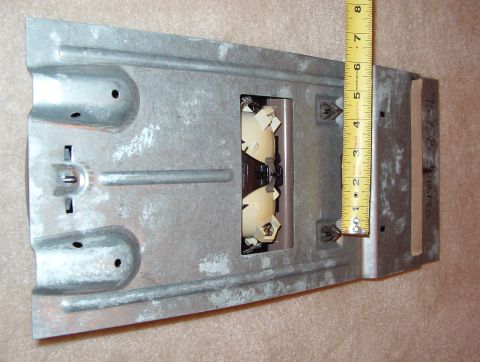

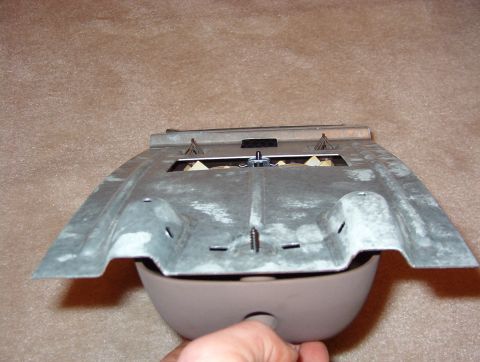

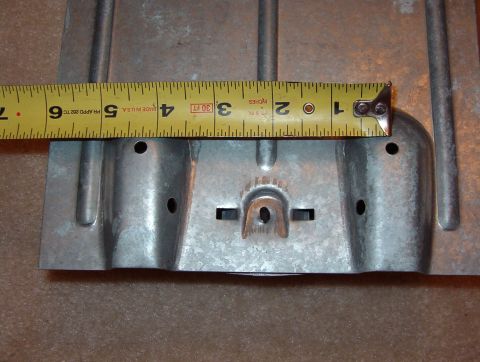

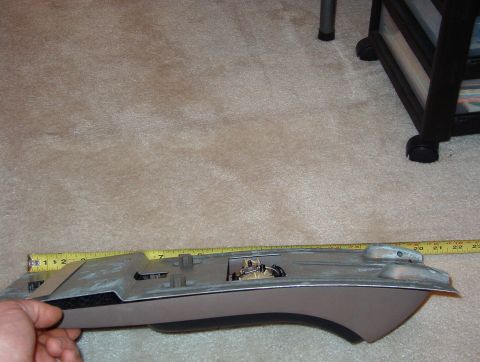

F4TB-98045B34-A
Hits: 2615
Size: 61.41 KB
Posted: 1/16/05
F4TB-98045B34-A

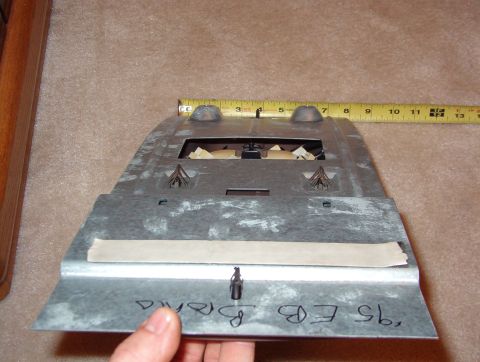

F4TB-98045B34-A
Hits: 2419
Size: 66.98 KB
Posted: 1/16/05
F4TB-98045B34-A
F4TB-98045B34-A
Hits: 2468
Size: 41.63 KB
Posted: 1/16/05
F4TB-98045B34-A
F4TB-98045B34-A
Hits: 2434
Size: 58.23 KB
Posted: 1/16/05
F4TB-98045B34-A
F4TB-98045B34-A
Hits: 2375
Size: 64.3 KB
Posted: 1/16/05
F4TB-98045B34-A
F4TB-98045B34-A
Hits: 2403
Size: 59.28 KB
Posted: 1/17/05
F4TB-98045B34-A
F4TB-98045B34-A
Hits: 2305
Size: 57.71 KB
Posted: 1/17/05
F4TB-98045B34-A
F4TB-98045B34-A
Hits: 2386
Size: 59.93 KB
Posted: 1/17/05
F4TB-98045B34-A

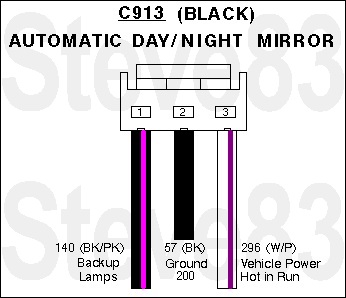

Connector face pinout C913 for '94-96 Bronco/F automatic day/night mirror
IF THE IMAGE IS TOO SMALL...
Hits: 44
Size: 21.94 KB
Posted: 1/30/24
Connector face pinout C913 for '94-96 Bronco/F automatic day/night mirror IF THE IMAGE IS TOO SMALL...
OverHead Console wiring for 96 Explorer

LG/O also feeds the dual sun visor vanity mirror lights....
Hits: 4681
Size: 38.85 KB
Posted: 1/9/05
OverHead Console wiring for 96 Explorer LG/O also feeds the dual sun visor vanity mirror lights....
There are several styles of mirror button, and mirror base. This one releases by simply jamming a po...
Hits: 20
Size: 57.3 KB
Posted: 1/30/24
There are several styles of mirror button, and mirror base. This one releases by simply jamming a po...
SOLD Explorer overhead console with sunroof switch.  Includes ~3 feet of wiring.  Ships as 15x11x7 @...
Hits: 2470
Size: 47.36 KB
Posted: 9/11/04
SOLD Explorer overhead console with sunroof switch. Includes ~3 feet of wiring. Ships as 15x11x7 @...
SOLD Explorer OH Console Kit includes everything shown: mounting bracket, all screws, original sungl...
Hits: 3676
Size: 61.96 KB
Posted: 4/10/05
SOLD Explorer OH Console Kit includes everything shown: mounting bracket, all screws, original sungl...
SOLD
Overhead Console for gray 2002 F150 or any other vehicle with a similar roofline.
IF THE IMAGE ...
Hits: 4290
Size: 54.73 KB
Posted: 12/16/05
SOLD Overhead Console for gray 2002 F150 or any other vehicle with a similar roofline. IF THE IMAGE ...
SOLD Overhead Console from tan Explorer with sunroof. Temperature sensor not included, but available...
Hits: 2323
Size: 49.25 KB
Posted: 12/16/05
SOLD Overhead Console from tan Explorer with sunroof. Temperature sensor not included, but available...
SOLD Explorer Overhead Consoles, each tested working; each includes mounting plate, sunglass clip, r...
Hits: 3515
Size: 99.65 KB
Posted: 4/7/06
SOLD Explorer Overhead Consoles, each tested working; each includes mounting plate, sunglass clip, r...
SOLD Explorer Dark Gray Overhead Console
IF THE IMAGE IS TOO SMALL, click it.

Includes mounting bra...
Hits: 2076
Size: 110.39 KB
Posted: 5/16/09
SOLD Explorer Dark Gray Overhead Console IF THE IMAGE IS TOO SMALL, click it. Includes mounting bra...
SOLD Overhead Console Wiring from '95 EB
IF THE IMAGE IS TOO SMALL, click it.

Note R visor connecto...
Hits: 1765
Size: 76.62 KB
Posted: 5/21/09
SOLD Overhead Console Wiring from '95 EB IF THE IMAGE IS TOO SMALL, click it. Note R visor connecto...
SOLD Bronco Overhead Console Set (Complete)
IF THE IMAGE IS TOO SMALL, click it.

Includes wiring ha...
Hits: 1373
Size: 81.52 KB
Posted: 3/20/12
SOLD Bronco Overhead Console Set (Complete) IF THE IMAGE IS TOO SMALL, click it. Includes wiring ha...
SOLD Bronco Overhead Console & Wiring
IF THE IMAGE IS TOO SMALL, click it.

Console, mounting har...
Hits: 1376
Size: 87.44 KB
Posted: 3/20/12
SOLD Bronco Overhead Console & Wiring IF THE IMAGE IS TOO SMALL, click it. Console, mounting har...


About SuperMotors | Contact Us | FAQ/Help | Legal
Copyright © 1998-2024 Web Design Solutions, Inc.
All rights reserved. Duplication & reproduction is strictly prohibited.
SuperMotors.net v5.0.2 ChangeLog
