Raised Gas Tank

From 1995 Ford Bronco “Bronkzilla” — documented by Rafael Esqueda.

23 photos
← Back to this vehicle

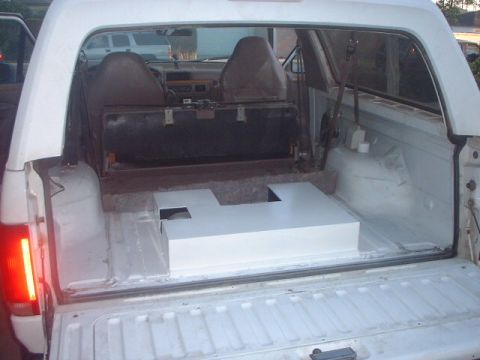

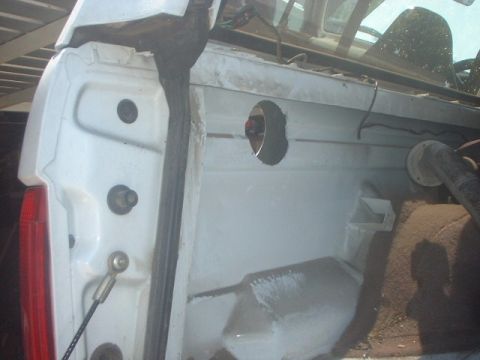

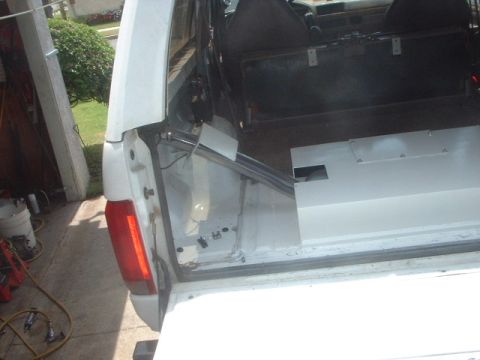

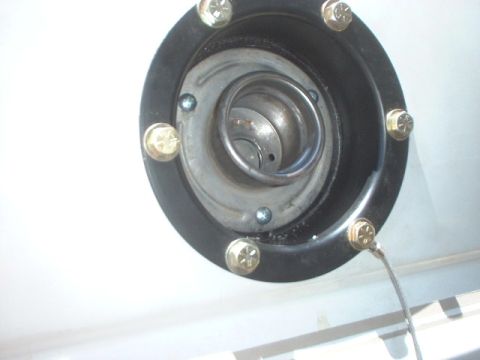

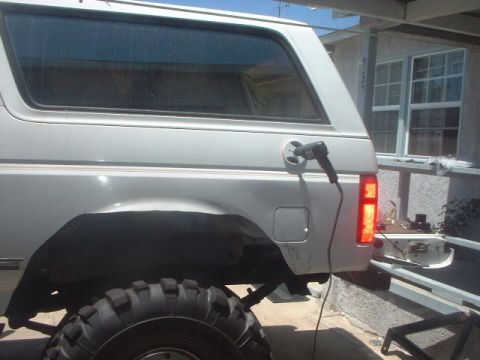

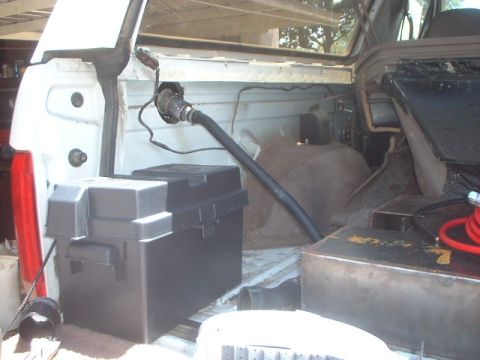

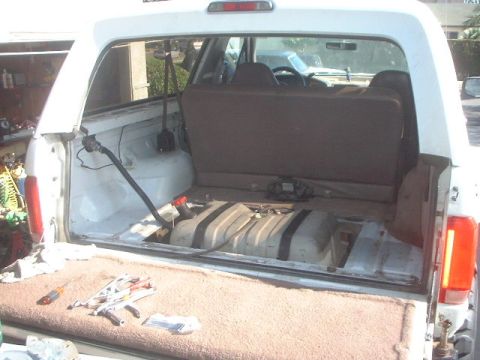

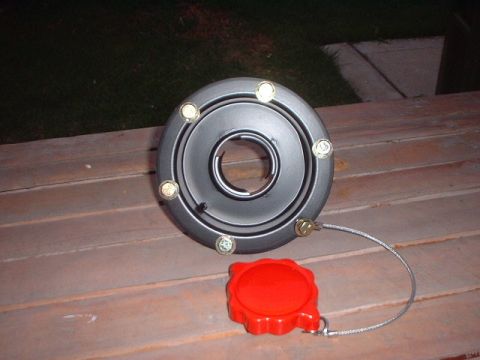

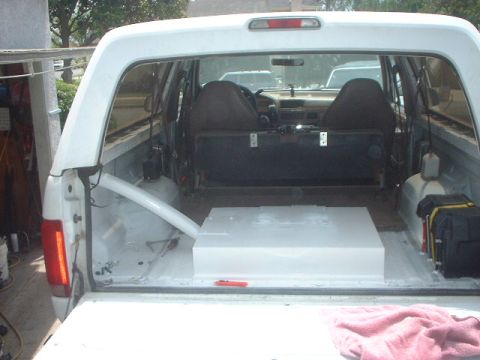

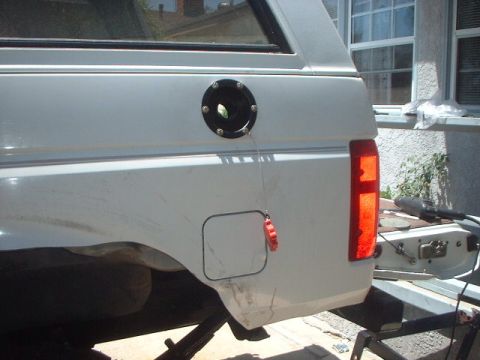

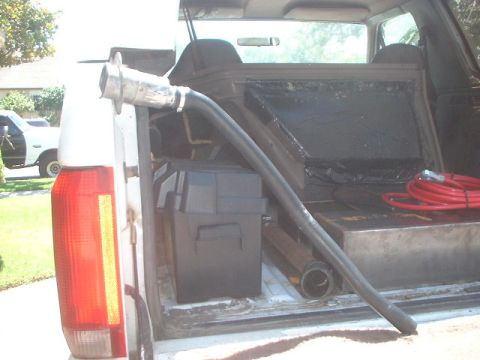

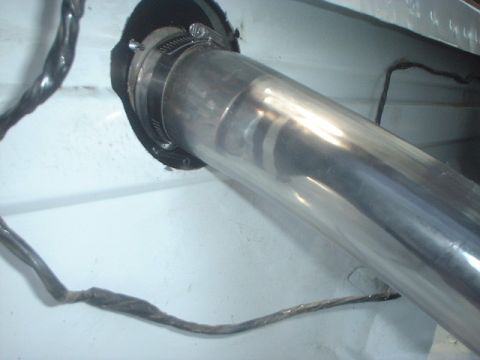

1995 Ford Bronco - Before Shot.. Raised the carpet (later i cut it out..) 1995 Ford Bronco - Cut the hole. Front to back i cut between the braces on the frame. Side to side i cut the width of the tank plus 3 inches to each side. You… 1995 Ford Bronco - Test fit the tank to see what you need to trim. I had to remove about 1/4" from the lip of the rear brace. . 1995 Ford Bronco - perfect fit. 1995 Ford Bronco - new skidplate.. 3/16" thick... 1995 Ford Bronco - So much clearance now.. (I redid the exhaust later) 1995 Ford Bronco - Started the cover.. I made it a bit high but it wasnt a big deal for me. 1995 Ford Bronco - Has 2 access areas.. One for the the fuel hose and one for the fuel pump. 1995 Ford Bronco - Covers will be bolted on. Easy to remove 1995 Ford Bronco - Access to the fuel pump.. Lots of room to remove it without dropping the tank. 1995 Ford Bronco - box completed.. welding it on. 1995 Ford Bronco - Bought this recessed fuel filler from an online race shop. 1995 Ford Bronco - Used a 4-1/4" diameter hole saw to cut into the side for the recessed fuel filler 1995 Ford Bronco - Had to go through 2 layers. 1995 Ford Bronco - bolted on with supplied G8 bolts and nuts. You will lose some skin bolting this thing up.. 1995 Ford Bronco - It came up that the California Smog places would check for proper fuel filler so i decided to use the old one. I cut the metal outer hose s… 1995 Ford Bronco - used another holesaw to remove the filler neck and slipped on the stock bronco filler. used 3 self tapping screws to hold it on. 1995 Ford Bronco - view from the back. The fuel goes through the black hose into the tank and the air and fumes escape through the outer tube (missing). 1995 Ford Bronco - Used some rubber straps to hold the tank down and some rubber under the tank to seperate it from the skid. 1995 Ford Bronco - painted and ready for final assembly 1995 Ford Bronco - Got this fuel hose from www.FuelSafe.com .. connected it to the filler with a hose clamp and to the tank with a hose clamp. 1995 Ford Bronco - Bolted the fuel pump cover on. slid on the cover for the fuel hose and its done. 1995 Ford Bronco - DONE.. Tested and it works.. Fills up easy. Im removing the paint on the hose little by little..
