re-reworked rear shocks

From 1994 Ford Bronco “Plug Ugly” — documented by Damon Haas.

15 photos
← Back to this vehicle

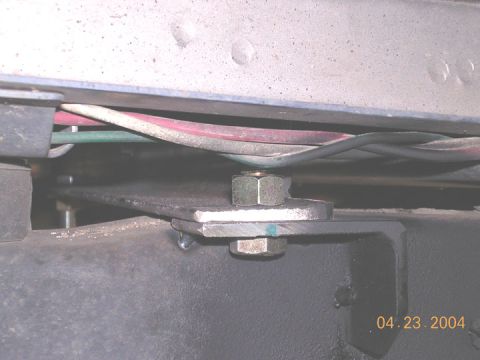

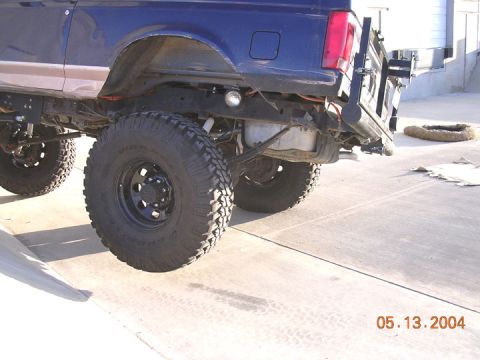

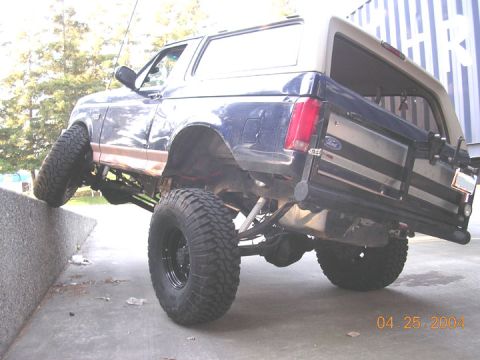

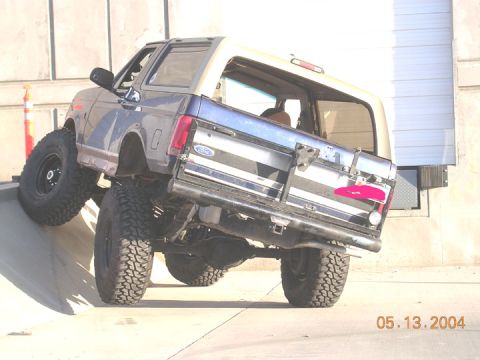

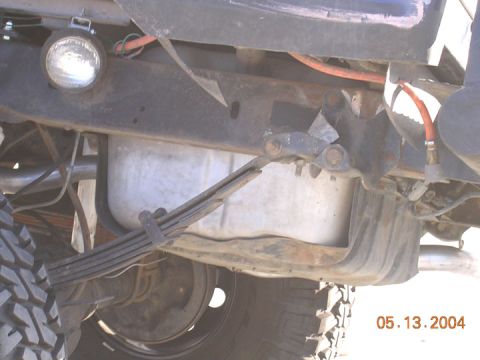

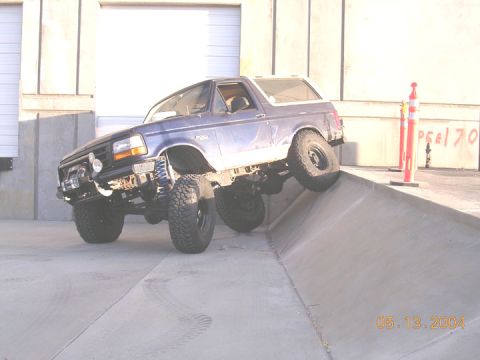

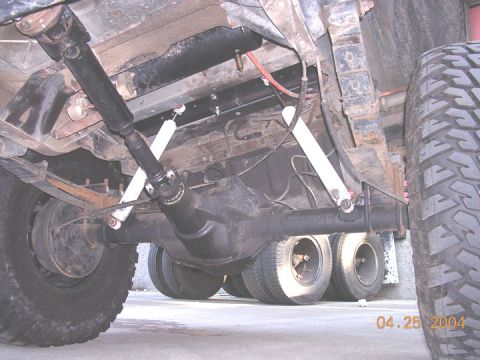

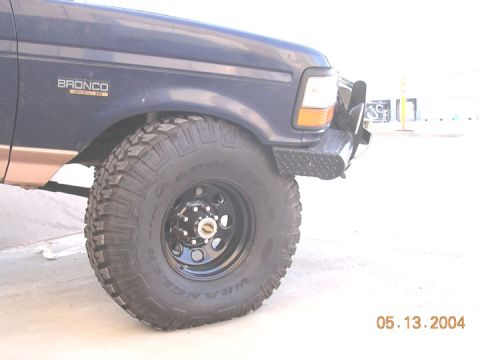

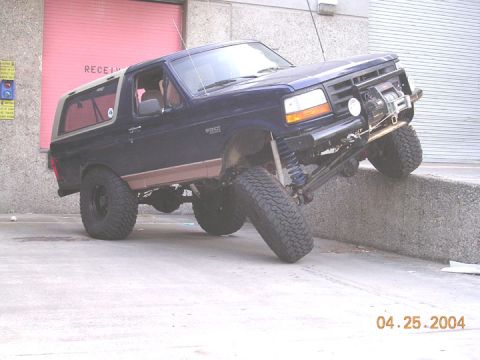

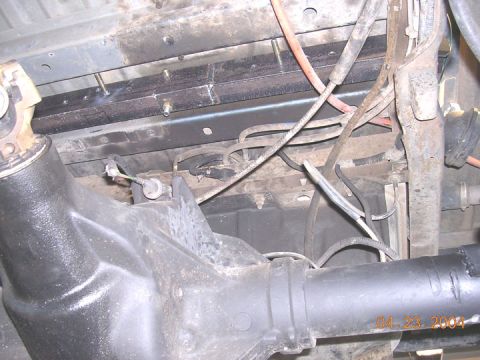

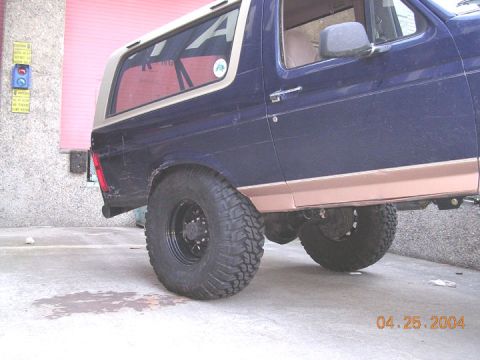

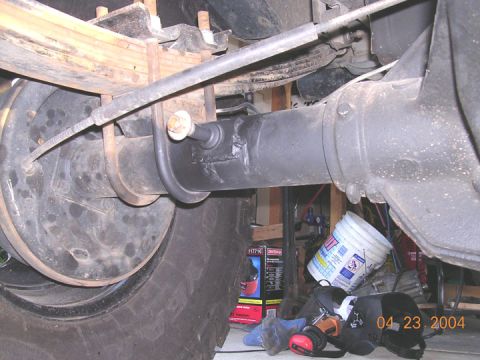

1994 Ford Bronco - after the one ton swap, i wasnt getting the rear flex i wanted, so I made these from 1.5x3 angle iron. had to make them into two pieces to… 1994 Ford Bronco - welded on a pice of angle on outside, so it only takes two .5" bolts to mount them together. Drilled several holes in case i want to move t… 1994 Ford Bronco - the top of the angle is close to the uderside of the body, thats why its in two pieces. Has to be bolted together once they are slid in fro… 1994 Ford Bronco - one of these pieces welded on either side to mount the bracket. I am still working on my welding ability, so you just get to see where I sp… 1994 Ford Bronco - these are the front shock mounts from a ttb that were cut and booger welded on (best I could do vertical) for the lower mounts. Supposedly… 1994 Ford Bronco - this is mounted up in there, painted, and flexed as in the following pics. the stuffed tire is hitting the body, so i will have to bumpstop… 1994 Ford Bronco - best flex i could find when i finished the work. All tires are firmly on the ground, but without unpinning the wristed arm, the drivers sid… 1994 Ford Bronco - the 40 is fully stuffed, and hitting the inside fender well. it clears perfectly around the fender as it stuffs tho, which is nice after th… 1994 Ford Bronco - again, all tires firmly on the ground and no where near lift. the front tire is about 36" off the ground, but the rears are ramped down, so… 1994 Ford Bronco - I reworked the front shocks while doing the dual batts and exhaust. the front is no where near coming off the ground, but There was no more… 1994 Ford Bronco - since I put the heims in, I still need to adjust it some, as this tire is hitting a lot on the bumper, even after the trimming I did. So I… 1994 Ford Bronco - same shot, further back 1994 Ford Bronco - thought I would get more flex, but it seems there is another bind instead of the shocks. Its the damn shackles/hangars. 1994 Ford Bronco - Guess Ill have to rework that now. 1994 Ford Bronco - about 4 inches off the ground, but hard to tell
