dual batts

From 1994 Ford Bronco “Plug Ugly” — documented by Damon Haas.

9 photos
← Back to this vehicle

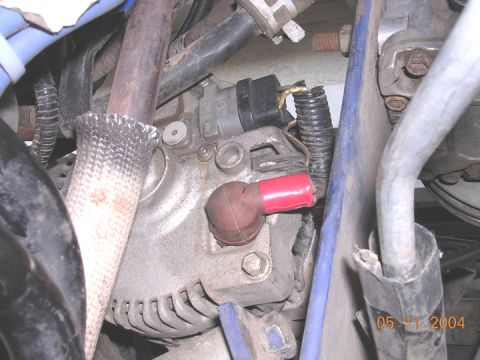

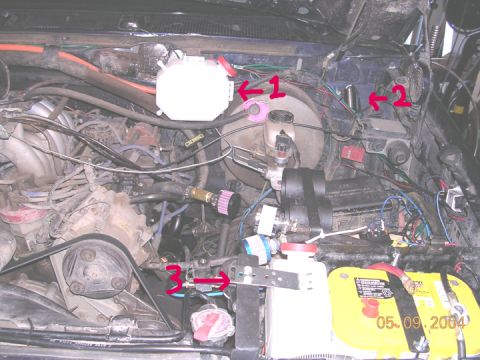

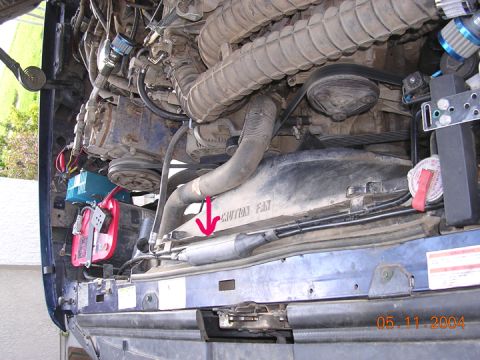

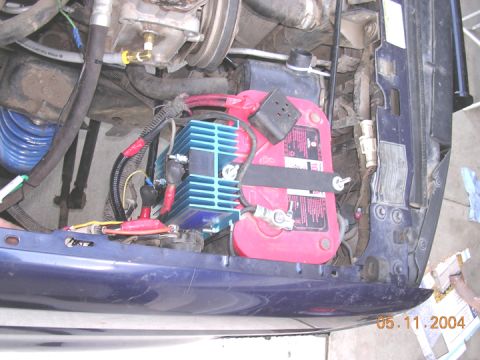

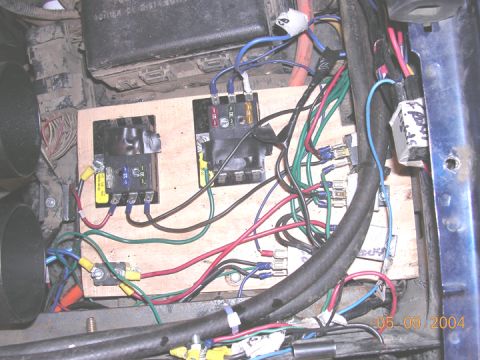

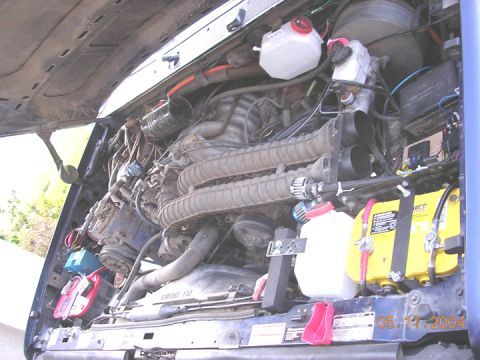

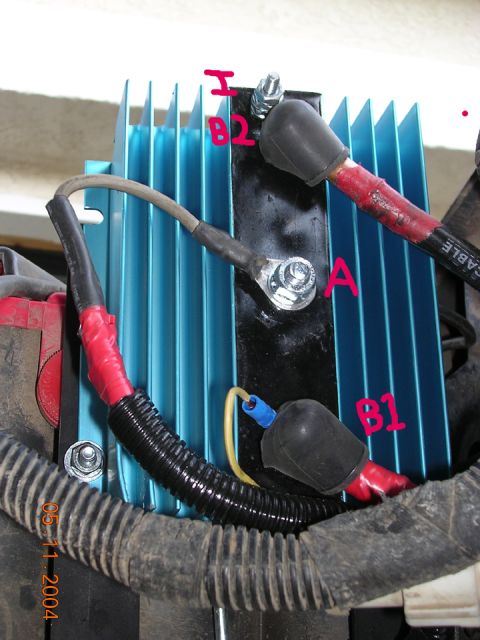

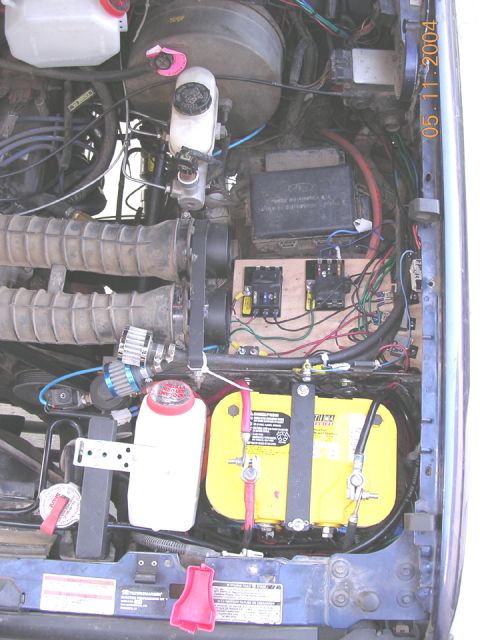

1994 Ford Bronco - back of 3G alt with two plugs/ The yellow(the A wire) fuses with the B+, the white/black is the S loop, and the green/red is the ignition w… 1994 Ford Bronco - this is a dual battery tray from a diesel F250 that goes where the stock bronco washer/coolant resevoir is. Totally bolt in, and the same a… 1994 Ford Bronco - while wiring the dual batts, i figured I would rewire all accesories to one place that had accumulated over several years. Still not the cl… 1994 Ford Bronco - wiring the iso right was hard. I used a cheapo iso from Pep boys (made by NOCO) and got cheapo tech help from them. A quick call to Wrangle… 1994 Ford Bronco - fab'd a bracket for the iso behind the stock batt location 1994 Ford Bronco - this is the location of the 150 amp fuse between the iso and the auxilliary battery. It is inside a piece of 1.5" PVC pipe, thats covered w… 1994 Ford Bronco - auxilliary battery with new coolant reservoir and fuse panel thing 1994 Ford Bronco - washer reservoir(#1), new universal pump wired to existing pump wiring (#2) and new coolant reservoir(#3) 1994 Ford Bronco - whole engine compartment with dual batts and new reservoirs, etc.
