Hydraulic Assist steering

From 1994 Ford Bronco “Plug Ugly” — documented by Damon Haas.

7 photos
← Back to this vehicle

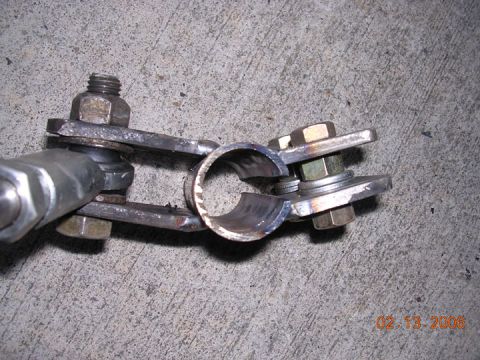

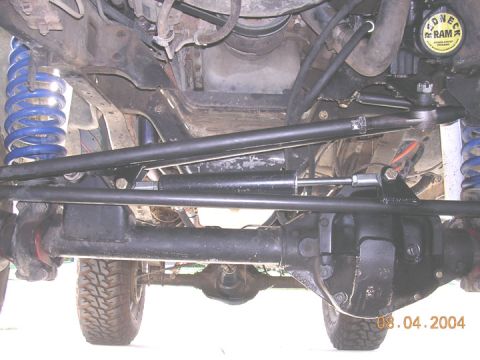

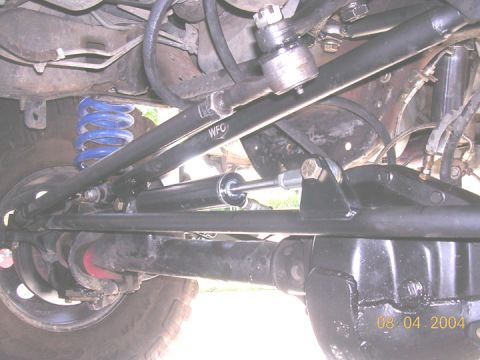

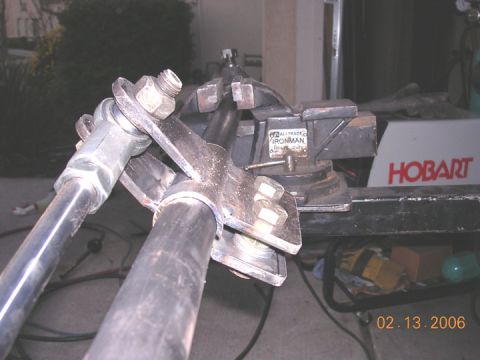

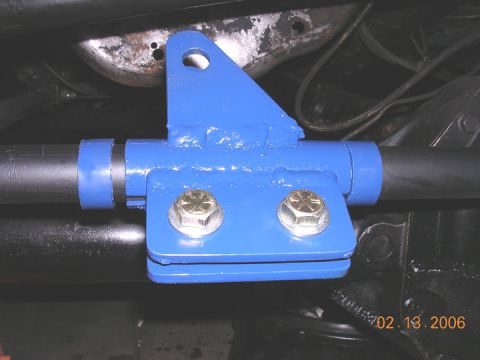

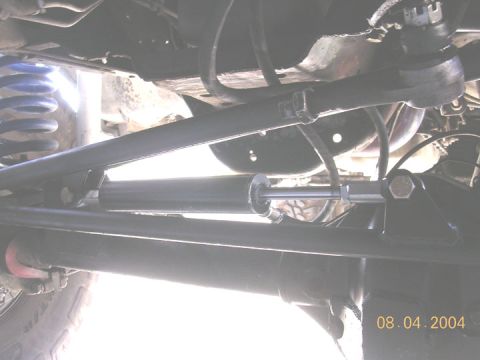

1994 Ford Bronco - Undercarriage view of a 1994 Ford Bronco, focusing on the steering and suspension system. 1994 Ford Bronco - Close-up of steering components and suspension, with a date stamp of 08.04.2004 visible. 1994 Ford Bronco - Underside view of a vehicle's steering system components, including tie rods and a steering stabilizer. 1994 Ford Bronco - Metal linkage assembly clamped in a vise, with a HOBART welder visible in the background. The date stamp indicates 02.13.2006. 1994 Ford Bronco - A close-up view of a custom-fabricated steering linkage component, secured with bolts and nuts. 1994 Ford Bronco - this allows me to set toe without removing the tie rod rom the knuckles. 1994 Ford Bronco - Aluminum heat sink measured with a tape measure on a concrete surface.
