Album section

storage/shelf

From 1994 Ford Bronco “Plug Ugly” — documented by Damon Haas.

18 photos
← Back to this vehicle

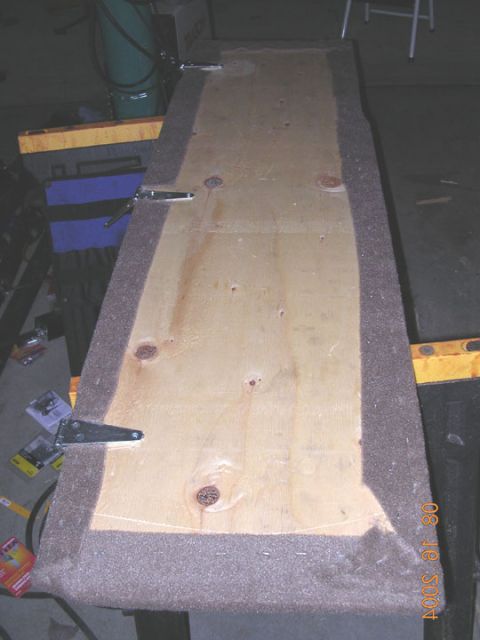

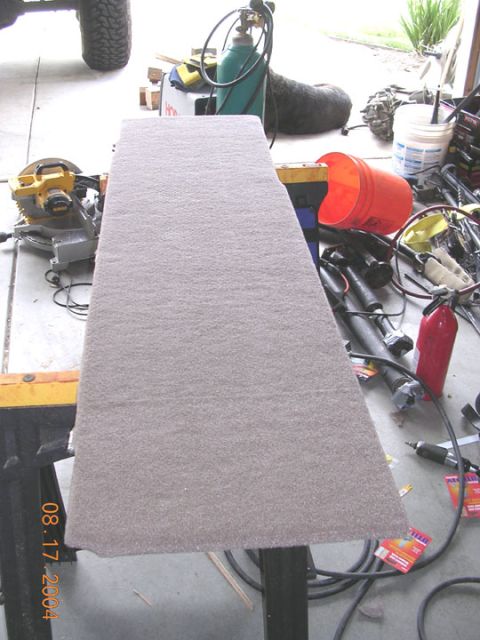

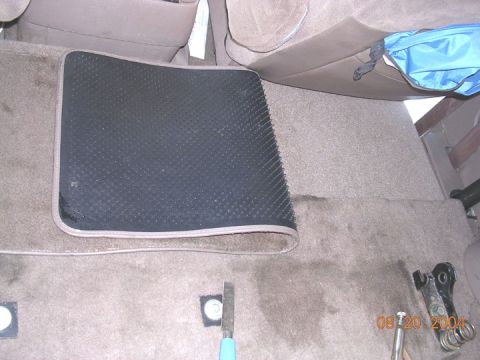

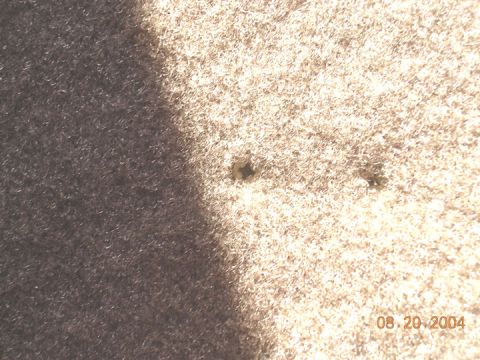

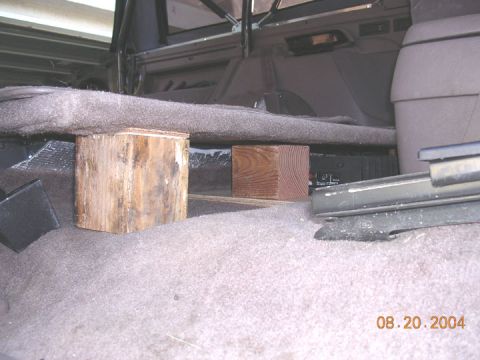

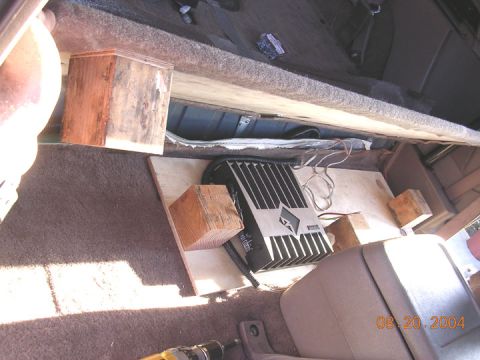

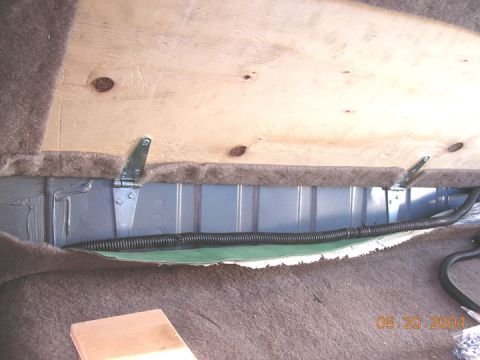

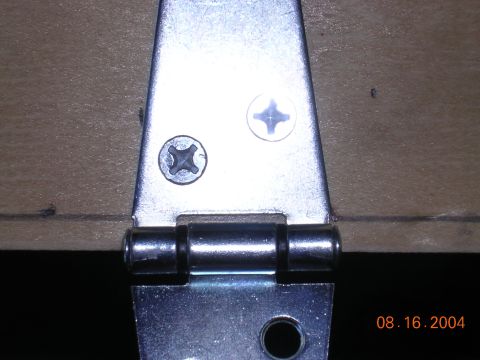

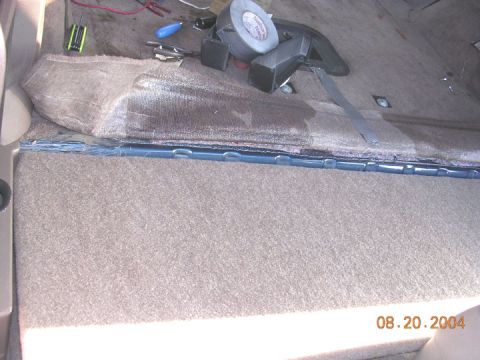

1994 Ford Bronco - I cut some 3/8 plywood to fit between the back of the front seats and little ledge in front of the back seat. i then added 3 hinges, and ca… 1994 Ford Bronco - i learned the hard way that the hing needs to be right on the edge to allow the shelf to fold up. It still has some clearance probs, but th… 1994 Ford Bronco - top of the shelf carpeted. i had to clearance the shelf a little more on the drivers side. 1994 Ford Bronco - I took some time and made sure that the hinges, when mounted, would leave the shlef as level with the rear floor board as possible, to "fak… 1994 Ford Bronco - this is the amount of gap I required, and it could actually be made a little larger or the joint moved up some for better access. As it is,… 1994 Ford Bronco - I made a deck, that will hold both amps (when I am done) on one side, and secured the shelf supports to the deck. the deck is secured to th… 1994 Ford Bronco - the screws holding the support are barely noticeable with the carpeting 1994 Ford Bronco - should be enough clearance to keep the amps and inverter (once installed) cool. 1994 Ford Bronco - The shelf in, with the rear carpeting on top of the seam, instead of down the ledge, and the carpeted fllor mat I have. You can barely tell… 1994 Ford Bronco - Full shelf without the sub. Should fake out would be's 1994 Ford Bronco - I was going to use this sub box, but its a little big, so i will have to find/make a smaller one. 1994 Ford Bronco - I was also going to cut section from the tape towards the back, and then use carpeted wood in its place. there was going to be a drop down… 1994 Ford Bronco - I welded some angle iron on to my swing away to mount some axleshafts etc. 1994 Ford Bronco - these are mounts I sourced through work. Lots of fire depts use these to mount assorted tools. 1994 Ford Bronco - They can hold axle shafts, my 8 pound sledge, and hi lifts with ease. Im assured that sun and weather will not harm them anymore than they… 1994 Ford Bronco - Here is how my tire carrier looks. the old 5 on 5.5 tire carrier has been changed to 8 on 6.5, and now carriers my spare spindle and hub, a… 1994 Ford Bronco - A cardboard box is placed inside a vehicle's interior, supported by wooden blocks and marked with red numbers. 1994 Ford Bronco - Cardboard box sits on the rear seat of a 1994 Ford Bronco. The interior shows the seats and dashboard.
